Powertrain Control Module (PCM): Removal

  1. NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.
    NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the PMI routine. Refer to: Module Programming

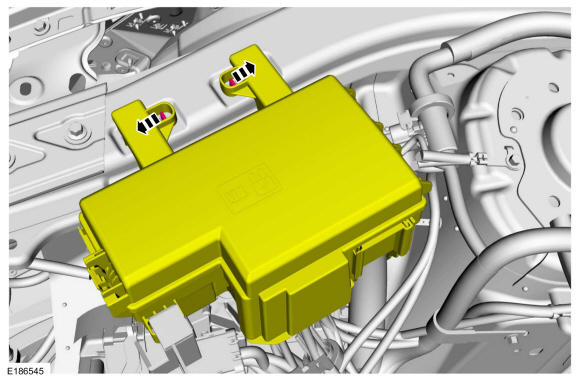

  2. Unclip and position aside the BJB.
    GFD718066Courtesy of FORD MOTOR COMPANY

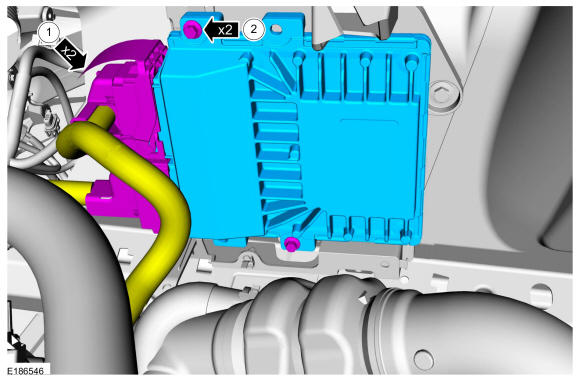

    1. Disconnect the PCM electrical connectors.
    2. Remove the retainers and the PCM.
GFD718067Courtesy of FORD MOTOR COMPANY
