Electronic Engine Controls - 5.0L

Fig 1: Electronic Engine Controls Wiring Diagram - 5.0L (1 Of 25)

GFDWR187544

Courtesy of FORD MOTOR COMPANY

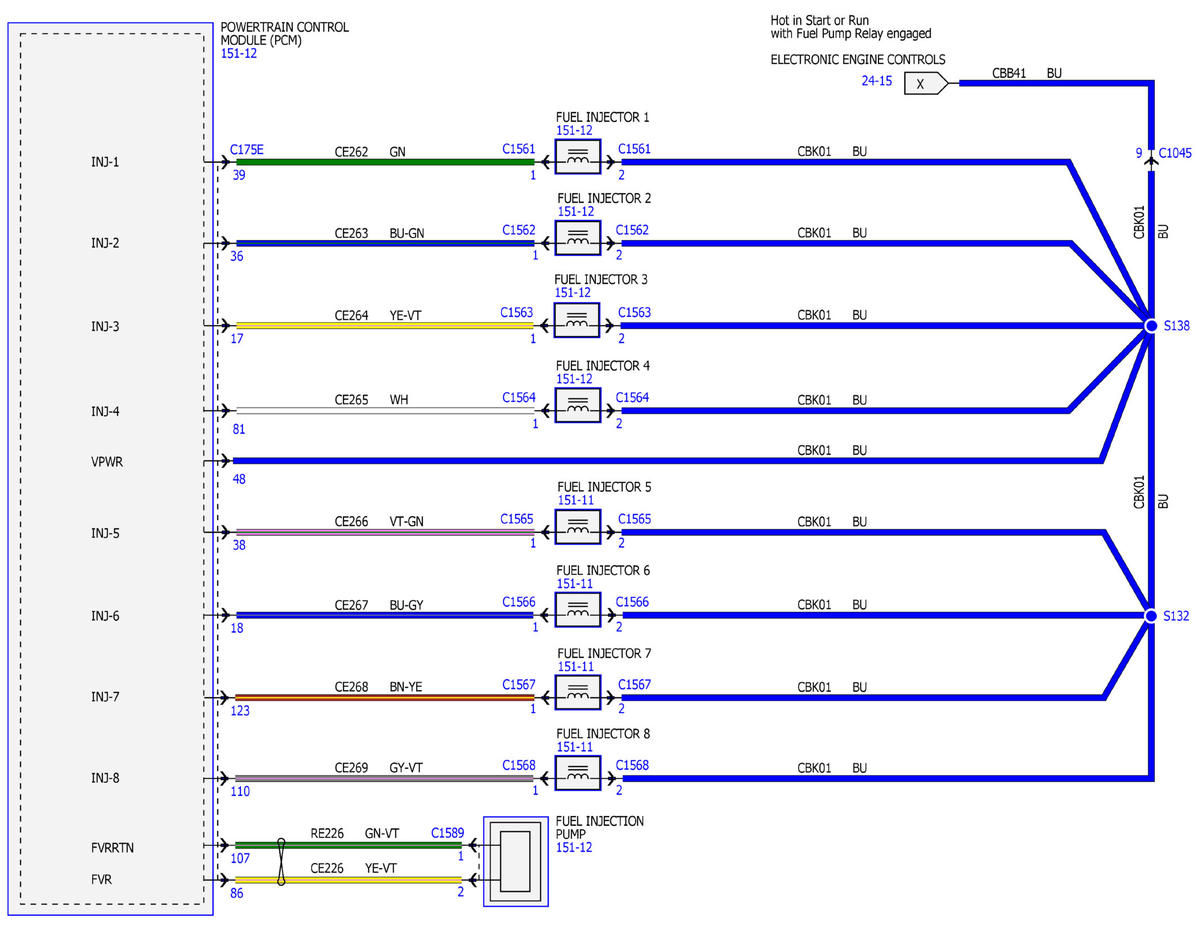

Fig 2: Electronic Engine Controls Wiring Diagram - 5.0L (2 Of 25)

GFDWR187555

Courtesy of FORD MOTOR COMPANY

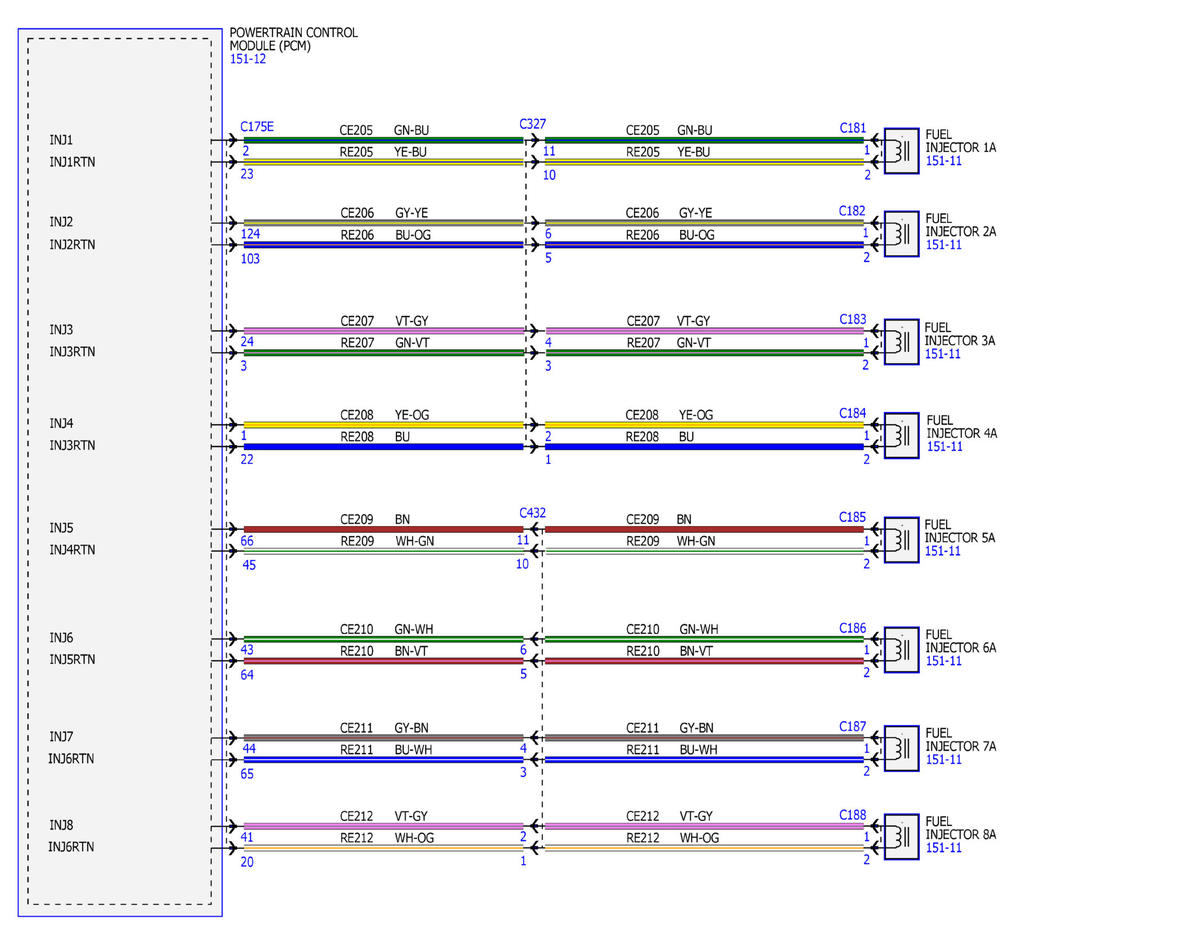

Fig 3: Electronic Engine Controls Wiring Diagram - 5.0L (3 Of 25)

GFDWR187562

Courtesy of FORD MOTOR COMPANY

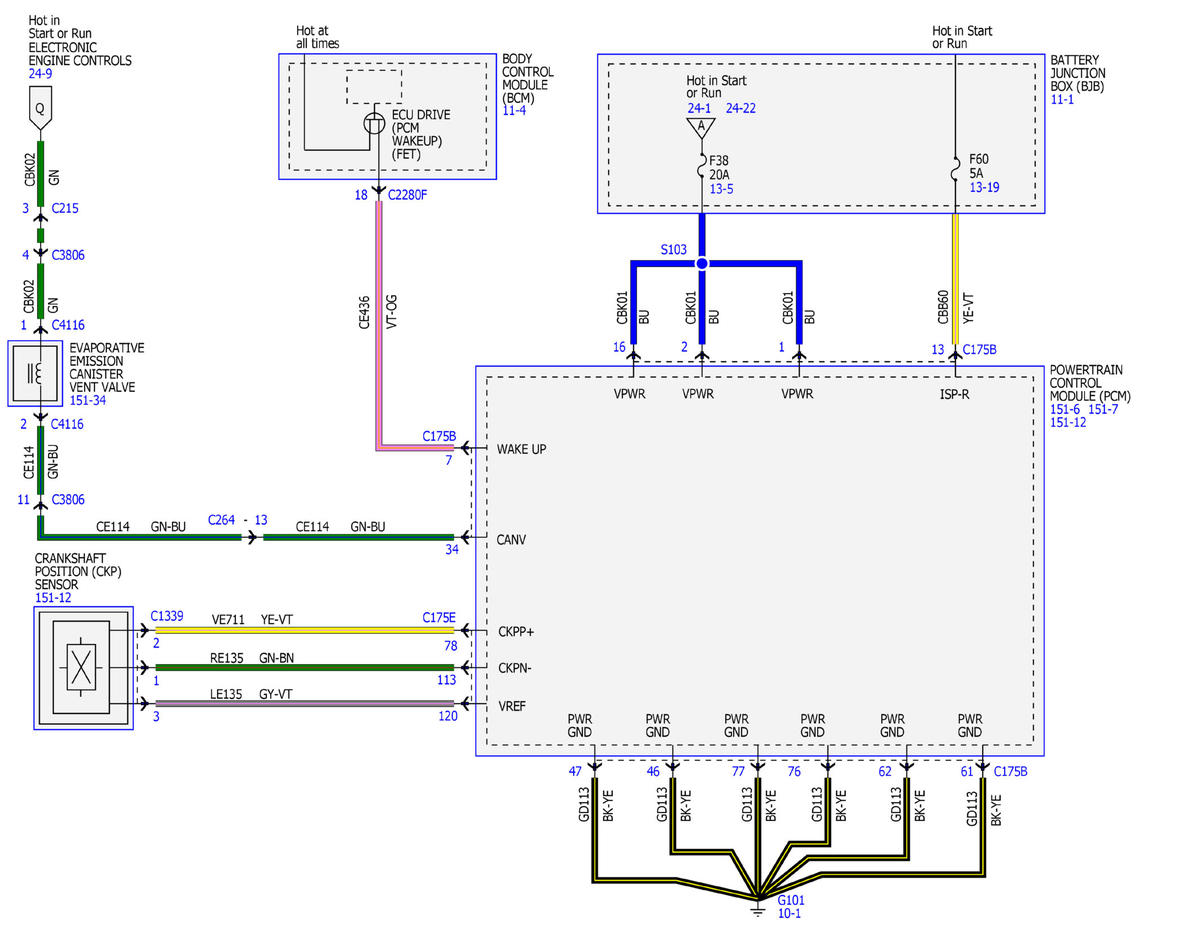

Fig 4: Electronic Engine Controls Wiring Diagram - 5.0L (4 Of 25)

GFDWR187563

Courtesy of FORD MOTOR COMPANY

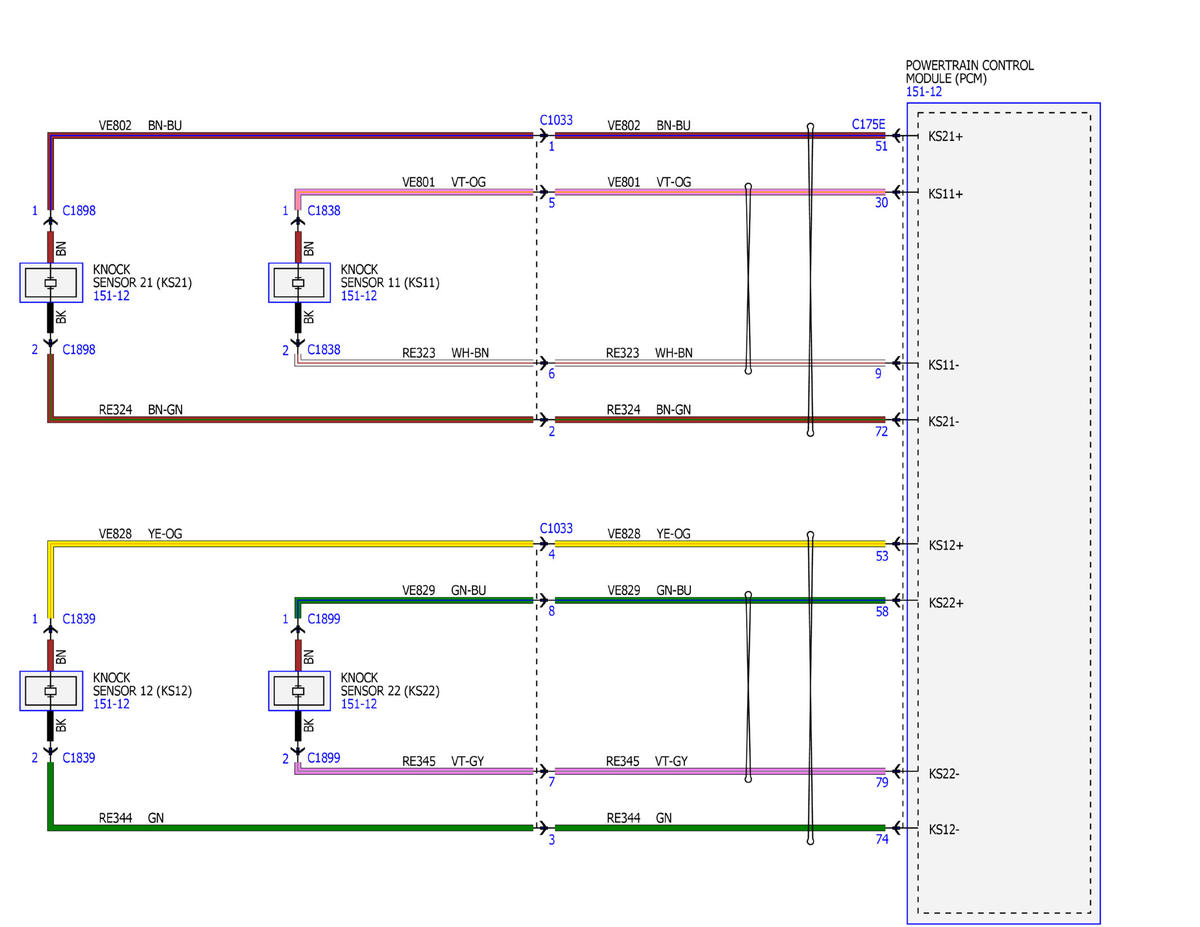

Fig 5: Electronic Engine Controls Wiring Diagram - 5.0L (5 Of 25)

GFDWR187564

Courtesy of FORD MOTOR COMPANY

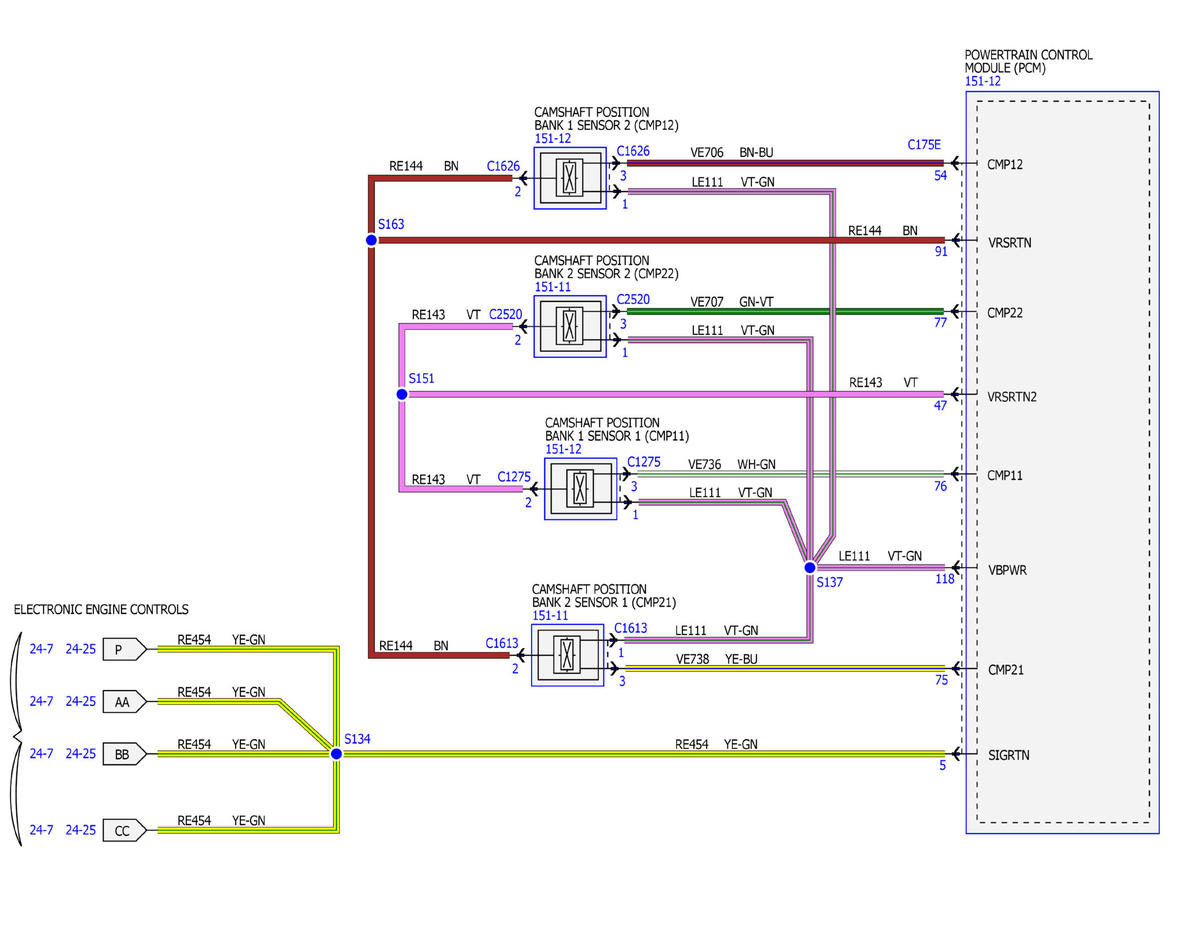

Fig 6: Electronic Engine Controls Wiring Diagram - 5.0L (6 Of 25)

GFDWR187565

Courtesy of FORD MOTOR COMPANY

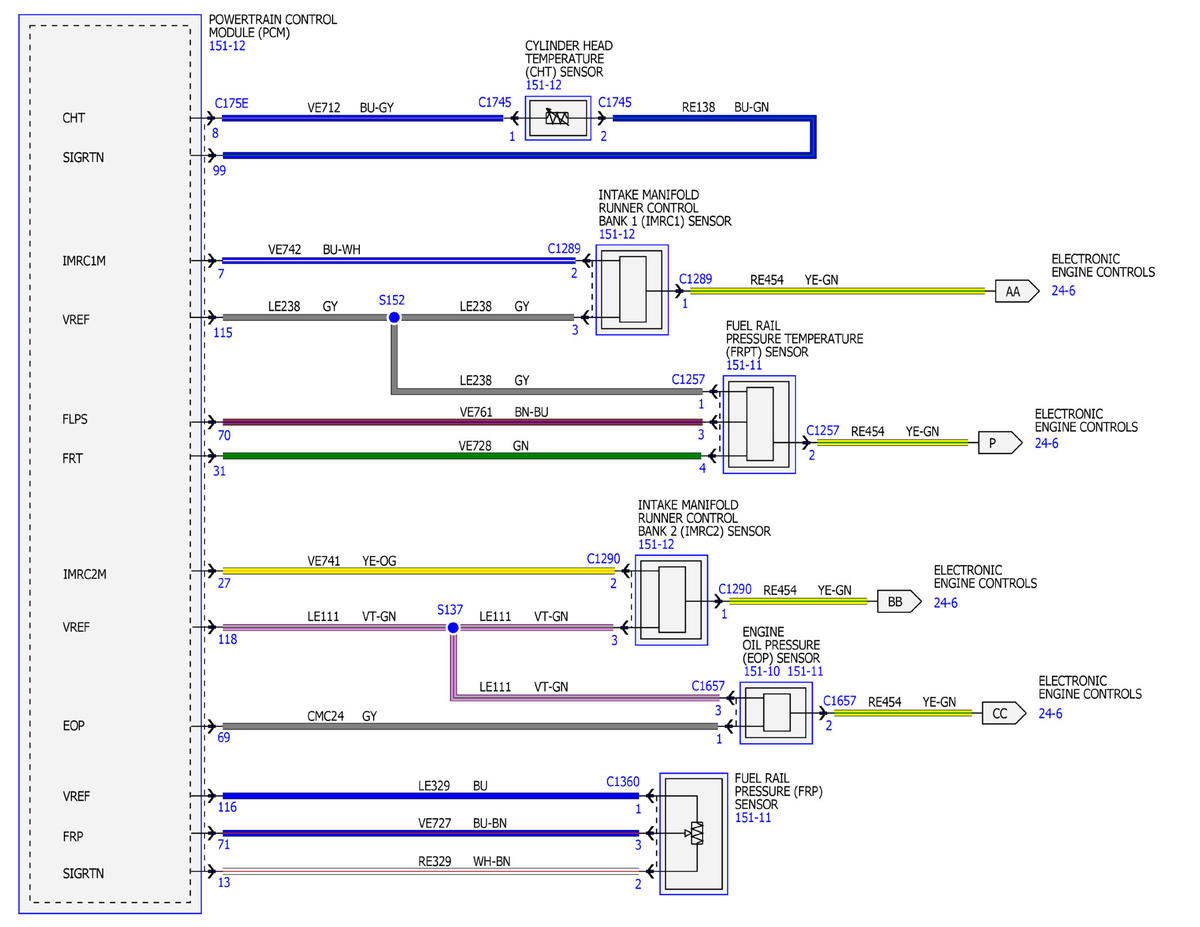

Fig 7: Electronic Engine Controls Wiring Diagram - 5.0L (7 Of 25)

GFDWR187566

Courtesy of FORD MOTOR COMPANY

Fig 8: Electronic Engine Controls Wiring Diagram - 5.0L (8 Of 25)

GFDWR187567

Courtesy of FORD MOTOR COMPANY

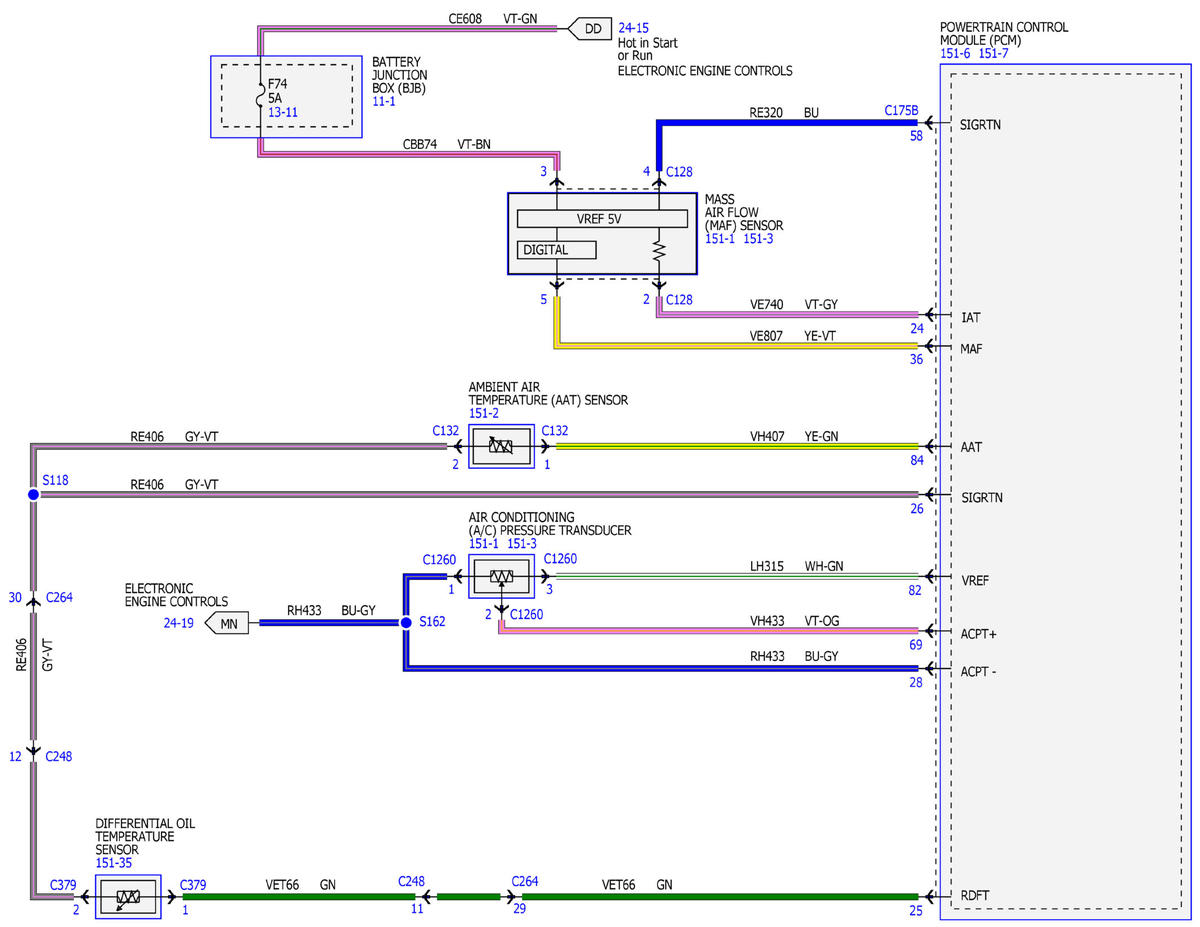

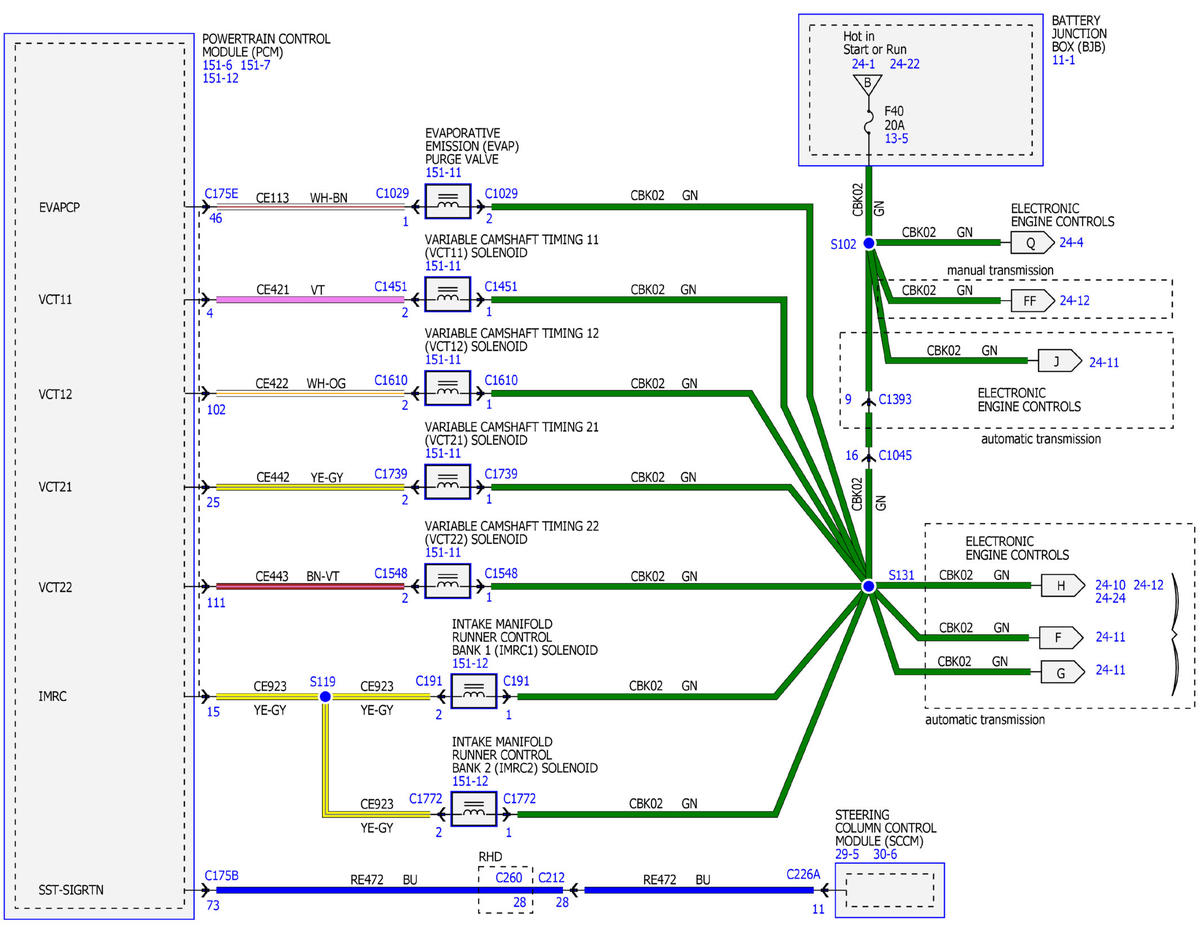

Fig 9: Electronic Engine Controls Wiring Diagram - 5.0L (9 Of 25)

GFDWR187568

Courtesy of FORD MOTOR COMPANY

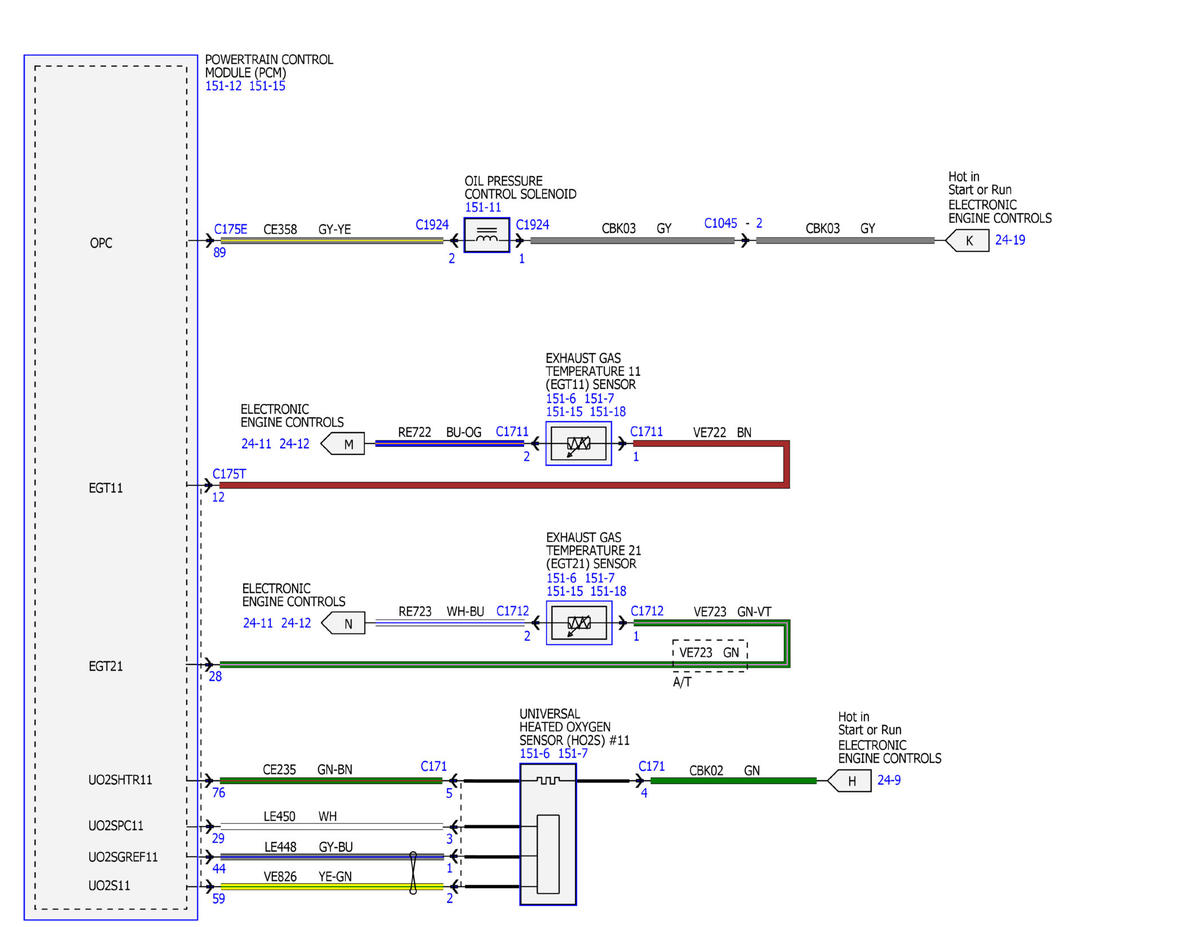

Fig 10: Electronic Engine Controls Wiring Diagram - 5.0L (10 Of 25)

GFDWR187545

Courtesy of FORD MOTOR COMPANY

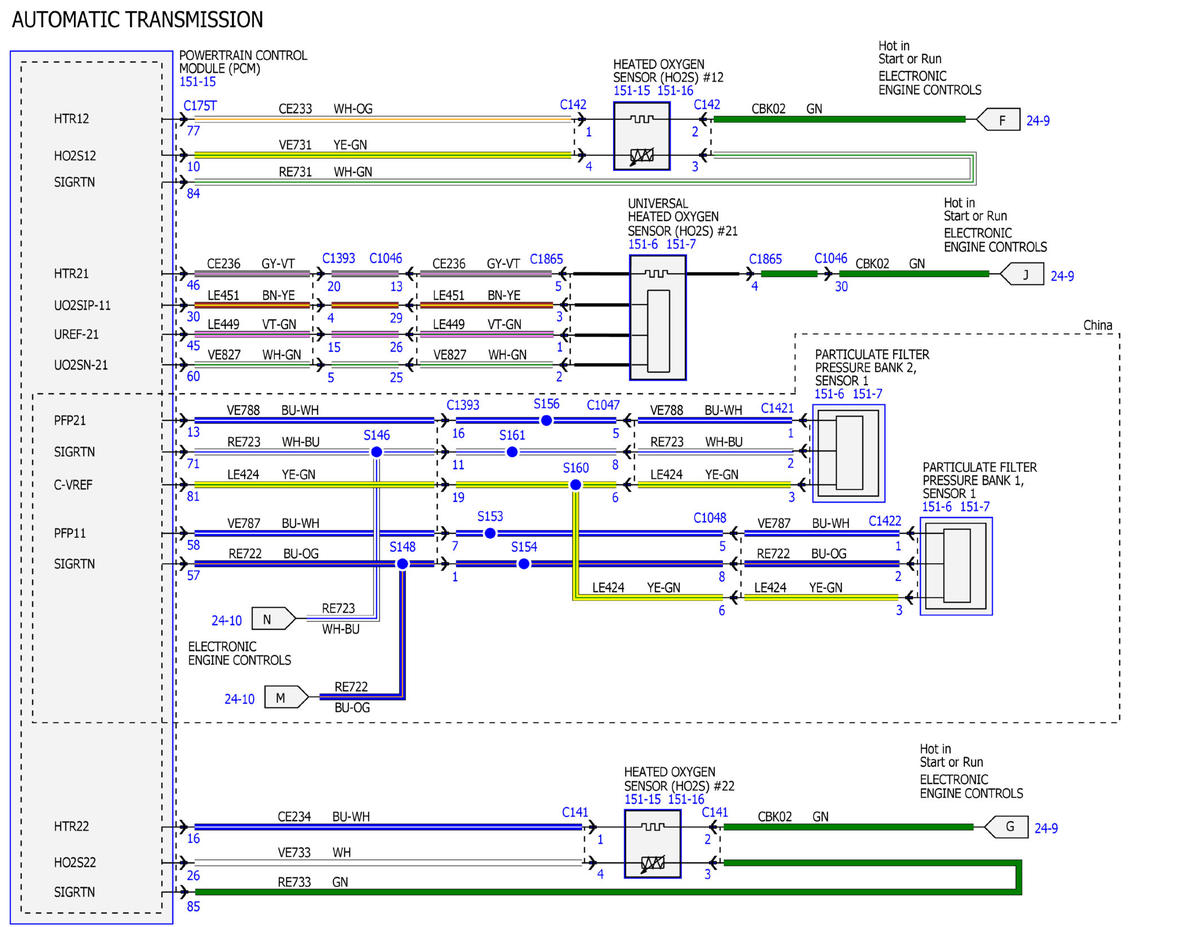

Fig 11: Electronic Engine Controls Wiring Diagram - 5.0L (11 Of 25)

GFDWR187546

Courtesy of FORD MOTOR COMPANY

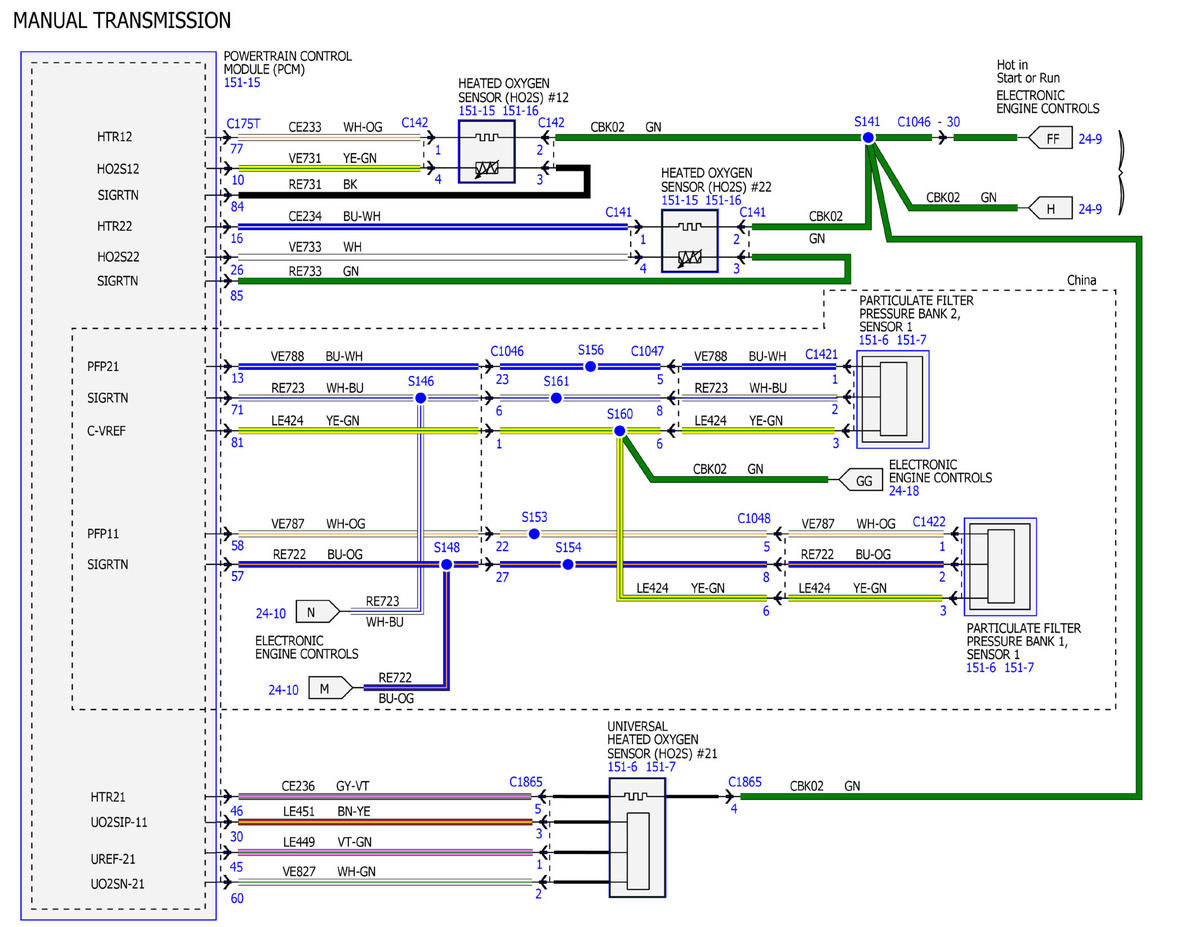

Fig 12: Electronic Engine Controls Wiring Diagram - 5.0L (12 Of 25)

GFDWR187547

Courtesy of FORD MOTOR COMPANY

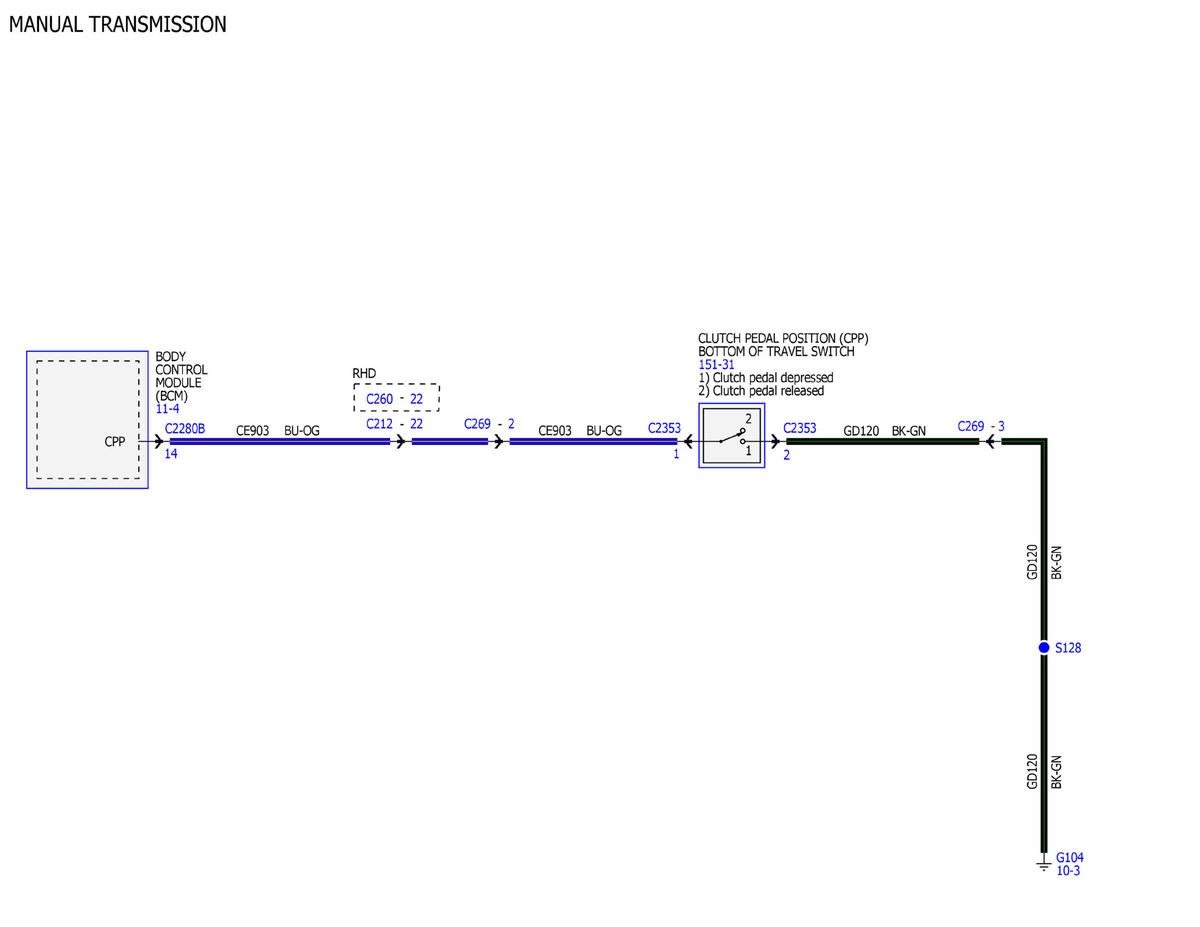

Fig 13: Electronic Engine Controls Wiring Diagram - 5.0L (13 Of 25)

GFDWR187548

Courtesy of FORD MOTOR COMPANY

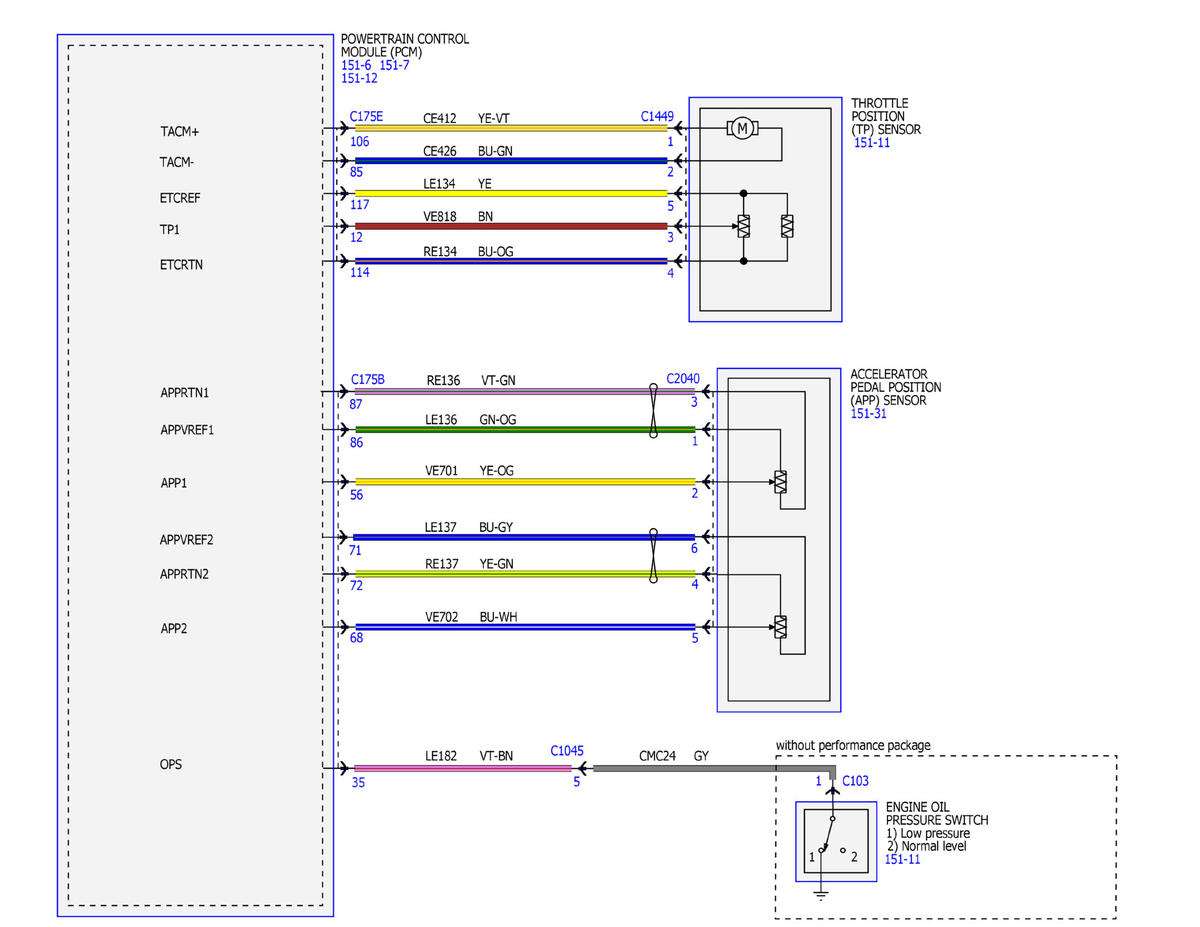

Fig 14: Electronic Engine Controls Wiring Diagram - 5.0L (14 Of 25)

GFDWR187549

Courtesy of FORD MOTOR COMPANY

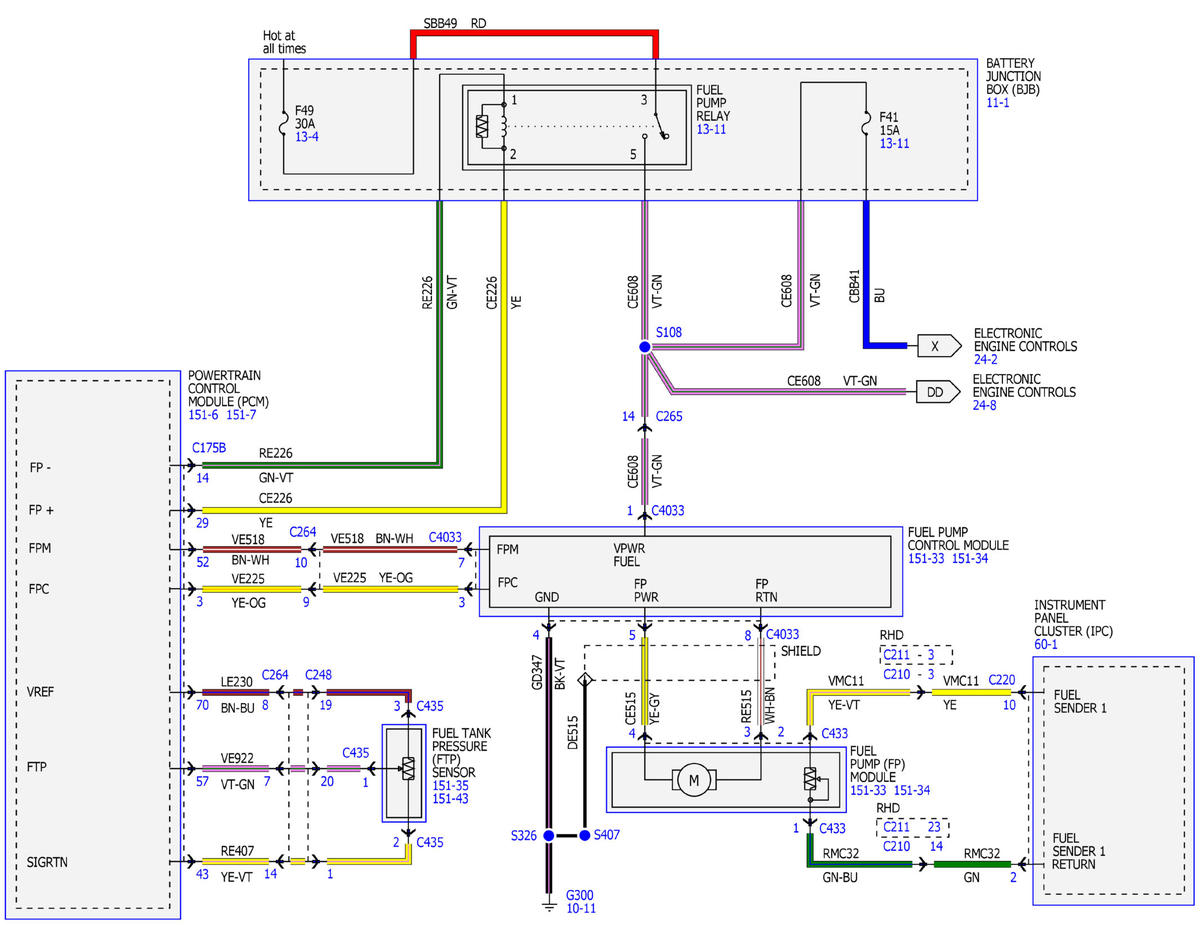

Fig 15: Electronic Engine Controls Wiring Diagram - 5.0L (15 Of 25)

GFDWR187550

Courtesy of FORD MOTOR COMPANY

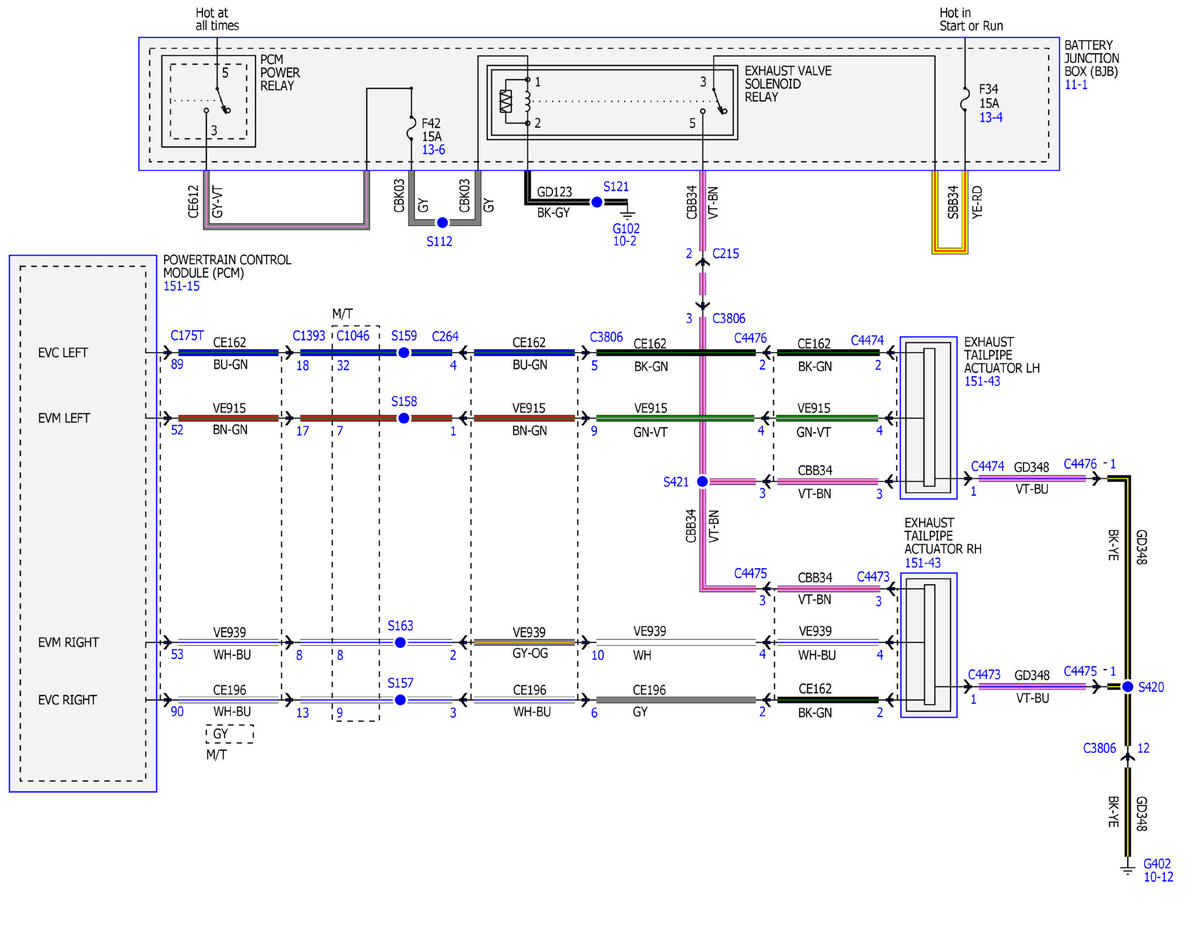

Fig 16: Electronic Engine Controls Wiring Diagram - 5.0L (16 Of 25)

GFDWR187551

Courtesy of FORD MOTOR COMPANY

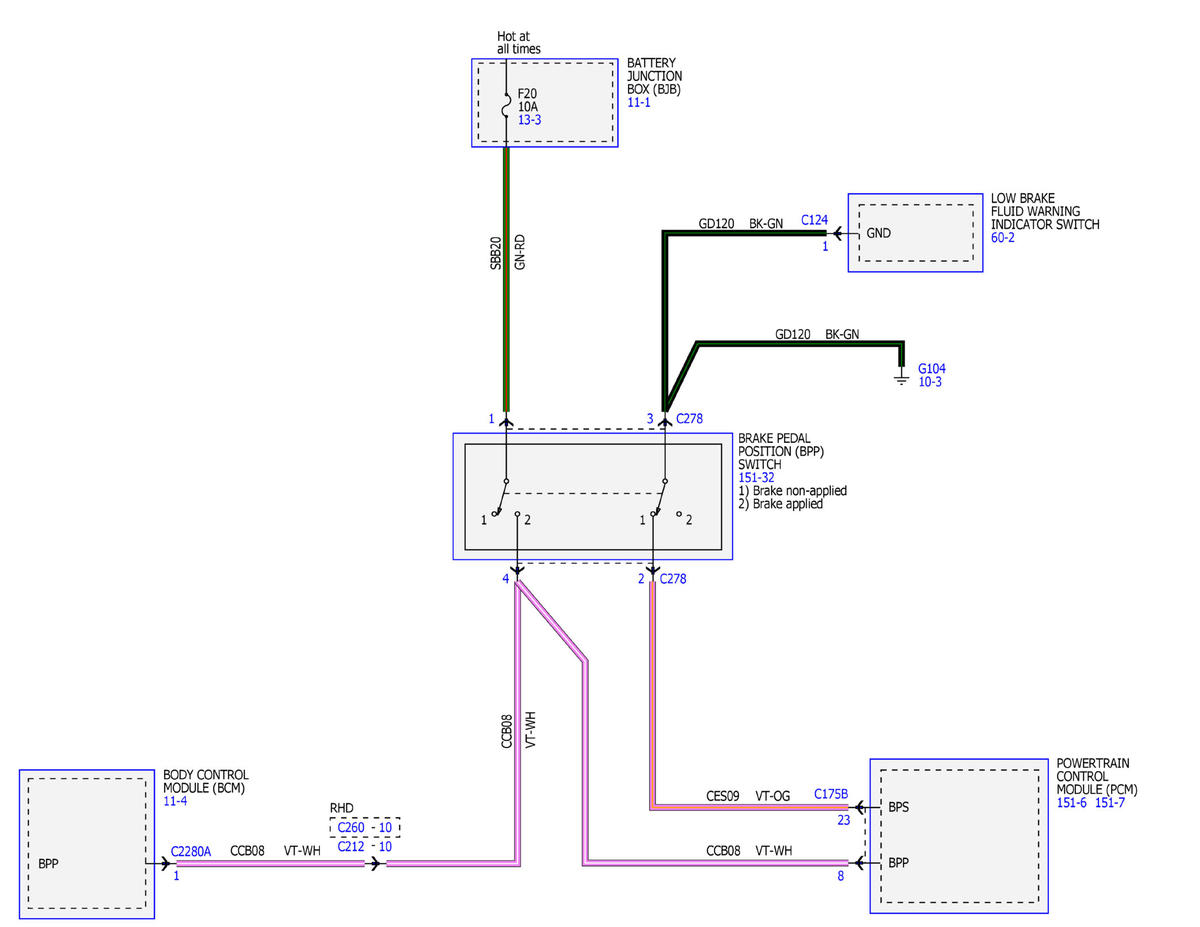

Fig 17: Electronic Engine Controls Wiring Diagram - 5.0L (17 Of 25)

GFDWR187552

Courtesy of FORD MOTOR COMPANY

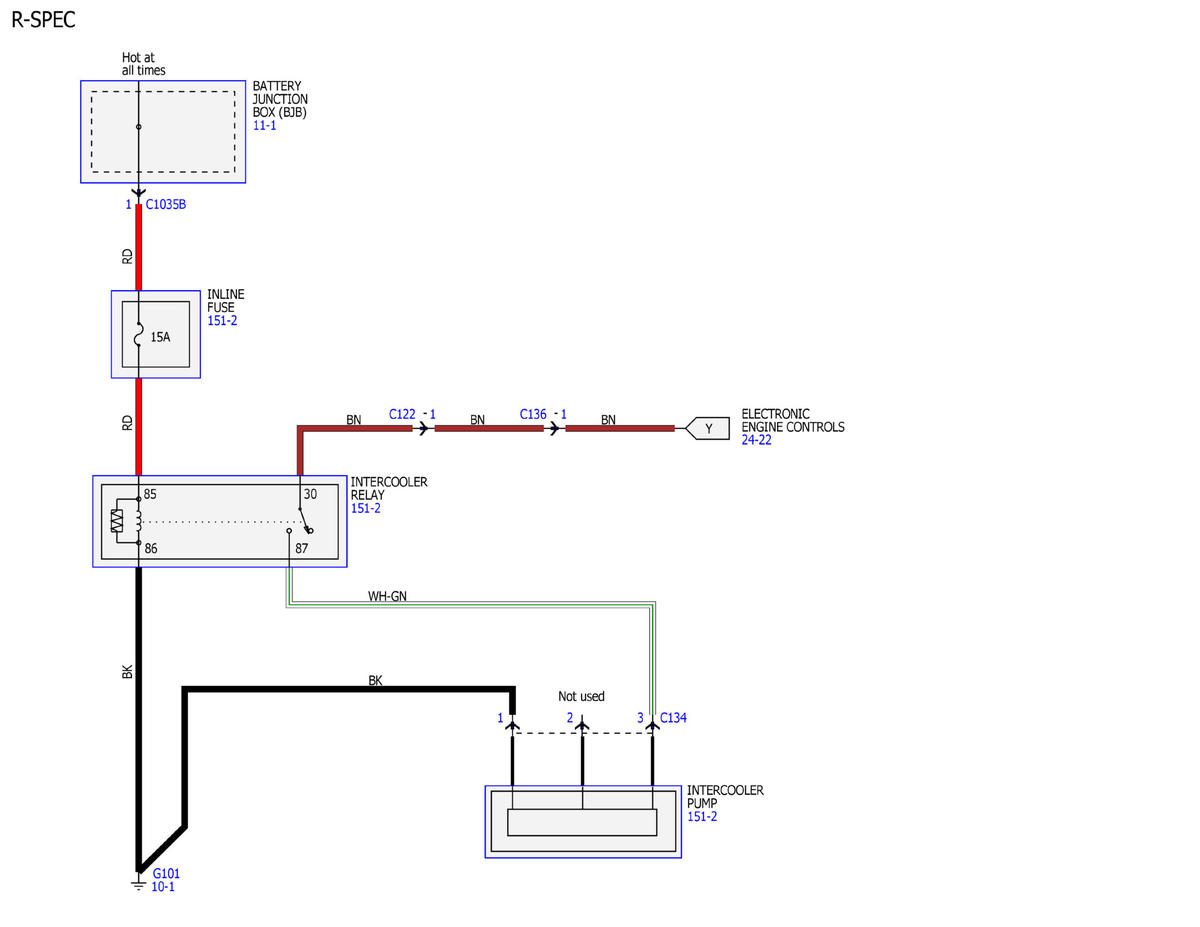

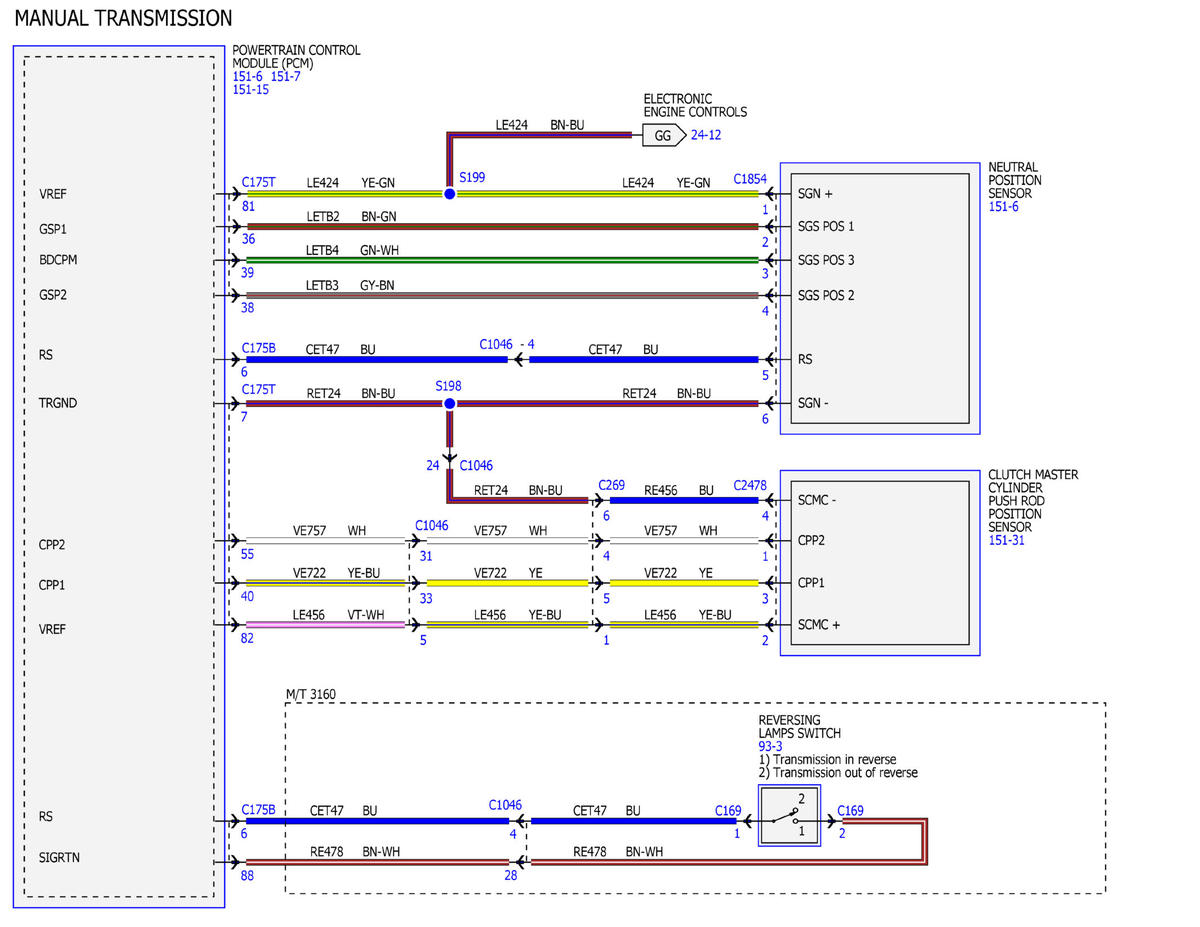

Fig 18: Electronic Engine Controls Wiring Diagram - 5.0L (18 Of 25)

GFDWR187553

Courtesy of FORD MOTOR COMPANY

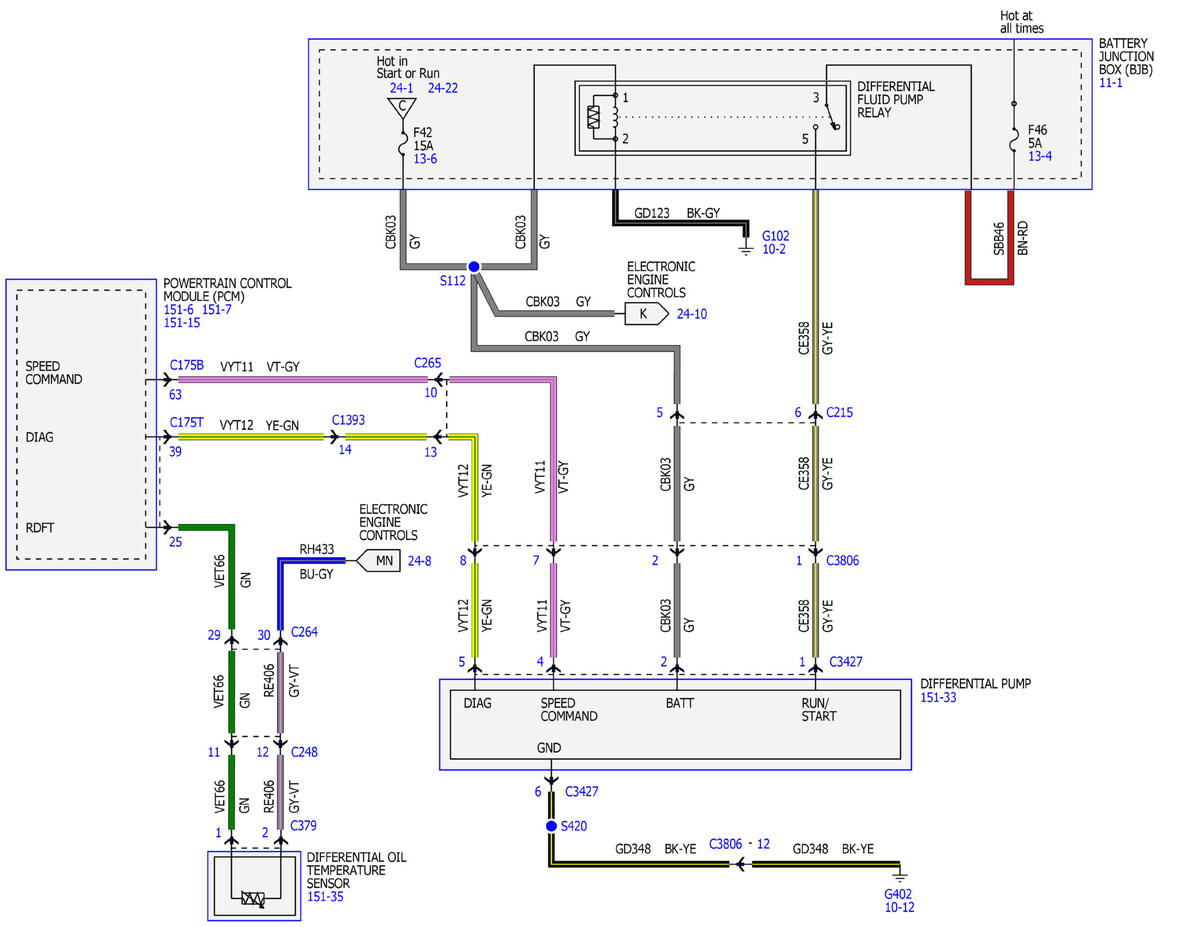

Fig 19: Electronic Engine Controls Wiring Diagram - 5.0L (19 Of 25)

GFDWR187554

Courtesy of FORD MOTOR COMPANY

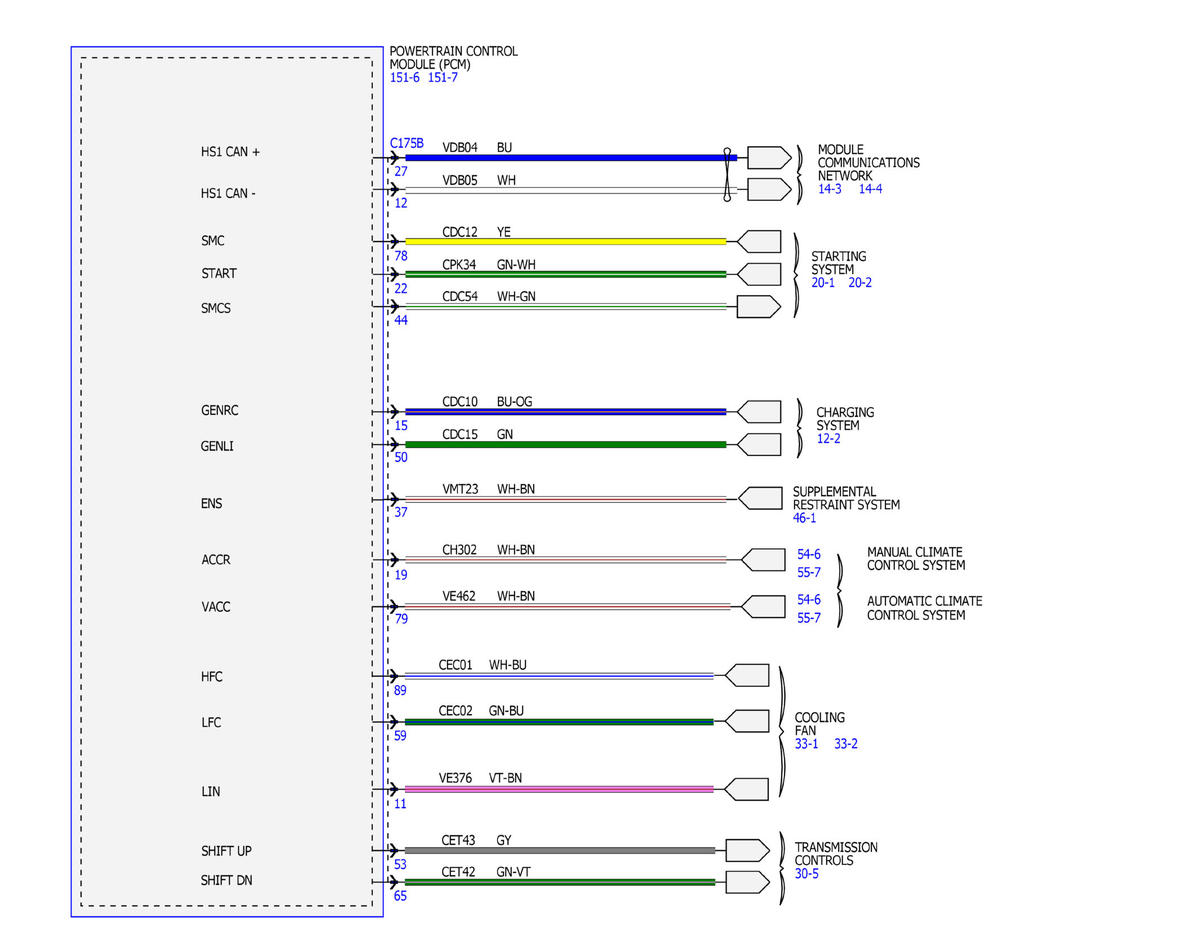

Fig 20: Electronic Engine Controls Wiring Diagram - 5.0L (20 Of 25)

GFDWR187556

Courtesy of FORD MOTOR COMPANY

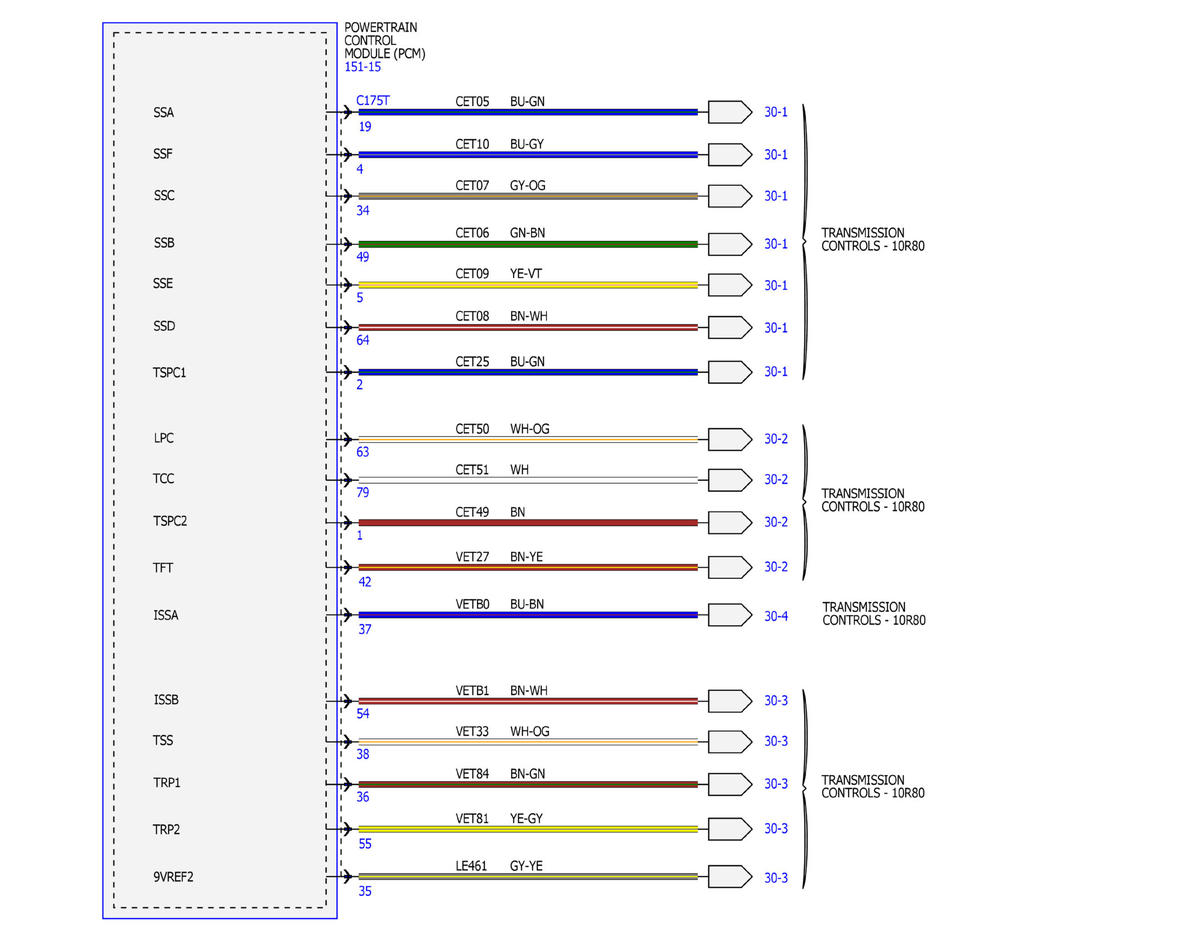

Fig 21: Electronic Engine Controls Wiring Diagram - 5.0L (21 Of 25)

GFDWR187557

Courtesy of FORD MOTOR COMPANY

Fig 22: Electronic Engine Controls Wiring Diagram - 5.0L (22 Of 25)

GFDWR187558

Courtesy of FORD MOTOR COMPANY

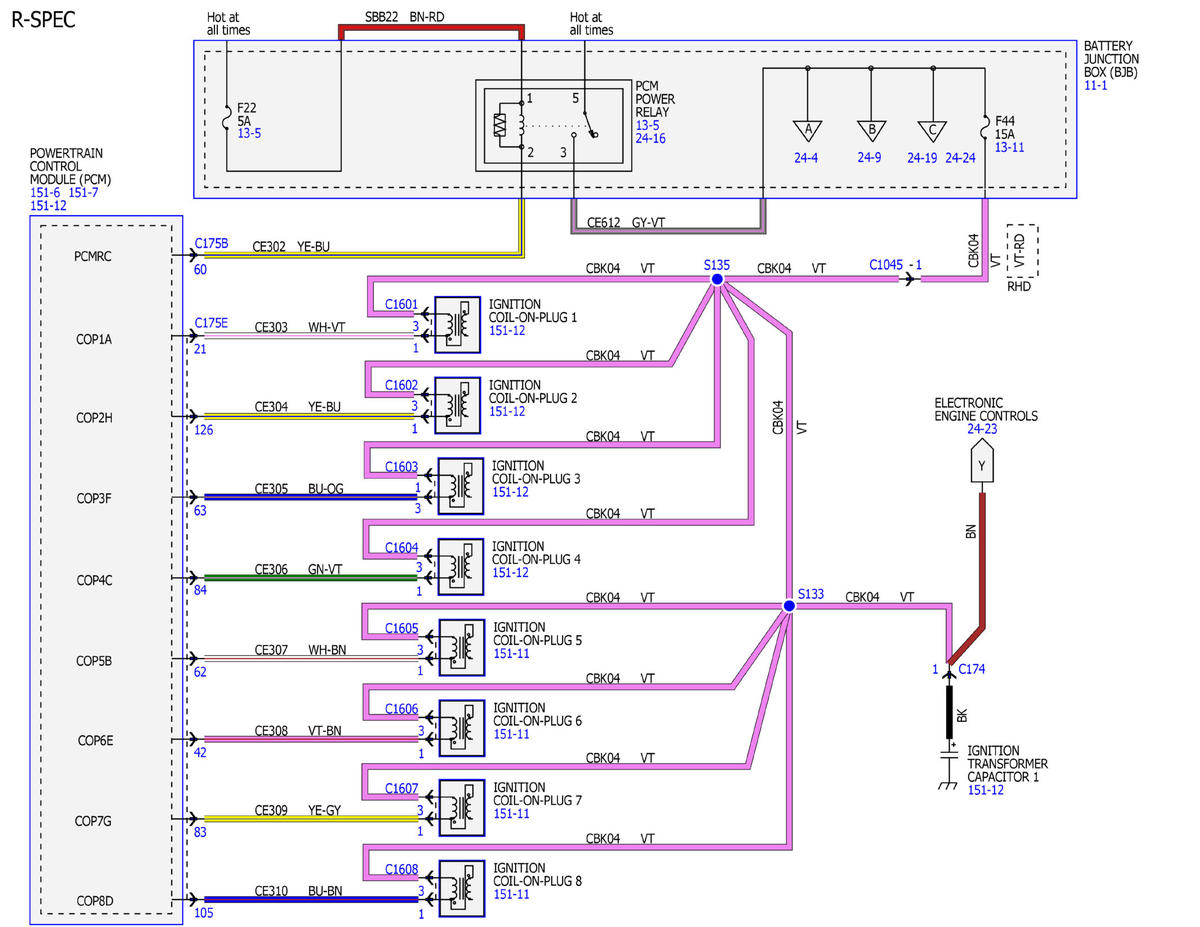

Fig 23: Electronic Engine Controls Wiring Diagram - 5.0L (23 Of 25)

GFDWR187559

Courtesy of FORD MOTOR COMPANY

Fig 24: Electronic Engine Controls Wiring Diagram - 5.0L (24 Of 25)

GFDWR187560

Courtesy of FORD MOTOR COMPANY

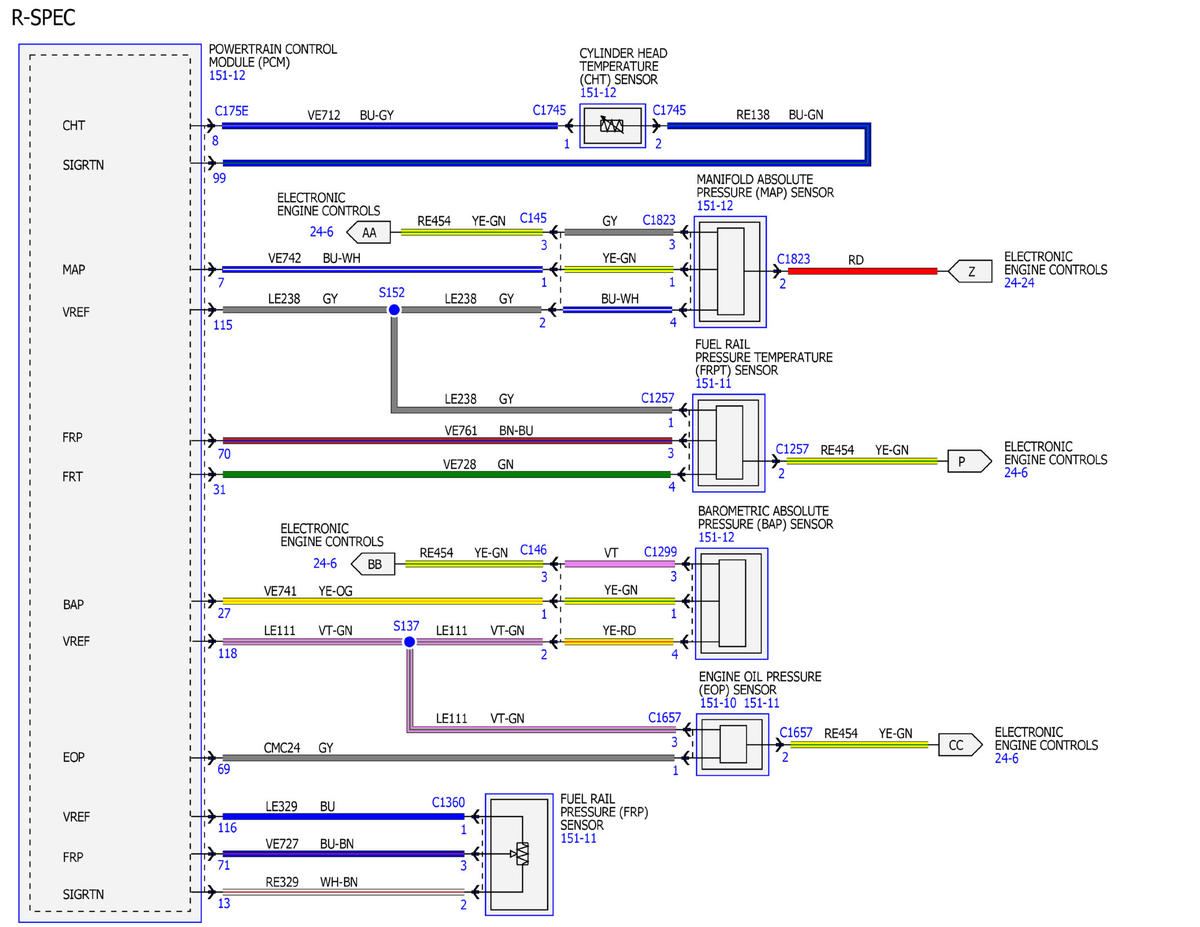

Fig 25: Electronic Engine Controls Wiring Diagram - 5.0L (25 Of 25)

GFDWR187561

Courtesy of FORD MOTOR COMPANY
