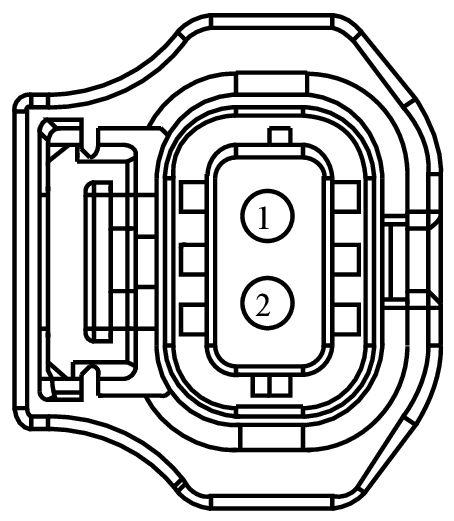

Connector End View C1924 - OIL PRESSURE CONTROL SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1924	OIL PRESSURE CONTROL SOLENOID	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	N/A
2	CE358 (GY-YE)	18	CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL	N/A

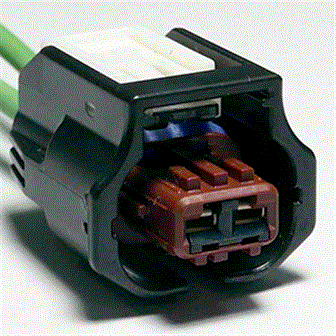

Available Pigtail Kits

Pigtail Kit Part Number WPT-1633

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-ABA

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Solenoid - Variable Oil Pump Control
