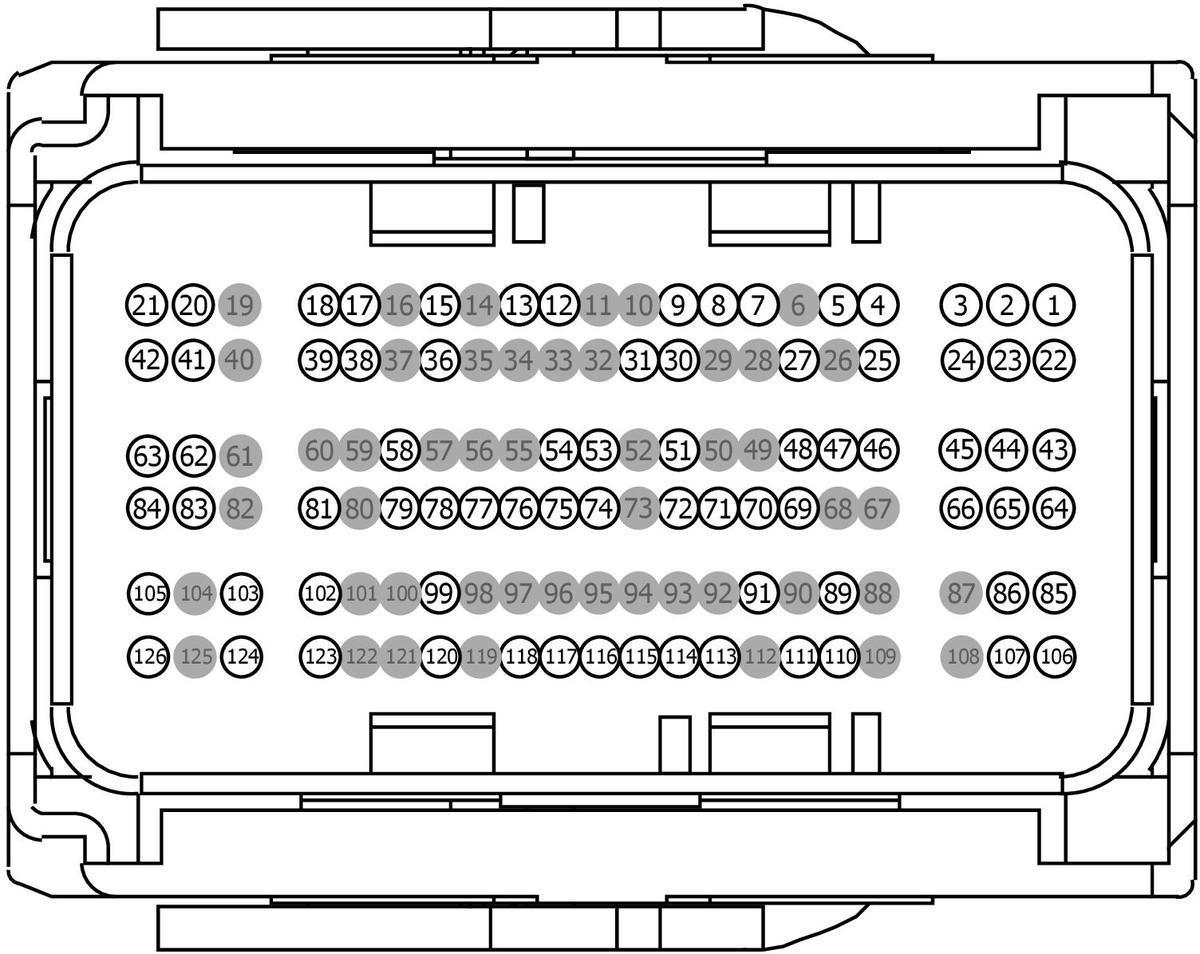

| 1 |
CE208 (YE-OG) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + |
GU5T-14474-DA |
| 2 |
CE205 (GN-BU) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + |
GU5T-14474-DA |
| 3 |
RE207 (GN-VT) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - |
GU5T-14474-DA |
| 4 |
CE421 (VT) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) |
BU5T-14474-BB |
| 5 |
RE454 (YE-GN) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
BU5T-14474-BB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
VE742 (BU-WH) |
20 |
SENSOR - INTAKE PORT DEACT VALVE POSITION |
BU5T-14474-AB |
| 8 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
BU5T-14474-AB |
| 9 |
RE323 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - |
BU5T-14474-BB |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
VE818 (BN) |
20 |
SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) |
BU5T-14474-AB |
| 13 |
RE329 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) - |
BU5T-14474-BB |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
CE923 (YE-GY) |
20 |
VALVE - INTAKE MANIFOLD TUNING # MONITOR (IMTVM) |
BU5T-14474-AB |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CE264 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 3 |
BU5T-14474-AB |
| 18 |
CE267 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 6 |
BU5T-14474-AB |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
RE212 (WH-OG) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 8 (INJ) - |
GU5T-14474-DA |
| 21 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) |
GU5T-14474-CA |
| 22 |
RE208 (BU) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - |
GU5T-14474-DA |
| 23 |
RE205 (YE-BU) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - |
GU5T-14474-DA |
| 24 |
CE207 (VT-GY) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + |
GU5T-14474-DA |
| 25 |
CE442 (YE-GY) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3 |
BU5T-14474-BB |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
VE741 (YE-OG) |
20 |
SENSOR - INTAKE MANIFOLD MONITOR |
BU5T-14474-AB |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
VE801 (VT-OG) |
18 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] |
BU5T-14474-BB |
| 31 |
VE728 (GN) |
18 |
SENSOR - FUEL RAIL TEMPERATURE (FRT) |
BU5T-14474-BB |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
CE263 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 2 |
BU5T-14474-AB |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
CE266 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 5 |
BU5T-14474-AB |
| 39 |
CE262 (GN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 1 |
BU5T-14474-AB |
| 40 |
* |
* |
Not Used |
N/A |
| 41 |
CE212 (VT-GY) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 8 (INJ) + |
GU5T-14474-DA |
| 42 |
CE308 (VT-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F) |
GU5T-14474-CA |
| 43 |
CE210 (GN-WH) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) + |
GU5T-14474-DA |
| 44 |
CE211 (GY-BN) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 7 (INJ) + |
GU5T-14474-DA |
| 45 |
RE209 (WH-GN) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) - |
GU5T-14474-DA |
| 46 |
CE113 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) |
BU5T-14474-BB |
| 47 |
RE143 (VT) |
20 |
CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 - |
BU5T-14474-AB |
| 48 |
CBK01 (BU) |
20 |
FUSE - 1 OR CIRCUIT BREAKER (VPWR F) |
BU5T-14474-AB |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
* |
* |
Not Used |
N/A |
| 51 |
VE802 (BN-BU) |
18 |
SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+] |
BU5T-14474-BB |
| 52 |
* |
* |
Not Used |
N/A |
| 53 |
VE828 (YE-OG) |
18 |
SENSOR - KNOCK 1ST BANK 2ND |
BU5T-14474-BB |
| 54 |
VE706 (BN-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + |
BU5T-14474-AB |
| 55 |
* |
* |
Not Used |
N/A |
| 56 |
* |
* |
Not Used |
N/A |
| 57 |
* |
* |
Not Used |
N/A |
| 58 |
VE829 (GN-BU) |
18 |
SENSOR - KNOCK 2ND BANK 2ND |
BU5T-14474-BB |
| 59 |
* |
* |
Not Used |
N/A |
| 60 |
* |
* |
Not Used |
N/A |
| 61 |
* |
* |
Not Used |
N/A |
| 62 |
CE307 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E) |
GU5T-14474-CA |
| 63 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) |
GU5T-14474-CA |
| 64 |
RE210 (BN-VT) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) - |
GU5T-14474-DA |
| 65 |
RE211 (BU-WH) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 7 (INJ) - |
GU5T-14474-DA |
| 66 |
CE209 (BN) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + |
GU5T-14474-DA |
| 67 |
* |
* |
Not Used |
N/A |
| 68 |
* |
* |
Not Used |
N/A |
| 69 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
BU5T-14474-BB |
| 70 |
VE761 (BN-BU) |
18 |
SENSOR - FUEL LOW PRESSURE (FLPS) |
BU5T-14474-BB |
| 71 |
VE727 (BU-BN) |
18 |
SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) |
BU5T-14474-BB |
| 72 |
RE324 (BN-GN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] |
BU5T-14474-BB |
| 73 |
* |
* |
Not Used |
N/A |
| 74 |
RE344 (GN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 2ND |
BU5T-14474-BB |
| 75 |
VE738 (YE-BU) |
18 |
SENSOR - CAMSHAFT POSITION BANK 2 EX |
BU5T-14474-BB |
| 76 |
VE736 (WH-GN) |
18 |
SENSOR - CAMSHAFT POSITION BANK 1 EX |
BU5T-14474-BB |
| 77 |
VE707 (GN-VT) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) + |
BU5T-14474-AB |
| 78 |
VE711 (YE-VT) |
18 |
SENSOR - CRANKSHAFT POSITION (CKPP) + |
BU5T-14474-BB |
| 79 |
RE345 (VT-GY) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 2ND |
BU5T-14474-BB |
| 80 |
* |
* |
Not Used |
N/A |
| 81 |
CE265 (WH) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 4 |
BU5T-14474-AB |
| 82 |
* |
* |
Not Used |
N/A |
| 83 |
CE309 (YE-GY) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 7 (COP-G) |
GU5T-14474-CA |
| 84 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) |
GU5T-14474-CA |
| 85 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
GU5T-14474-CA |
| 86 |
CE226 (YE-VT) |
16 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
GU5T-14474-DA |
| 87 |
* |
* |
Not Used |
N/A |
| 88 |
* |
* |
Not Used |
N/A |
| 89 |
CE358 (GY-YE) |
18 |
CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL |
BU5T-14474-BB |
| 90 |
* |
* |
Not Used |
N/A |
| 91 |
RE144 (BN) |
20 |
CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 - |
BU5T-14474-AB |
| 92 |
* |
* |
Not Used |
N/A |
| 93 |
* |
* |
Not Used |
N/A |
| 94 |
* |
* |
Not Used |
N/A |
| 95 |
* |
* |
Not Used |
N/A |
| 96 |
* |
* |
Not Used |
N/A |
| 97 |
* |
* |
Not Used |
N/A |
| 98 |
* |
* |
Not Used |
N/A |
| 99 |
RE138 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR |
BU5T-14474-AB |
| 100 |
* |
* |
Not Used |
N/A |
| 101 |
* |
* |
Not Used |
N/A |
| 102 |
CE422 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) |
BU5T-14474-BB |
| 103 |
RE206 (BU-OG) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - |
GU5T-14474-DA |
| 104 |
* |
* |
Not Used |
N/A |
| 105 |
CE310 (BU-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 8 (COP-H) |
GU5T-14474-CA |
| 106 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
GU5T-14474-CA |
| 107 |
RE226 (GN-VT) |
16 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
GU5T-14474-DA |
| 108 |
* |
* |
Not Used |
N/A |
| 109 |
* |
* |
Not Used |
N/A |
| 110 |
CE269 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 8 |
BU5T-14474-AB |
| 111 |
CE443 (BN-VT) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 |
BU5T-14474-BB |
| 112 |
* |
* |
Not Used |
N/A |
| 113 |
RE135 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - |
BU5T-14474-BB |
| 114 |
RE134 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
BU5T-14474-AB |
| 115 |
LE238 (GY) |
18 |
CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + |
BU5T-14474-BB |
| 116 |
LE329 (BU) |
18 |
CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) + |
BU5T-14474-BB |
| 117 |
LE134 (YE) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
BU5T-14474-AB |
| 118 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
BU5T-14474-AB |
| 119 |
* |
* |
Not Used |
N/A |
| 120 |
LE135 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) + |
BU5T-14474-BB |
| 121 |
* |
* |
Not Used |
N/A |
| 122 |
* |
* |
Not Used |
N/A |
| 123 |
CE268 (BN-YE) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 7 |
BU5T-14474-AB |
| 124 |
CE206 (GY-YE) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + |
GU5T-14474-DA |
| 125 |
* |
* |
Not Used |
N/A |
| 126 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) |
GU5T-14474-CA |
