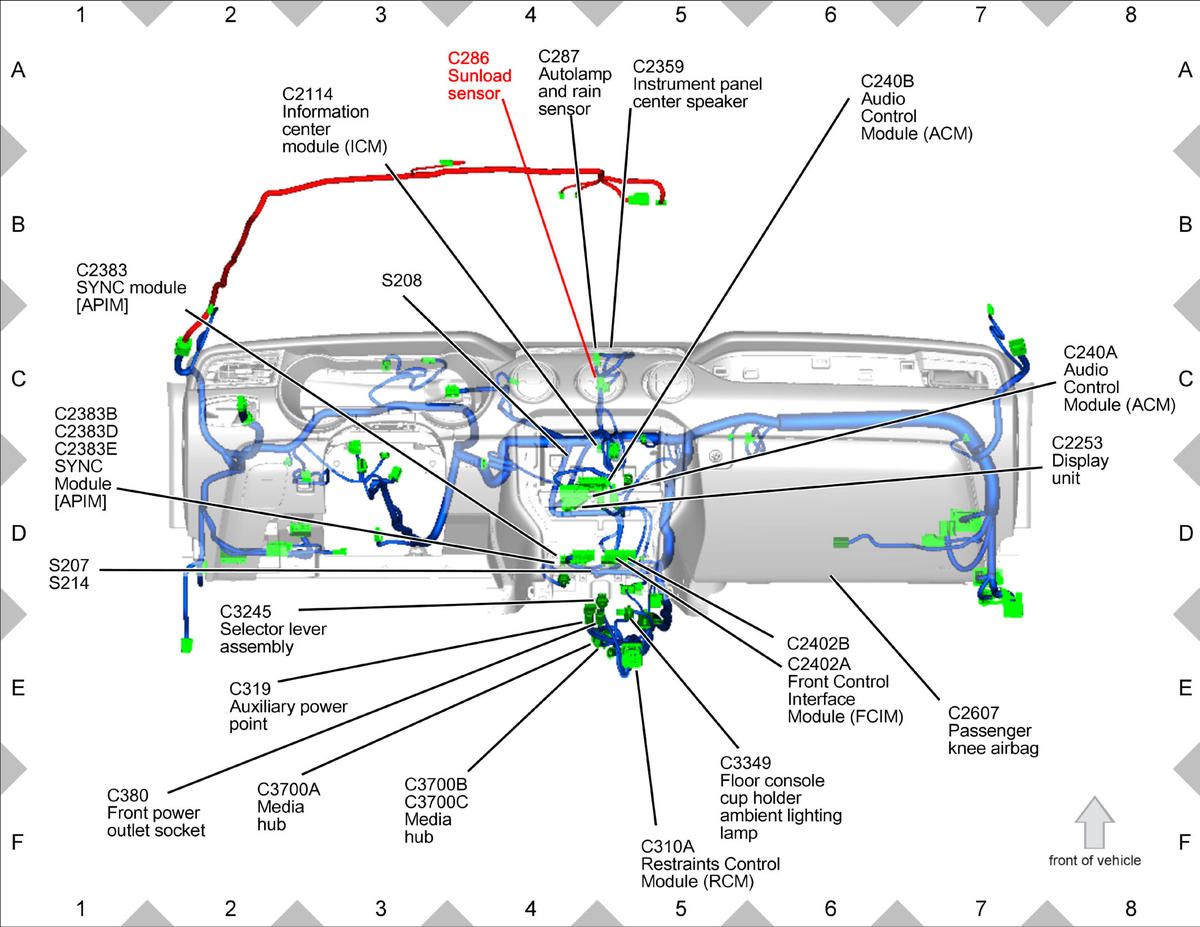

Home >> Ford >> 2023 >> Mustang Mach 1, Standard Trans >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors -- Mustang >> Component Location Charts By Connectors >> C286 Center of dash
