Brake Vacuum Pump - 2.3L EcoBoost (231kW/314PS)/2.3L EcoBoost (257kW/350PS) - MI4: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl vent panel Refer to: Cowl Panel Grille .

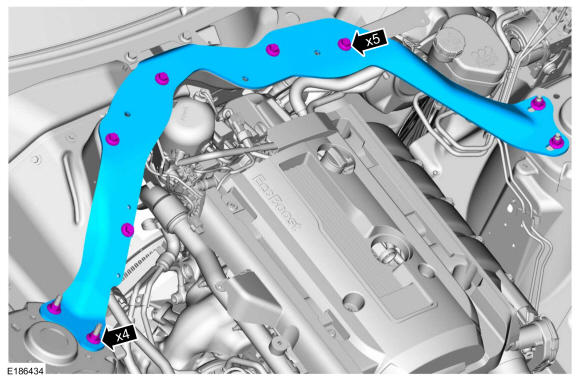

Remove the 5 bolts, 4 nuts and the cowl extension.
Torque: Bolts: 26 lb.ft (35 Nm) Nuts: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

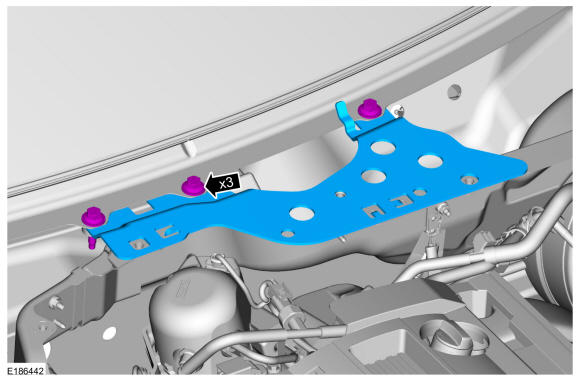

Remove the 3 bolts and bracket.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the 4 nuts and the engine appearance cover.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

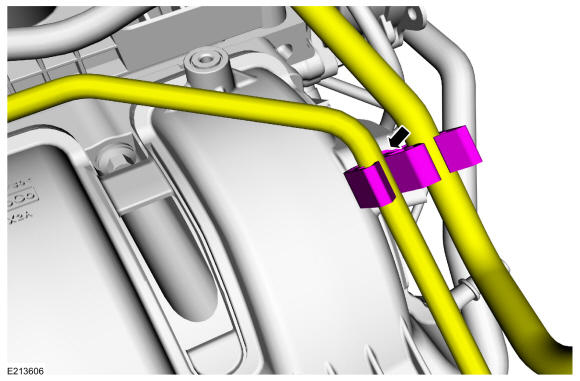

Detach the fuel line bracket from the intake manifold.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

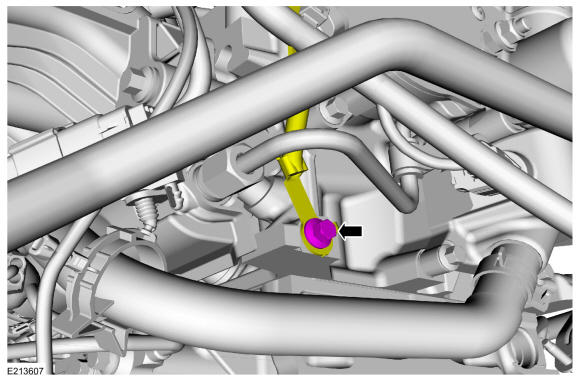

Remove the bolt and detach the ground wire from the cylinder head.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

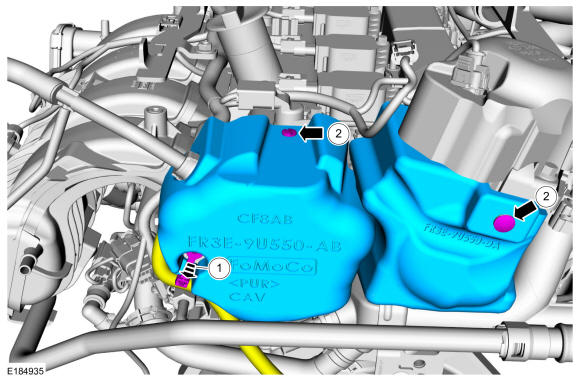

1. Detach the wiring harness retainer.
2. Remove the 2 retainers, the brake vacuum pump cover and the high pressure fuel pump cover.
Courtesy of FORD MOTOR COMPANY

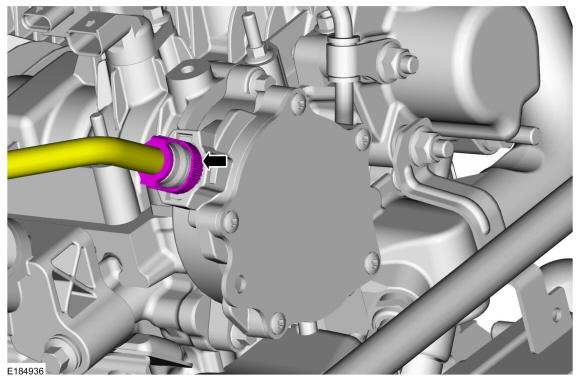

Release the coupling and disconnect the vacuum tube.

Courtesy of FORD MOTOR COMPANY

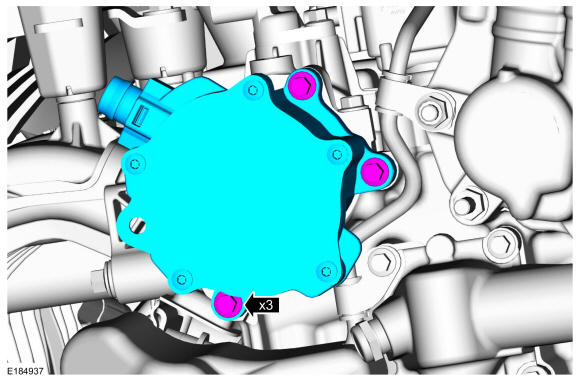

Remove the bolts and vacuum pump.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

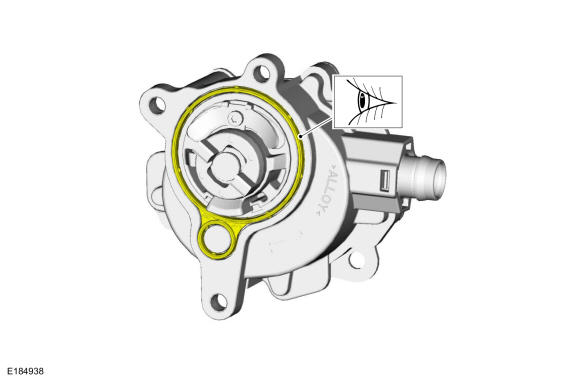

NOTE: Make sure that the mating faces are clean and free of foreign material.

Inspect the brake vacuum pump housing gasket and replace as necessary.

Courtesy of FORD MOTOR COMPANY
