Fuel Lines: Removal

All vehicles

1. Remove the fuel tank. Refer to: Fuel Tank  .
2. Remove LH Catalytic Converter. Refer to: CATALYTIC CONVERTER LH .

   Vehicles with LH drive

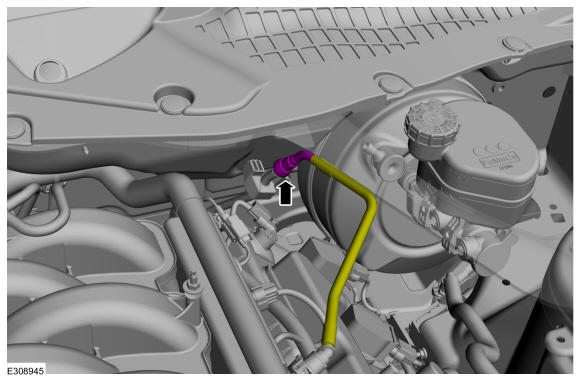

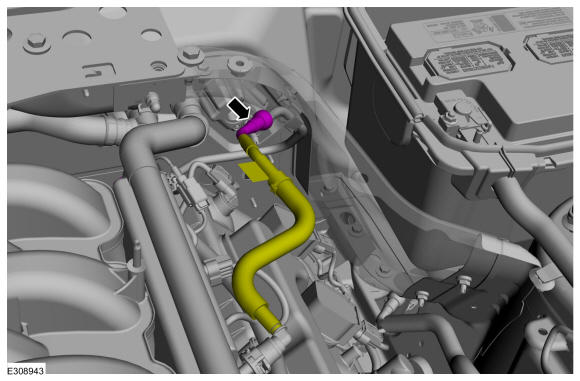

3. Remove the quick release coupling. Refer to: Spring Lock Couplings .

   Courtesy of FORD MOTOR COMPANY

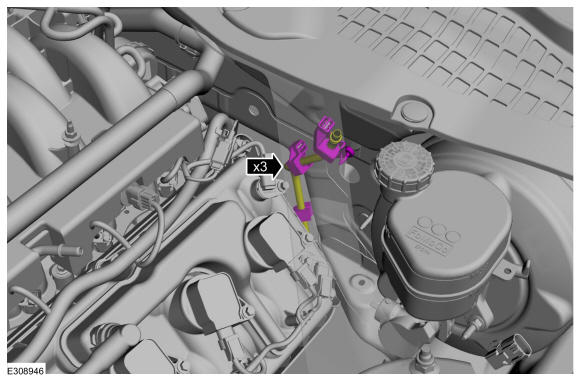

4. Detach the retainer clips.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with RH drive

5. Remove the quick release coupling. Refer to: Spring Lock Couplings .

   Courtesy of FORD MOTOR COMPANY

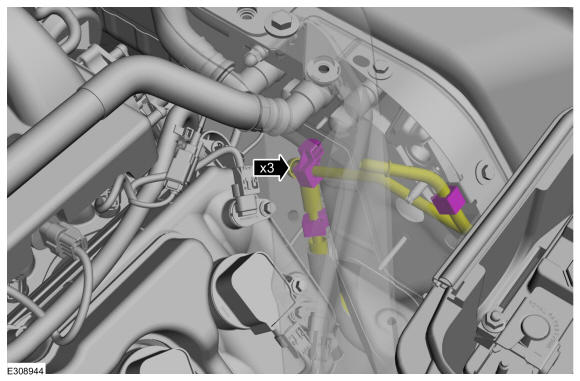

6. Detach the retainer clips.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

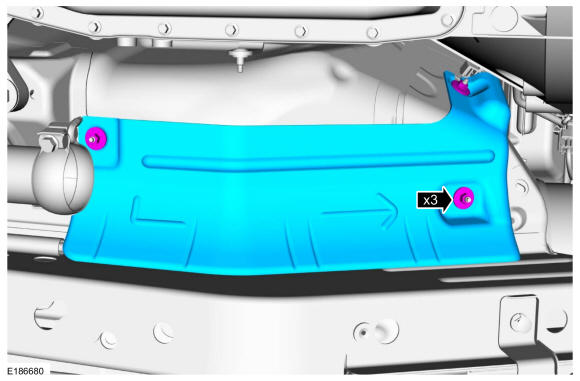

7. Remove the nuts and the heat shield.

   Torque: 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

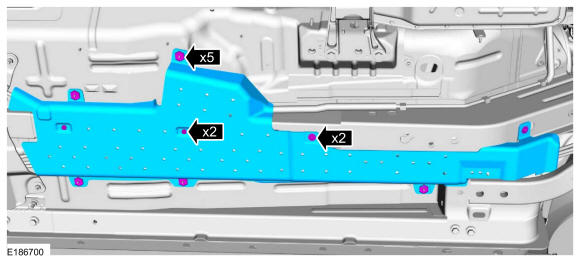

8. Remove the nuts, bolts, push-pins and splash shield.

   Courtesy of FORD MOTOR COMPANY

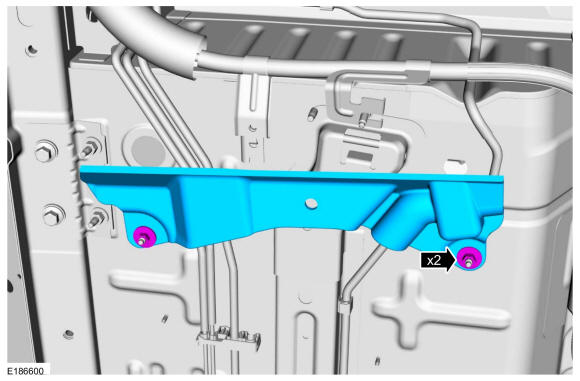

9. Remove the nuts and the fuel tank deflector.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

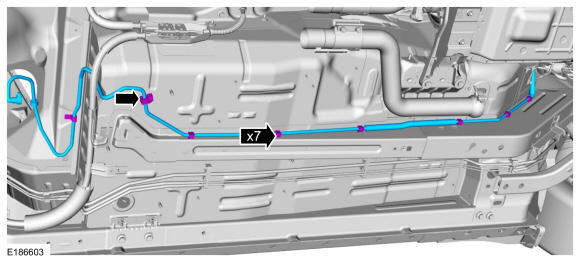

10. Release the retainers and remove the fuel line.

    Courtesy of FORD MOTOR COMPANY

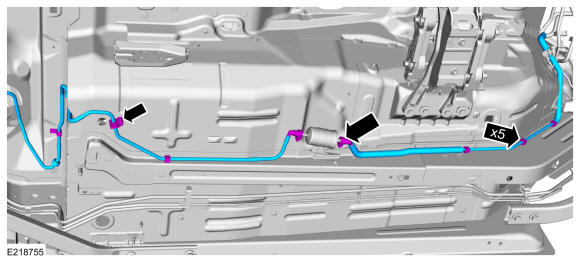

11. If equipped. Release the retainers and remove the fuel line. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
