Fuel Pump Driver Module (FPDM): Installation

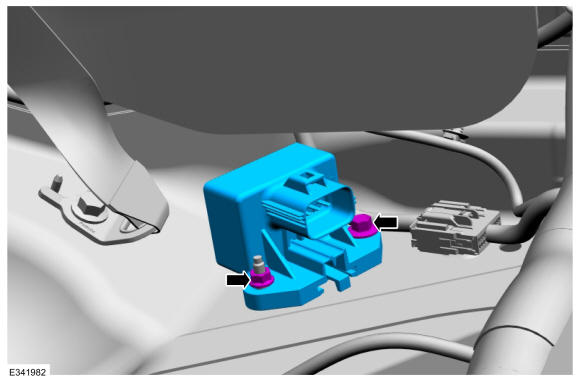

- Install the fuel pump driver module, then install and tighten the fuel pump driver module retainers.
Torque: 44 lb.in (5 Nm)

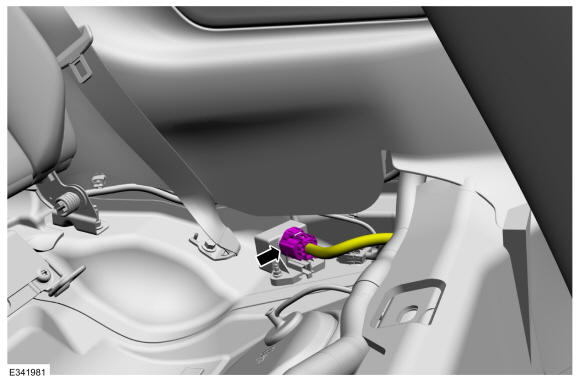

- Connect the fuel pump driver module electrical connector.
- Install the rear seat cushion. Refer to: Rear Seat Cushion .
