Parking Aid

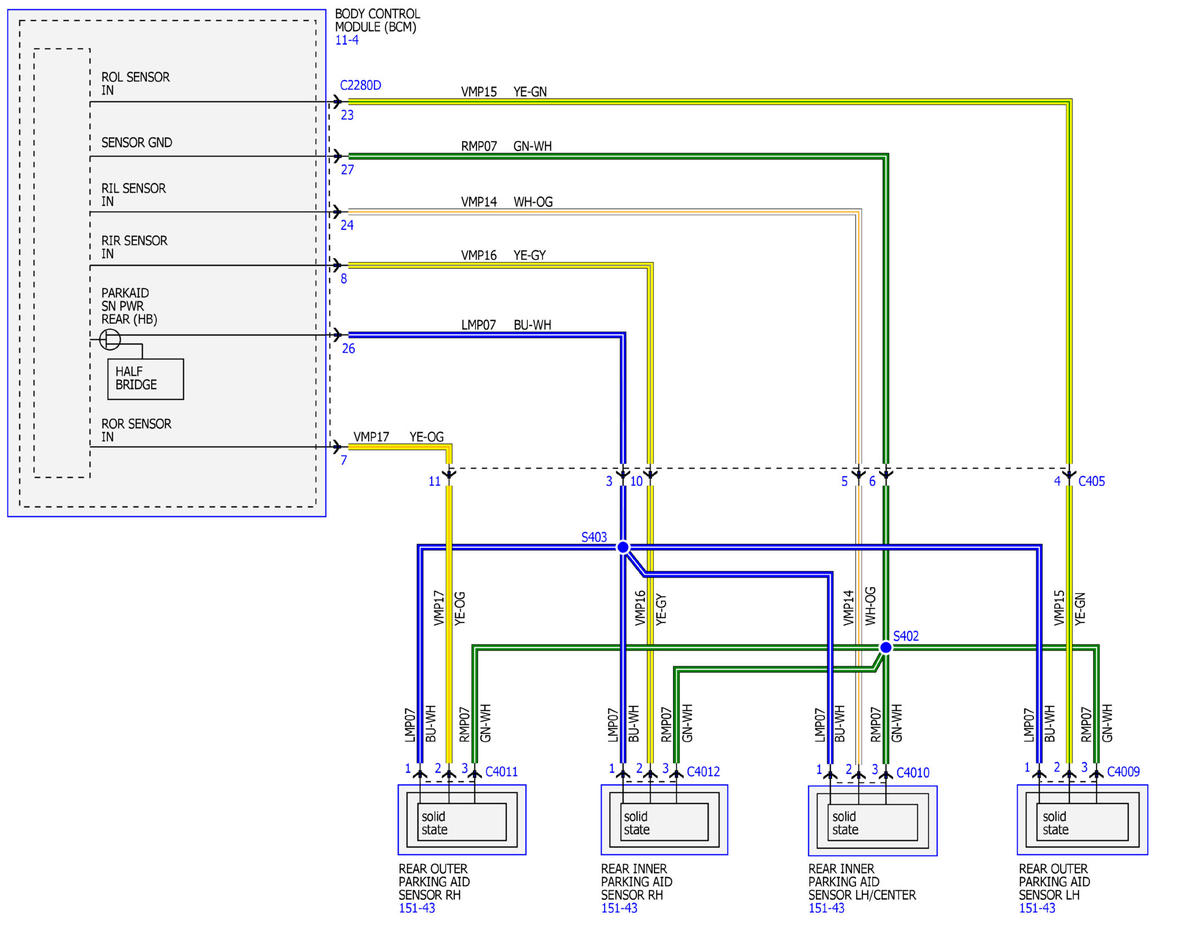

Fig 1: Parking Aid Wiring Diagram (1 Of 3)
GFDWR187646Courtesy of FORD MOTOR COMPANY
Fig 2: Parking Aid Wiring Diagram (2 Of 3)
GFDWR187647Courtesy of FORD MOTOR COMPANY
Fig 3: Parking Aid Wiring Diagram (3 Of 3)
GFDWR187648Courtesy of FORD MOTOR COMPANY
