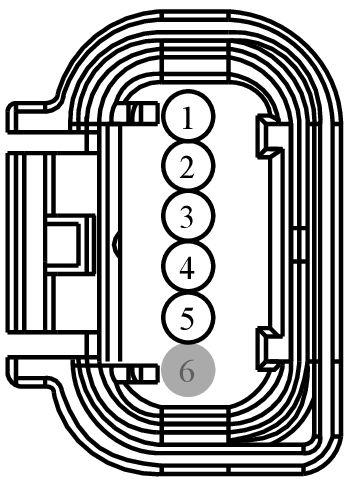

Connector End View C4357 - REAR PARKING AID CAMERA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4357	REAR PARKING AID CAMERA	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB66 (BU-WH)	22	FUSE - 66 OR CIRCUIT BREAKER	8U5T-14474-BB
1	CBB66 (BU-WH)	20	FUSE - 66 OR CIRCUIT BREAKER	8U5T-14474-BB
2	VDN04 (VT-WH)	22	CTRL MOD. - LIN BUS # BCM 4	8U5T-14474-BB
3	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	8U5T-14474-BB
4	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	8U5T-14474-BB
5	DMP19 (BK)	22	CAMERA - PARKING AID REAR VIDEO D	8U5T-14474-BB
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1556

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEB

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Camera - Reverse Park Aid

Pigtail Kit Part Number WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
