Connector End View C2383A - SYNC MODULE [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383A SYNC MODULE [APIM] BK 14401 part# N/A Not Available

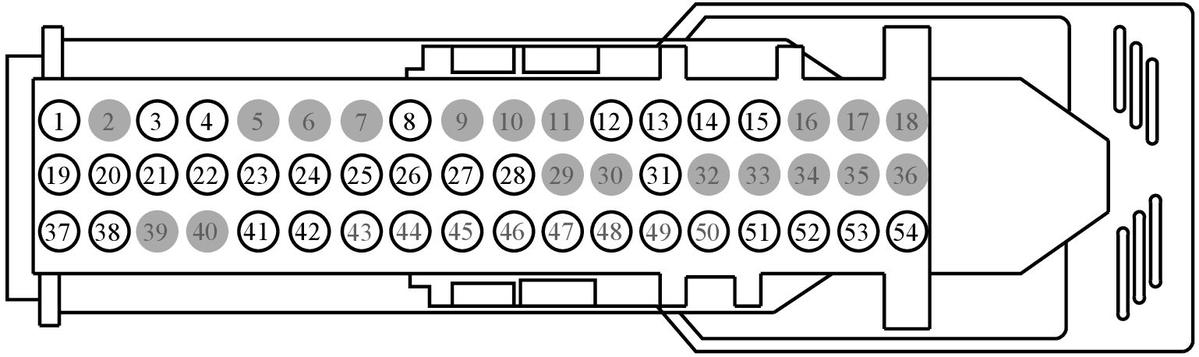

GFDWR187307Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-EB DU2Z-14474-AA 0.64
9U5T-14474-YB DU2Z-14474-AA 0.64
FU5T-14474-LB DU2Z-14474-AA 0.64
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP15 (WH-RD) 18 FUSE - 15 OR CIRCUIT BREAKER 9U5T-14474-EB
2 * * Not Used N/A
3 VMN14 (VT-WH) 26 CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO OUT (MONO) + 9U5T-14474-YB|FU5T-14474-LB
3 VMN14 (WH) 26 CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO OUT (MONO) + 9U5T-14474-YB|FU5T-14474-LB
4 RMN14 (GY) 26 CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO OUT (MONO) - 9U5T-14474-YB|FU5T-14474-LB
4 RMN14 (GY-BN) 26 CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO OUT (MONO) - 9U5T-14474-YB|FU5T-14474-LB
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 LME89 (YE) 26 CTRL MOD. - MEDIA CONNECTIVITY POWER 9U5T-14474-YB
8 LME89 (YE-BU) 26 CTRL MOD. - MEDIA CONNECTIVITY POWER 9U5T-14474-YB
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 VMM23 (BN) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + 9U5T-14474-YB
13 RMM23 (GN-WH) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - 9U5T-14474-YB
14 VMP19 (WH-GN) 22 CAMERA - PARKING AID REAR VIDEO + 9U5T-14474-DB
15 RMP19 (BU-GY) 22 CAMERA - PARKING AID REAR VIDEO - 9U5T-14474-DB
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 VDB29 (GN) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH 9U5T-14474-DB|FU5T-14474-LB
19 VDB29 (GN) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH 9U5T-14474-DB|FU5T-14474-LB
20 VDB30 (WH) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW 9U5T-14474-DB|FU5T-14474-LB
20 VDB30 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW 9U5T-14474-DB|FU5T-14474-LB
21 DMN14 (NONE) 2 CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO OUT (MONO) D 9U5T-14474-DB|9U5T-14474-EB
22 DME52 (NONE) 2 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D 9U5T-14474-DB
23 VME52 (BU) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + 9U5T-14474-YB
24 RME52 (GY) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - 9U5T-14474-YB
25 VME53 (VT) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + 9U5T-14474-YB
26 RME53 (BN-WH) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - 9U5T-14474-YB
27 VMEG1 (GY) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # DRDL_TX_+ 9U5T-14474-YB
28 VMEG2 (YE) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # DRDL_TX_- 9U5T-14474-YB
29 * * Not Used N/A
30 * * Not Used N/A
31 DMM23 (NONE) 2 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D 9U5T-14474-DB
32 * * Not Used N/A
33 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 GD215 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DB
38 RME89 (BU-WH) 26 CTRL MOD. - MEDIA CONNECTIVITY GROUND 9U5T-14474-YB
39 * * Not Used N/A
40 * * Not Used N/A
41 VDB31 (BU) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 HIGH 9U5T-14474-DB
41 VDB31 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 HIGH 9U5T-14474-DB
42 VDB32 (VT) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 LOW 9U5T-14474-DB
42 VDB32 (VT) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 LOW 9U5T-14474-DB
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 VME90 (GY-BU) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) 9U5T-14474-DB
52 VME91 (WH-BN) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) 9U5T-14474-DB
53 VDB04 (BU) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH FU5T-14474-LB|9U5T-14474-DB
53 VDB04 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH FU5T-14474-LB|9U5T-14474-DB
54 VDB05 (WH) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW FU5T-14474-LB|9U5T-14474-DB
54 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW FU5T-14474-LB|9U5T-14474-DB
