Home >> Ford >> 2023 >> Mustang Mach 1, Automatic Trans >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors -- Mustang >> Component Location Charts By Connectors >> C168B Underneath vehicle behind engine

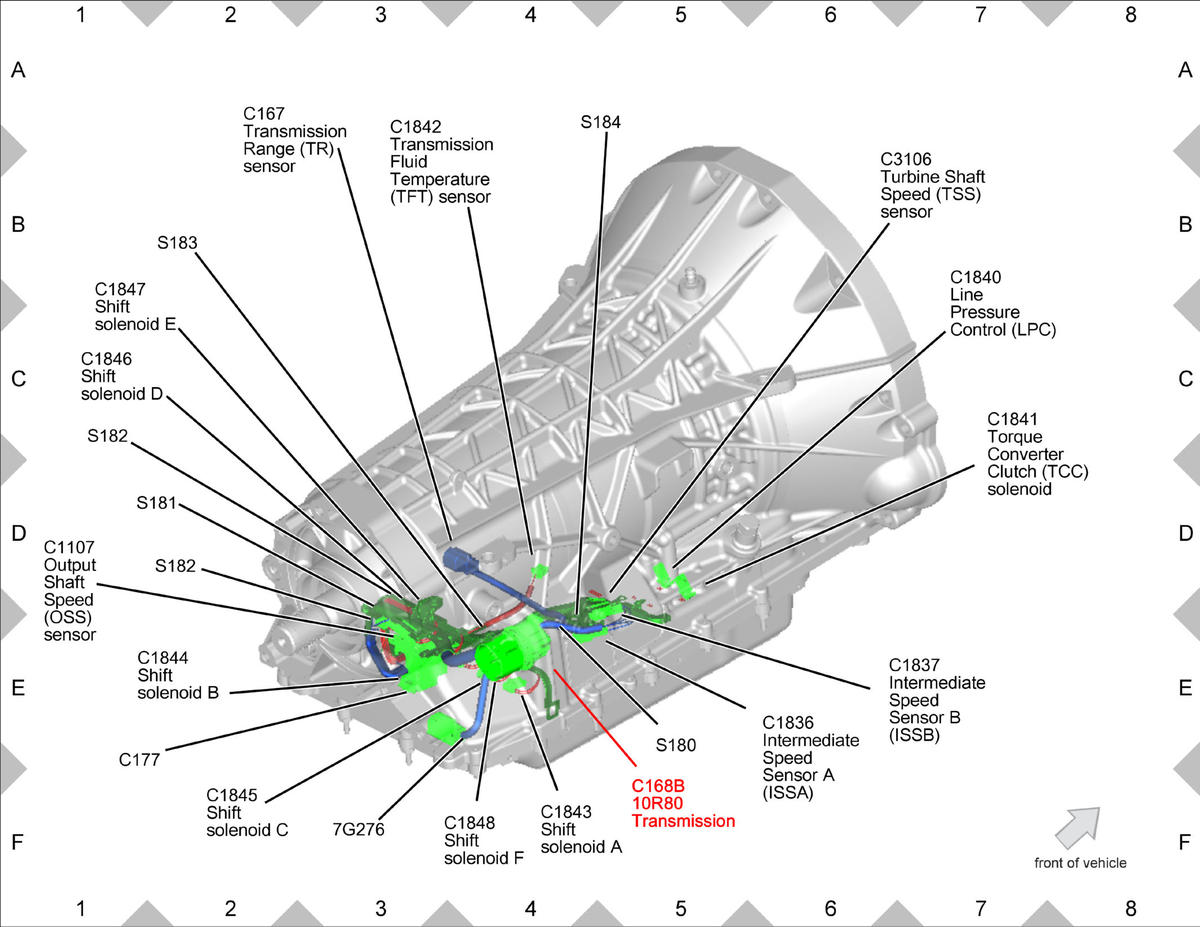

C168B Underneath vehicle behind engine

GFDWR185987Courtesy of FORD MOTOR COMPANY
