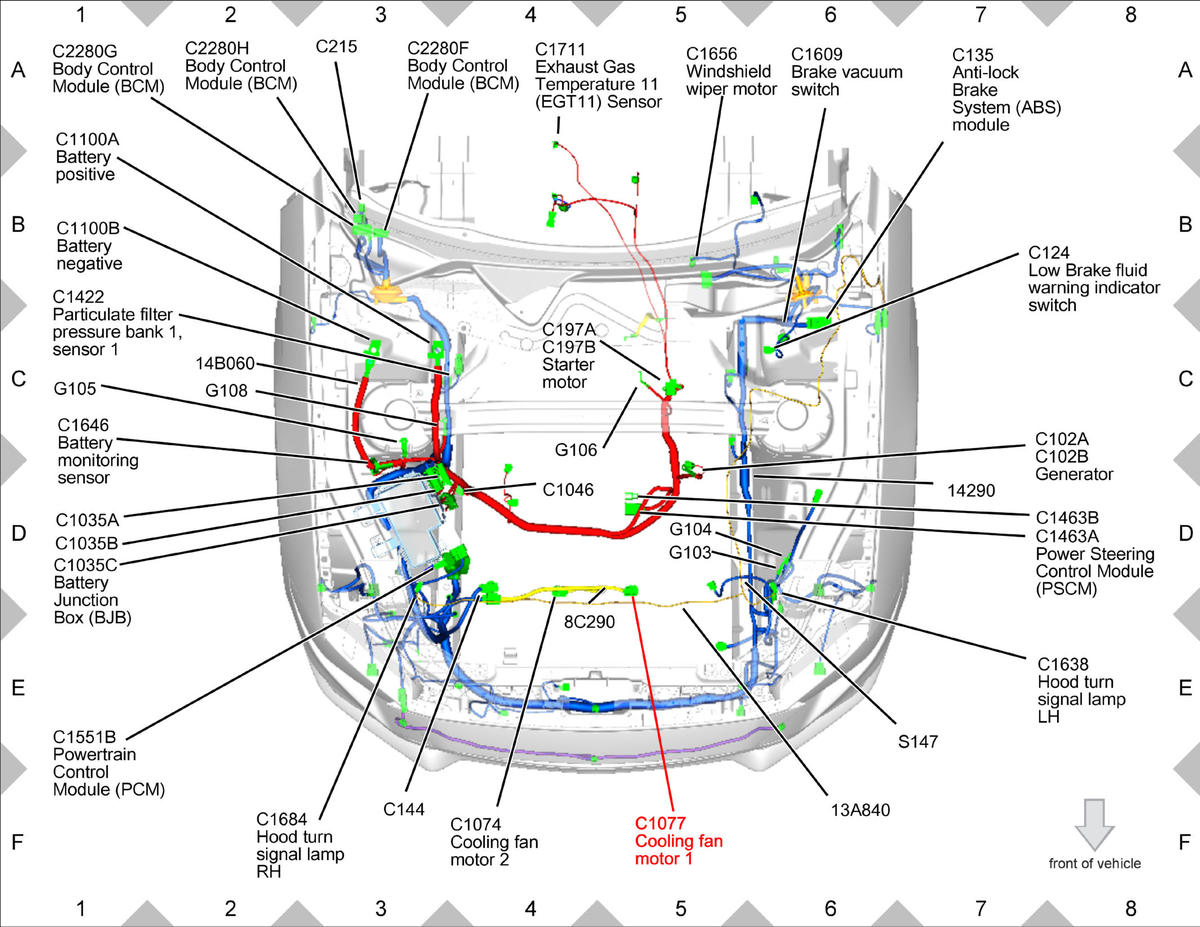

Home >> Ford >> 2023 >> Mustang Mach 1, Automatic Trans >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors -- Mustang >> Component Location Charts By Connectors >> C1077 (2.3L) (1 Of 2)
