Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. NOTE: Place the instrument panel on a suitable work surface that will allow the instrument panel to be rotated front to back without damaging the instrument panel.

    Remove the instrument panel. Refer to: Instrument Panel .

  2. Remove the passenger knee airbag. Refer to: Passenger Knee Airbag .

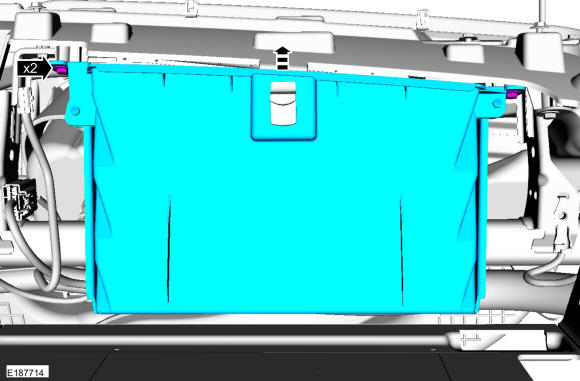

  3. Remove the bolts and the glove compartment upper stowage bin.
    GFD721026Courtesy of FORD MOTOR COMPANY

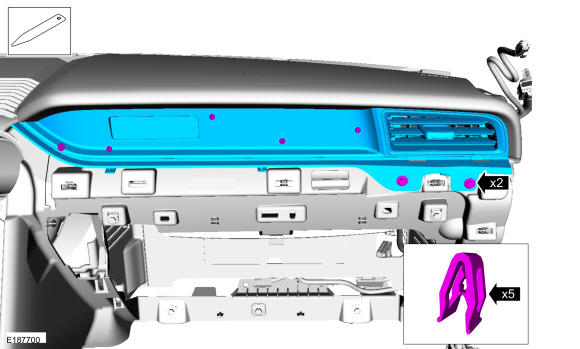

  4. Remove the bolts, release the clips and remove the RH instrument panel finish panel.

    Torque: 18 lb.in (2 Nm)

    GFD721027Courtesy of FORD MOTOR COMPANY

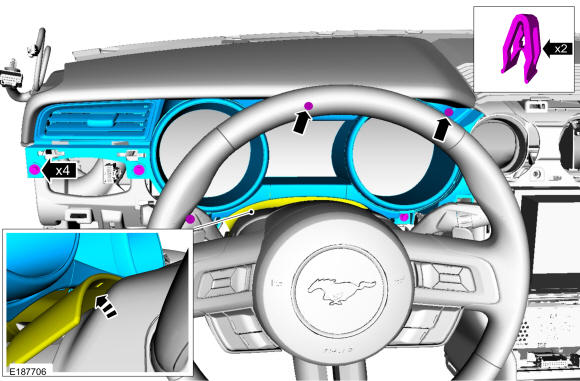

  5. Remove the bolts, release the clips and remove the IPC trim panel.

    • Detach the gap hider from the upper steering column trim cover.

      Torque: 22 lb.in (2.5 Nm)

    GFD721028Courtesy of FORD MOTOR COMPANY

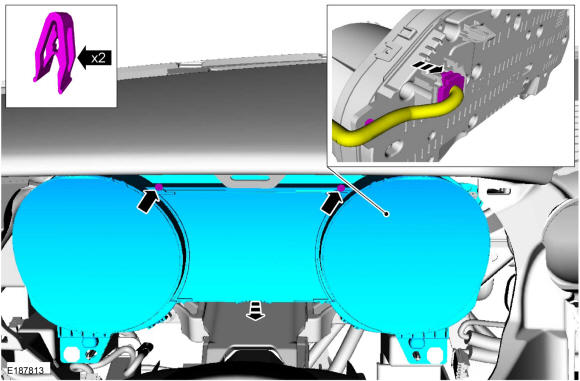

  6. Release the clips and remove the IPC.

    • Disconnect the electrical connector and release the harness retainer.

    GFD721029Courtesy of FORD MOTOR COMPANY

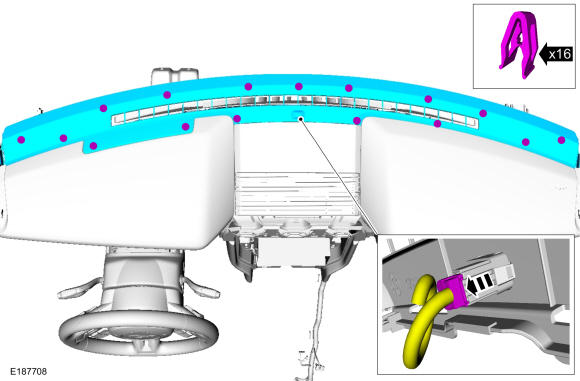

  7. Release the clips and remove the defroster grille panel.

    • Disconnect the electrical connector.

    GFD721030Courtesy of FORD MOTOR COMPANY

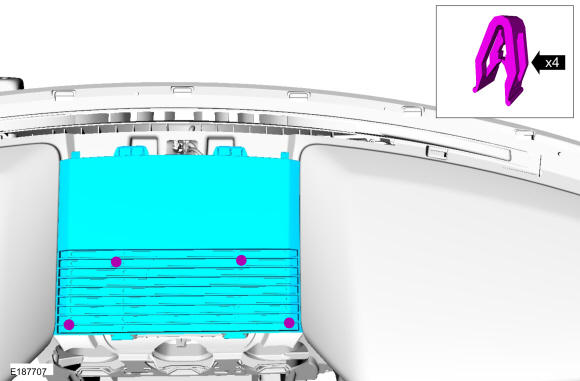

  8. Release the clips and remove the instrument panel speaker grille.
    GFD721031Courtesy of FORD MOTOR COMPANY

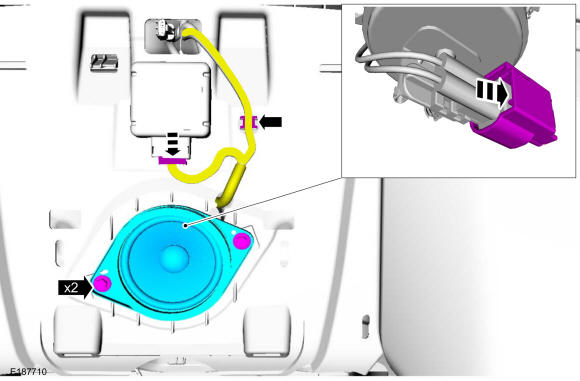

  9. Remove the bolts and the instrument panel speaker.

    • Disconnect the electrical connectors and release the harness retainer.

      Torque: 22 lb.in (2.5 Nm)

    GFD721032Courtesy of FORD MOTOR COMPANY

    Vehicles with AM/FM/CD/SNYC

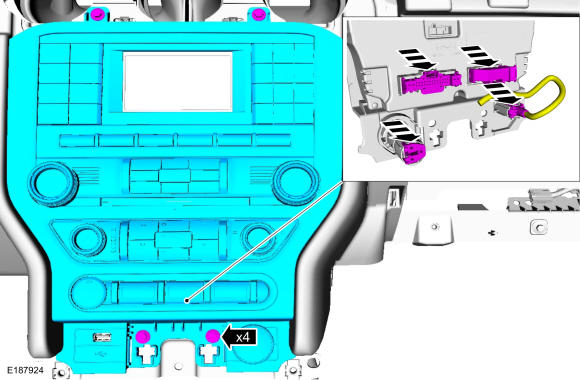

  10. Remove the bolts and the FCIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD721033Courtesy of FORD MOTOR COMPANY

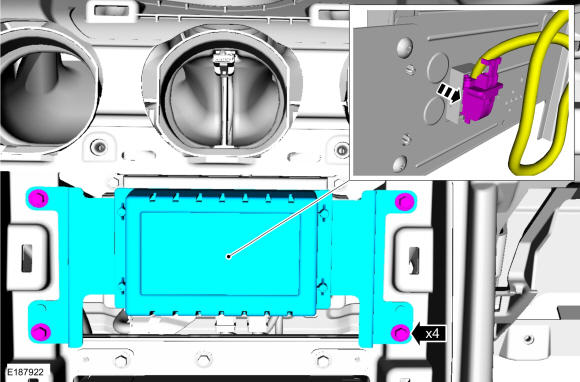

  11. Remove the bolts and the FCDIM.

    • Disconnect the electrical connector.

    GFD721034Courtesy of FORD MOTOR COMPANY

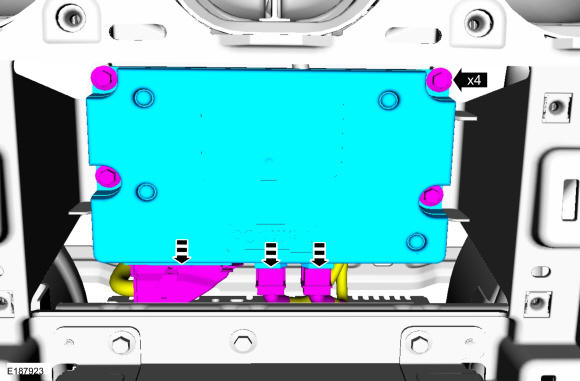

  12. Remove the bolts and APIM.

    • Disconnect the electrical connectors.

      Torque: 13 lb.in (1.5 Nm)

    GFD721035Courtesy of FORD MOTOR COMPANY

    Vehicles with Touchscreen Display

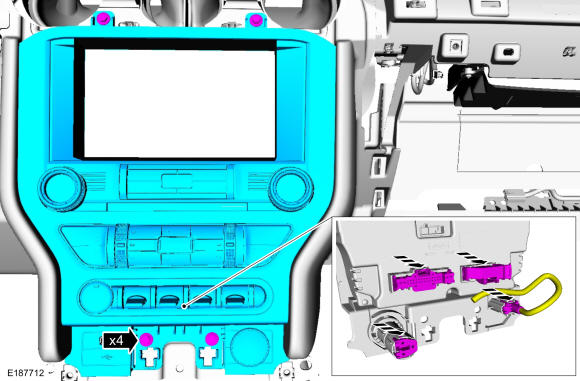

  13. Remove the bolts and the FCIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD721036Courtesy of FORD MOTOR COMPANY

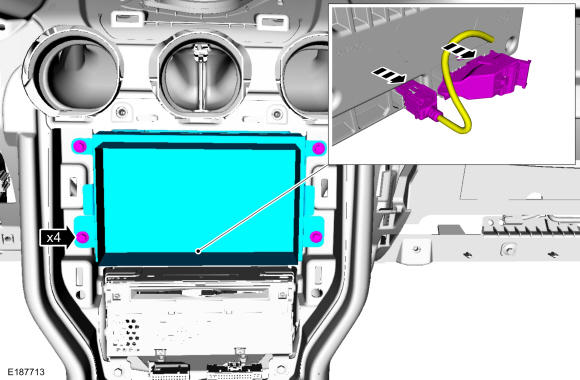

  14. Remove the bolts and the FDIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD721037Courtesy of FORD MOTOR COMPANY

    All vehicles

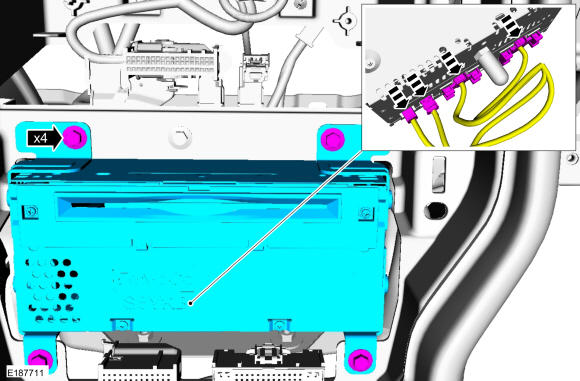

  15. Remove the bolts and the ACM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD721038Courtesy of FORD MOTOR COMPANY

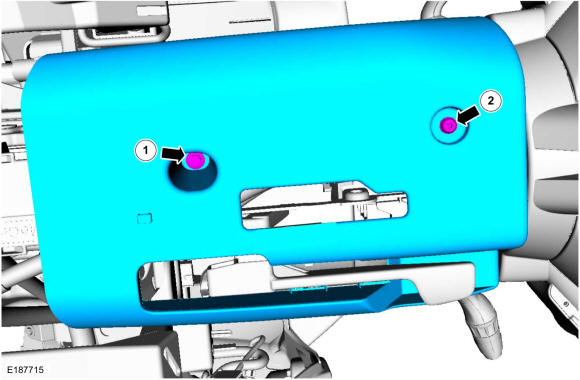

  16. Remove the bolt, screw and the lower steering column shroud.

    1. Torque: 22 lb.in (2.5 Nm)
    2. Torque: 22 lb.in (2.5 Nm)

    GFD721039Courtesy of FORD MOTOR COMPANY

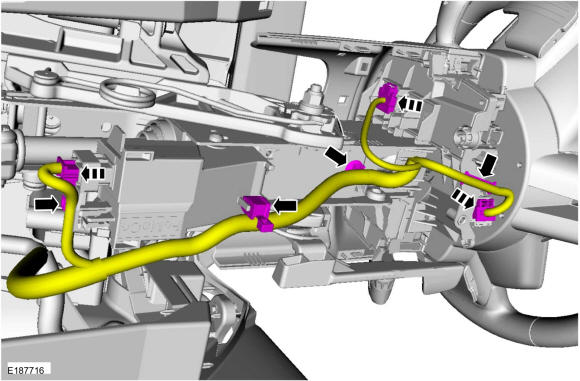

  17. Disconnect the electrical harness, release the harness retainers and position the harness aside.
    GFD721040Courtesy of FORD MOTOR COMPANY

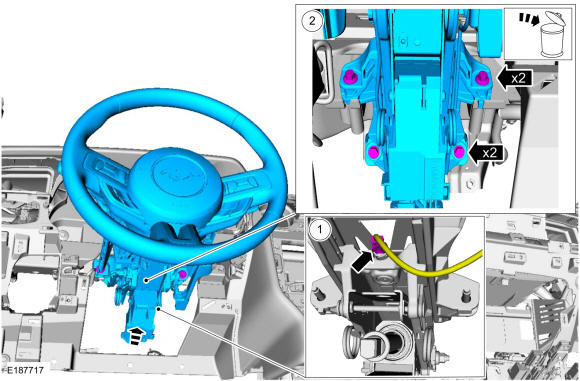

  18. Remove the steering column.

    1. Disconnect the electrical connector.
    2. NOTE: The front and rear steering column bolts are not the same, note bolt location before installation.

      Remove and discard the steering column bolts.

      Torque: 18 lb.ft (25 Nm)

    GFD721041Courtesy of FORD MOTOR COMPANY

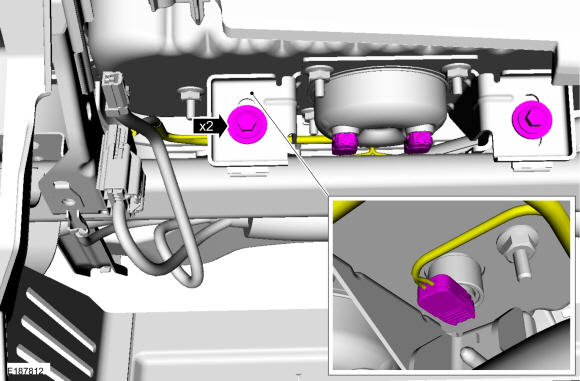

  19. Remove the bolts.

    • Disconnect the 3 electrical connectors.

      Torque: 106 lb.in (12 Nm)

    GFD721042Courtesy of FORD MOTOR COMPANY

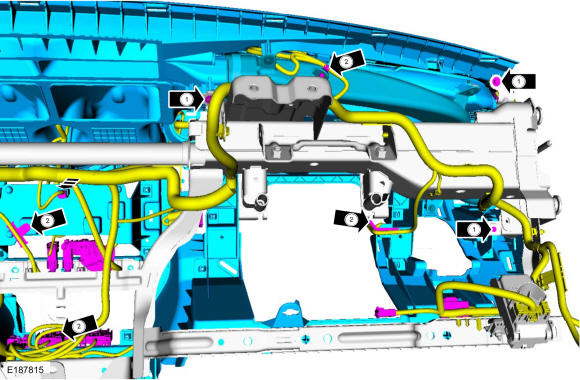

  20. From the rear of the instrument panel position the electrical harness aside on the LH side.

    1. Remove the instrument panel upper section to in-vehicle cross beam bolts.

      Torque: 22 lb.in (2.5 Nm)

    2. Release the harness retainers.

    GFD721043Courtesy of FORD MOTOR COMPANY

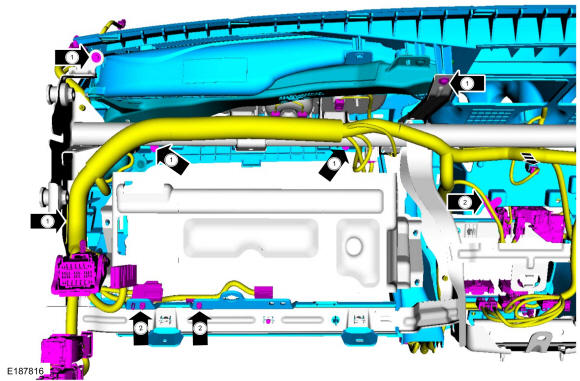

  21. From the rear of the instrument panel position the electrical harness aside on the RH side.

    1. Remove the instrument panel upper section to in-vehicle cross beam bolts.

      Torque: 22 lb.in (2.5 Nm)

    2. Release the harness retainers.

    GFD721044Courtesy of FORD MOTOR COMPANY
  22. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

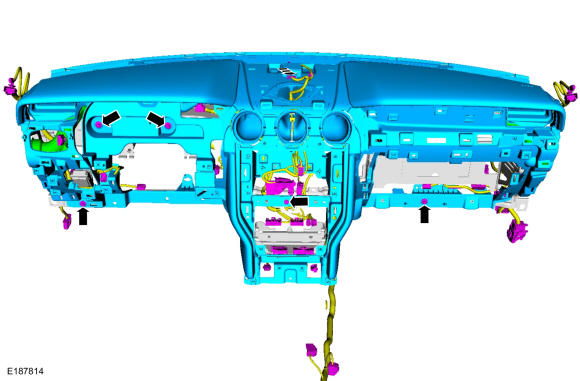

    From the front of the instrument panel position remove the 5 instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.

GFD721045Courtesy of FORD MOTOR COMPANY
