Glove Compartment: Removal

Glove compartment

1. The glove compartment and the passenger knee air bag are serviced as an assembly. Refer to: Passenger Knee Airbag .

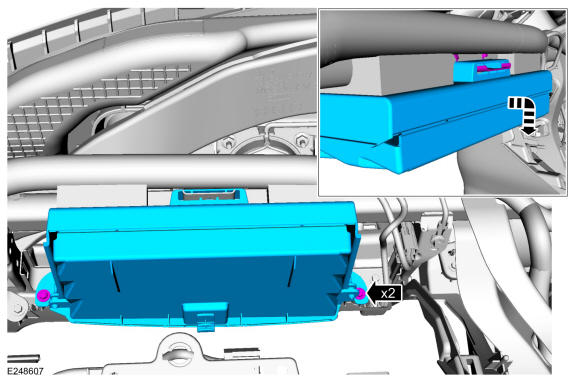

   Glove compartment upper stowage bin latch

2. Remove the instrument panel. Refer to: Instrument Panel .
3. Remove the bolts, slide the glove compartment upper stowage bin off the bracket and remove the glove compartment upper stowage bin.

Courtesy of FORD MOTOR COMPANY
