Rear Parking Aid Camera: Removal

NOTE: Coupe shown in illustration, convertable similar.

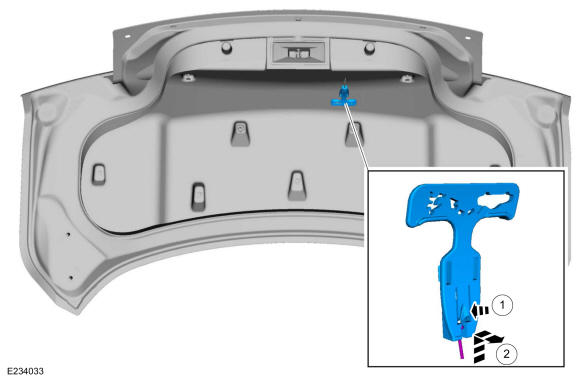

  1. Remove the luggage compartment lid emergency release handle.

    1. Press down the luggage compartment lid emergency release handle retaining tab.
    2. Remove the luggage compartment lid emergency release handle.

    GFD720168Courtesy of FORD MOTOR COMPANY

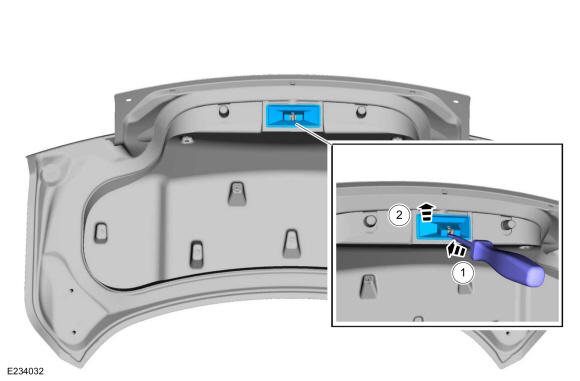

  2. Remove the luggage compartment lid latch cover.

    1. Insert a flat blade screwdriver between the luggage compartment lid latch cover and luggage compartment lid latch.
    2. Remove the luggage compartment lid latch cover while gently prying the cover away from the luggage compartment lid latch disengaging the luggage compartment lid latch cover from the tab on luggage compartment lid latch. Use the General Equipment: Flat-Bladed Screwdriver

    GFD720169Courtesy of FORD MOTOR COMPANY

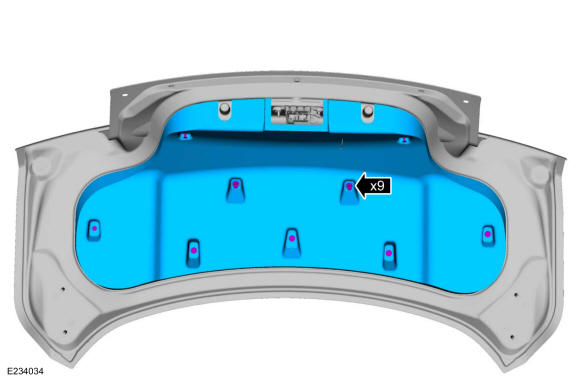

  3. Remove the retainers and remove the luggage compartment lid trim panel.
    GFD720170Courtesy of FORD MOTOR COMPANY

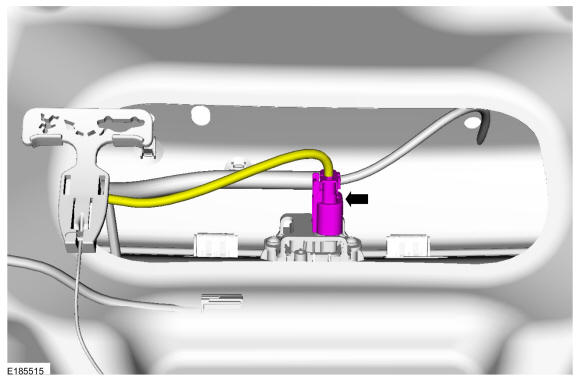

  4. Disconnect the rear view camera electrical connector.
    GFD720171Courtesy of FORD MOTOR COMPANY

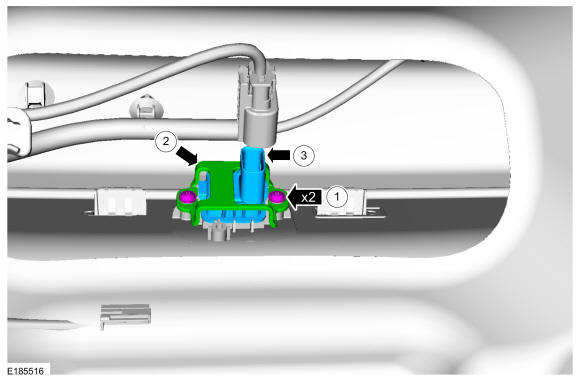

  5. Remove the rear view camera.

    1. Remove the screws.
    2. Remove the rear view camera bracket.
    3. Remove the rear view camera.

GFD720172Courtesy of FORD MOTOR COMPANY
