Fuse And Relay Location

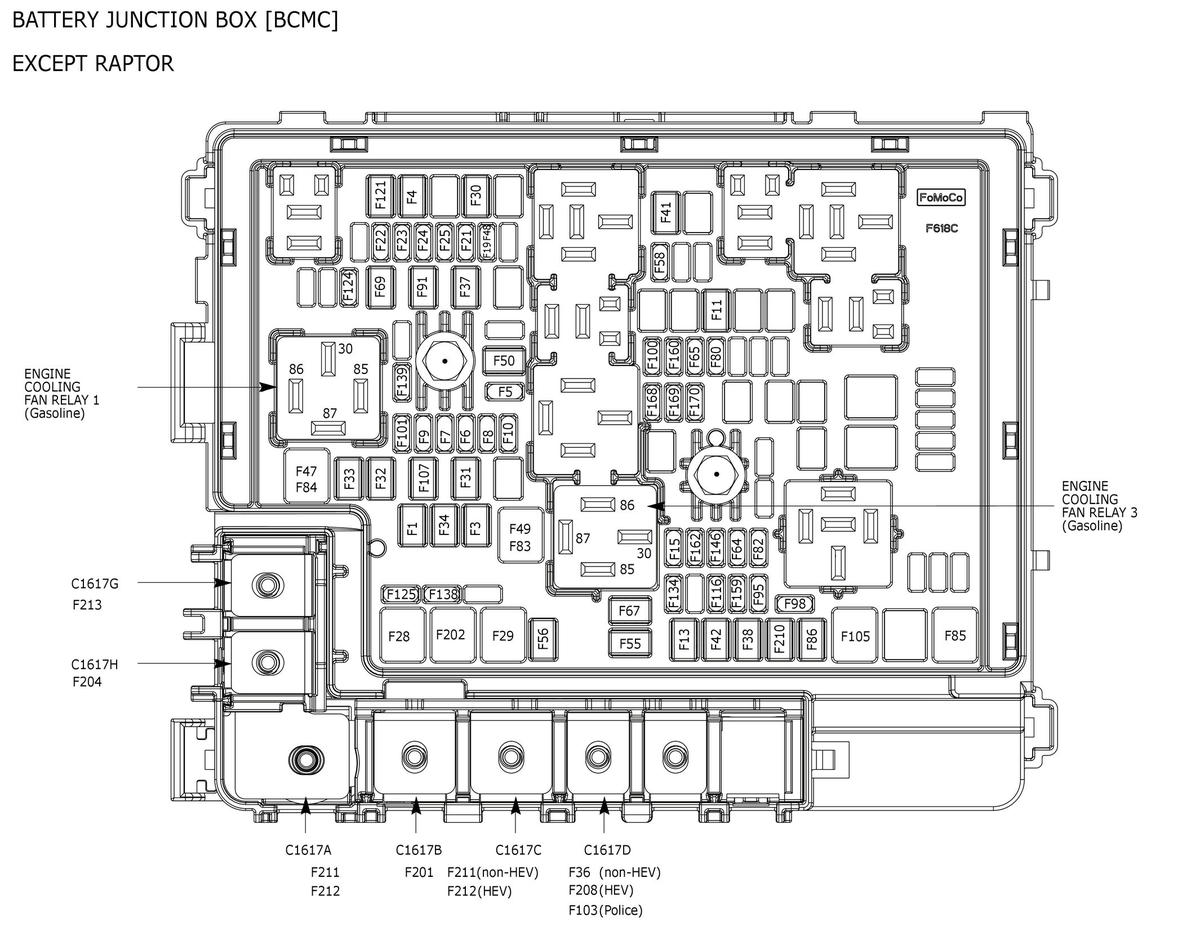

Fig 1: Battery Junction Box [BCMC] (Except Raptor) Components Location

Courtesy of FORD MOTOR COMPANY

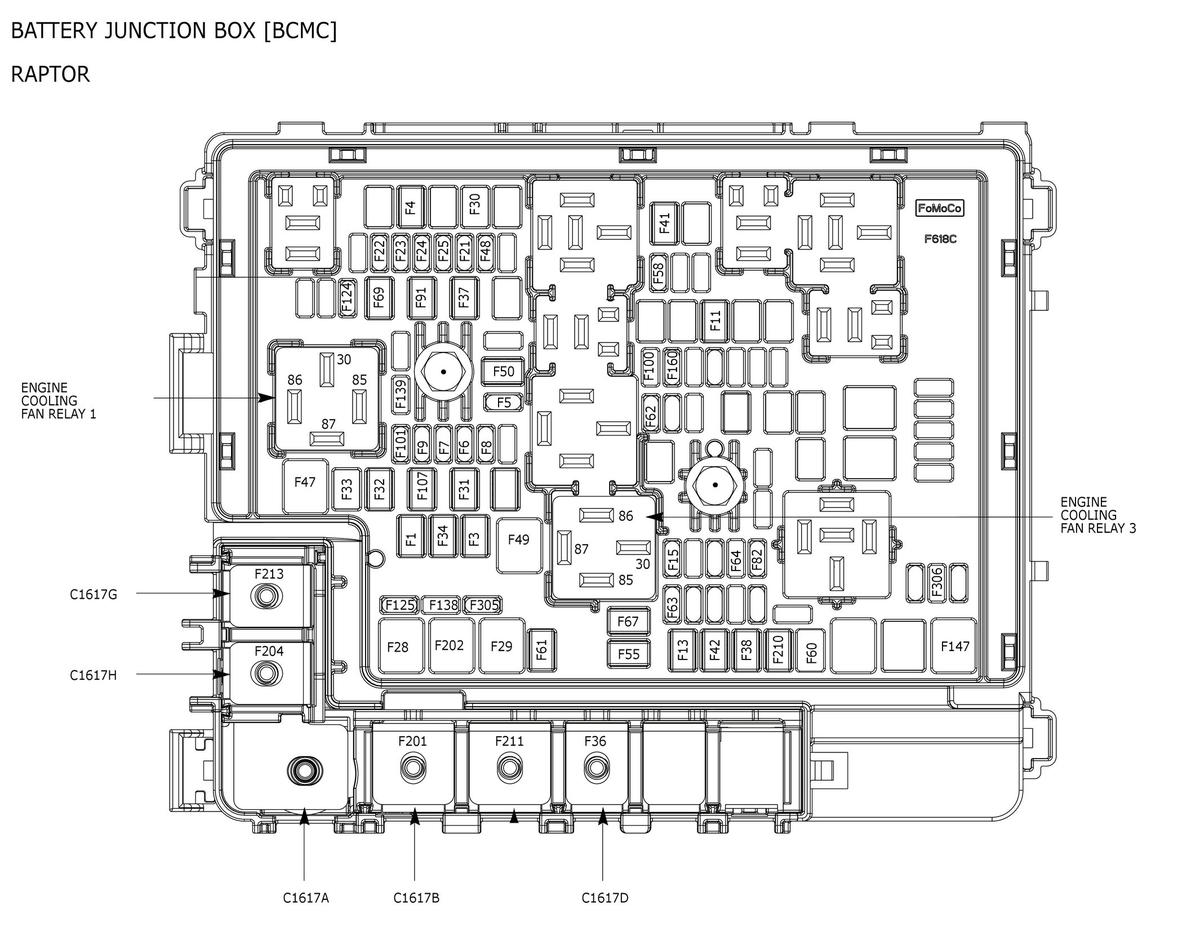

Fig 2: Battery Junction Box [BCMC] (Raptor) Components Location

Courtesy of FORD MOTOR COMPANY

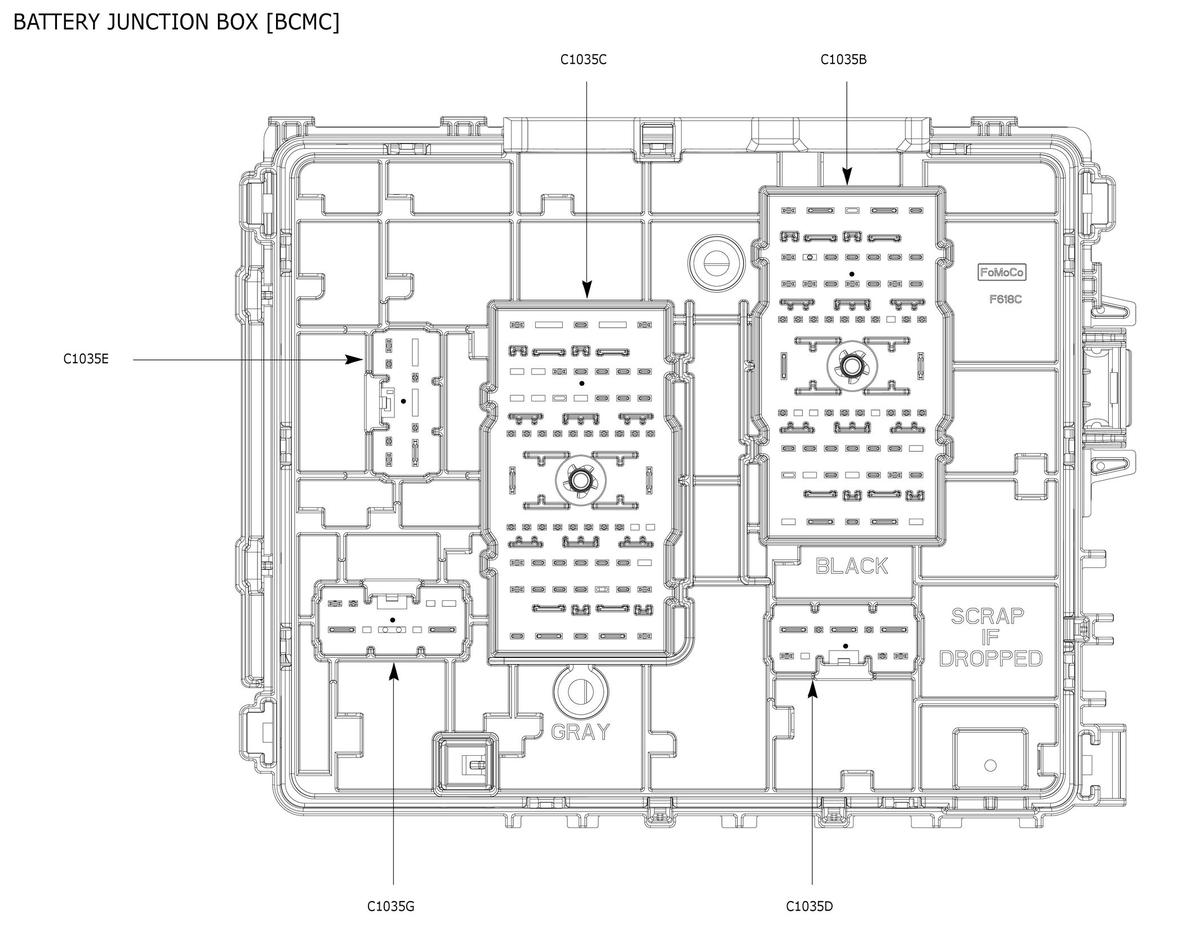

Fig 3: Battery Junction Box [BCMC] Components Location

Courtesy of FORD MOTOR COMPANY

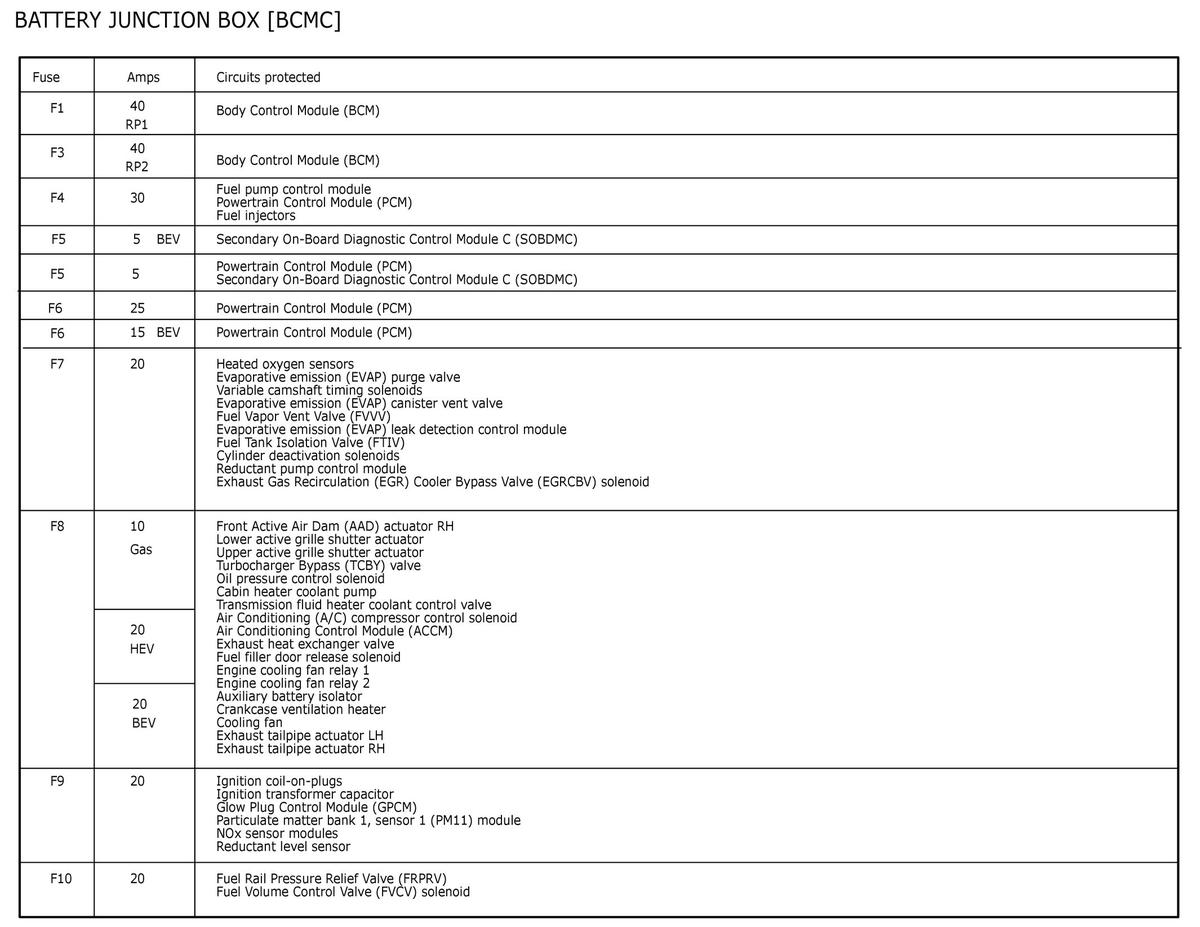

Fig 4: Battery Junction Box [BCMC] Components Location Legend (F1 - F10)

Courtesy of FORD MOTOR COMPANY

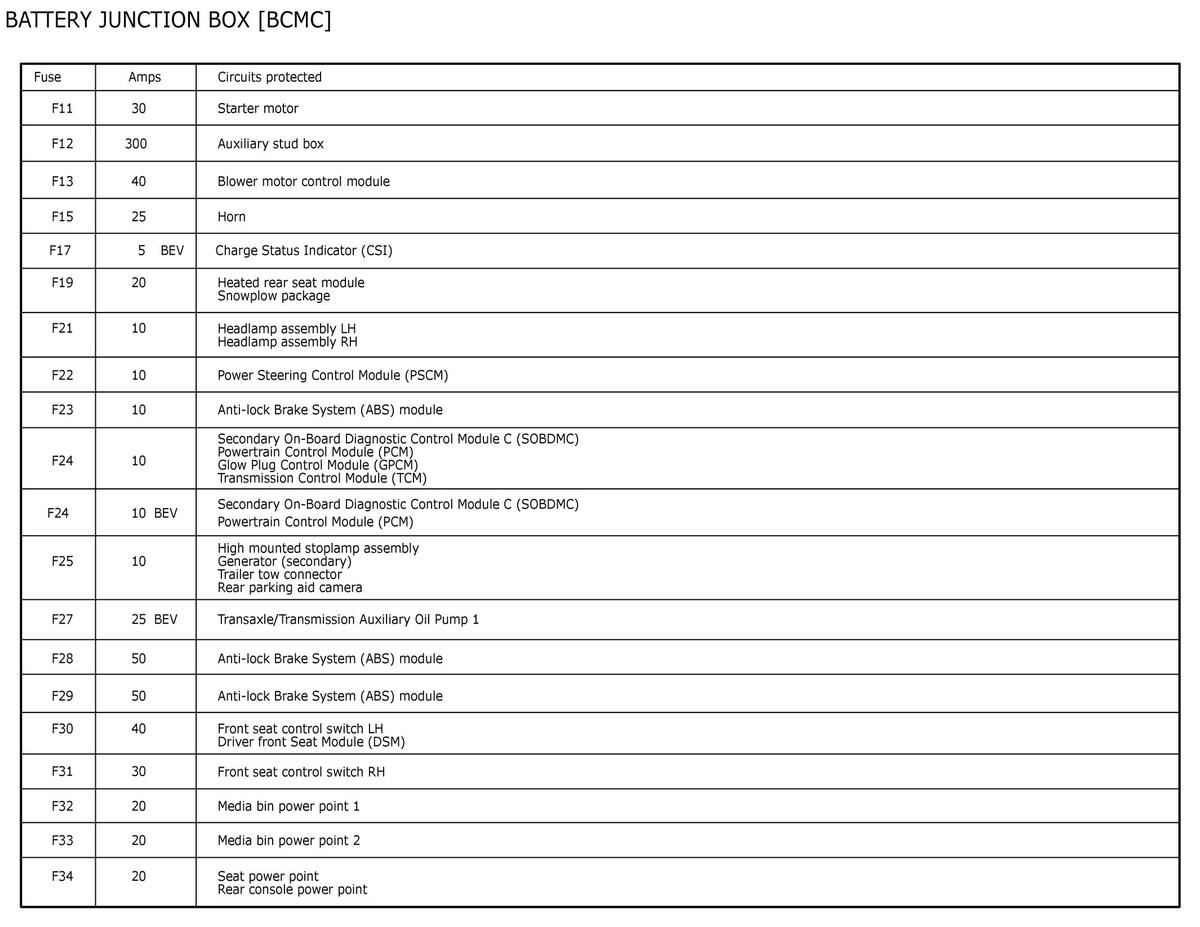

Fig 5: Battery Junction Box [BCMC] Components Location Legend (F11 - F34)

Courtesy of FORD MOTOR COMPANY

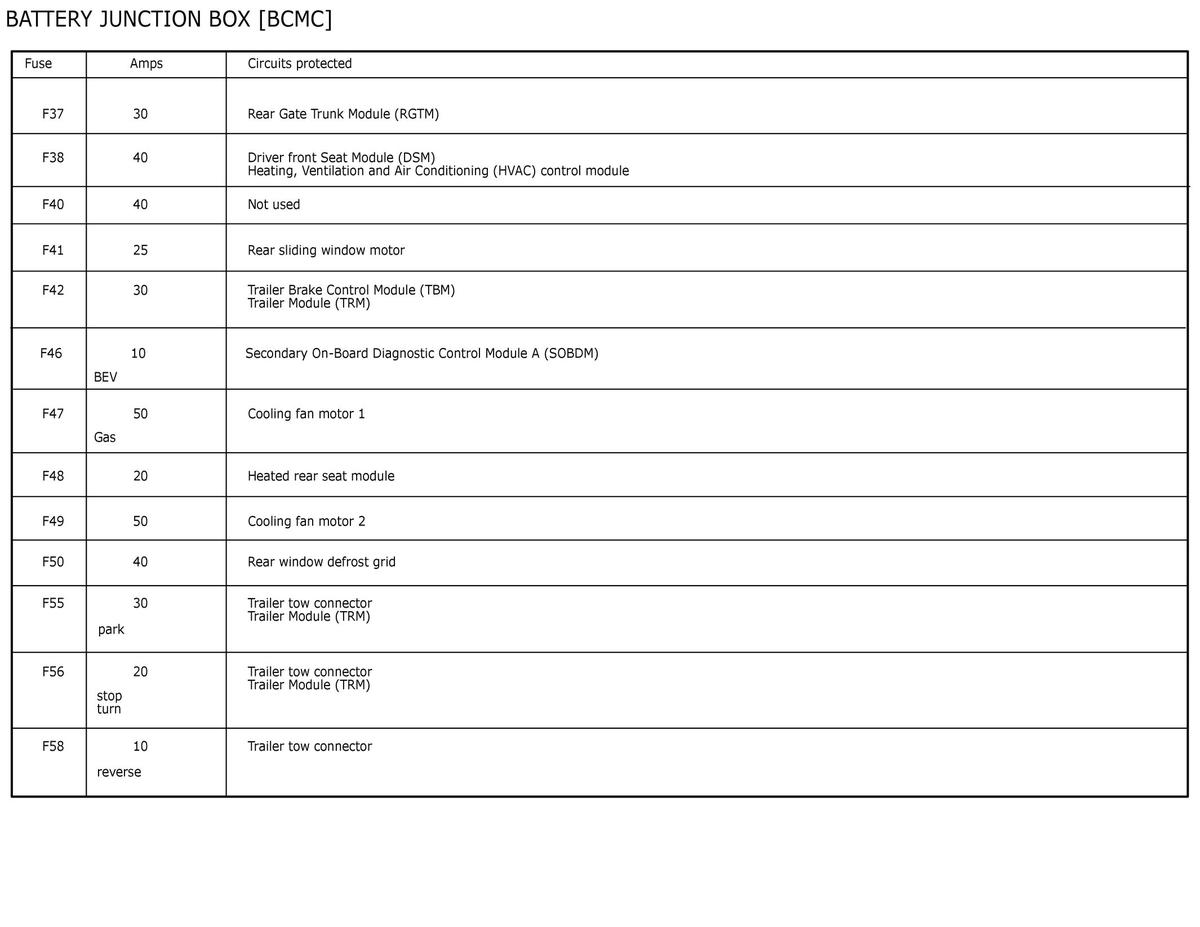

Fig 6: Battery Junction Box [BCMC] Components Location Legend (F37 - F58)

Courtesy of FORD MOTOR COMPANY

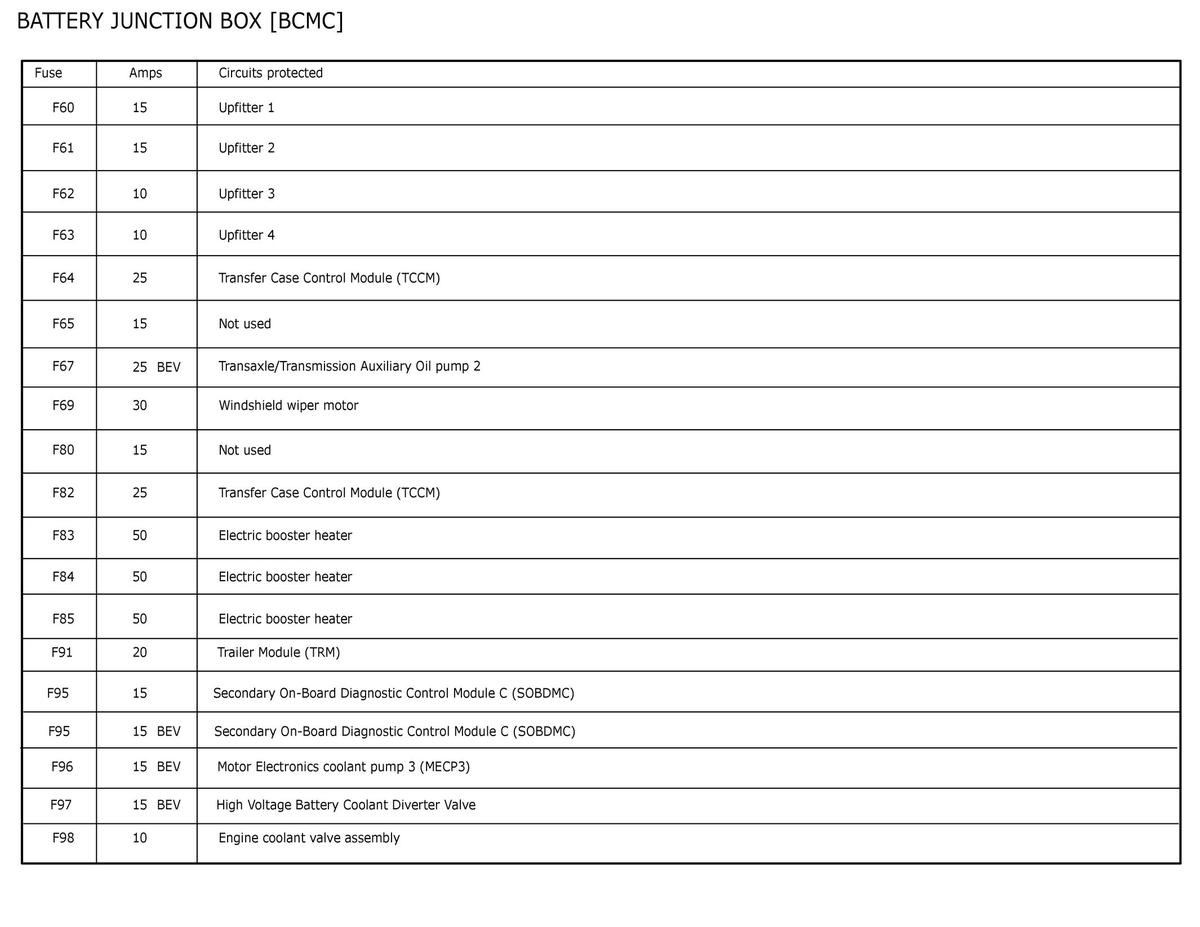

Fig 7: Battery Junction Box [BCMC] Components Location Legend (F60 - F98)

Courtesy of FORD MOTOR COMPANY

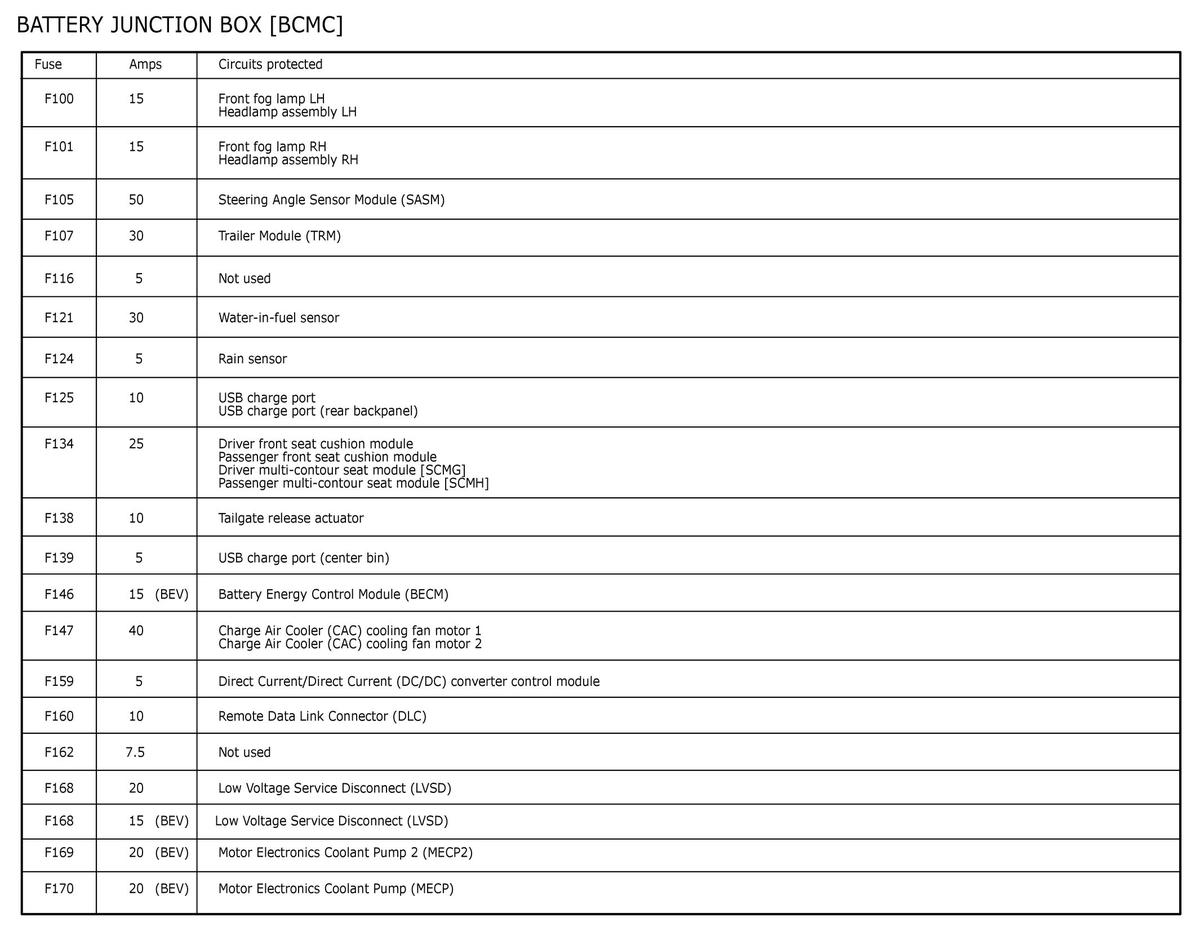

Fig 8: Battery Junction Box [BCMC] Components Location Legend (F100 - F170)

Courtesy of FORD MOTOR COMPANY

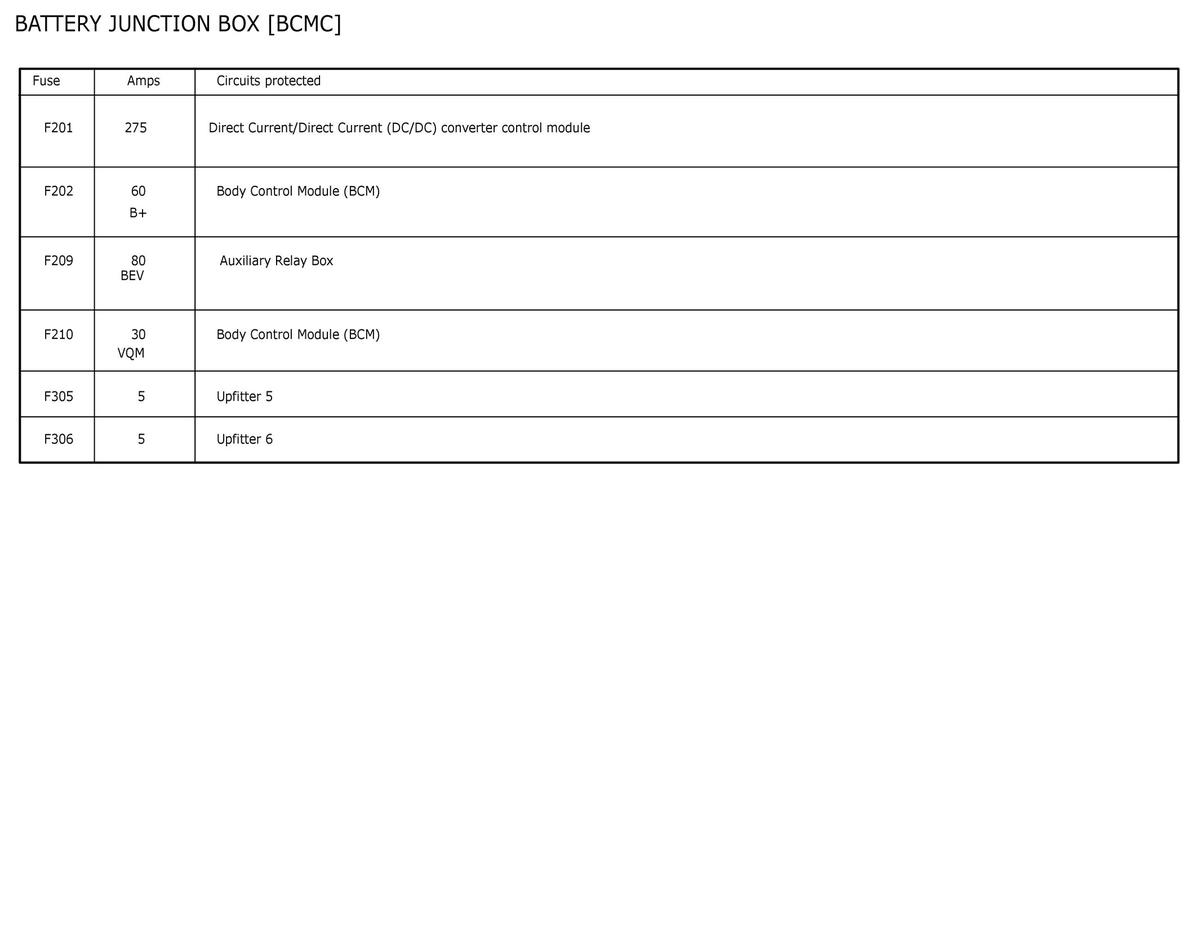

Fig 9: Battery Junction Box [BCMC] Components Location Legend (F201 - F206)

Courtesy of FORD MOTOR COMPANY

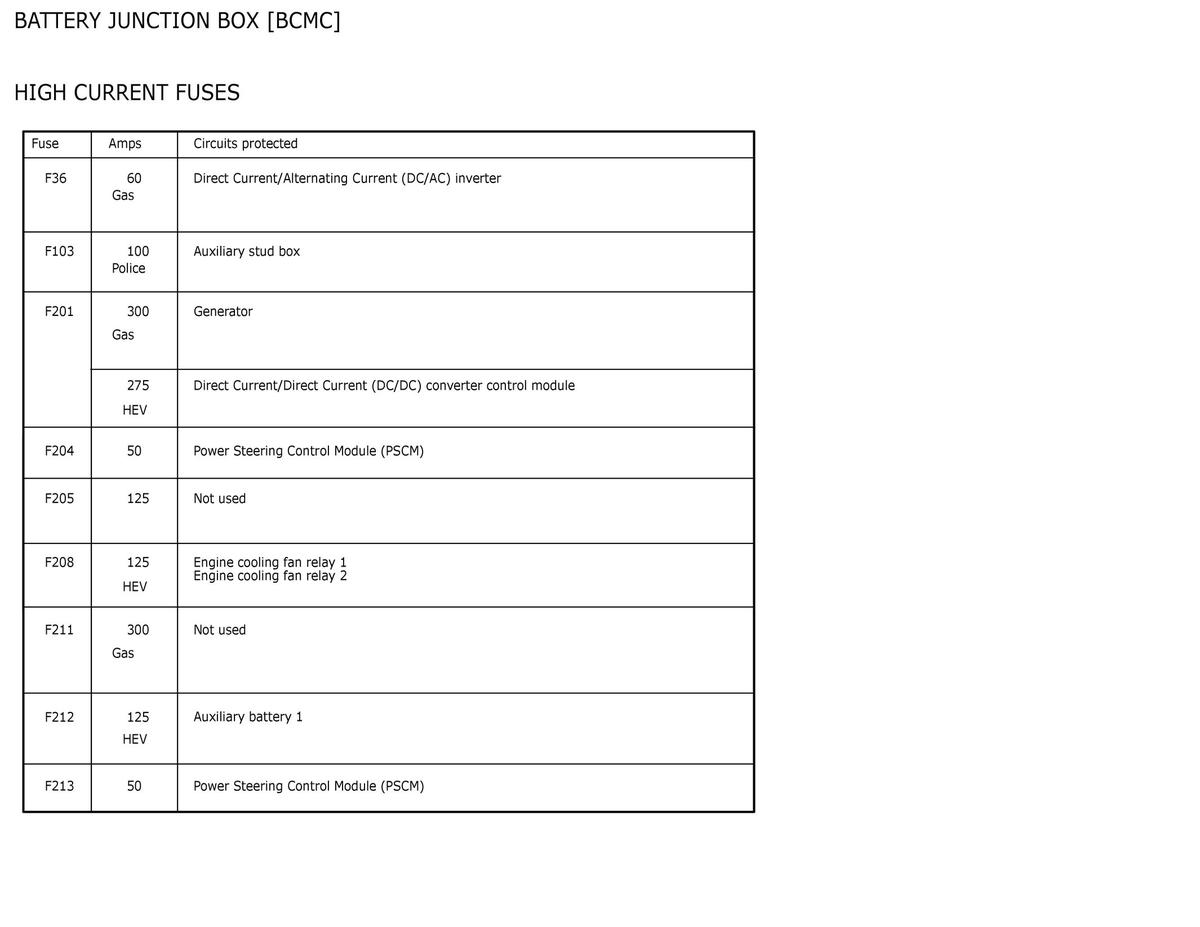

Fig 10: Battery Junction Box [BCMC] Component Location Legend (High Current Fuses)

Courtesy of FORD MOTOR COMPANY

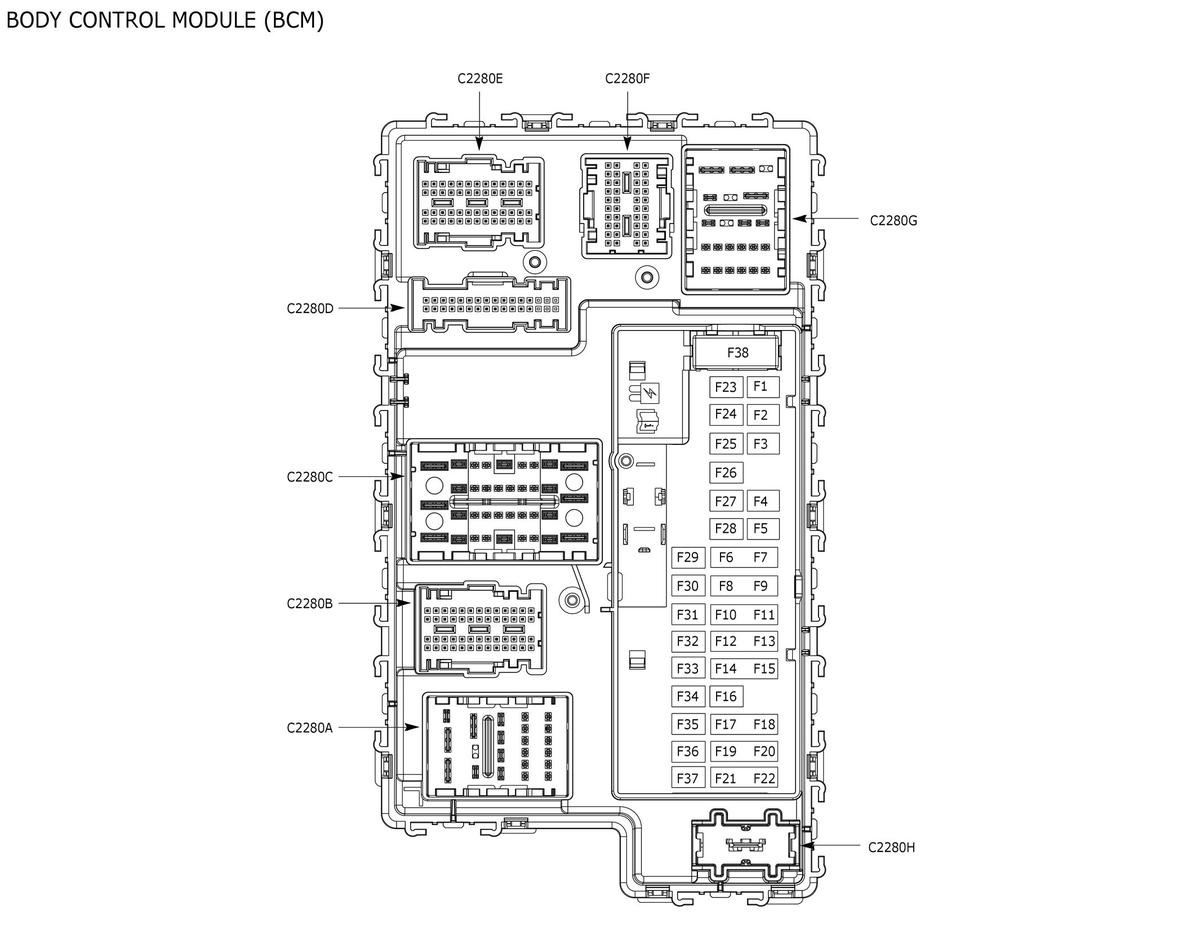

Fig 11: Body Control Module (BCM) Components Location

Courtesy of FORD MOTOR COMPANY

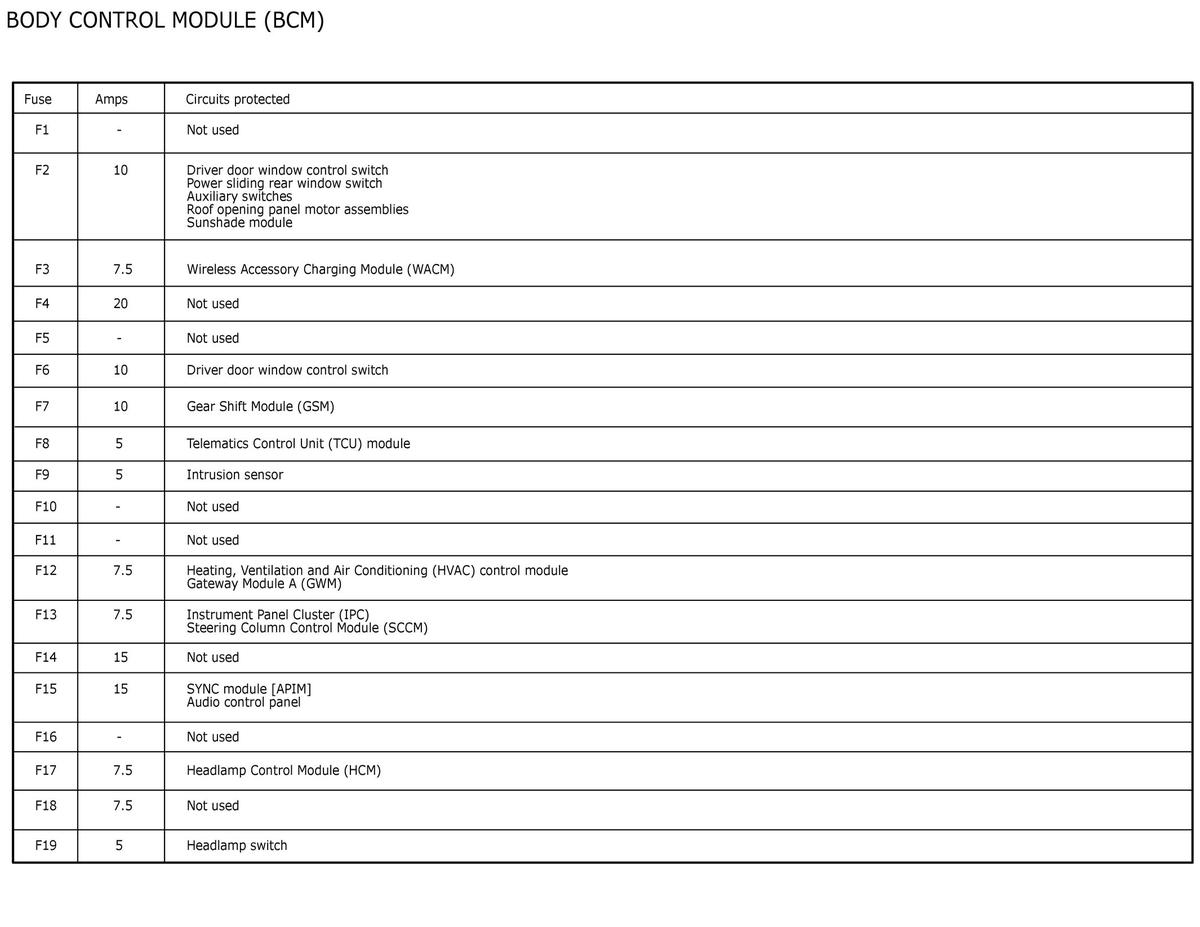

Fig 12: Body Control Module (BCM) Components Location Legend (F1 - F19)

Courtesy of FORD MOTOR COMPANY

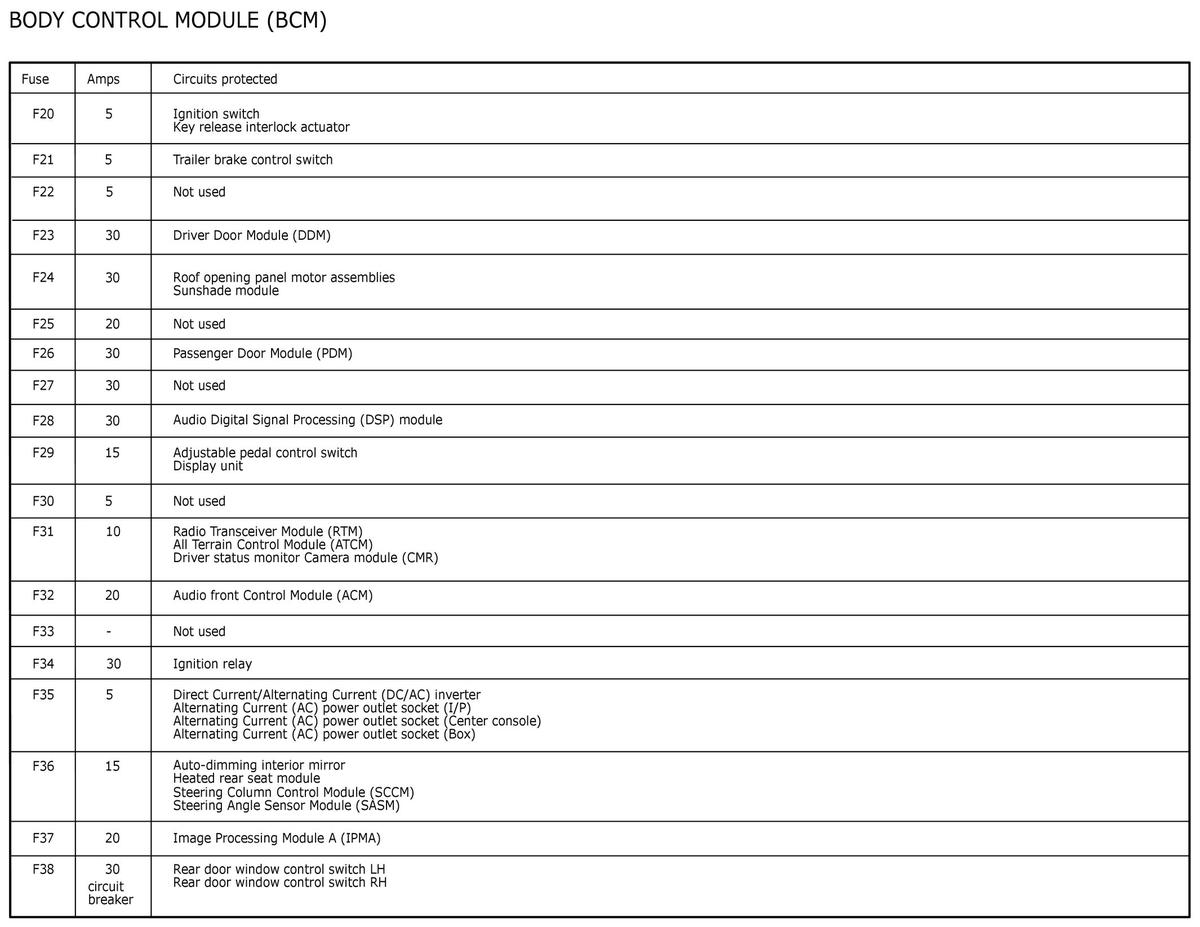

Fig 13: Body Control Module (BCM) Components Location Legend (F20 - F38)

Courtesy of FORD MOTOR COMPANY

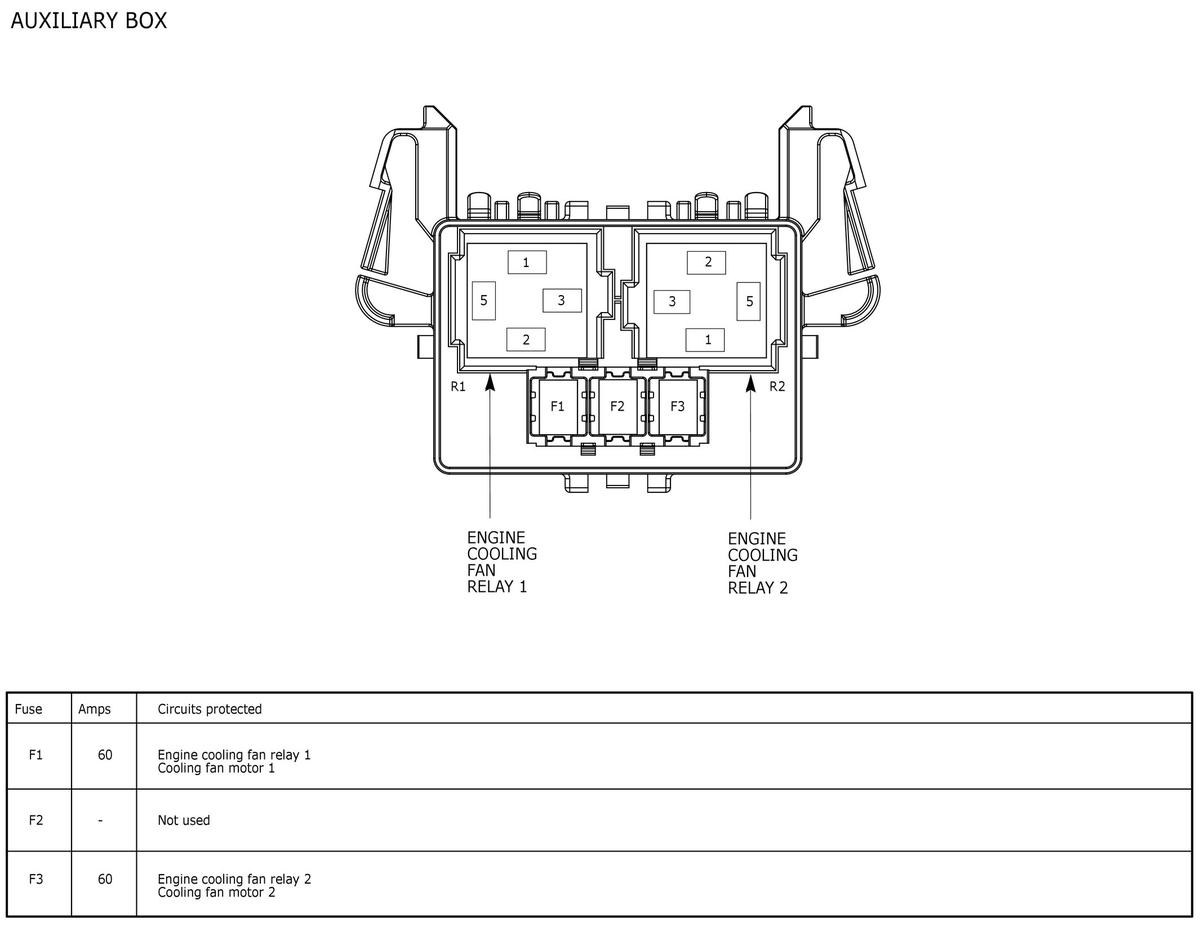

Fig 14: Auxiliary Box Components Location & Legend

Courtesy of FORD MOTOR COMPANY
