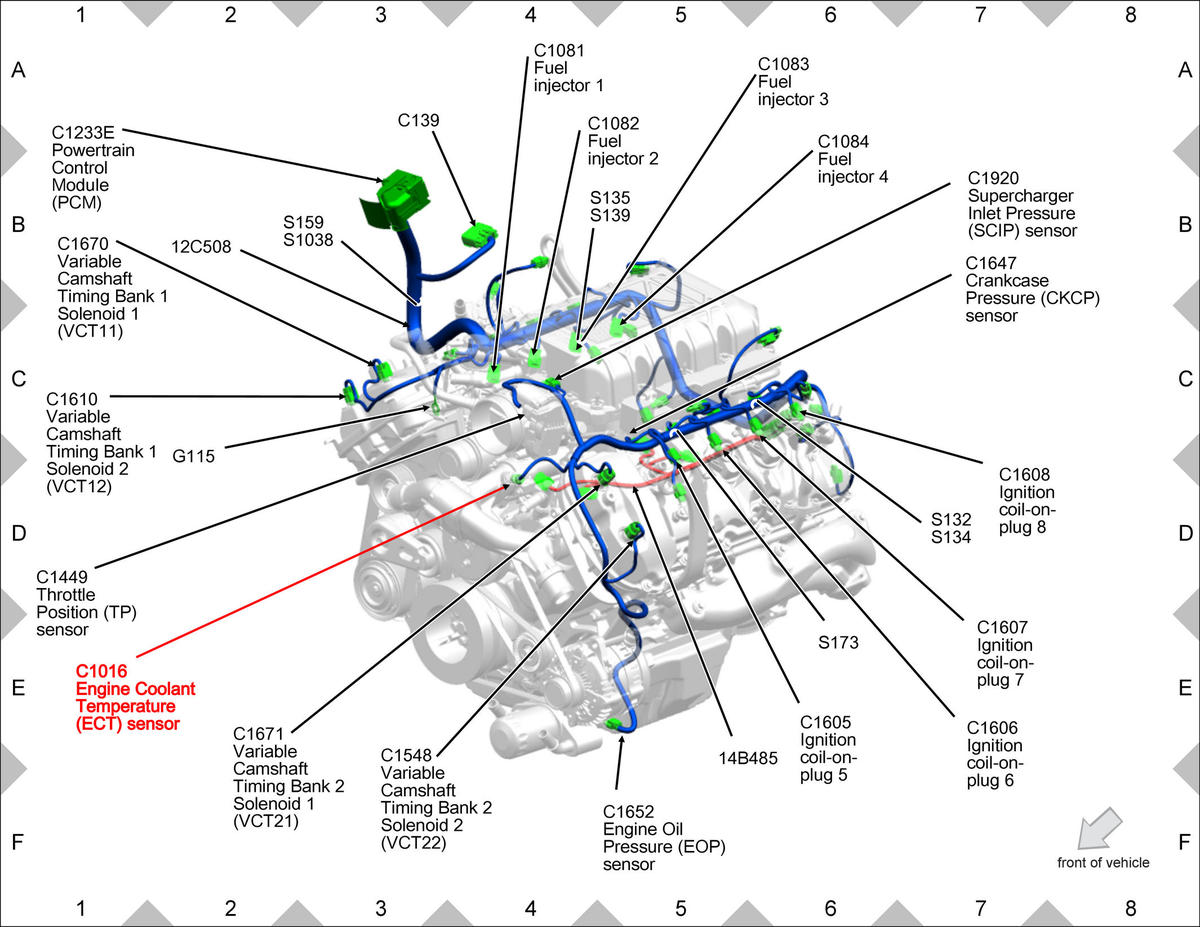

Home >> Ford >> 2023 >> F-150 Limited >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors >> Component Location Charts By Connectors >> C1016 (5.2L)
