Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  2. Remove the floor console. Refer to: Floor Console .
  3. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

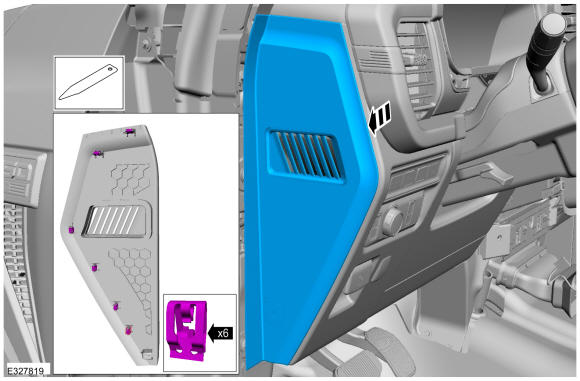

  4. Release the clips and remove the LH instrument panel trim panel.Use the General Equipment: Interior Trim Remover
    GFD739125Courtesy of FORD MOTOR COMPANY

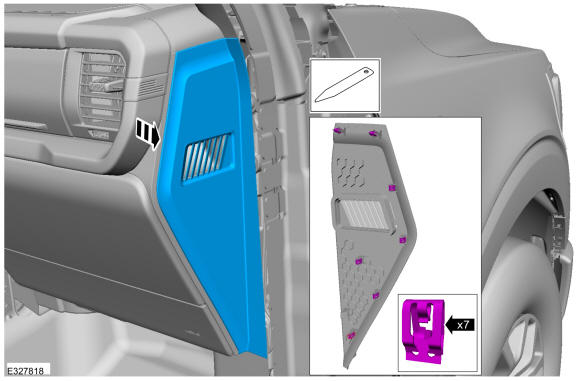

  5. Release the clips and remove the RH instrument panel trim panel.Use the General Equipment: Interior Trim Remover
    GFD739126Courtesy of FORD MOTOR COMPANY

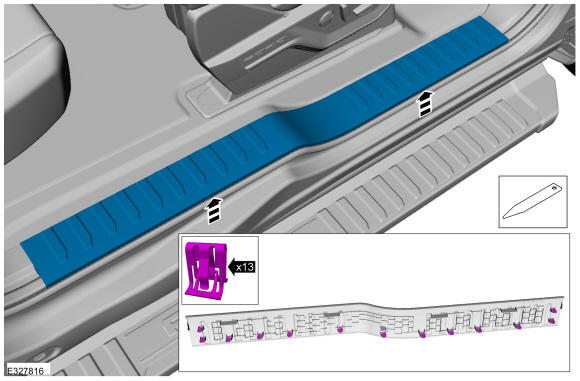

  6. NOTE: Super Cab shown, other cabs similar.

    Release the clips and remove the RH scuff plate.Use the General Equipment: Interior Trim Remover

    GFD739127Courtesy of FORD MOTOR COMPANY

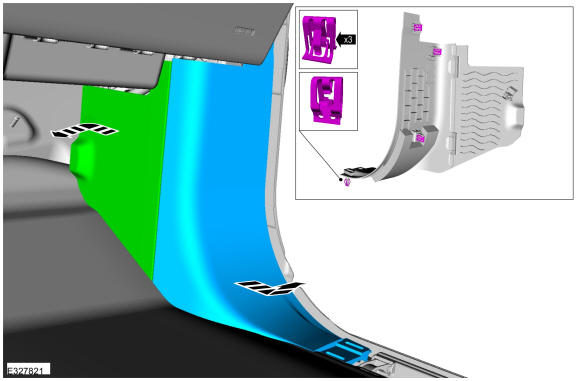

  7. Release the clips and remove the RH lower cowl trim panel.

    • Release the molded snap in the fuse panel cover then rotate fuse panel inboard and foward to disengage hooks from the cowl trim.

    GFD739128Courtesy of FORD MOTOR COMPANY

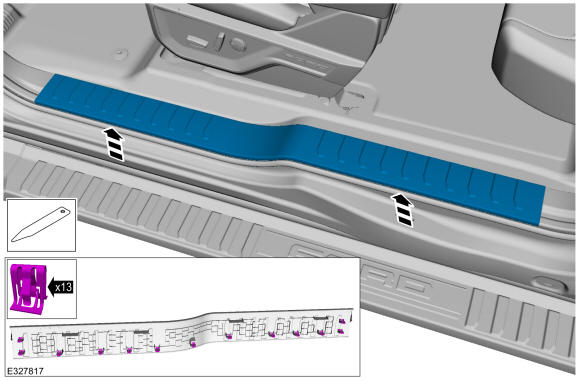

  8. NOTE: Super Cab shown, other cabs similar.

    Release the clips and remove the LH scuff plate.Use the General Equipment: Interior Trim Remover

    GFD739129Courtesy of FORD MOTOR COMPANY

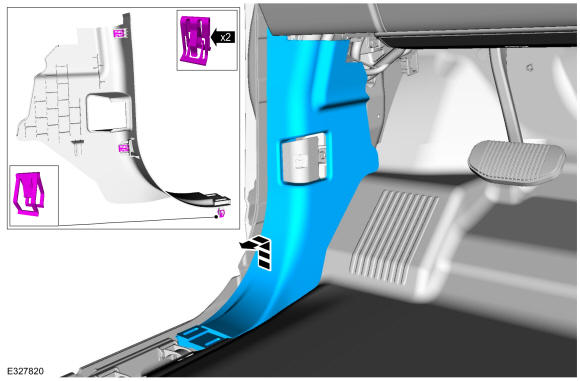

  9. Release the clips and remove the LH lower cowl trim panel.
    GFD739130Courtesy of FORD MOTOR COMPANY

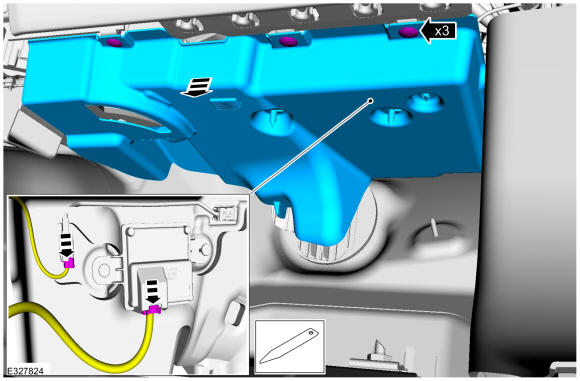

  10. Remove the push pins and the RH insulation panel.

    • Disconnect the electrical connectors.Use the General Equipment: Interior Trim Remover

    GFD739131Courtesy of FORD MOTOR COMPANY

    Without floor console

  11. Remove the front center seat. Refer to: Front Center Seat .

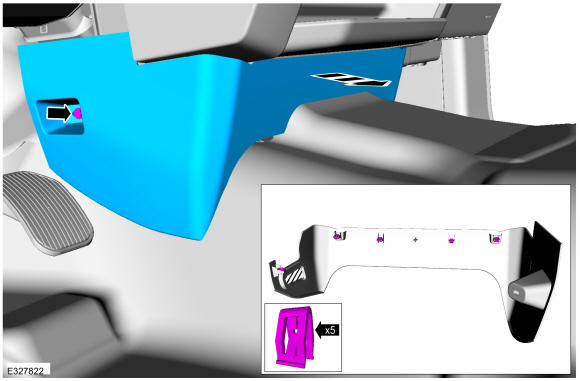

  12. Remove the bolt, release the clips and remove the lower instrument panel finish panel.
    GFD739132Courtesy of FORD MOTOR COMPANY

    All vehicles

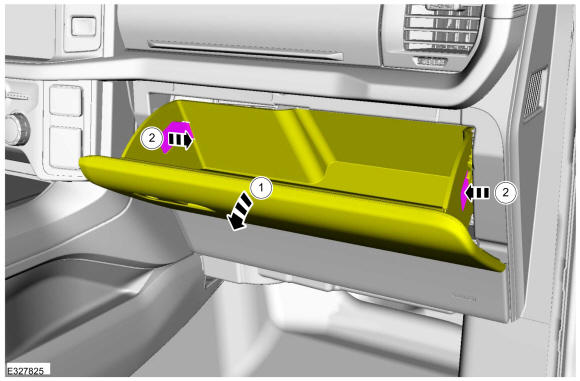

    1. Open the glove compartment.
    2. Push the stop tabs inward.
    GFD739123Courtesy of FORD MOTOR COMPANY

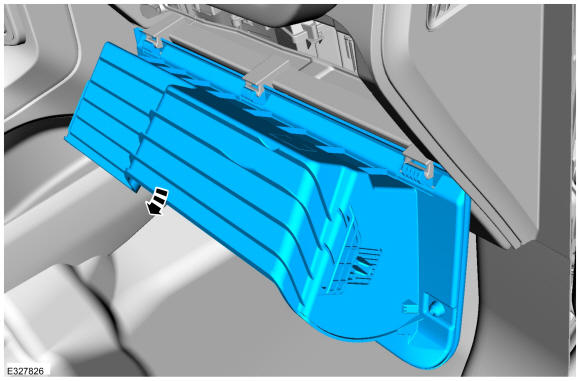

  13. Fully lower the glove compartment and lift off the hinges.
    GFD739124Courtesy of FORD MOTOR COMPANY

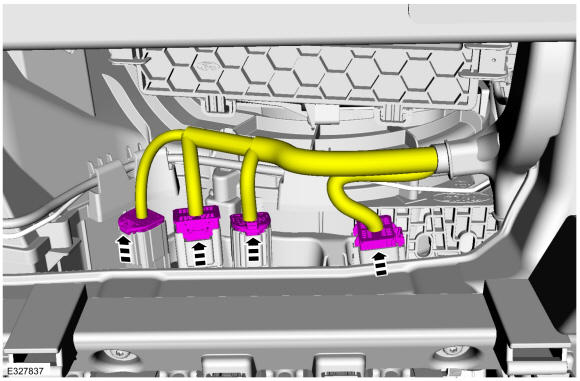

  14. Disconnect the electrical connectors.
    GFD739133Courtesy of FORD MOTOR COMPANY

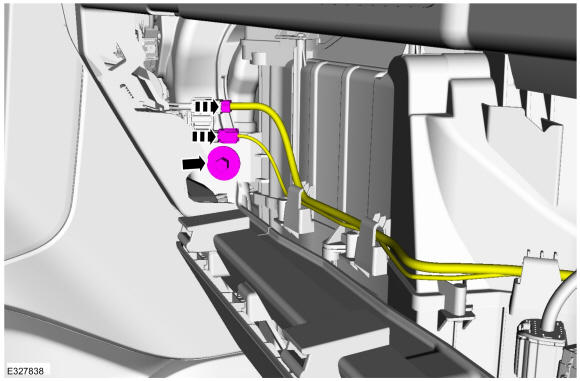

  15. Remove the bolt and disconnect the electrical connectors.

    Torque: 80 lb.in (9 Nm)

    GFD739134Courtesy of FORD MOTOR COMPANY
    1. Disconnect the electrical connectors at the BCM.
    2. NOTE: If equipped.

      Remove nut and the ground eyelet.

    GFD739135Courtesy of FORD MOTOR COMPANY

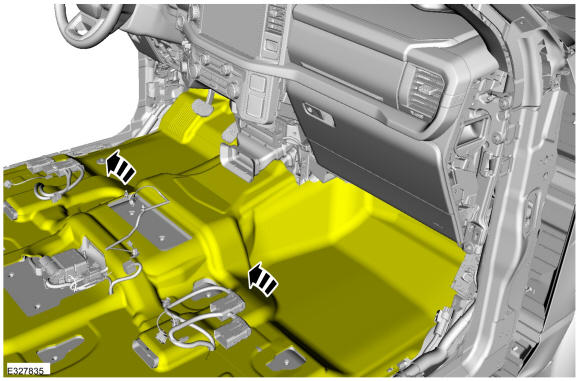

  16. Fold the carpet rearward.
    GFD739136Courtesy of FORD MOTOR COMPANY

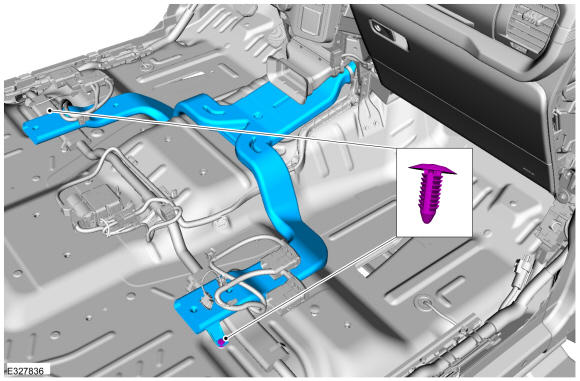

  17. Remove the push pins and the HVAC floor duct.
    GFD739137Courtesy of FORD MOTOR COMPANY

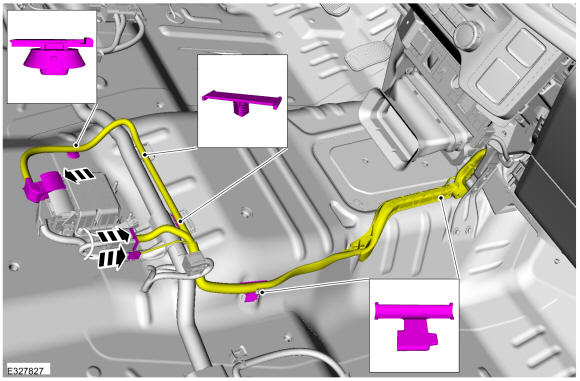

  18. Disconnect the electrical connectors, release the harness retainers and postion aside the harness.
    GFD739138Courtesy of FORD MOTOR COMPANY

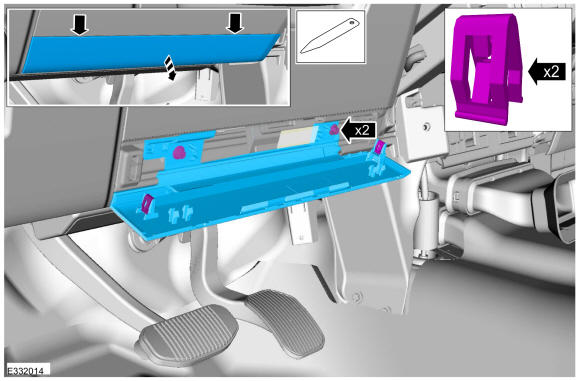

  19. Release the clips to open the access panel, remove the bolts and the access panel.

    Torque: 22 lb.in (2.5 Nm)

    GFD739139Courtesy of FORD MOTOR COMPANY

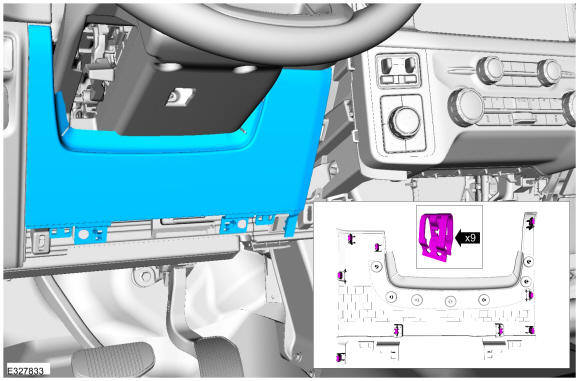

  20. Release the clips and remove the lower steering column trim panel.
    GFD739140Courtesy of FORD MOTOR COMPANY

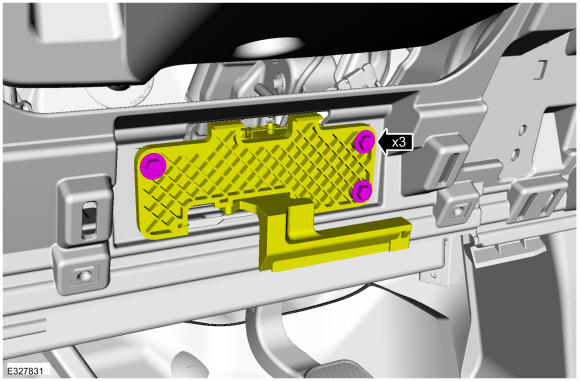

  21. Remove the bolts and position the lever assembly for access.
    GFD739141Courtesy of FORD MOTOR COMPANY

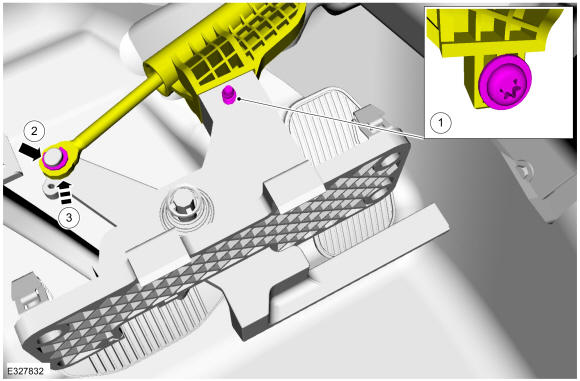

    1. Remove the screw.
    2. Remove the clip.
    3. Remove the cable from the lever and postion aside.
    GFD739142Courtesy of FORD MOTOR COMPANY

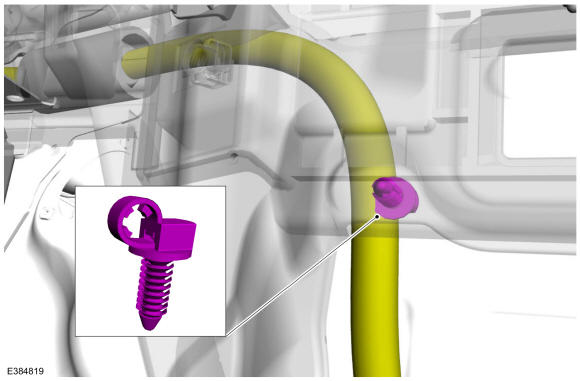

  22. Disconnect the park release cable-to-insturment panel push pin.
    GFD739143Courtesy of FORD MOTOR COMPANY

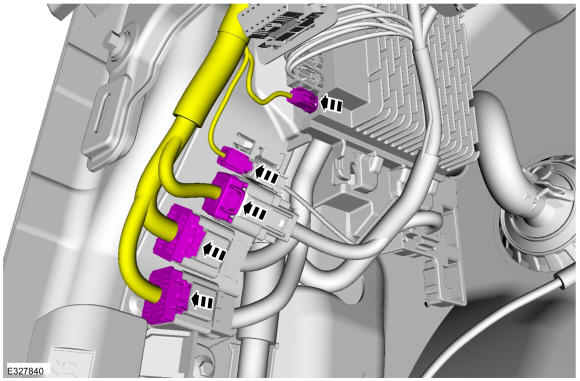

  23. Disconnect the electrical connectors.
    GFD739144Courtesy of FORD MOTOR COMPANY

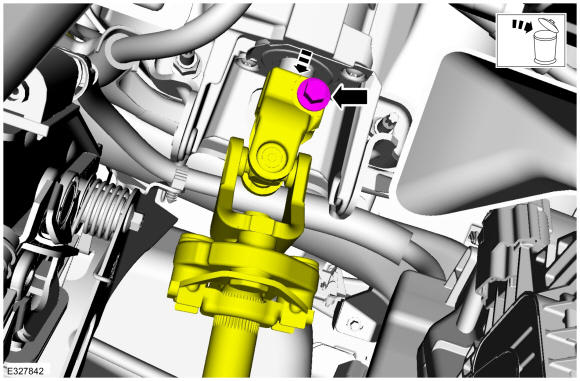

  24. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque: 22 lb.ft (30 Nm)

    GFD739145Courtesy of FORD MOTOR COMPANY

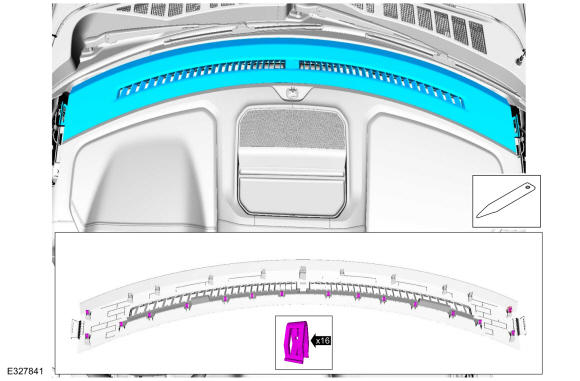

  25. Release the clips and remove the defrost grille trim panel.
    GFD739146Courtesy of FORD MOTOR COMPANY

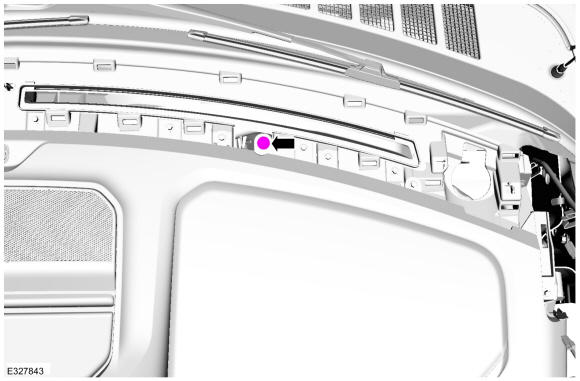

  26. Remove the bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD739147Courtesy of FORD MOTOR COMPANY

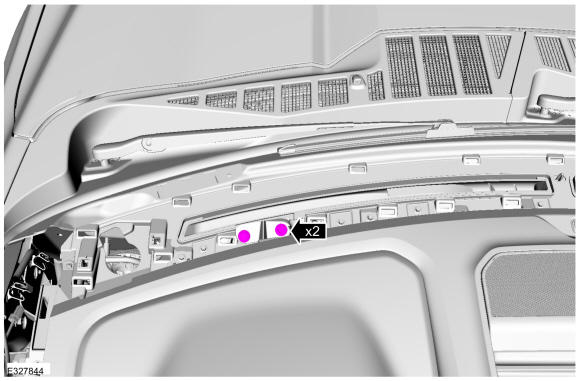

  27. Remove the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD739148Courtesy of FORD MOTOR COMPANY

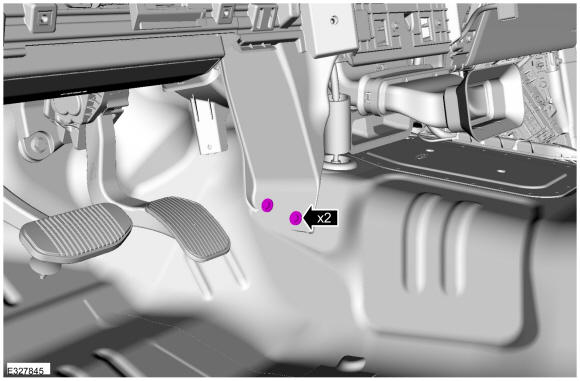

  28. Remove the bolts.

    Torque: 80 lb.in (9 Nm)

    GFD739149Courtesy of FORD MOTOR COMPANY

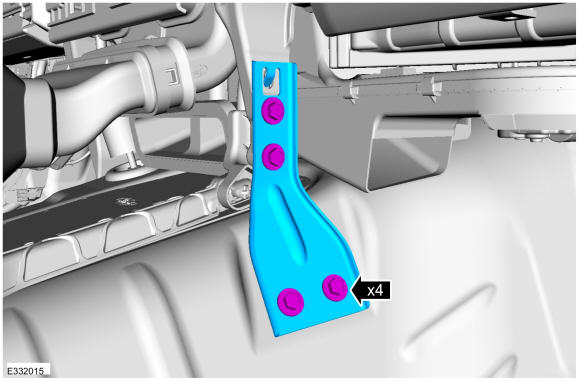

  29. Remove the bolts and the RH center support brace.

    Torque: 80 lb.in (9 Nm)

    GFD739150Courtesy of FORD MOTOR COMPANY

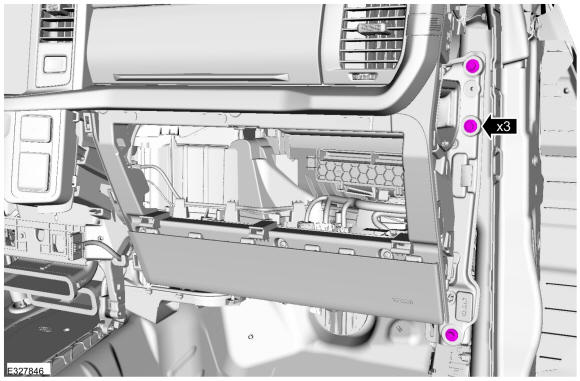

  30. Remove the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD739151Courtesy of FORD MOTOR COMPANY

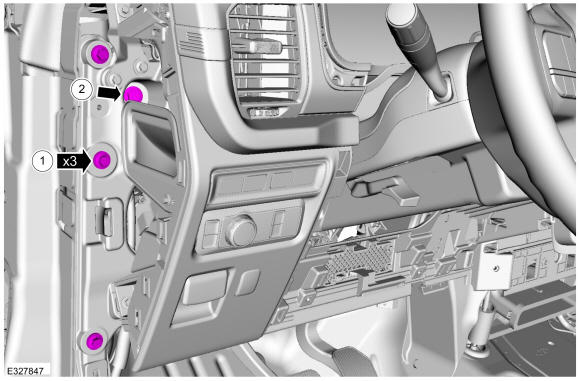

    1. Remove the bolts.

      Torque: 22 lb.ft (30 Nm)

    2. NOTE: Do not fully remove this bolt untill ready to remove the instrument panel.

      Remove the bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD739152Courtesy of FORD MOTOR COMPANY

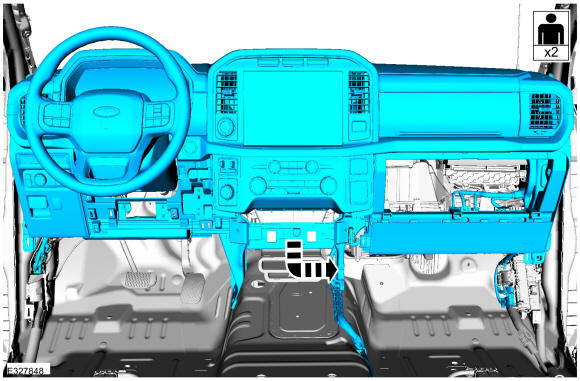

  31. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Rotate the instrument panel as required and remove through the RH front door opening.

GFD739153Courtesy of FORD MOTOR COMPANY
