Instrument Panel Upper Section - Vehicles With: 15.5 Inch Center Display Screen: Removal

All vehicles RH side

1. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

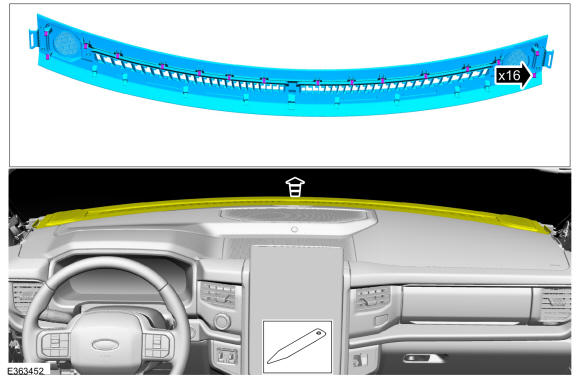

2. Release the clips and remove the instrument panel defroster panel.
   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

3. Remove the floor console. Refer to: Floor Console .

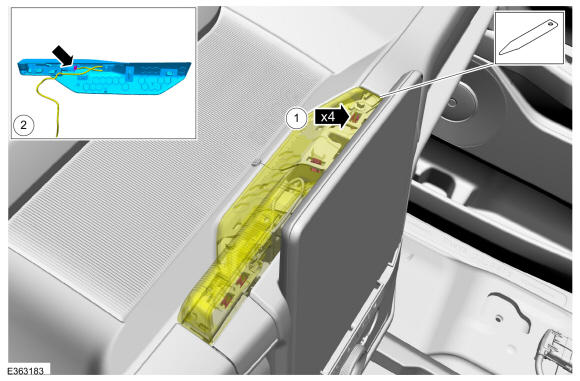

4. Remove the information and entertainment display unit fastener cover.
   1. Release the clips.Use the General Equipment: Interior Trim Remover
   2. If equipped.

   Courtesy of FORD MOTOR COMPANY

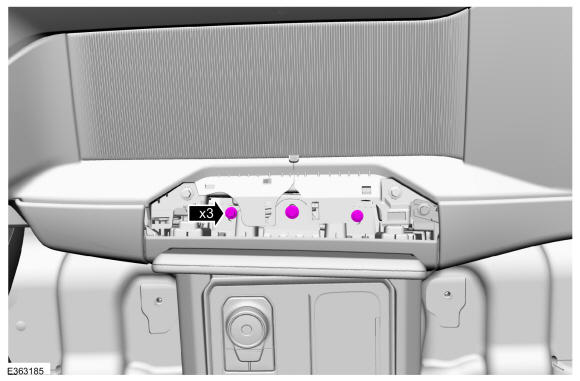

5. Remove the bolts.

   Torque: 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

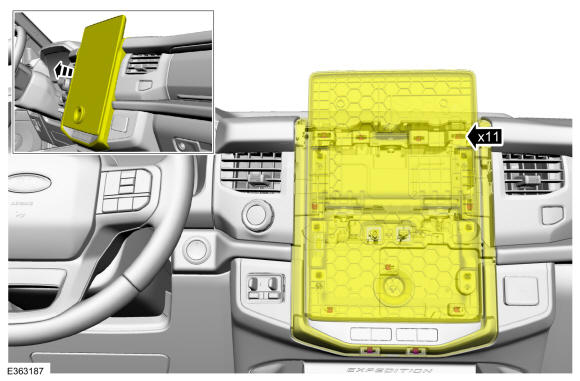

6. Release the clips and remove the center display screen and bracket as an assembly.

   Courtesy of FORD MOTOR COMPANY

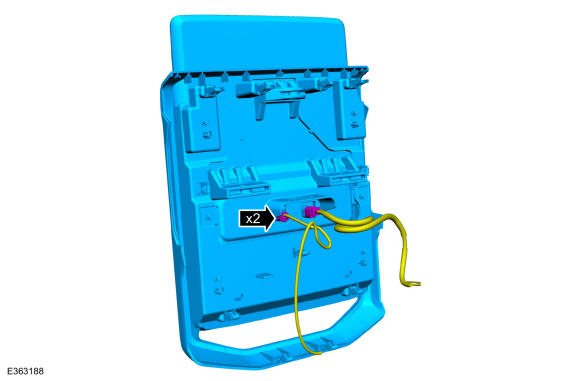

7. Disconnect the electrical connectors and remove the center display screen and bracket as an assembly.

   Courtesy of FORD MOTOR COMPANY

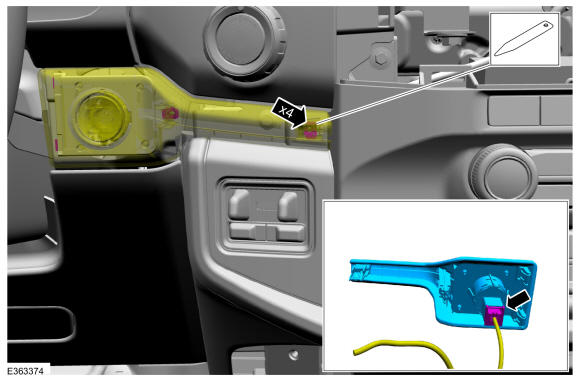

8. Release the clips, position the start/stop switch bezel aside.
   • disconnect the electrical connector and remove the start/stop switch bezel.

   Courtesy of FORD MOTOR COMPANY

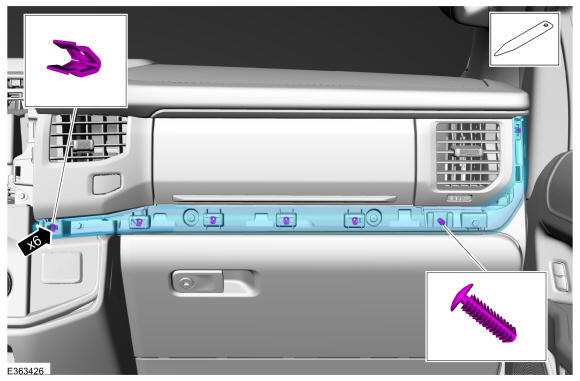

9. Release the clips, separate the trim pin, and remove the RH instrument panel trim panel.Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

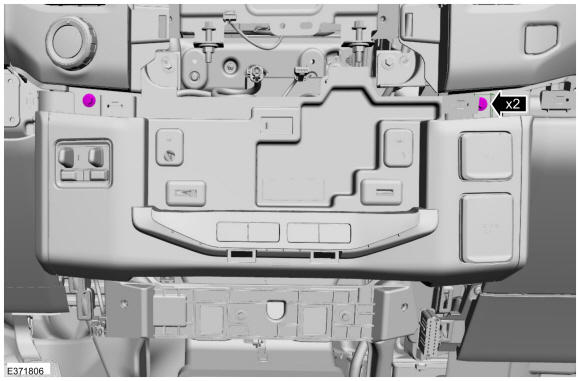

10. Remove the bolts.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

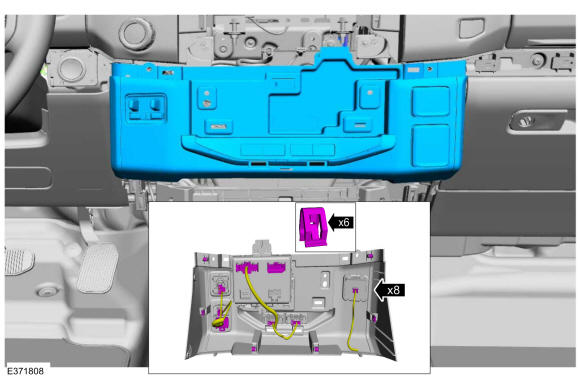

11. Release the cilps and remove the lower centerstack trim panel.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

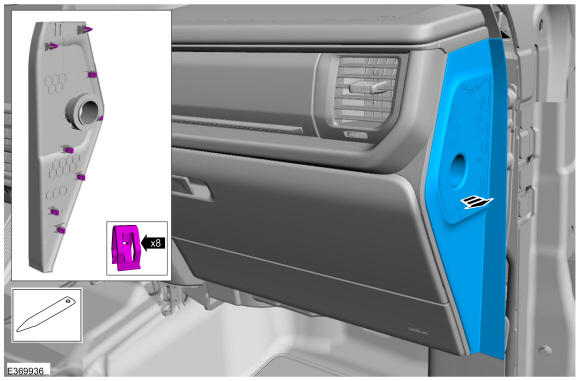

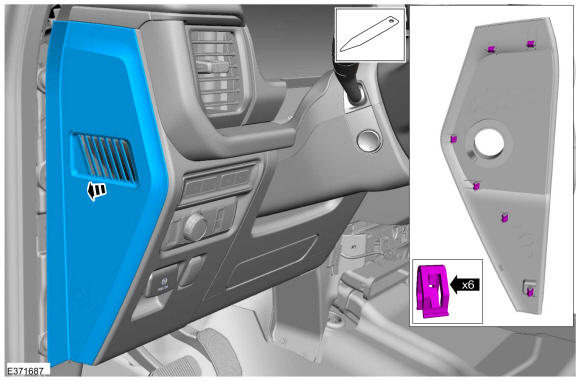

12. Release the clips and remove the RH instrument panel end cap.Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

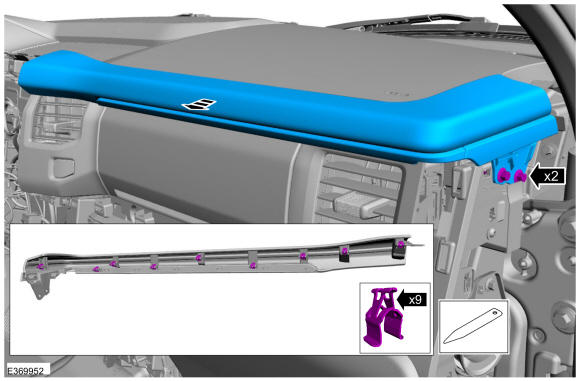

13. Remove the bolts, release the retainers and remove the RH instrument panel finish panel.Use the General Equipment: Interior Trim Remover

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

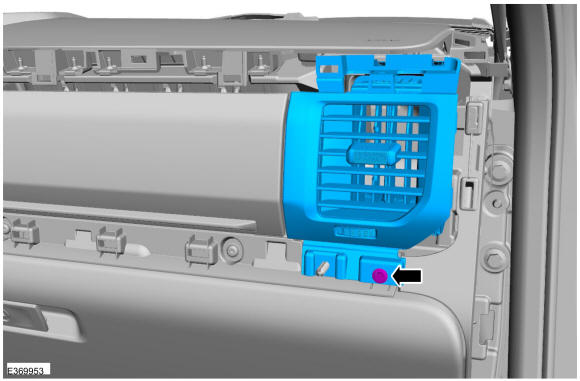

14. Remove the bolts and the RH register.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

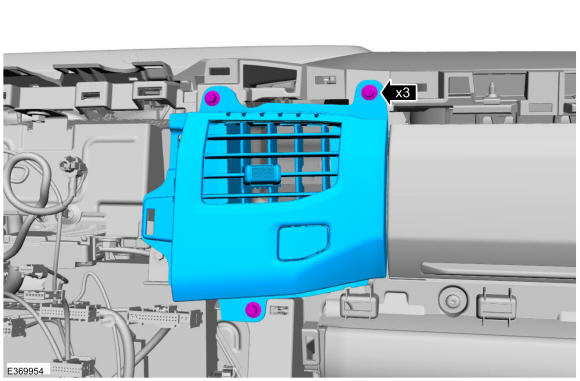

15. Remove the bolts and the RH center regsiter.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

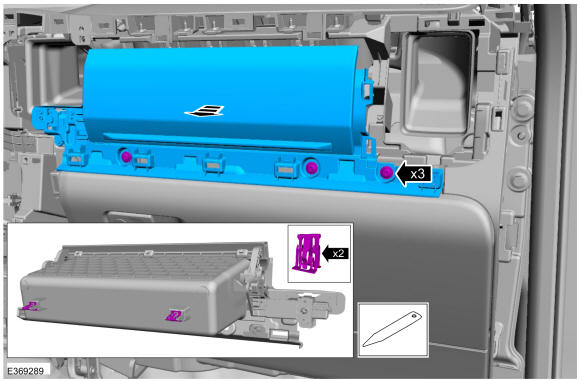

16. Remove the bolts, release the retainers and remove the storage bin assembly.Use the General Equipment: Interior Trim Remover

    Torque: 27 lb.in (3.0 Nm)

    Courtesy of FORD MOTOR COMPANY

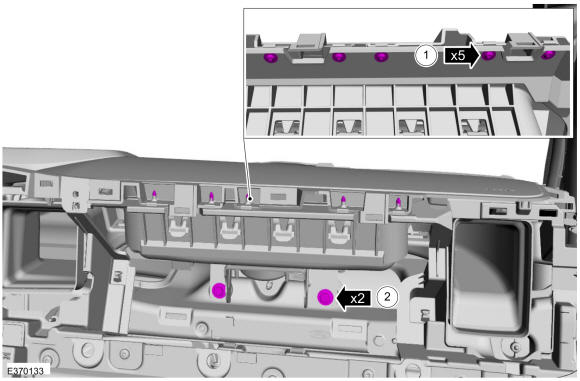

17. 1. Remove the bolts.

       Torque: 22 lb.in (2.5 Nm)

    2. Remove the bolts.

       Torque: 81 lb.in (9.2 Nm)

    Courtesy of FORD MOTOR COMPANY

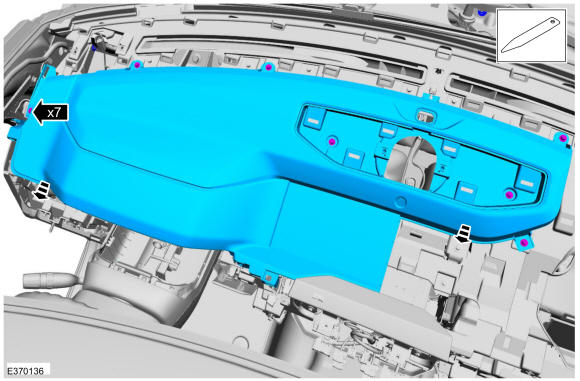

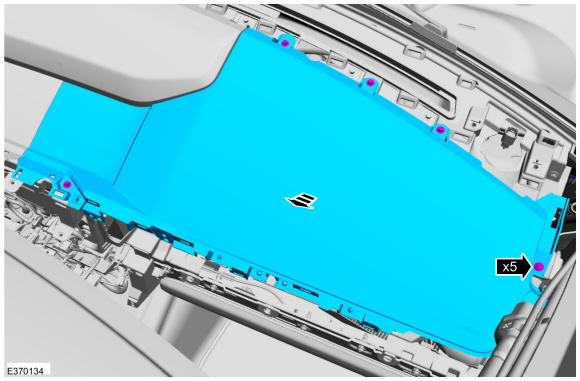

18. Remove the bolts and release the RH instrument panel upper section retainers by pulling up and inward.

    Torque: 24 lb.in (2.7 Nm)

    Courtesy of FORD MOTOR COMPANY

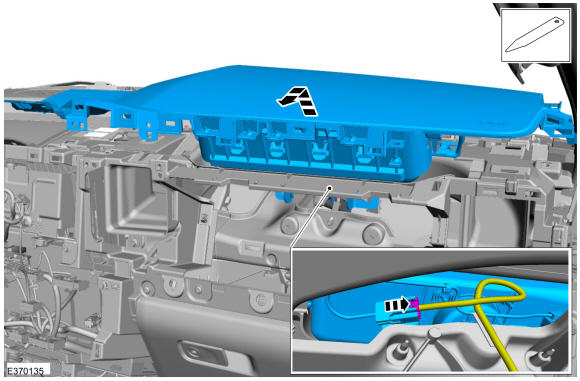

19. Remove the RH instrument panel upper section by lifting upward and inward.
    • Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

    All vehicles LH side

20. Release the retainers and remove the LH instrument panel end cap.Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

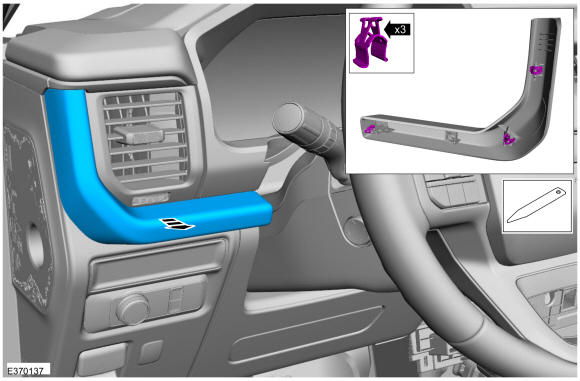

21. Release the retainers and remove the lower LH regsiter trim panel.Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

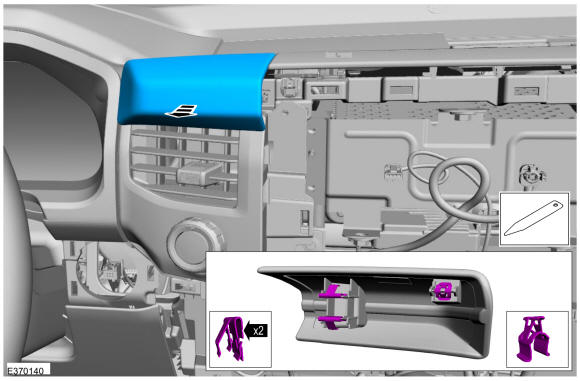

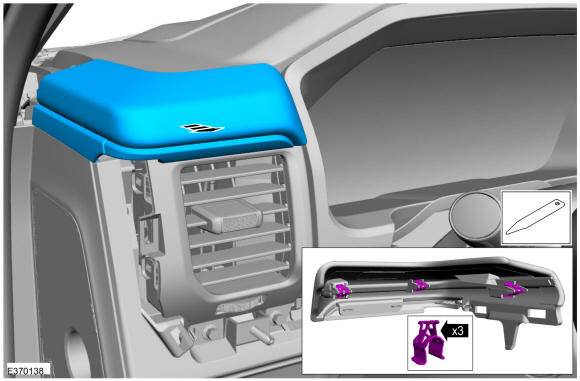

22. Release the retainers and remove the upper LH regsiter trim panel.Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

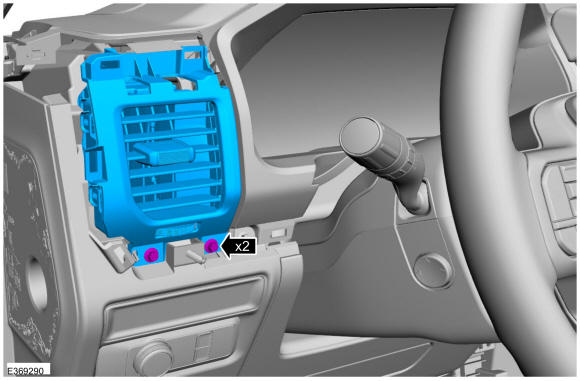

23. Remove the bolts and the LH register.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Release the retainers and the LH center register upper trim panel.Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

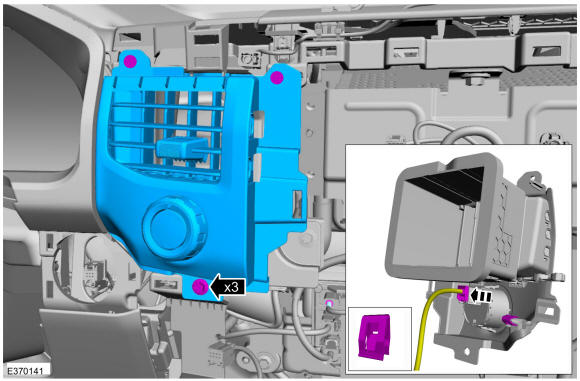

25. Remove the bolts and the LH center register.
    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .
27. Remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker - Vehicles With: 8 Inch Center Display Screen/12 Inch Center Display Screen .
28. Remove the sunload sensor. Refer to: Sunload Sensor .
29. Remove the bolts and release the LH instrument panel upper section retainers by pulling up and inward.

    Torque: 24 lb.in (2.7 Nm)

Courtesy of FORD MOTOR COMPANY
