Auxiliary Power Point: Removal

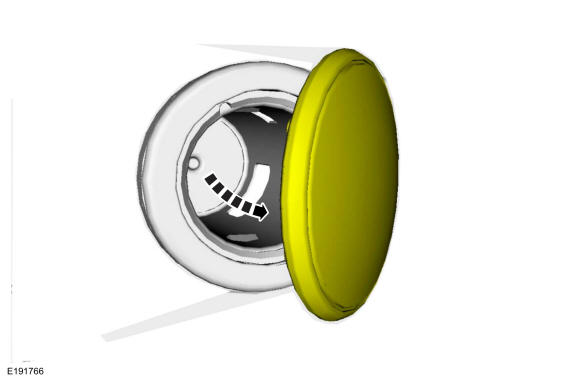

  1. Open the power point cover.
    GFD739109Courtesy of FORD MOTOR COMPANY

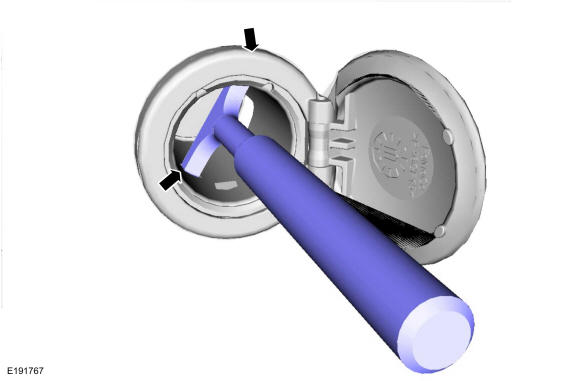

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket.Remove Special Service Tool: 501-194 Remover, Power Point.
    GFD739110Courtesy of FORD MOTOR COMPANY

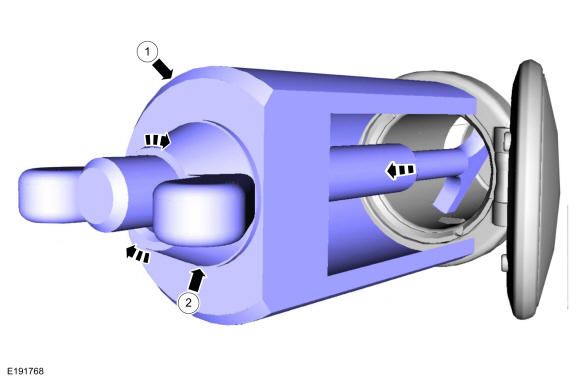

    1. Install the receiver cup.
    2. Install and tighten the wing nut.Remove Special Service Tool: 501-194 Remover, Power Point.
    GFD739111Courtesy of FORD MOTOR COMPANY

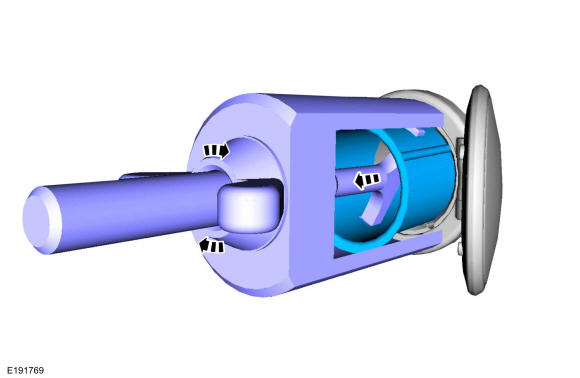

  4. Tighten the wing nut to pull the power point socket out of the retainer.Remove Special Service Tool: 501-194 Remover, Power Point.
    GFD739112Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD739113Courtesy of FORD MOTOR COMPANY
