Section 885 (OEM Wiring Diagrams)
>>
Audio System/Navigation - Sync
Audio System/Navigation - Sync
WARNING:
This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

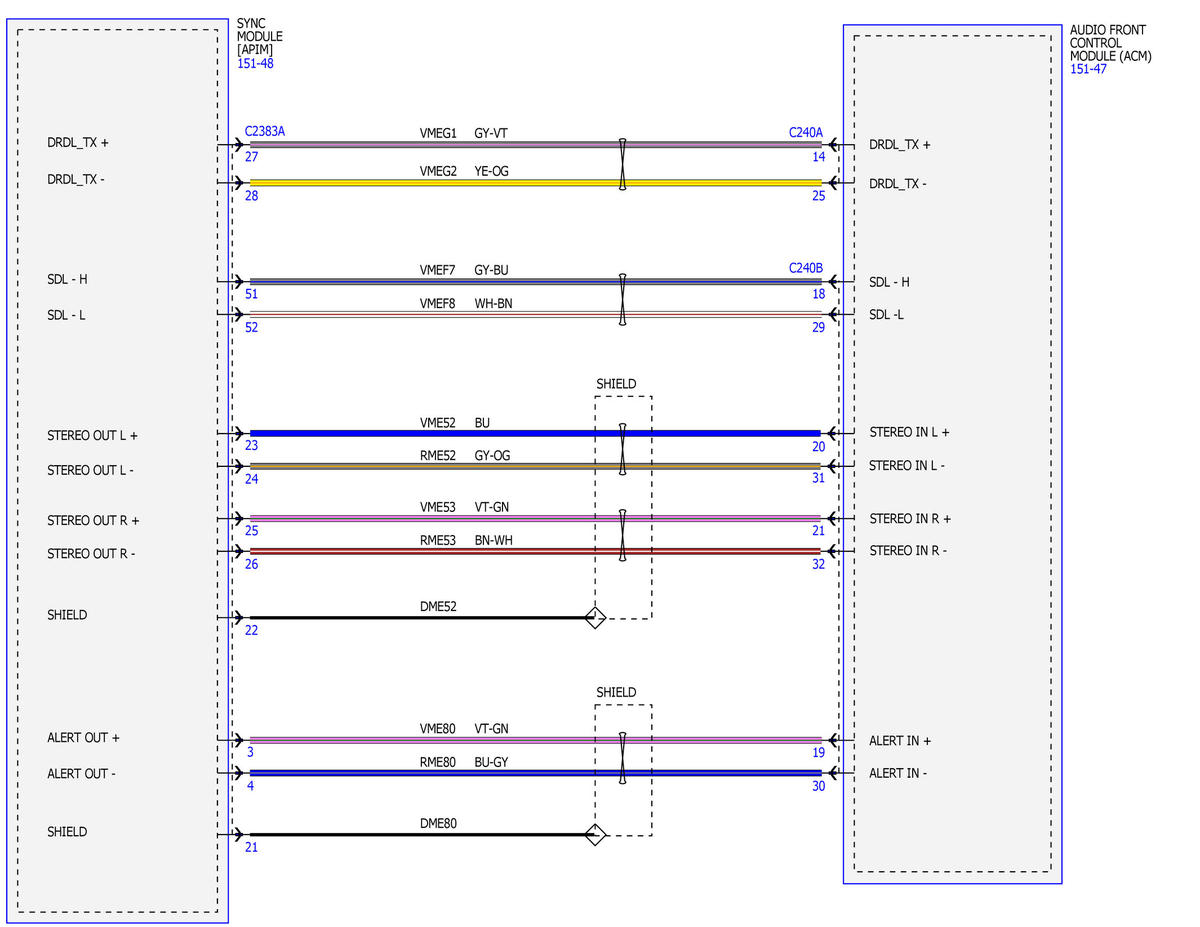

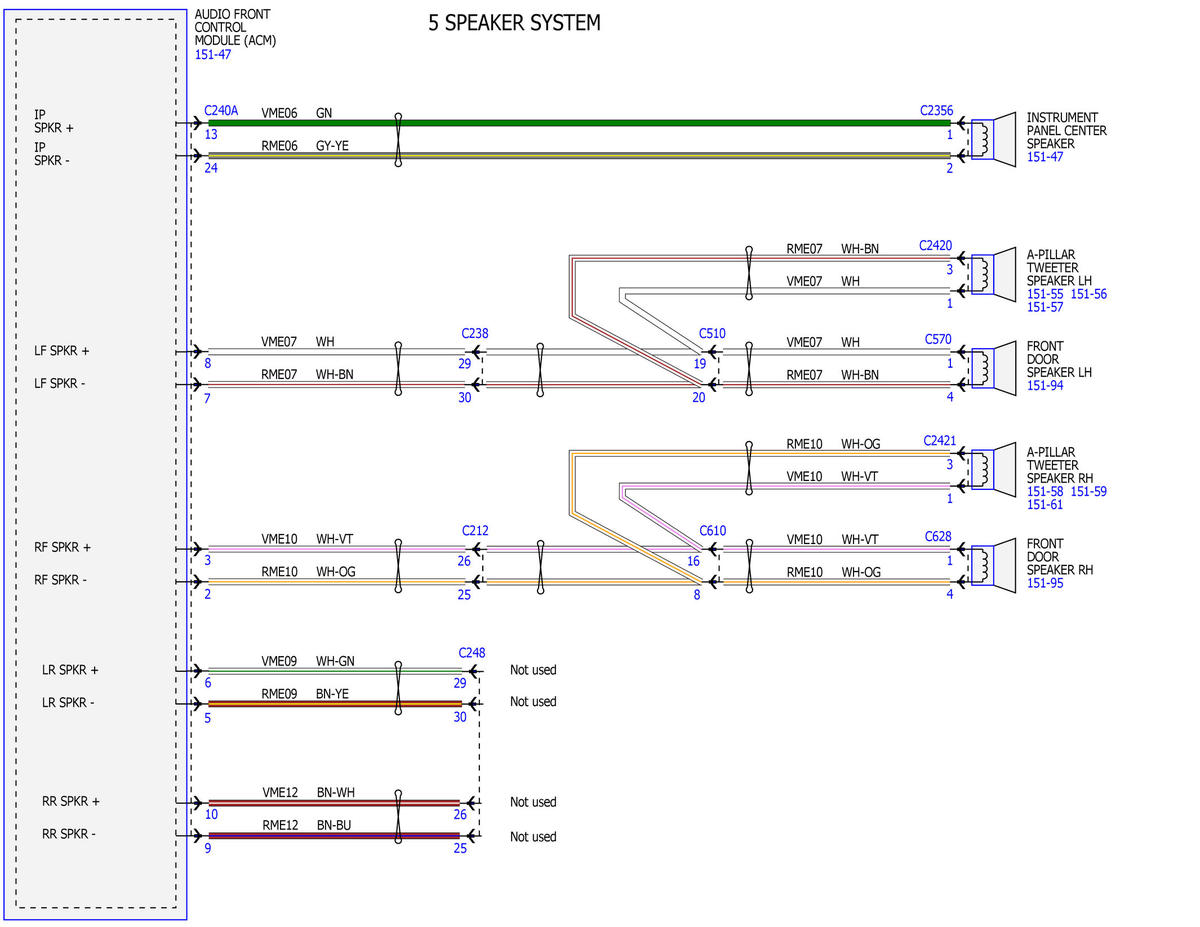

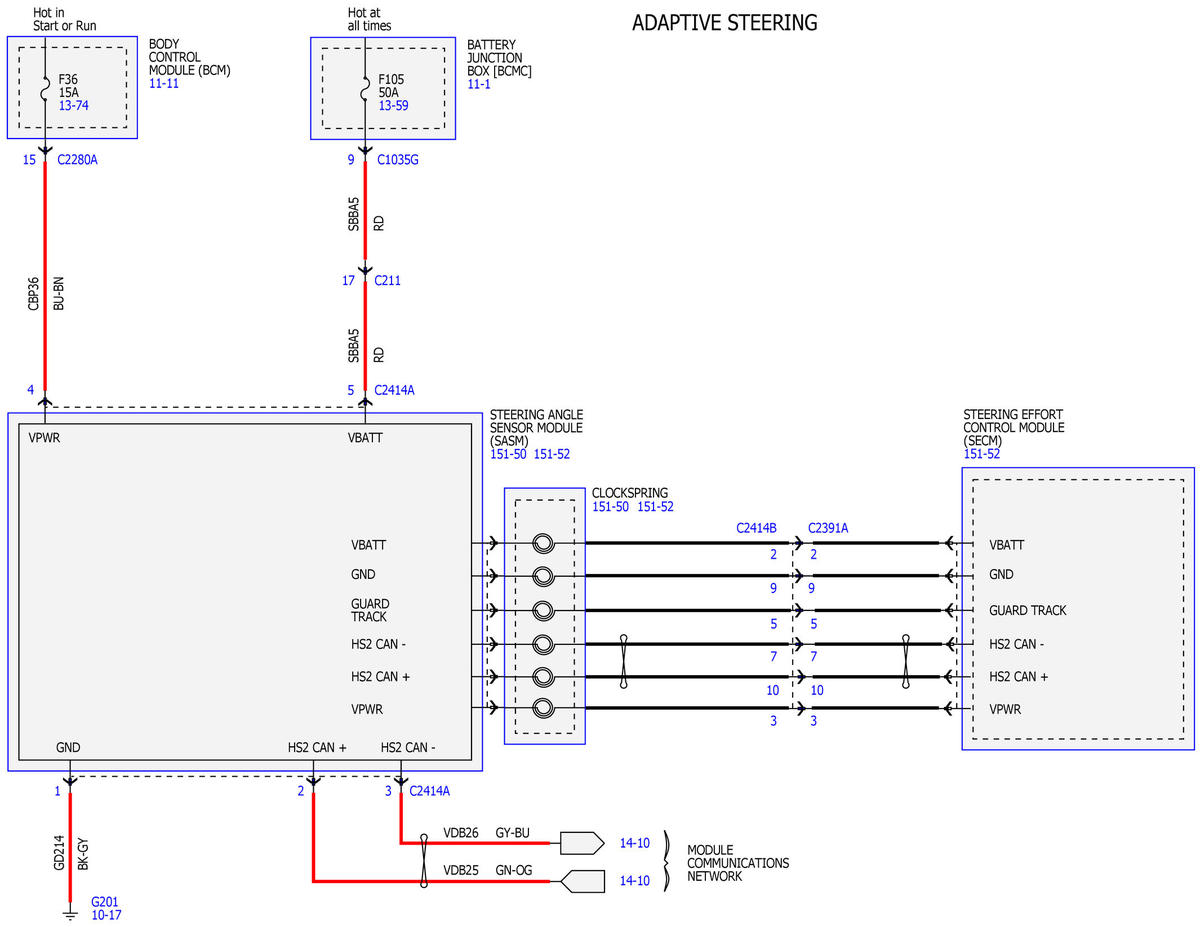

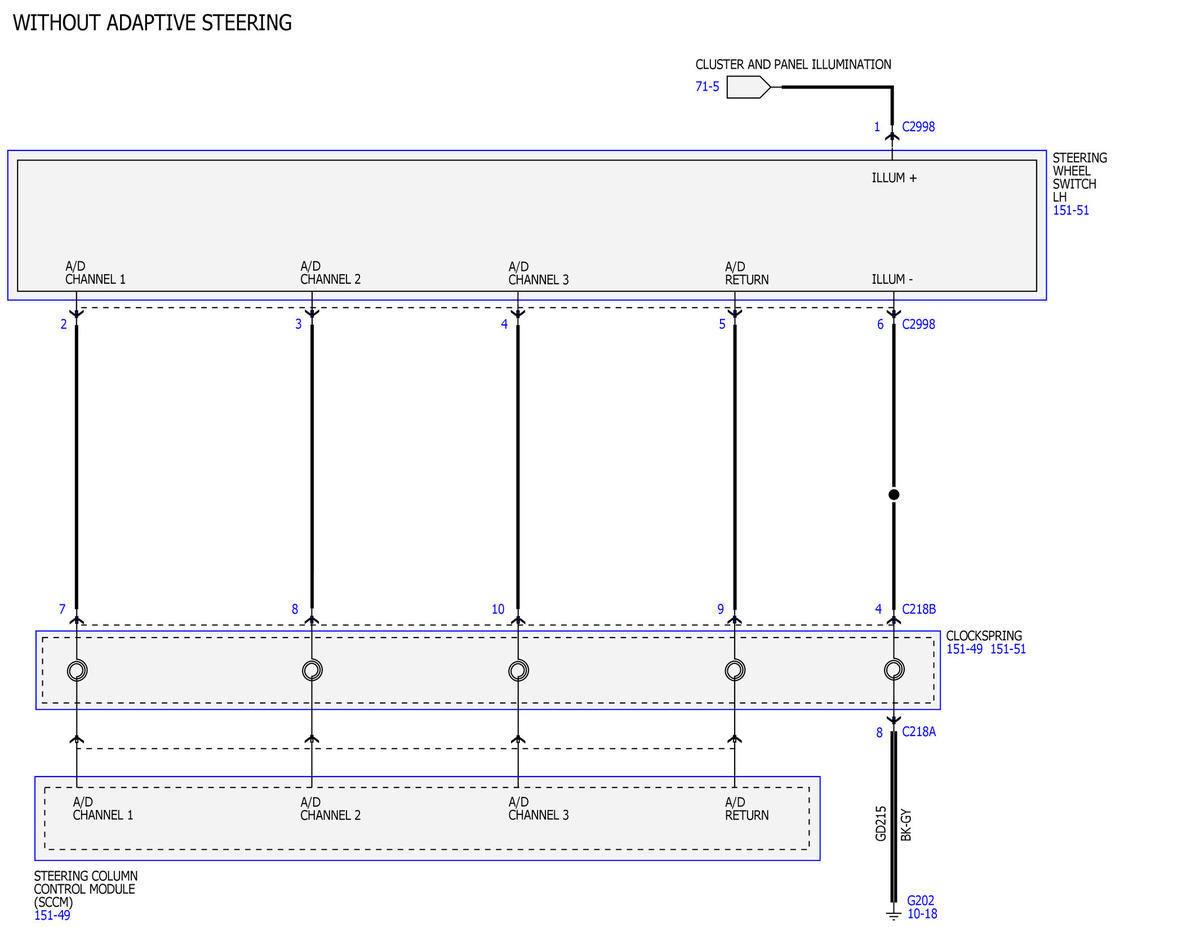

Fig 1: Audio System/Navigation - SYNC Wiring Diagram (1 Of 27)
Courtesy of FORD MOTOR COMPANY

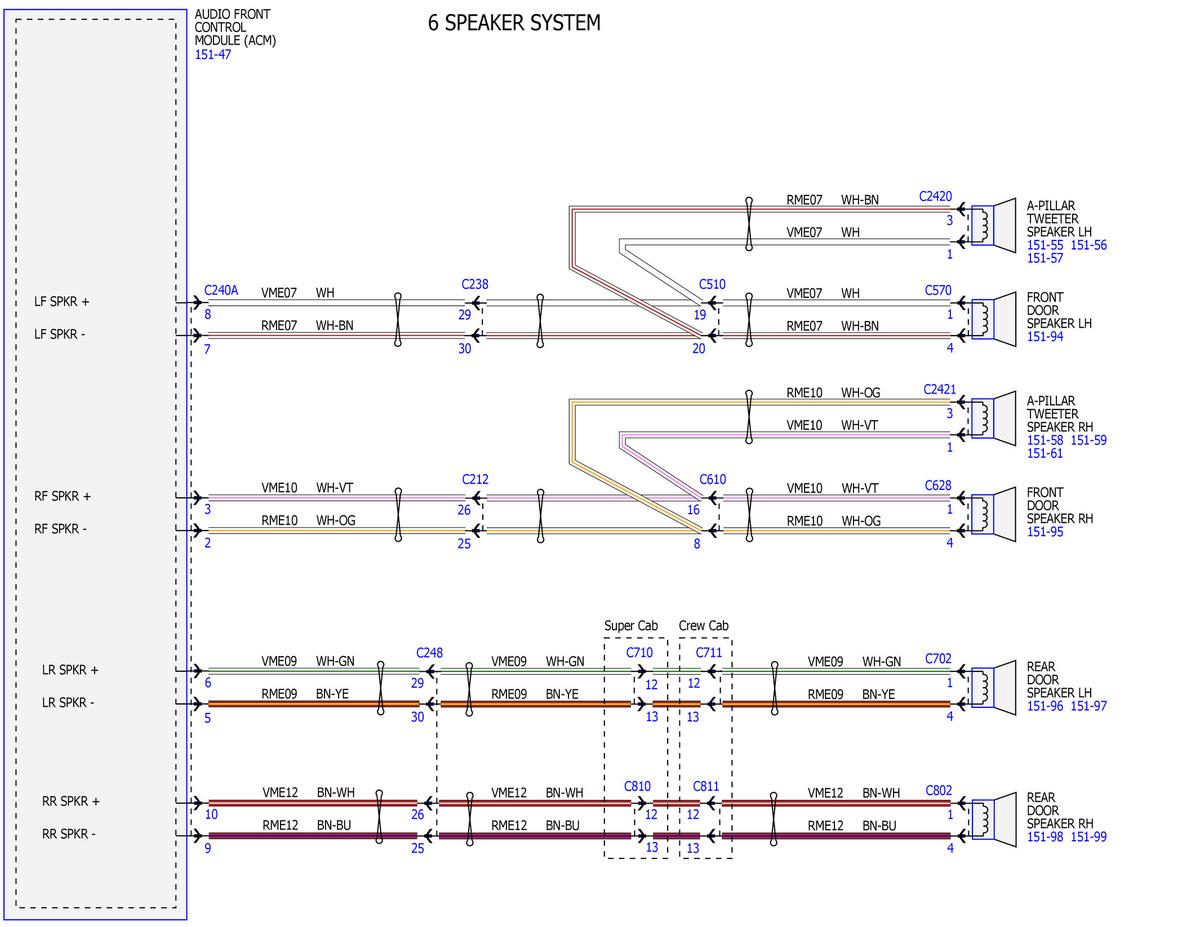

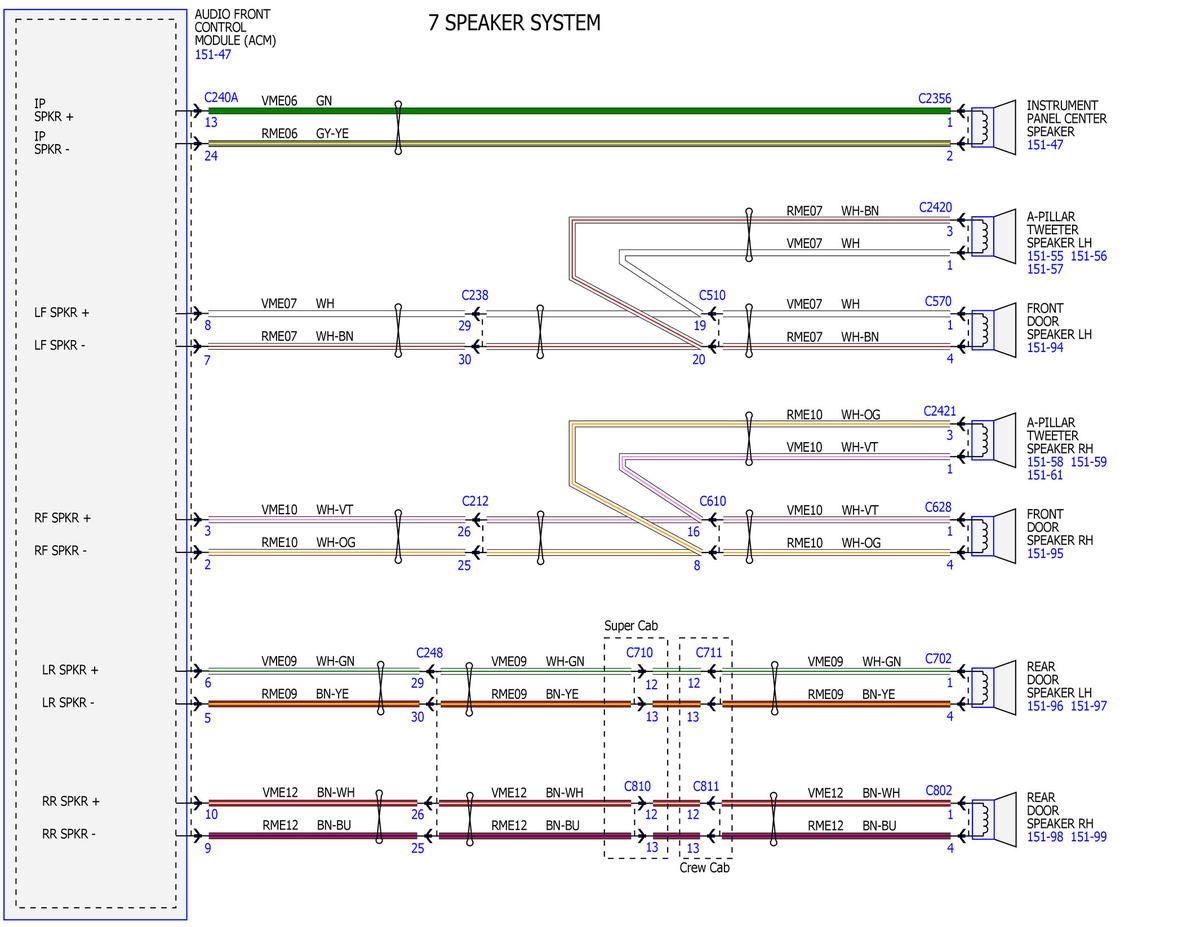

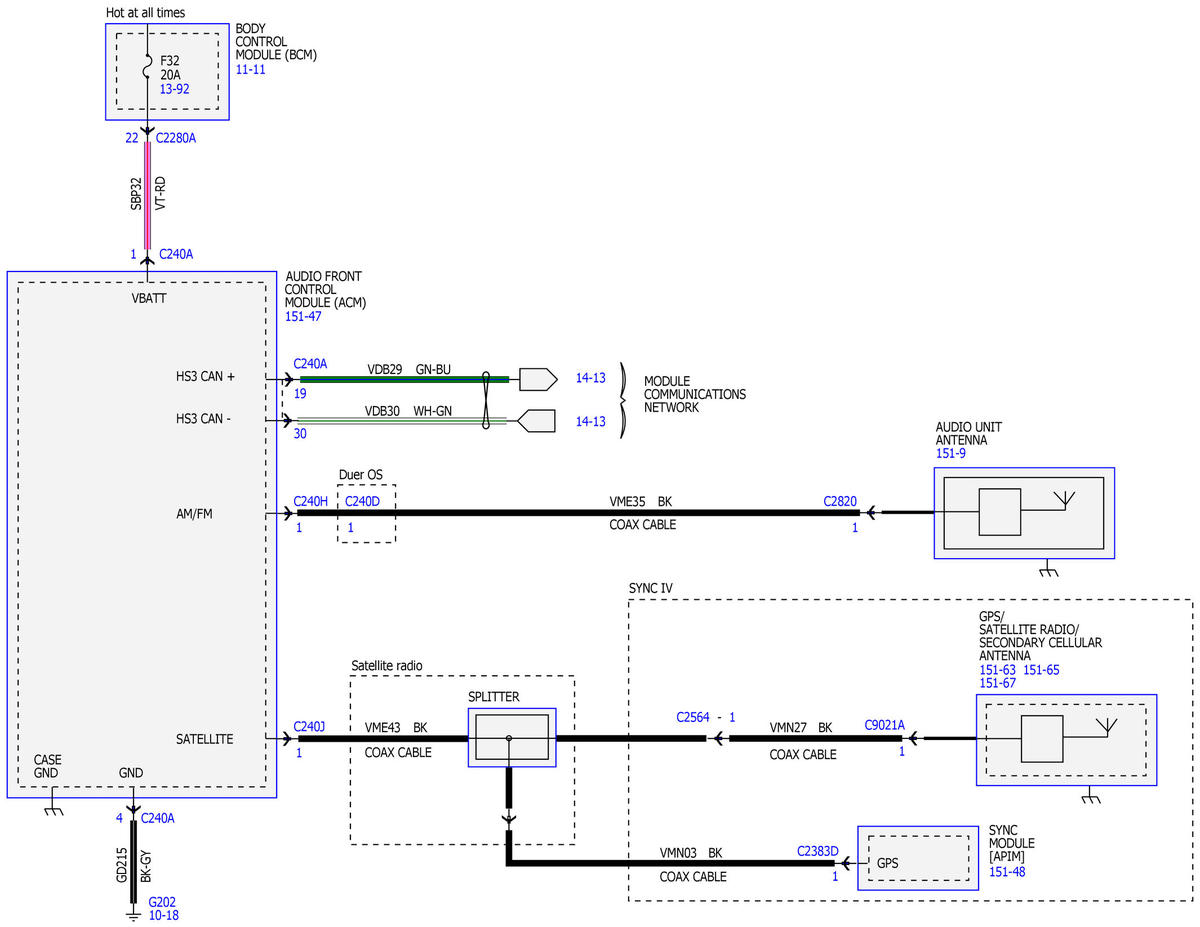

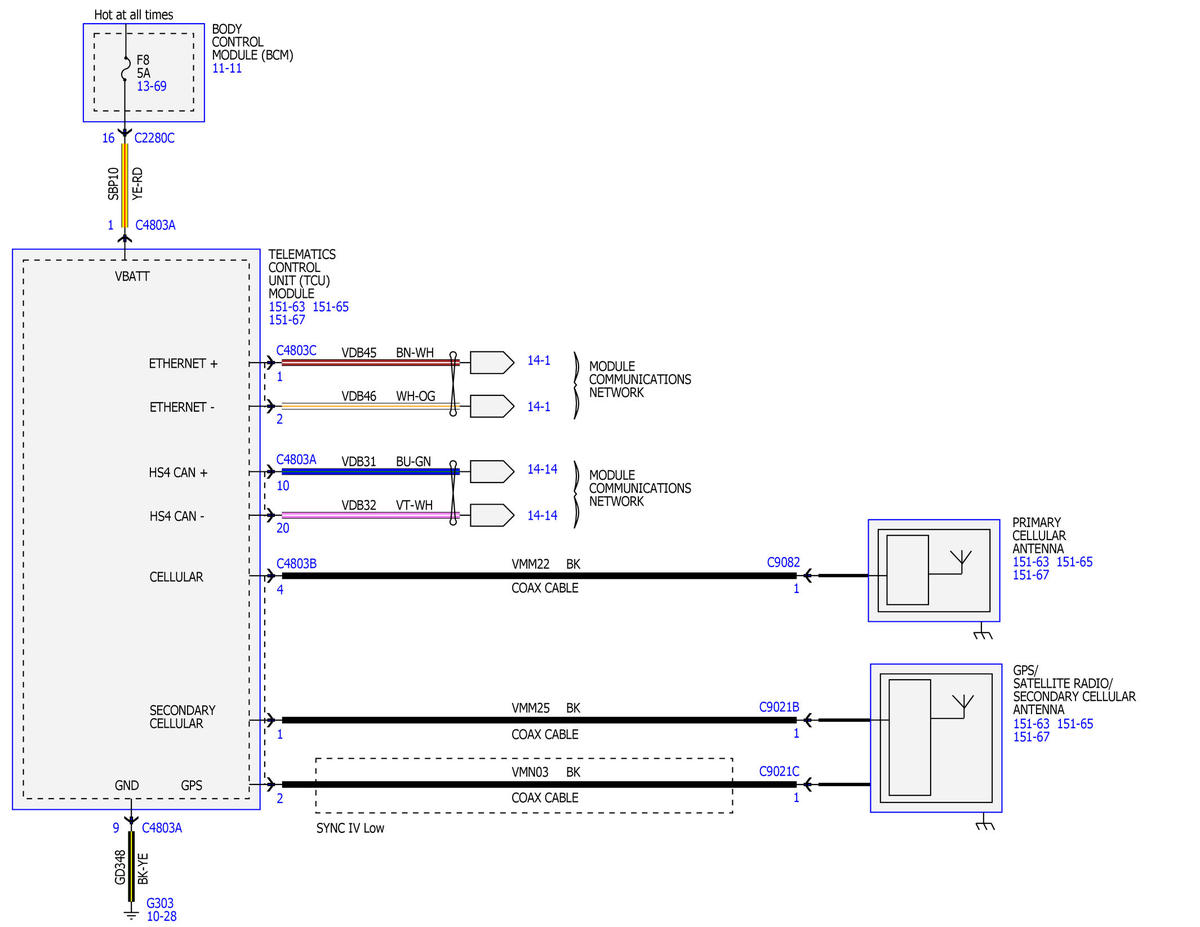

Fig 2: Audio System/Navigation - SYNC Wiring Diagram (2 Of 27)
Courtesy of FORD MOTOR COMPANY

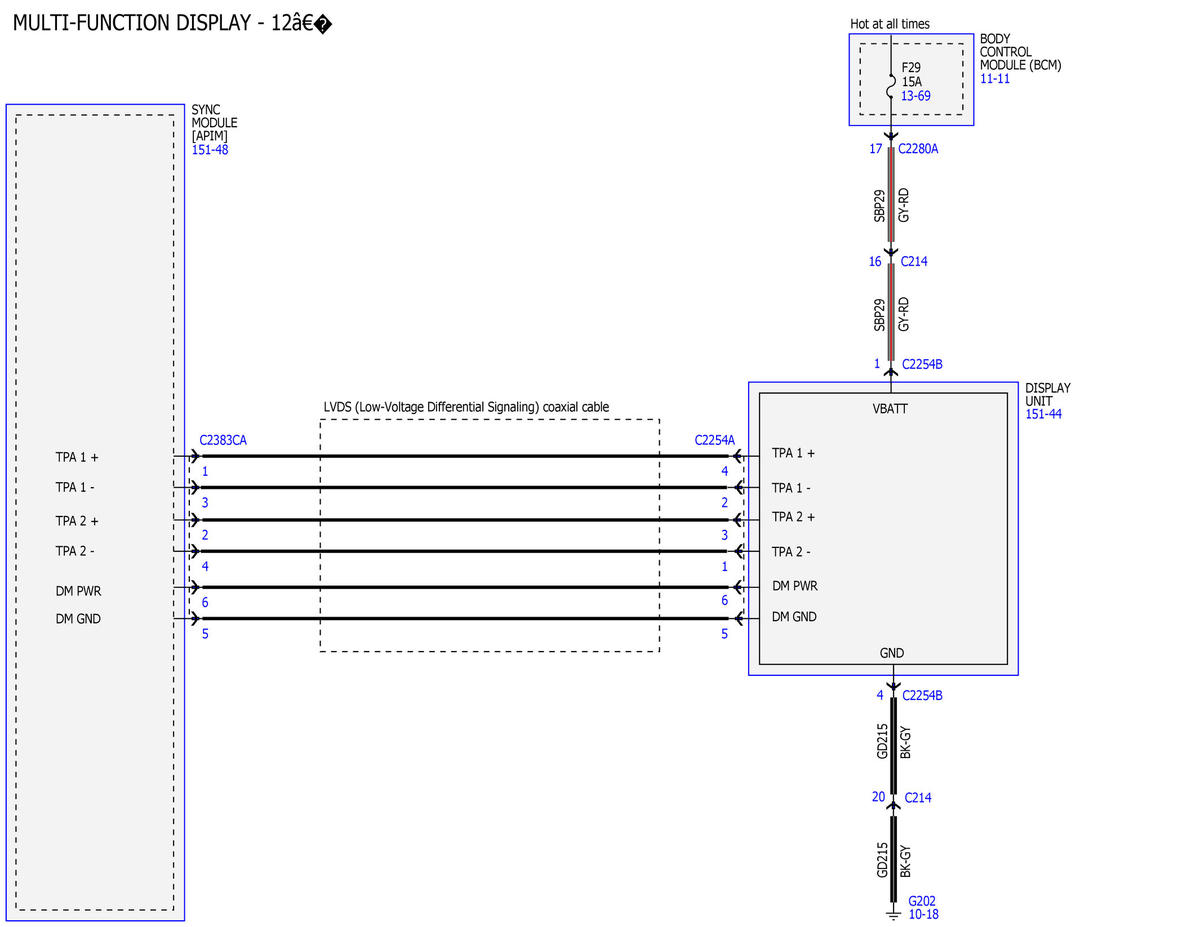

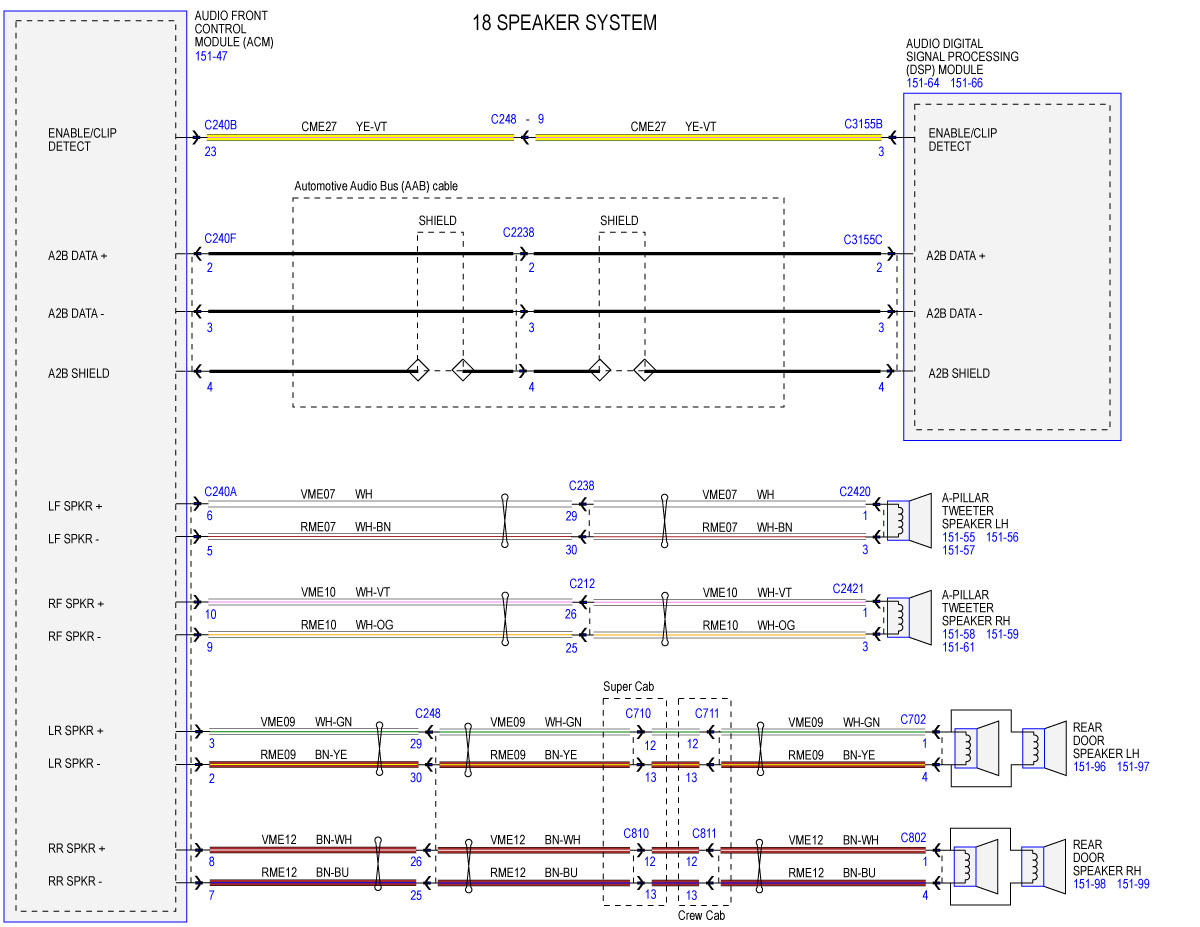

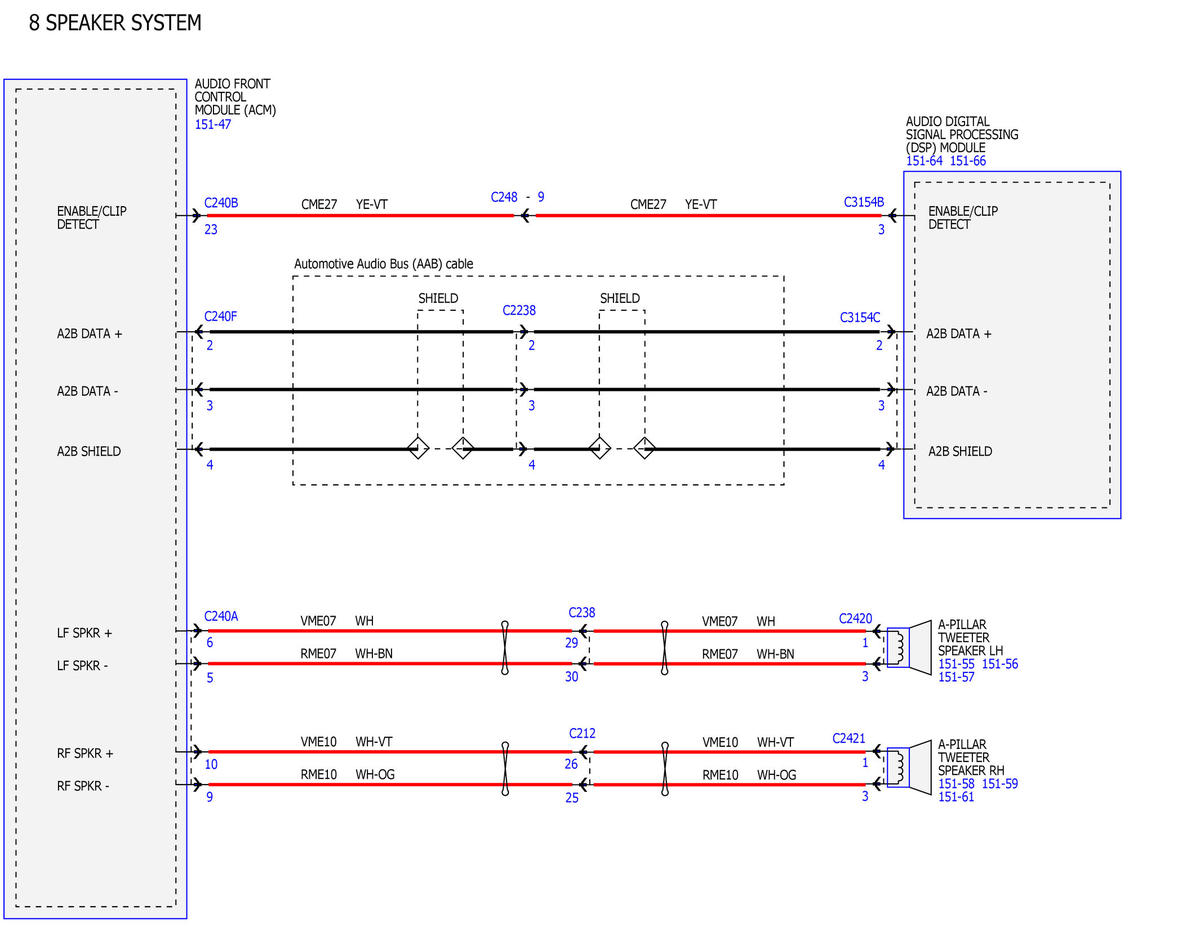

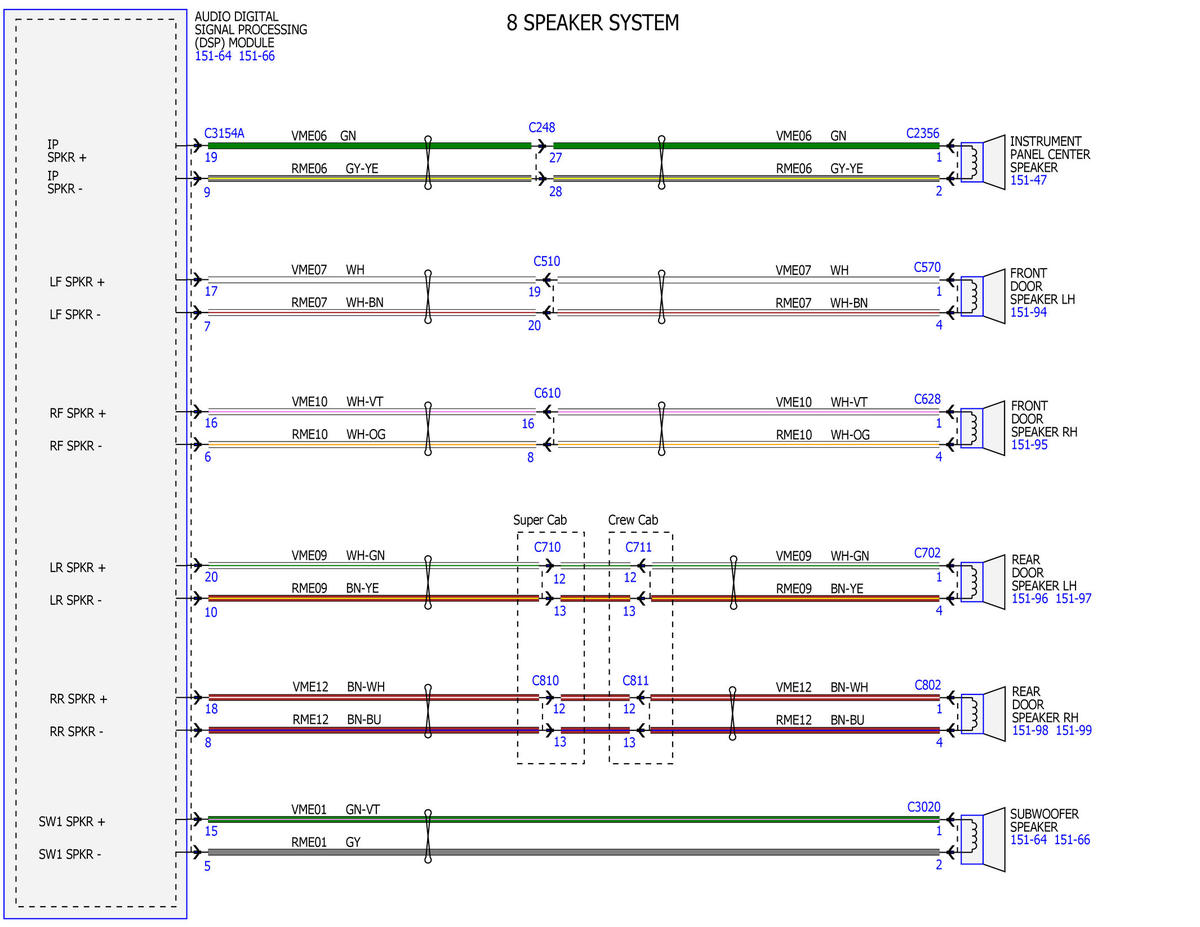

Fig 3: Audio System/Navigation - SYNC Wiring Diagram (3 Of 27)
Courtesy of FORD MOTOR COMPANY

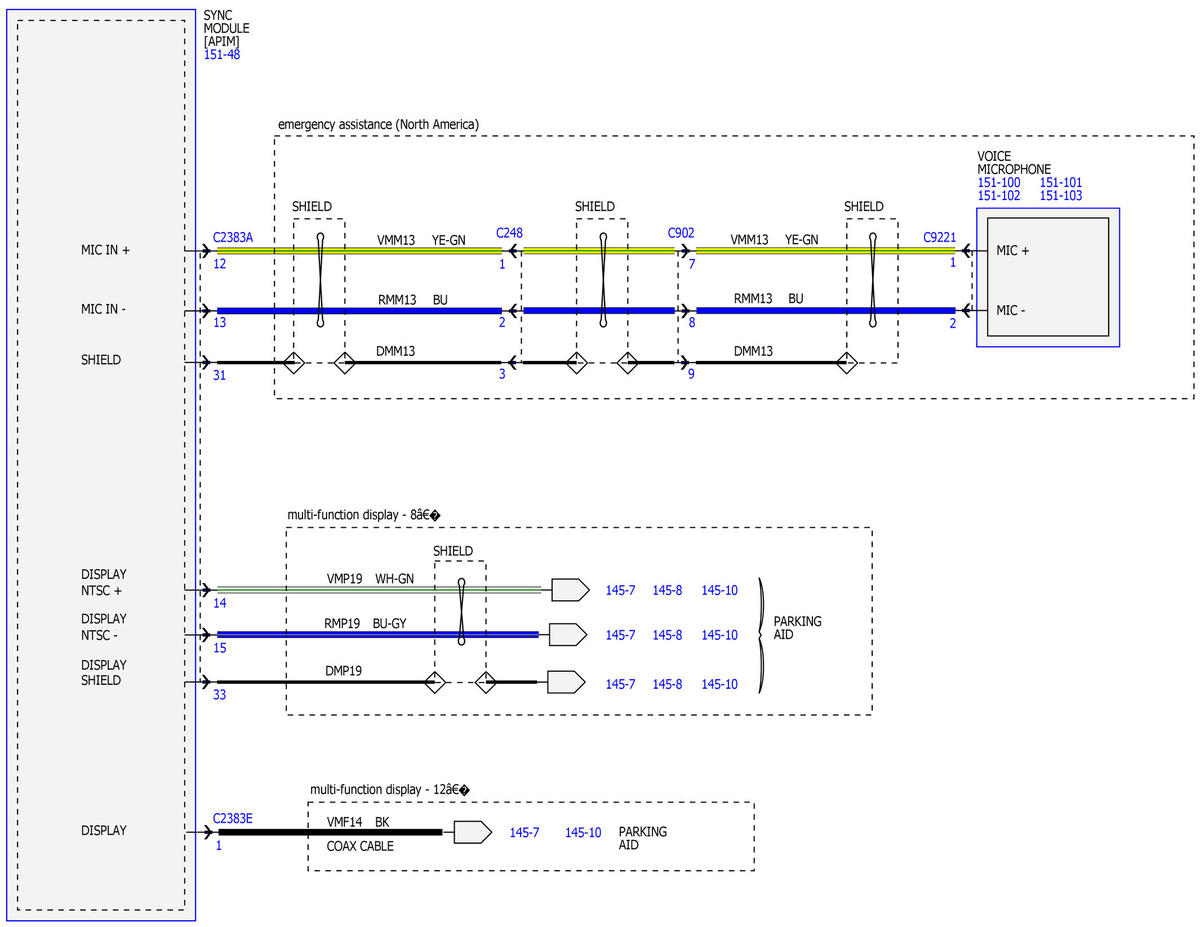

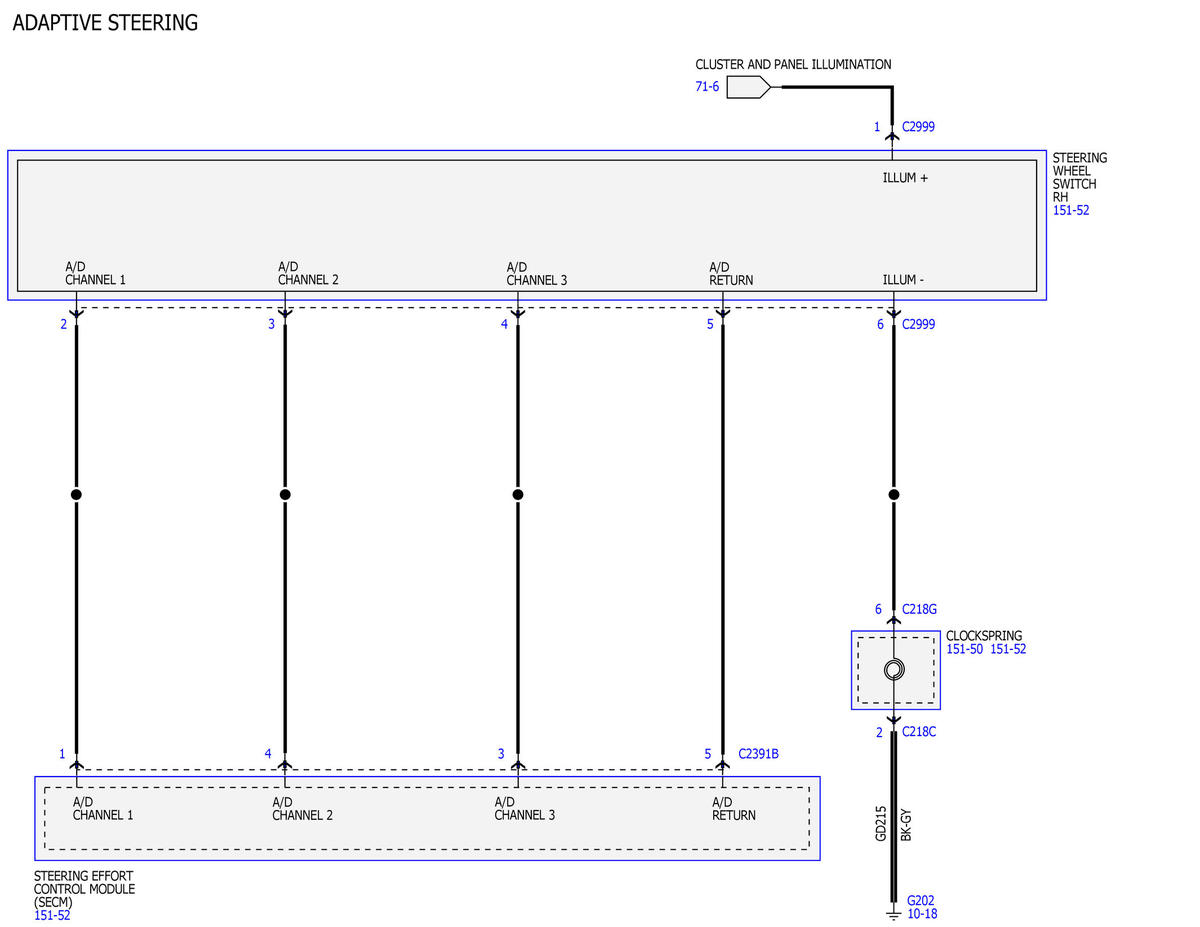

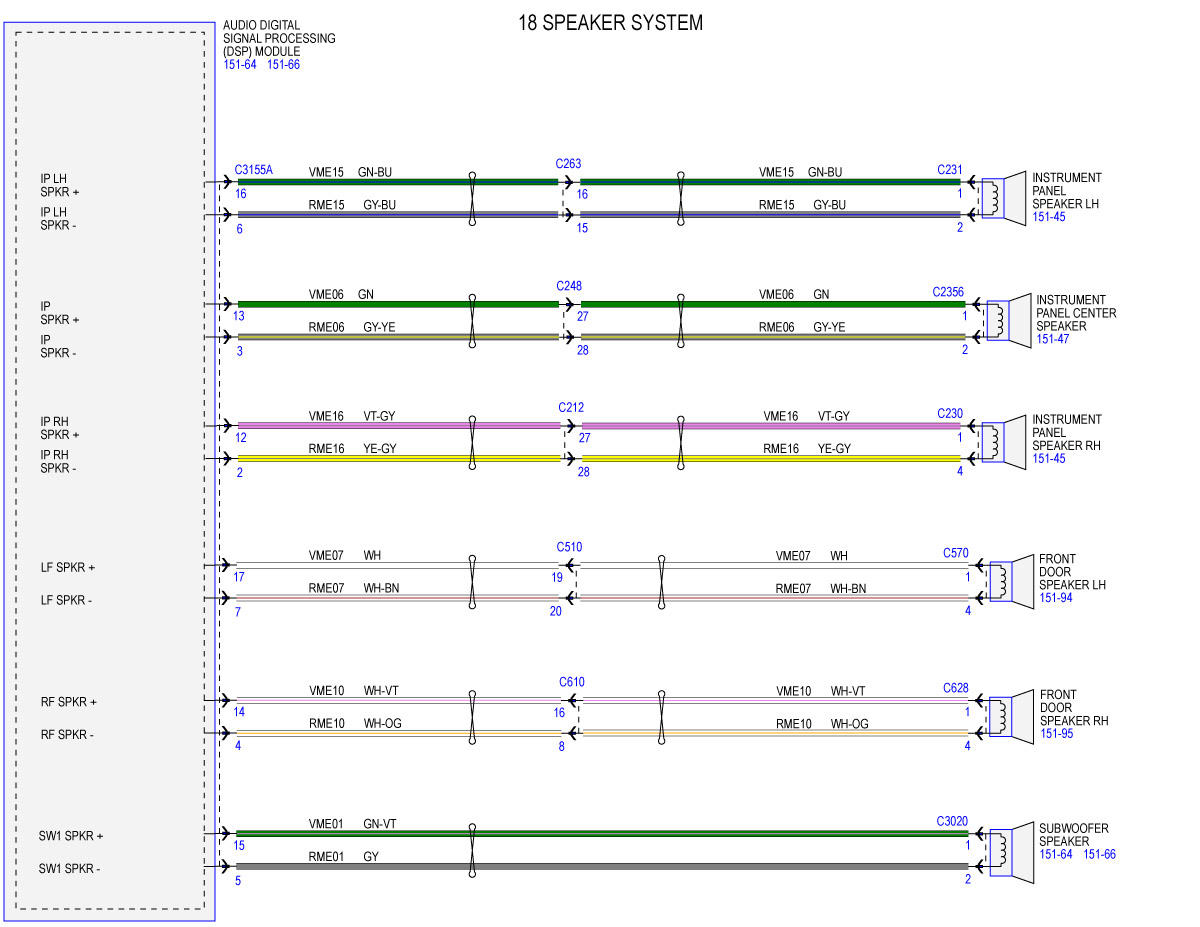

Fig 4: Audio System/Navigation - SYNC Wiring Diagram (4 Of 27)
Courtesy of FORD MOTOR COMPANY

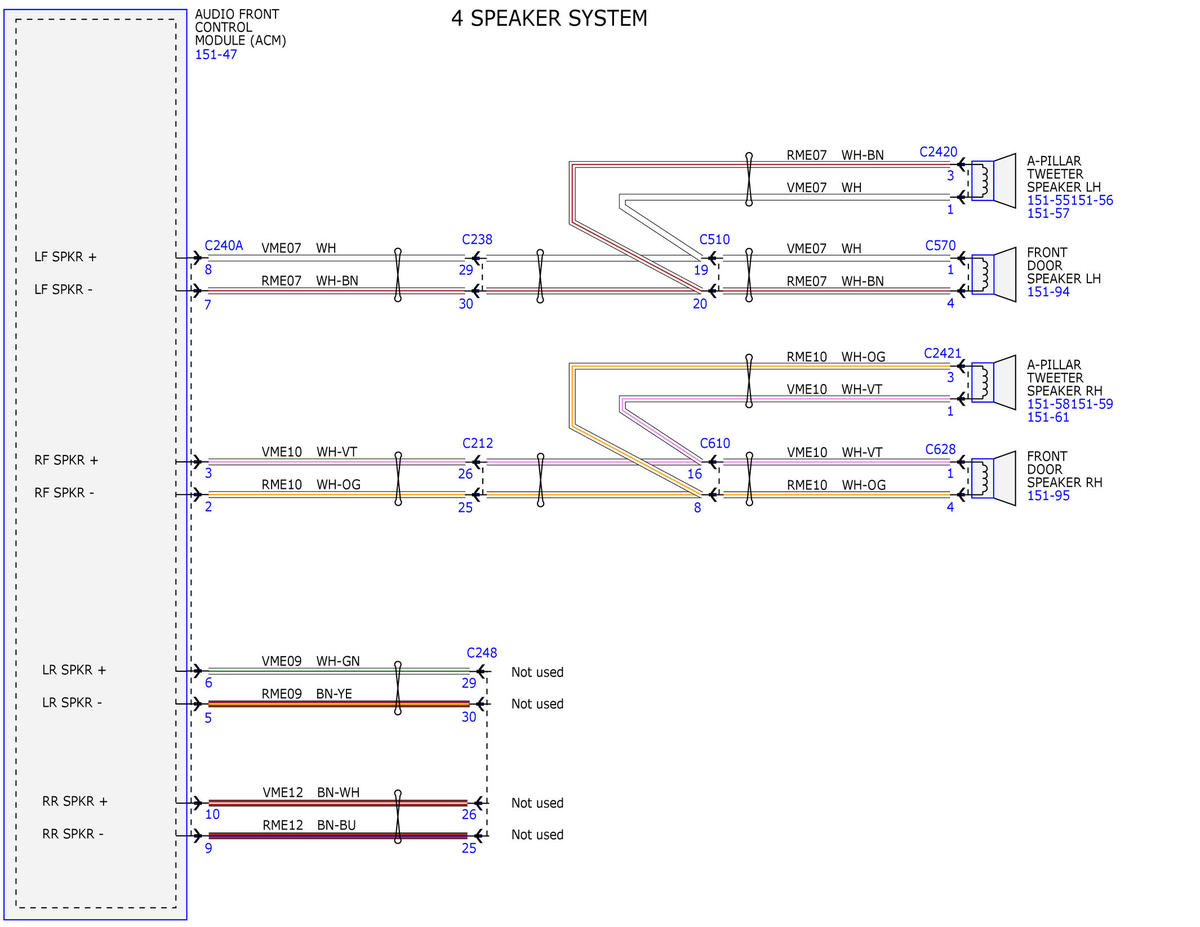

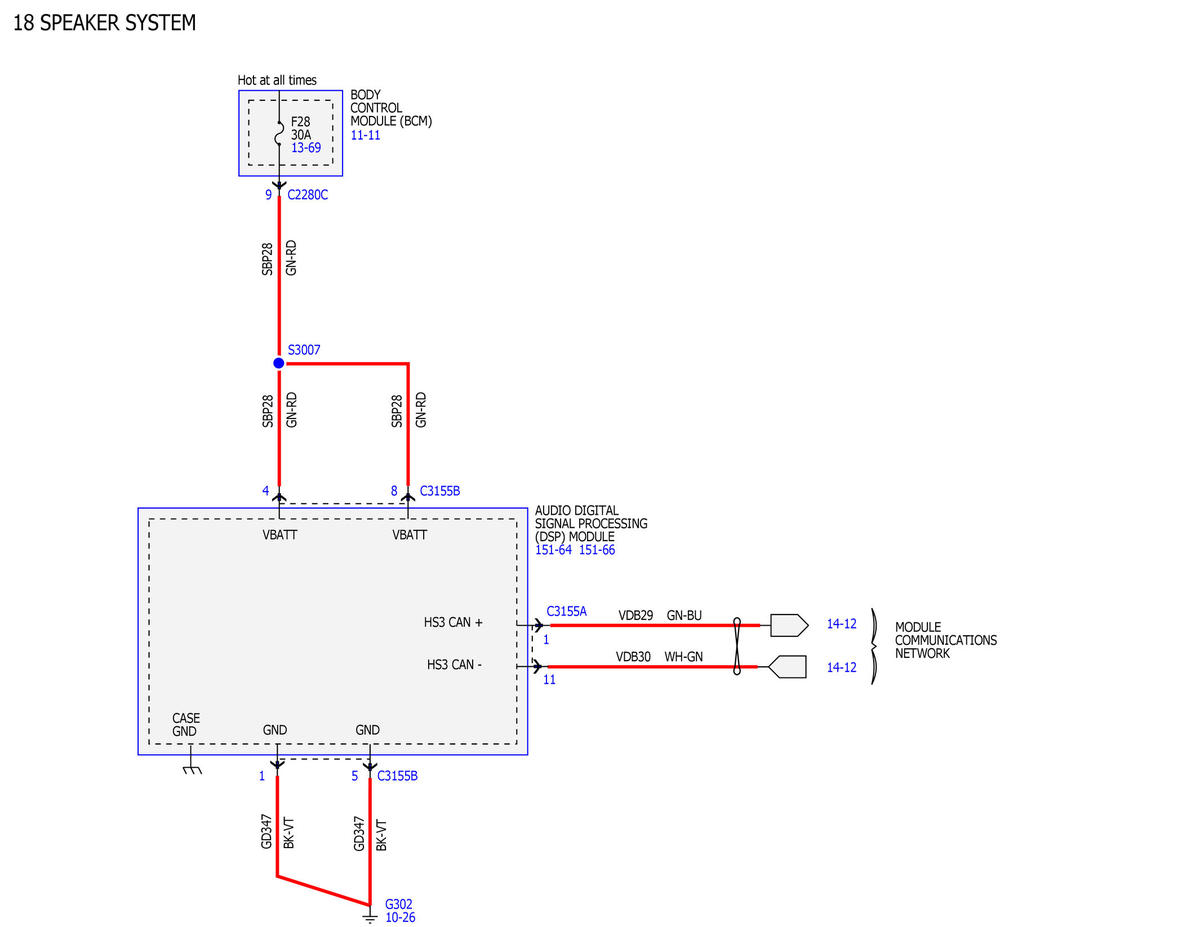

Fig 5: Audio System/Navigation - SYNC Wiring Diagram (5 Of 27)
Courtesy of FORD MOTOR COMPANY

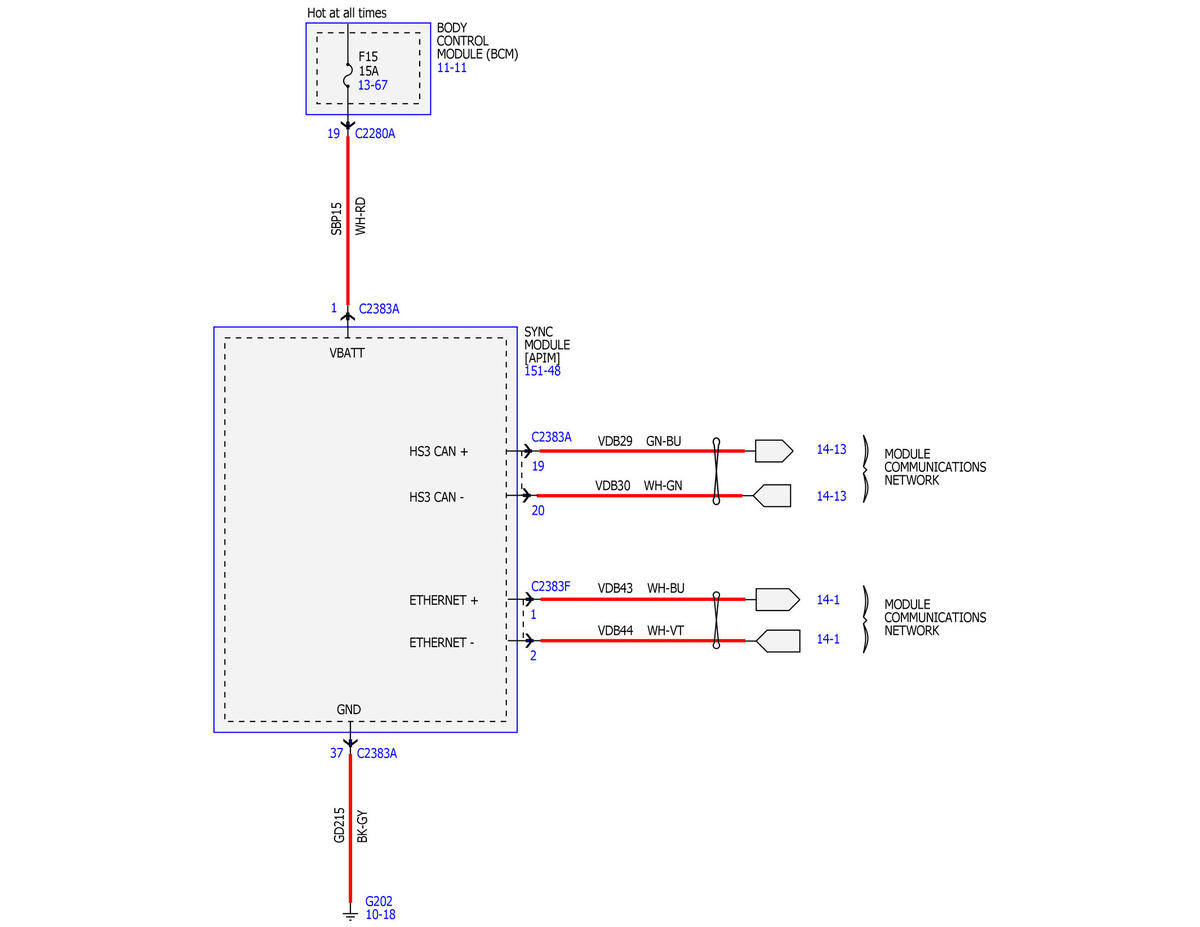

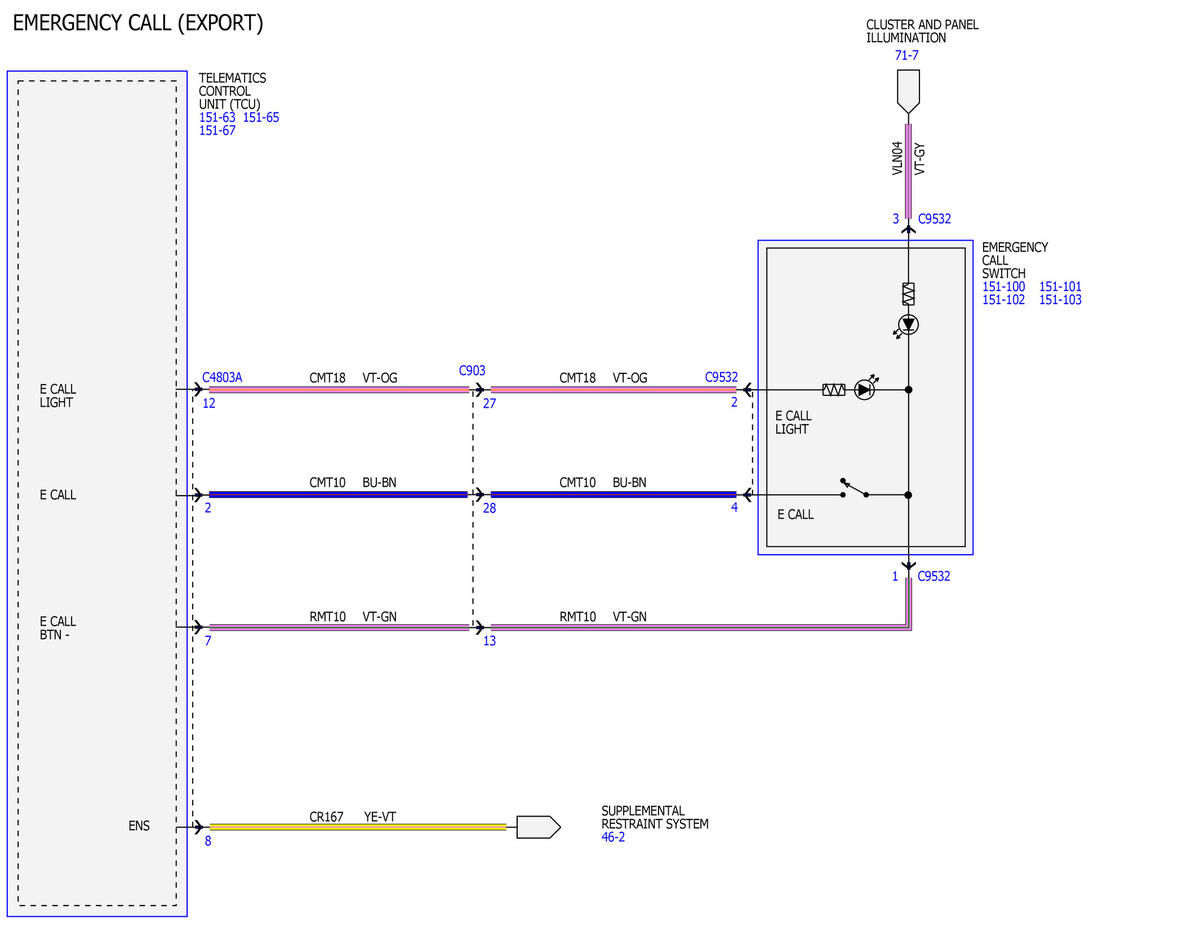

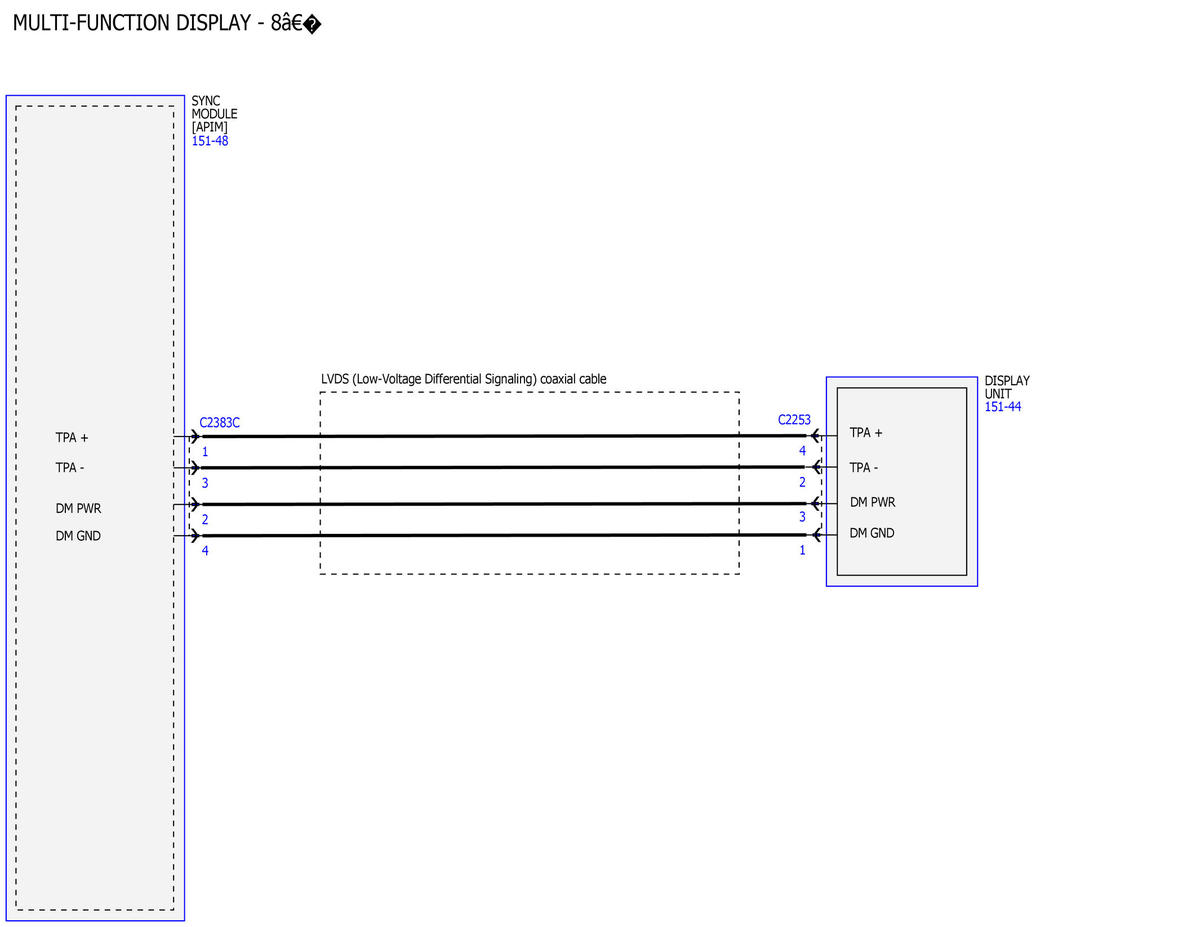

Fig 6: Audio System/Navigation - SYNC Wiring Diagram (6 Of 27)
Courtesy of FORD MOTOR COMPANY

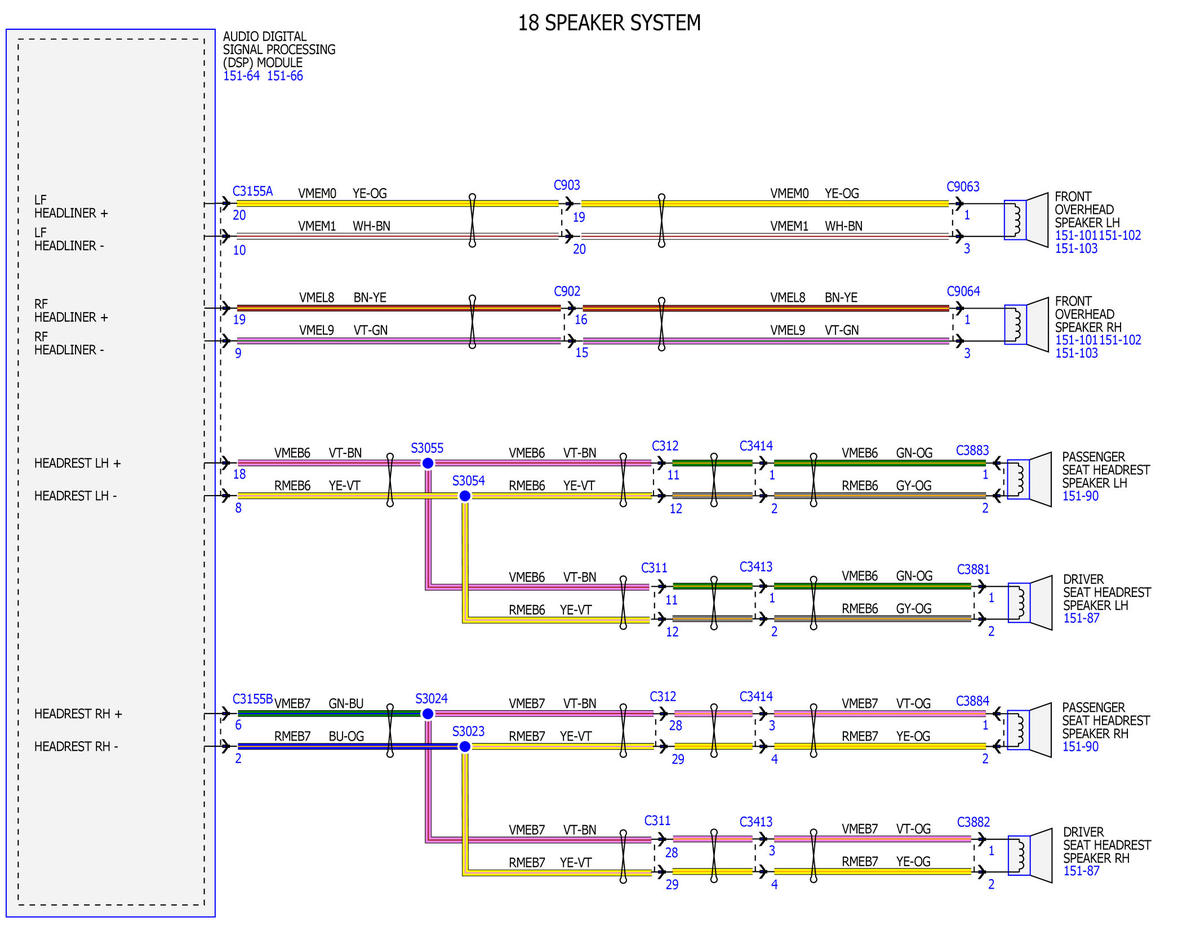

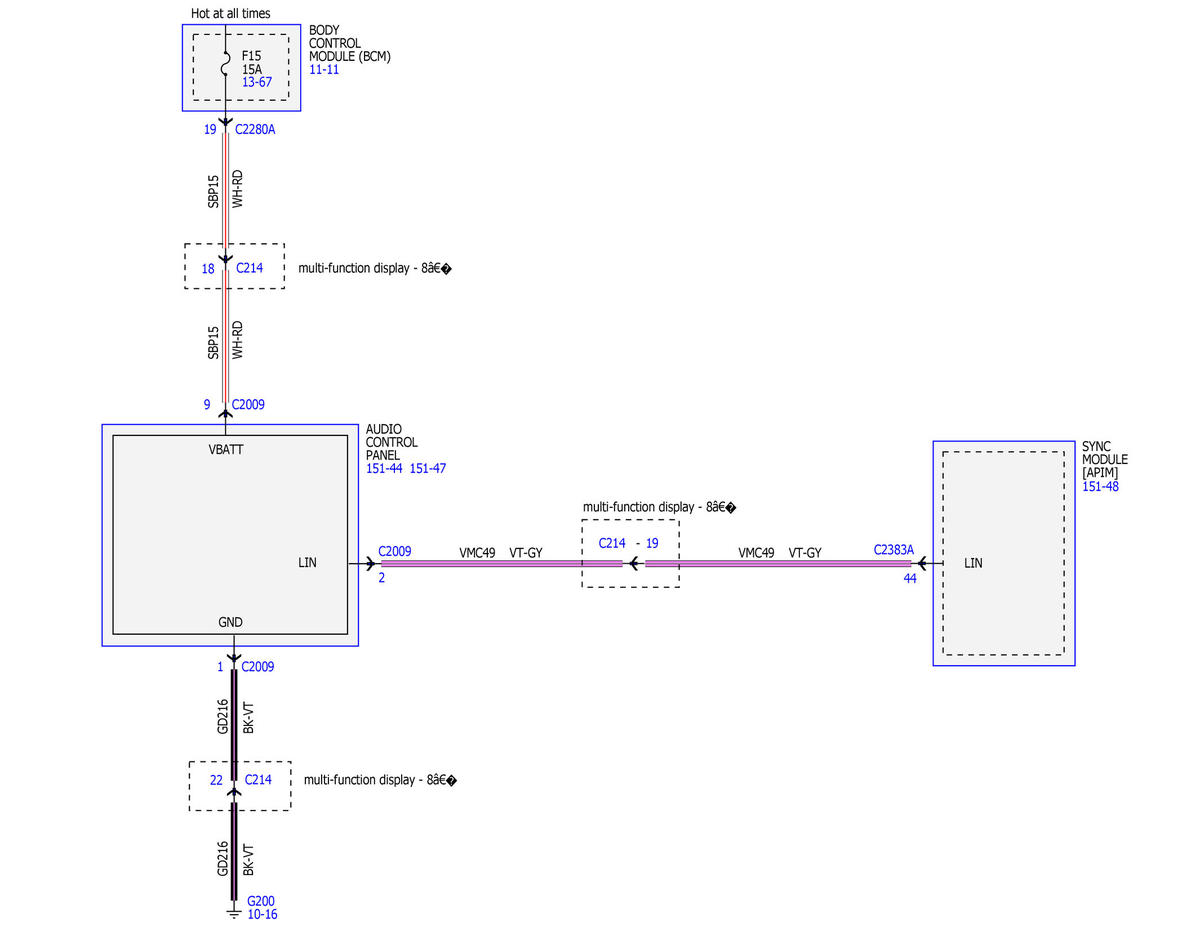

Fig 7: Audio System/Navigation - SYNC Wiring Diagram (7 Of 27)
Courtesy of FORD MOTOR COMPANY

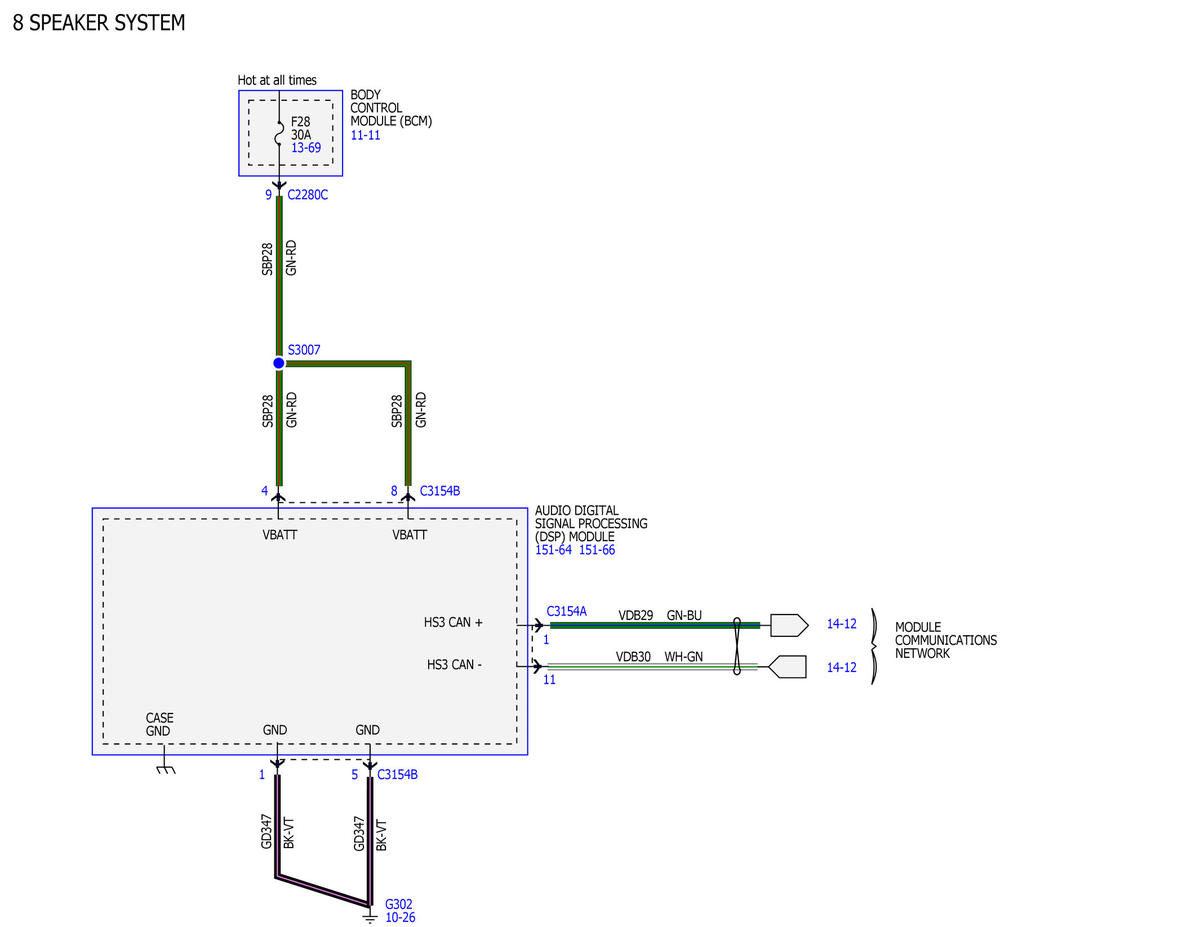

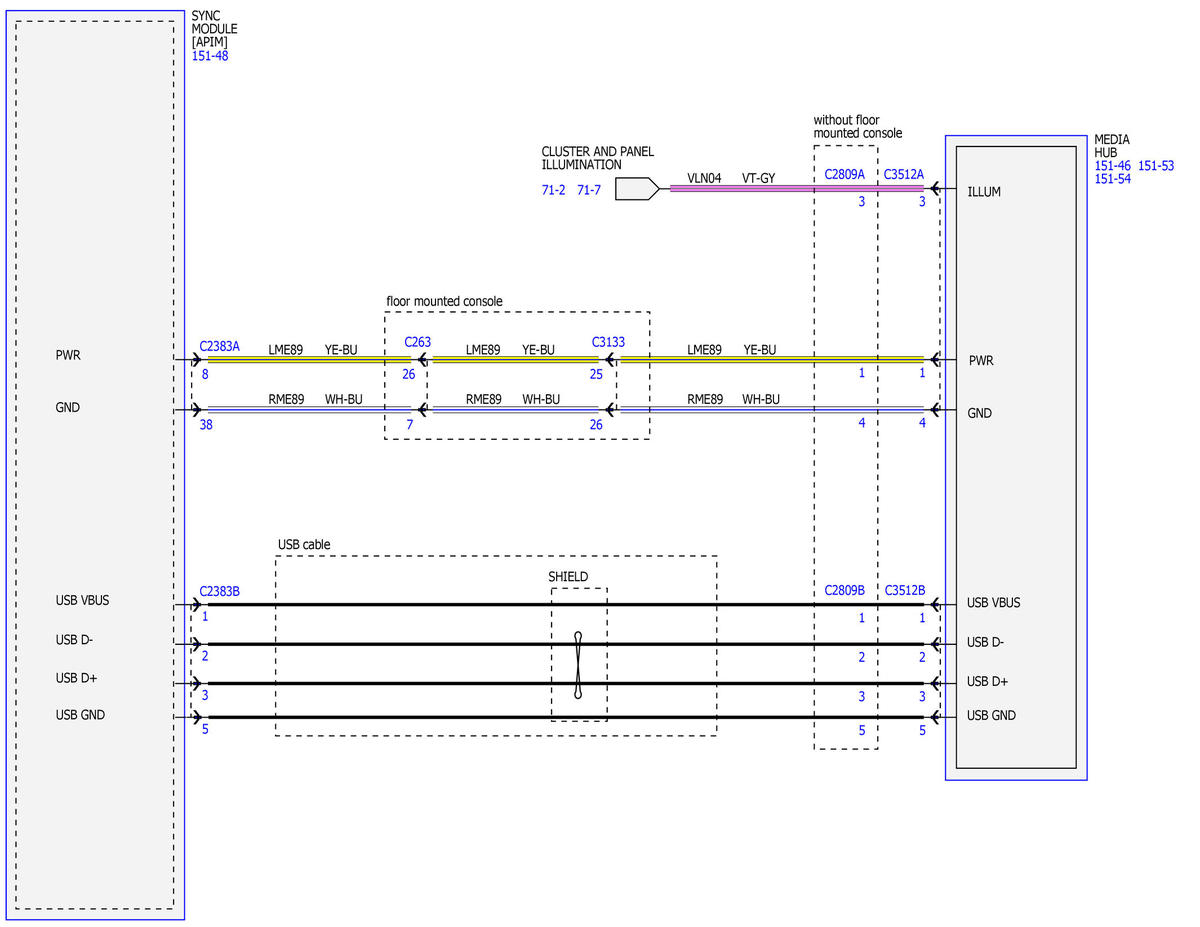

Fig 8: Audio System/Navigation - SYNC Wiring Diagram (8 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - SYNC Wiring Diagram (9 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - SYNC Wiring Diagram (10 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - SYNC Wiring Diagram (11 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation - SYNC Wiring Diagram (12 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation - SYNC Wiring Diagram (13 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation - SYNC Wiring Diagram (14 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation - SYNC Wiring Diagram (15 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 16: Audio System/Navigation - SYNC Wiring Diagram (16 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 17: Audio System/Navigation - SYNC Wiring Diagram (17 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 18: Audio System/Navigation - SYNC Wiring Diagram (18 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 19: Audio System/Navigation - SYNC Wiring Diagram (19 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 20: Audio System/Navigation - SYNC Wiring Diagram (20 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 21: Audio System/Navigation - SYNC Wiring Diagram (21 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 22: Audio System/Navigation - SYNC Wiring Diagram (22 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 23: Audio System/Navigation - SYNC Wiring Diagram (23 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 24: Audio System/Navigation - SYNC Wiring Diagram (24 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 25: Audio System/Navigation - SYNC Wiring Diagram (25 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 26: Audio System/Navigation - SYNC Wiring Diagram (26 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 27: Audio System/Navigation - SYNC Wiring Diagram (27 Of 27)
Courtesy of FORD MOTOR COMPANY
