Coolant Pump: Removal
WARNING: This page is about a different car, the 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding .
-

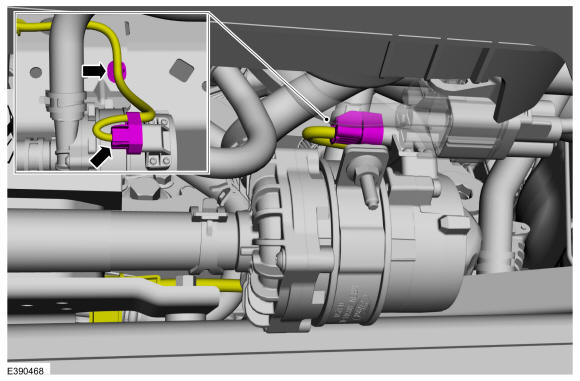

- Disconnect the electrical connector.
- Detach the wiring harness retainer.

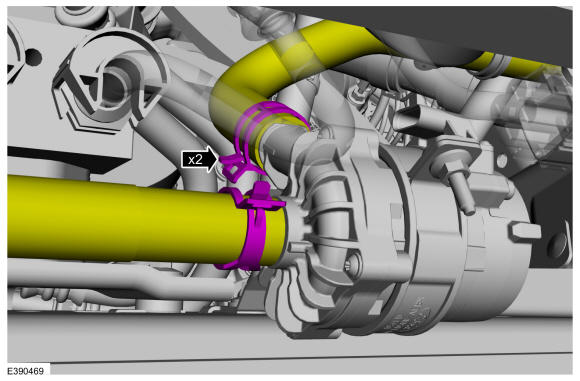

- Release the clamps and disconnect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer

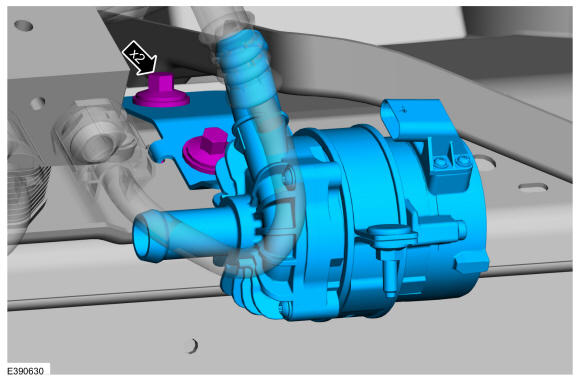

- Remove the bolts and the coolant pump.
Torque: 93 lb.in (10.5 Nm)
