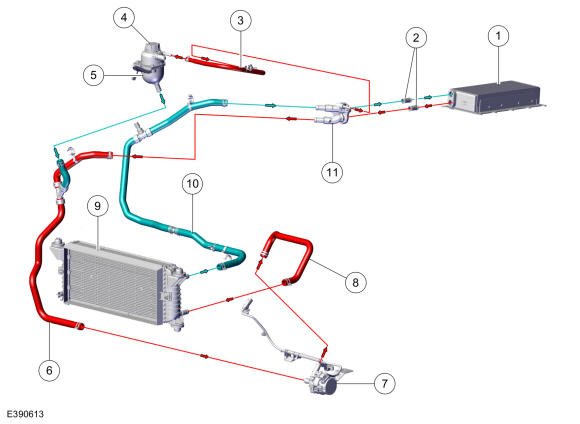

Component Location
WARNING: This page is about a different car, the 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Engine charge air cooler |
| 2 | Intake manifold intercooler water connector |
| 3 | Radiator overflow hose |
| 4 | Pressure relief cap |
| 5 | Degas bottle |
| 6 | Intercooler hose assembly |
| 7 | Coolant pump |
| 8 | Radiator inlet hose |
| 9 | Radiator |
| 10 | Radiator outlet hose |
| 10 | Intake manifold intercooler water tube assembly |
