Instrument Cluster

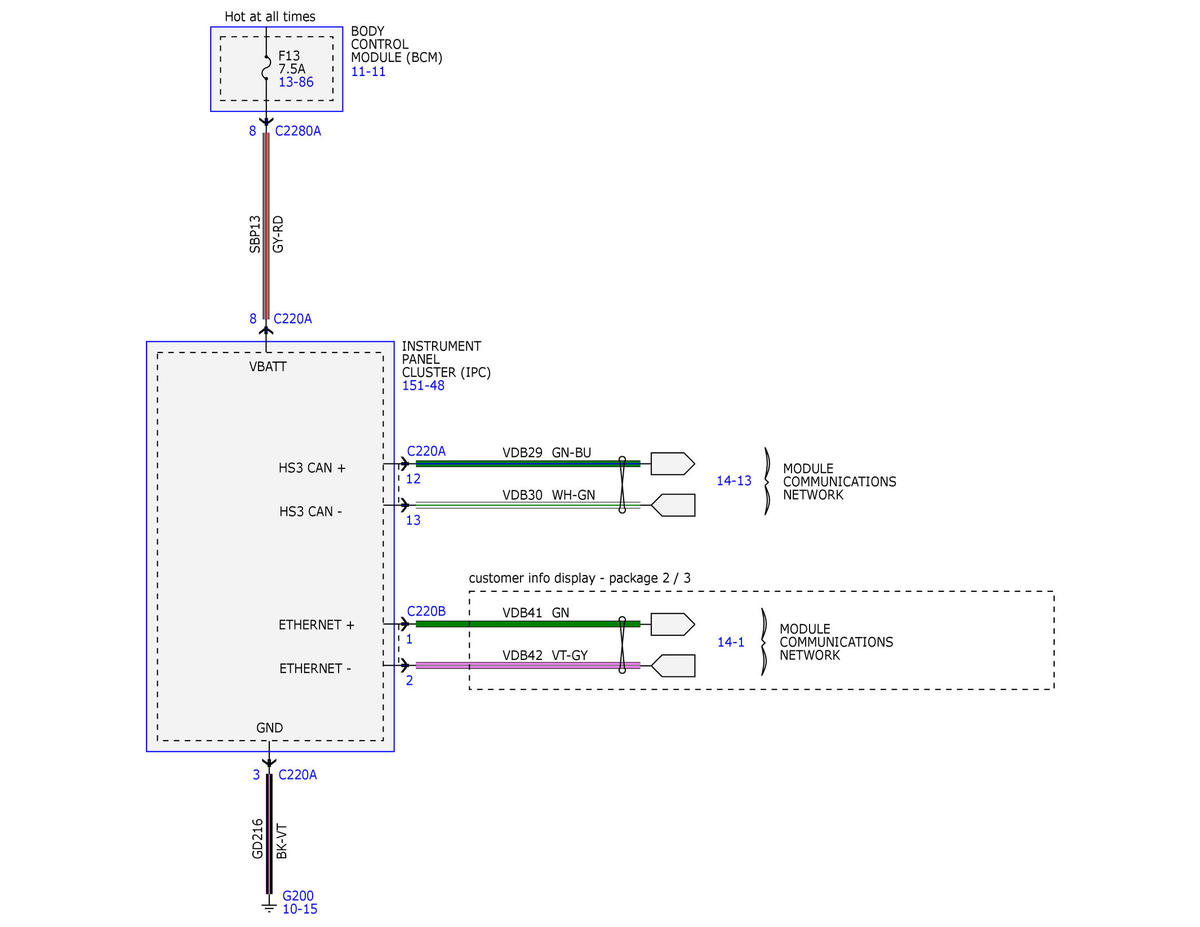

Fig 1: Instrument Cluster Wiring Diagram (1 Of 12)
GFDWR193717Courtesy of FORD MOTOR COMPANY

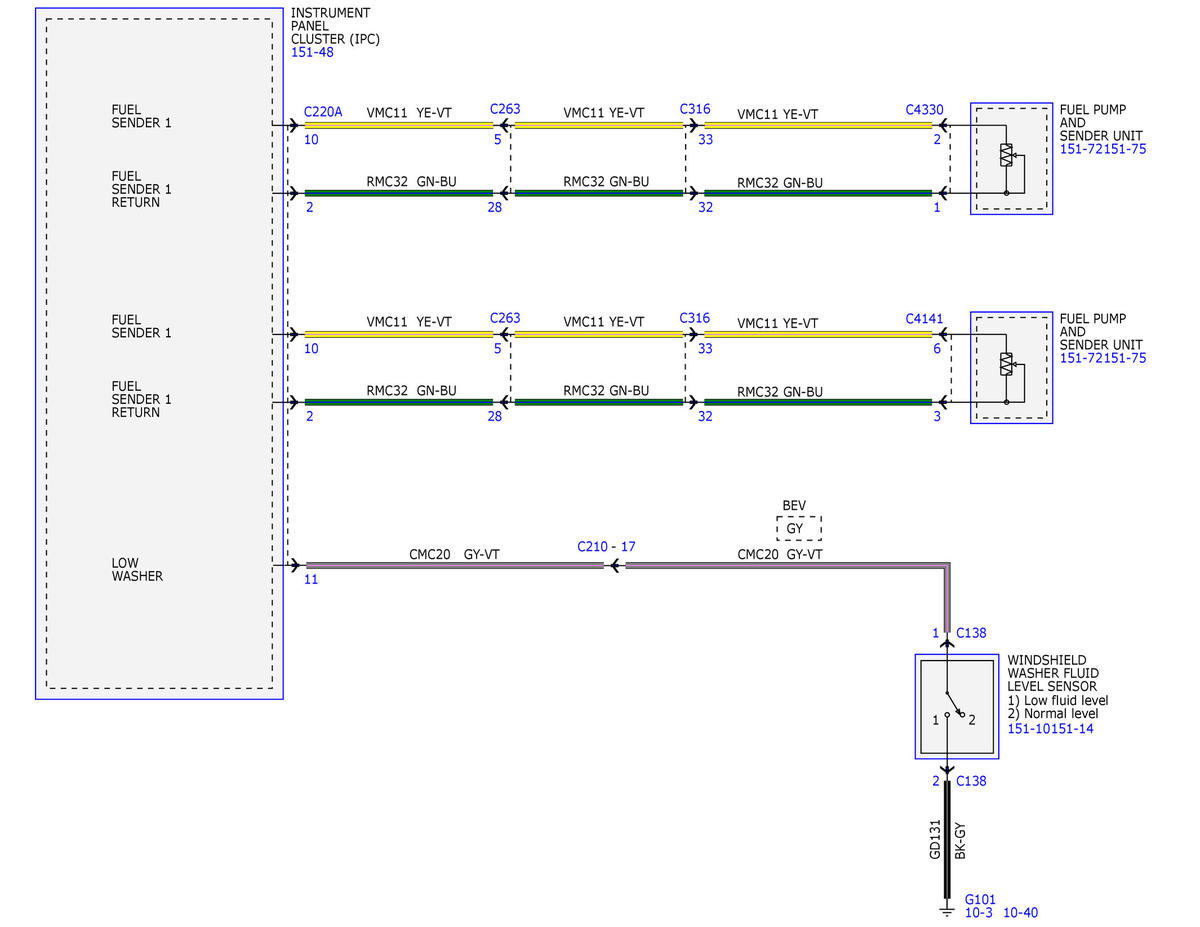

Fig 2: Instrument Cluster Wiring Diagram (2 Of 12)
GFDWR193721Courtesy of FORD MOTOR COMPANY

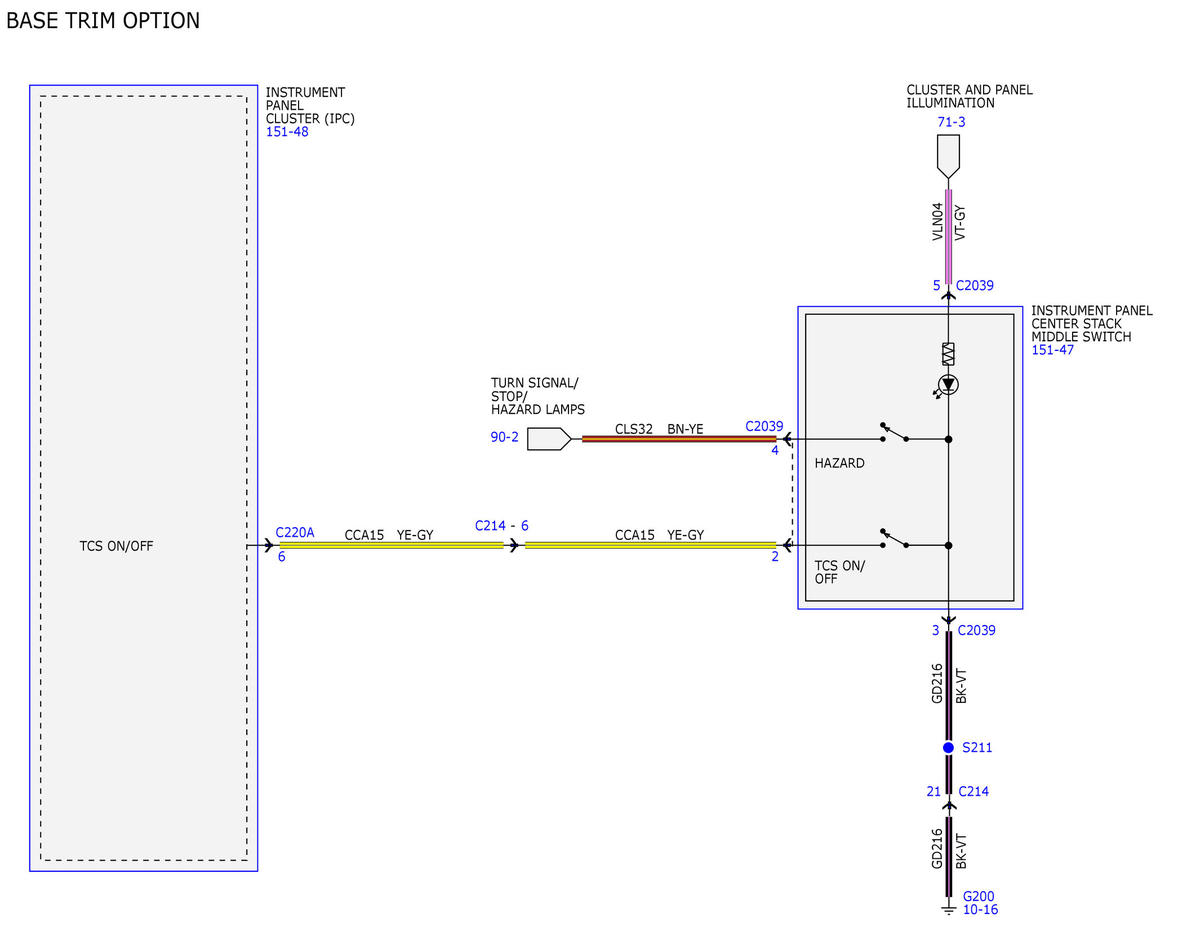

Fig 3: Instrument Cluster Wiring Diagram (3 Of 12)
GFDWR193722Courtesy of FORD MOTOR COMPANY

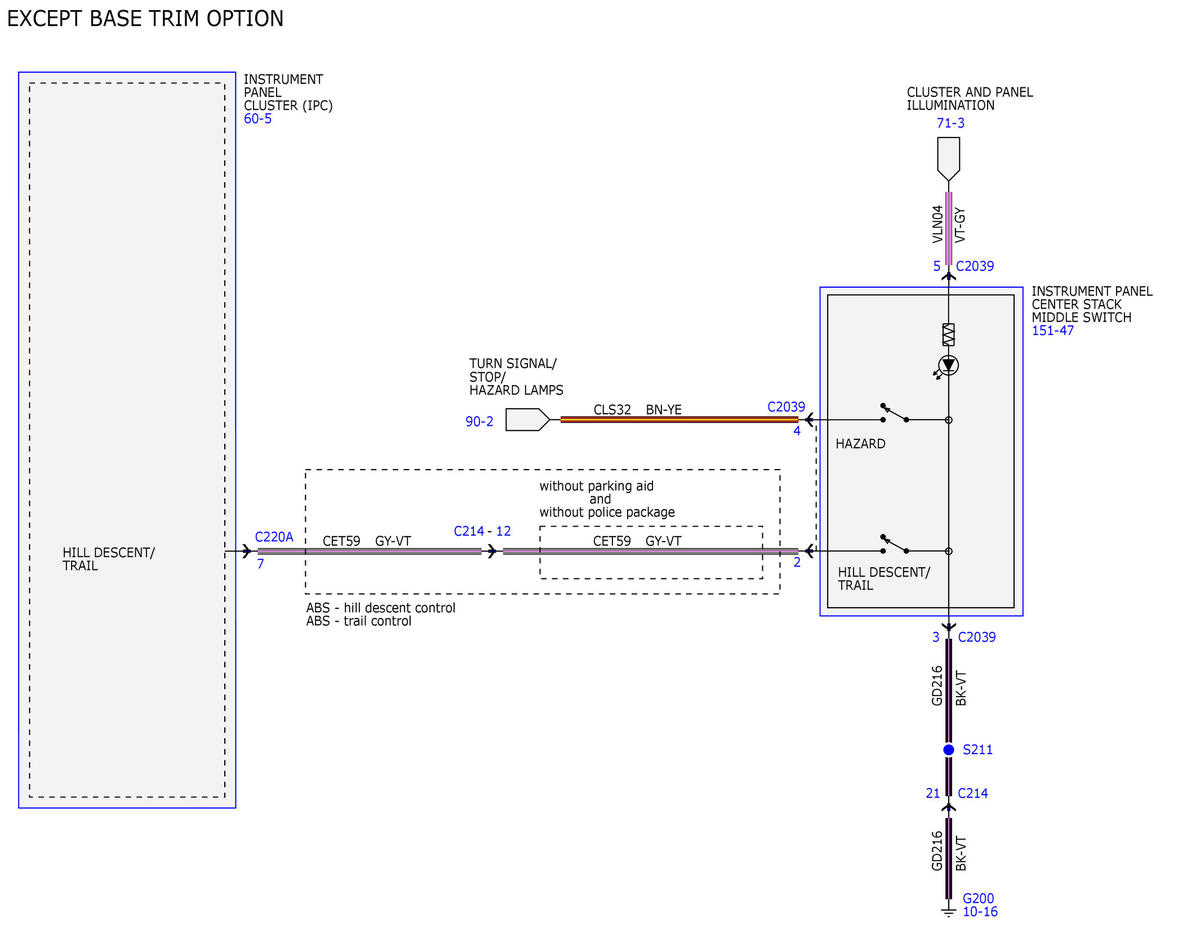

Fig 4: Instrument Cluster Wiring Diagram (4 Of 12)
GFDWR193723Courtesy of FORD MOTOR COMPANY

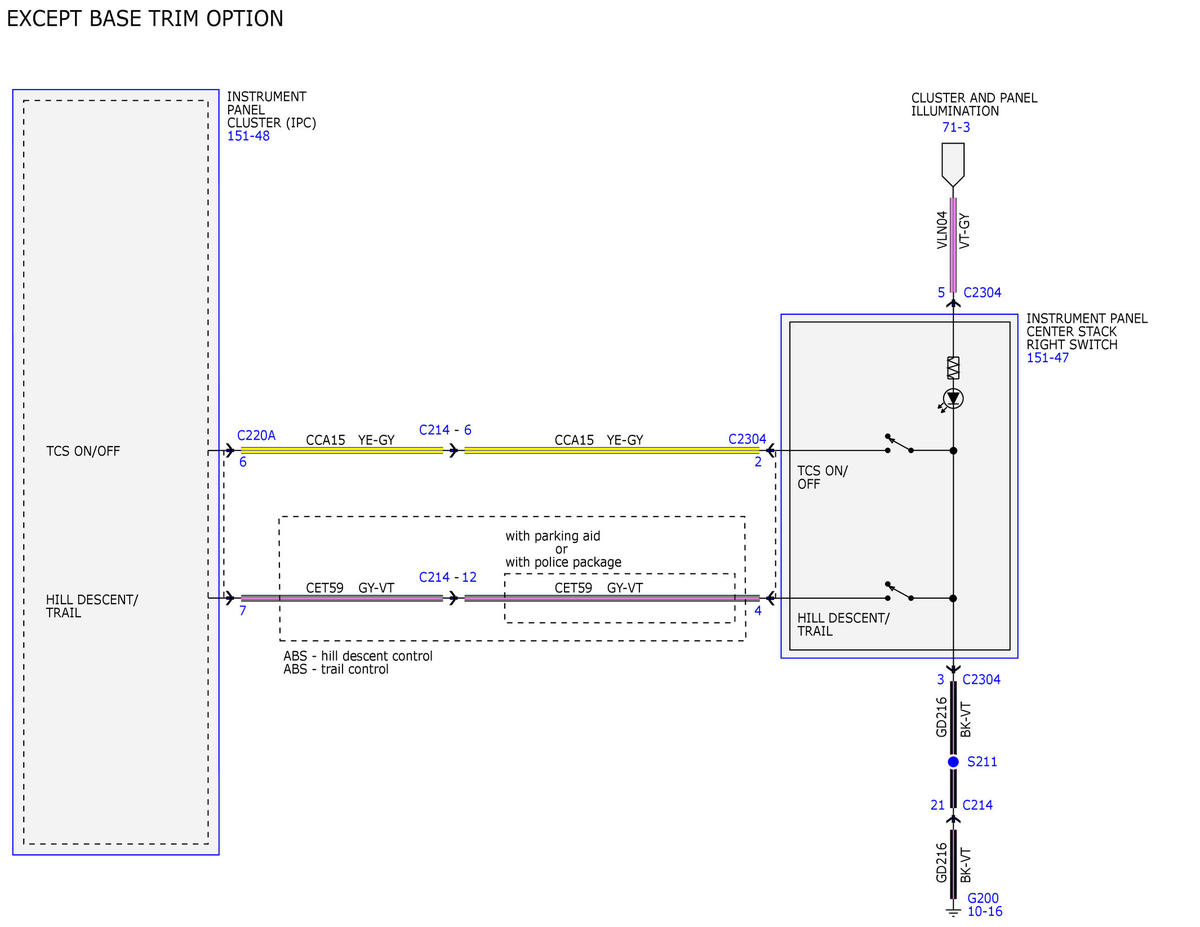

Fig 5: Instrument Cluster Wiring Diagram (5 Of 12)
GFDWR193724Courtesy of FORD MOTOR COMPANY

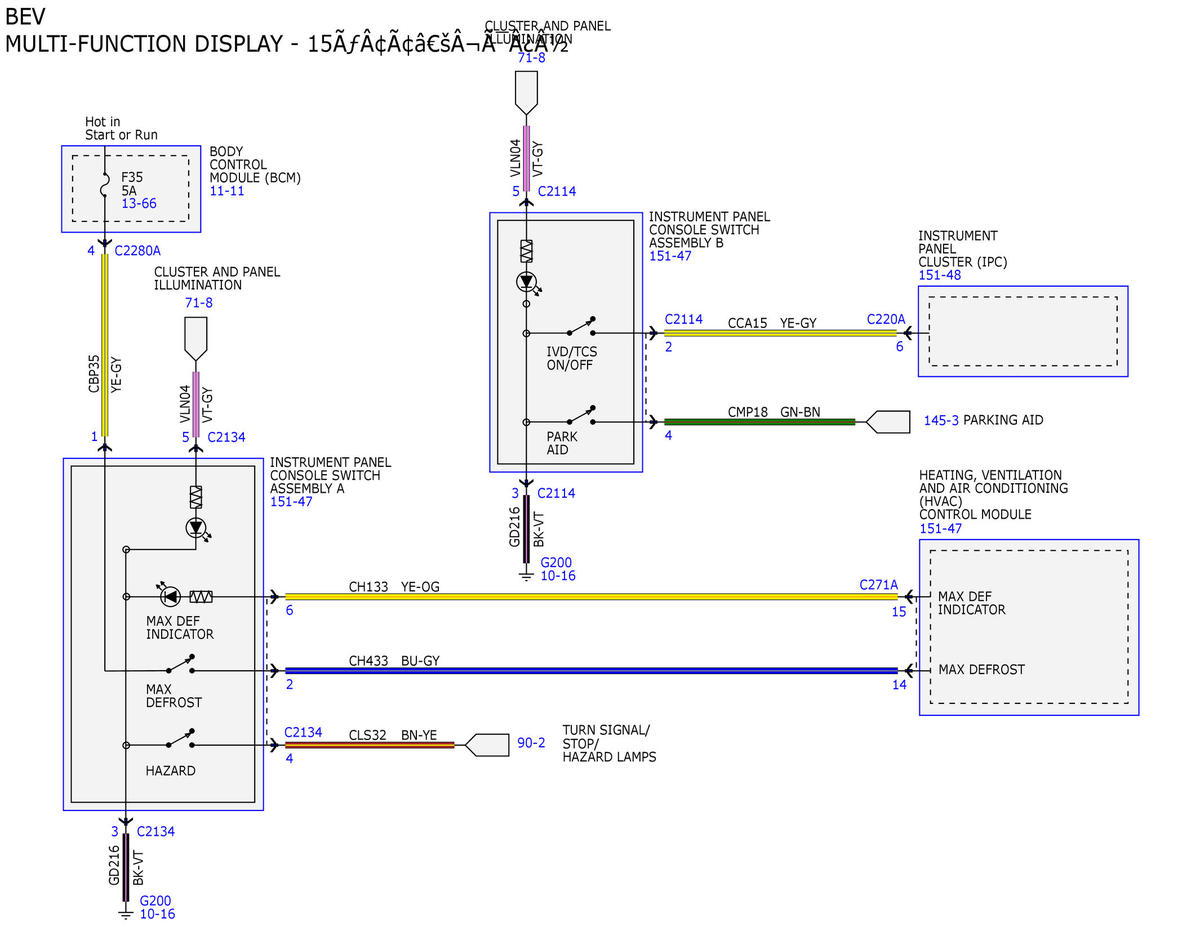

Fig 6: Instrument Cluster Wiring Diagram (6 Of 12)
GFDWR193725Courtesy of FORD MOTOR COMPANY

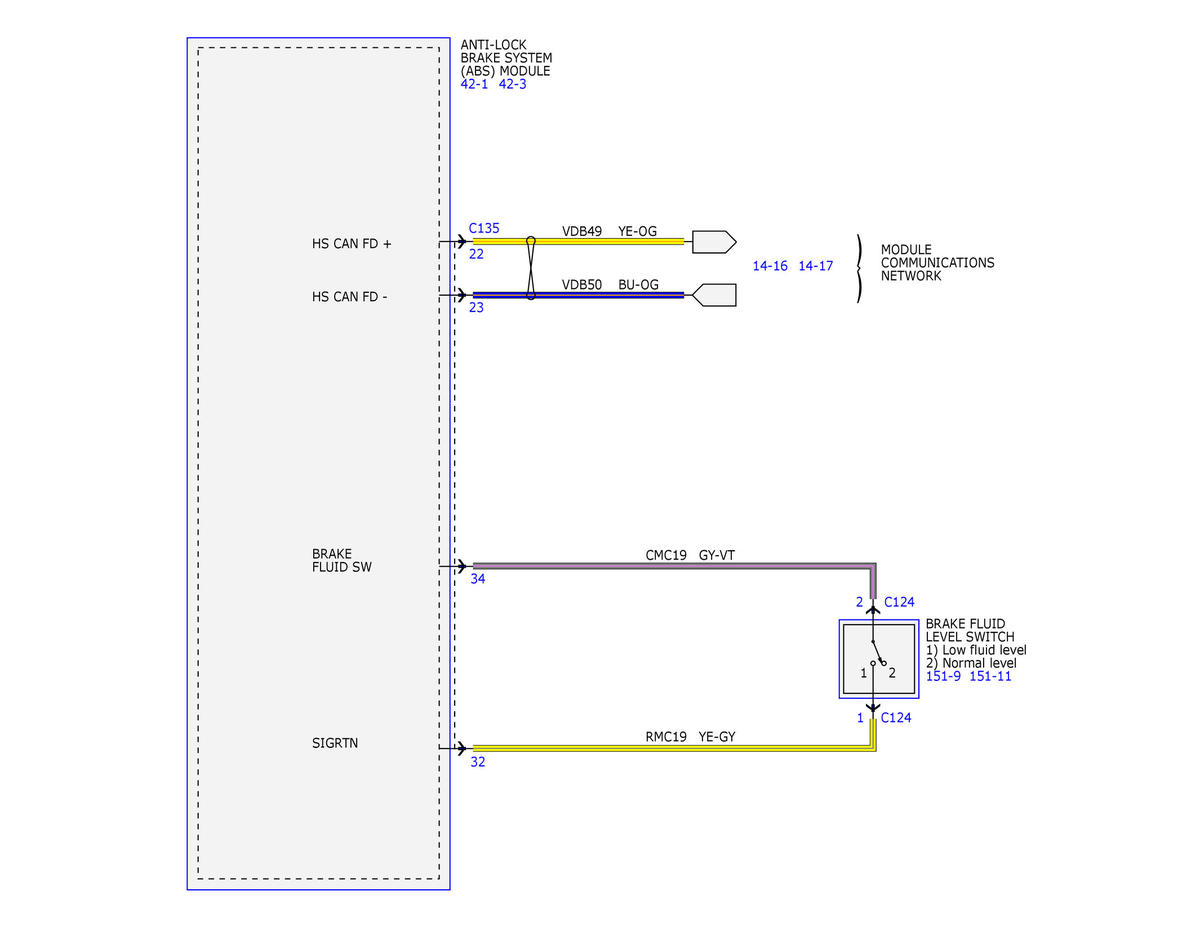

Fig 7: Instrument Cluster Wiring Diagram (7 Of 12)
GFDWR193726Courtesy of FORD MOTOR COMPANY

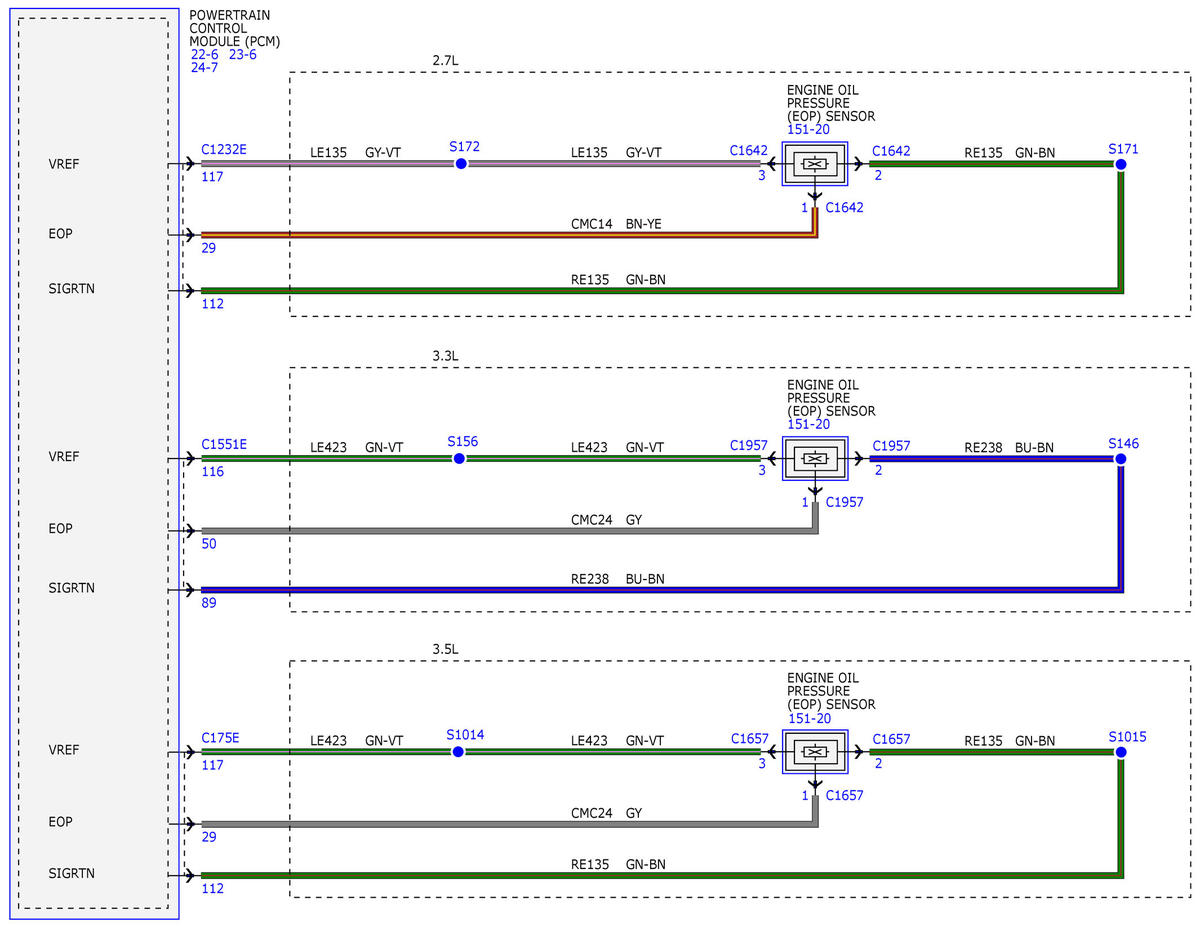

Fig 8: Instrument Cluster Wiring Diagram (8 Of 12)
GFDWR193727Courtesy of FORD MOTOR COMPANY

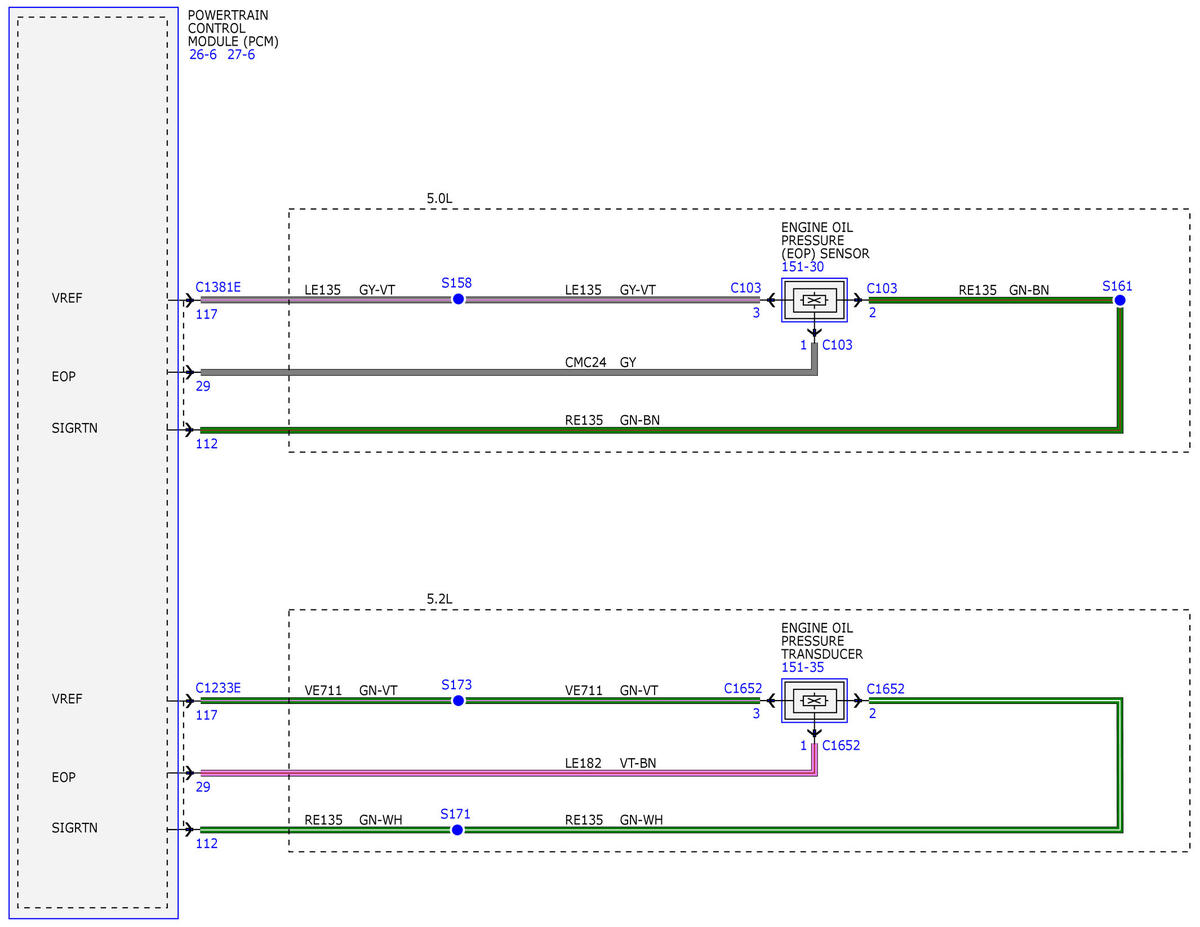

Fig 9: Instrument Cluster Wiring Diagram (9 Of 12)
GFDWR193728Courtesy of FORD MOTOR COMPANY

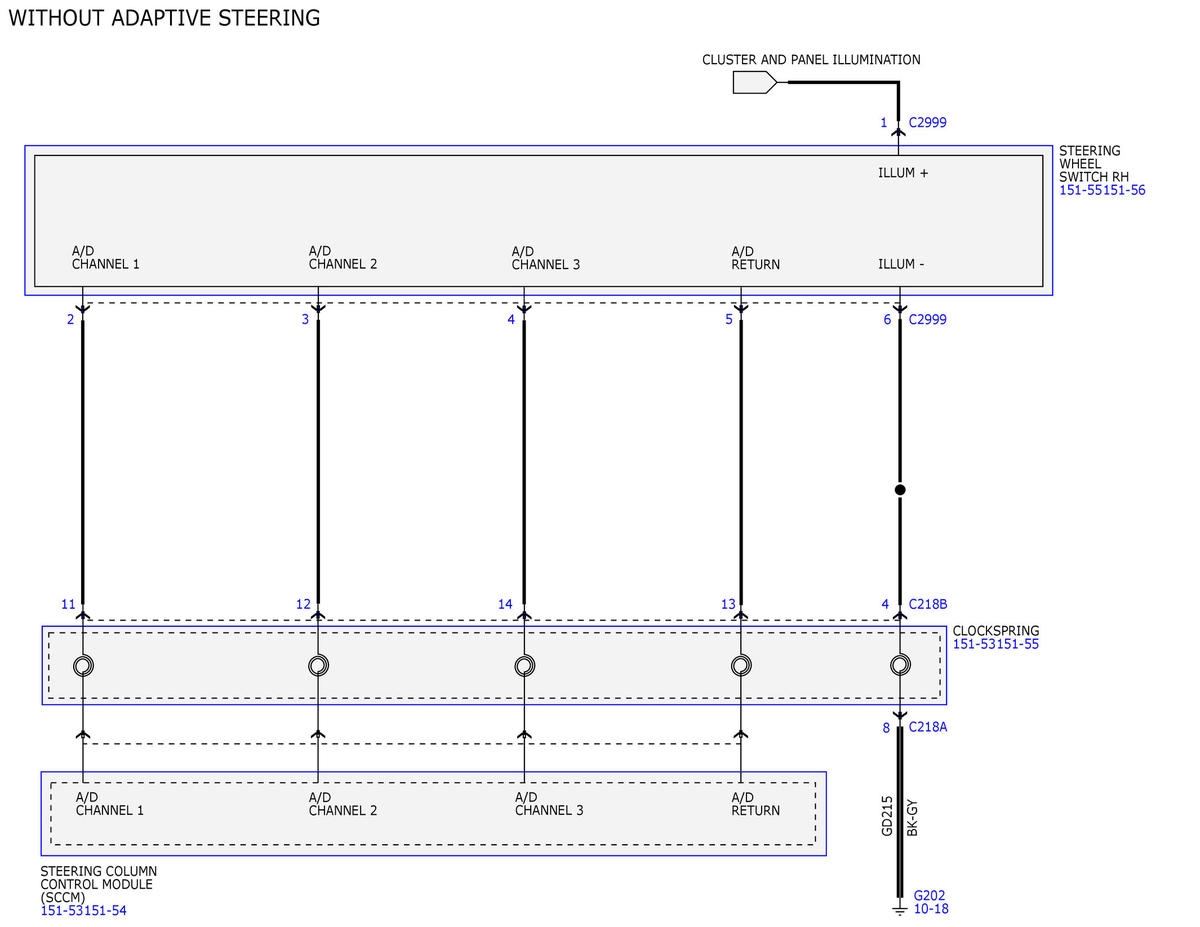

Fig 10: Instrument Cluster Wiring Diagram (10 Of 12)
GFDWR193718Courtesy of FORD MOTOR COMPANY

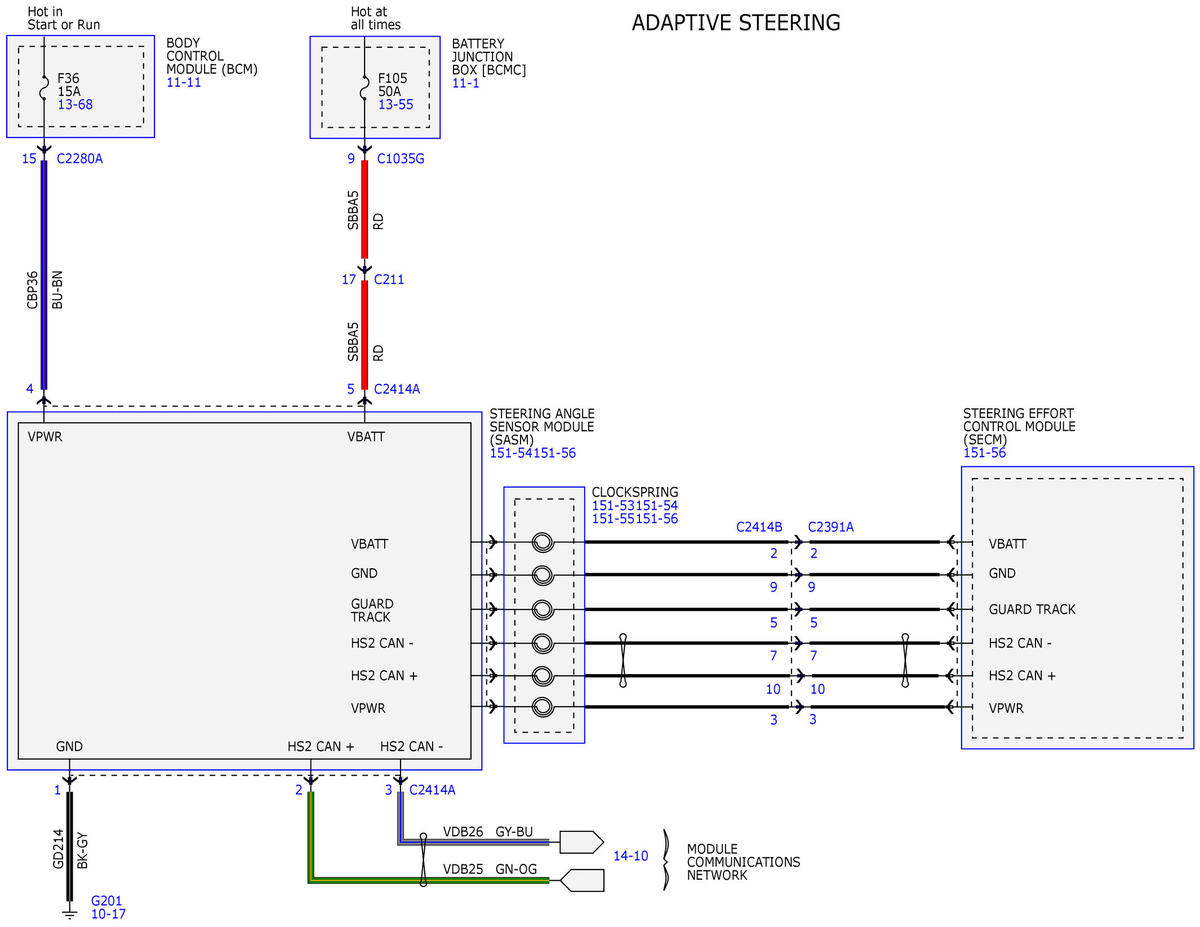

Fig 11: Instrument Cluster Wiring Diagram (11 Of 12)
GFDWR193719Courtesy of FORD MOTOR COMPANY

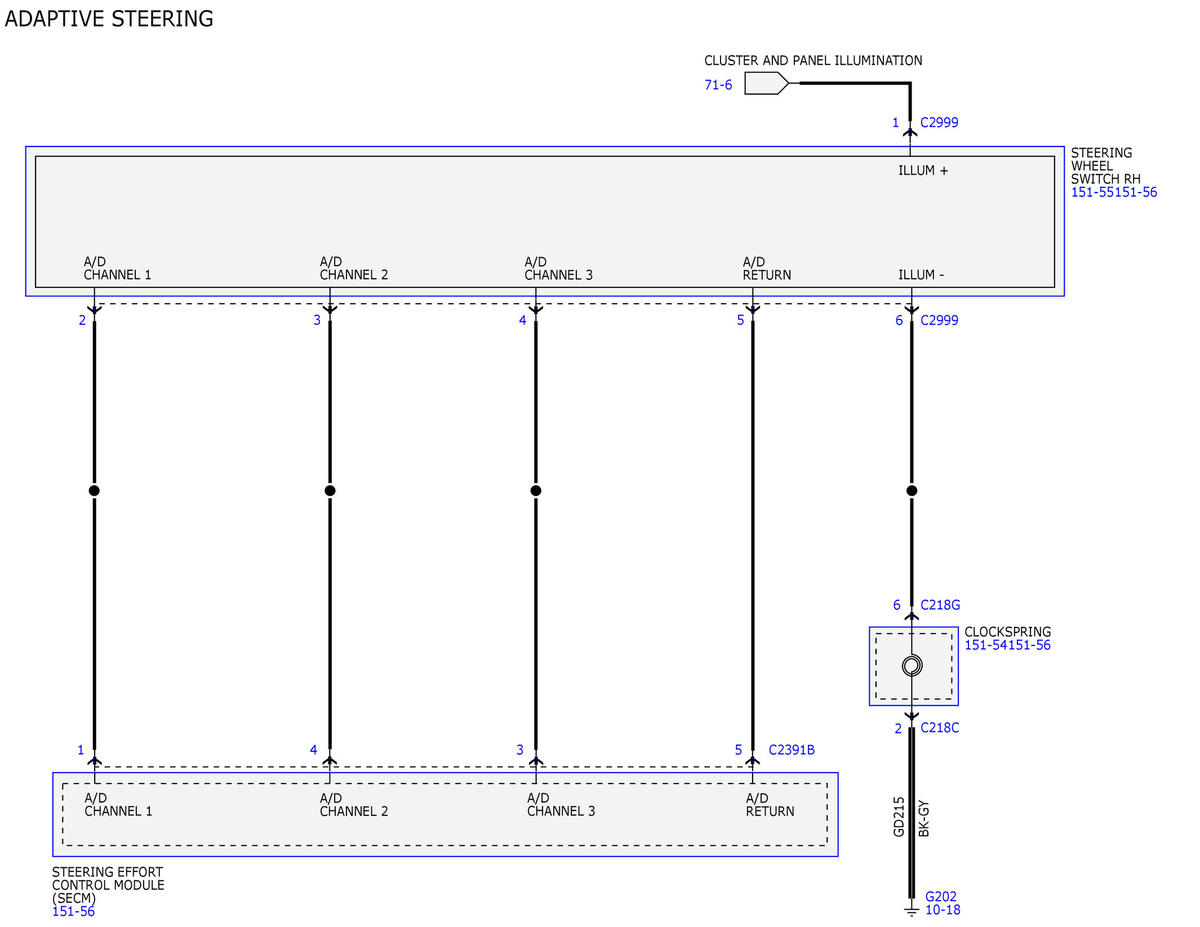

Fig 12: Instrument Cluster Wiring Diagram (12 Of 12)
GFDWR193720Courtesy of FORD MOTOR COMPANY
