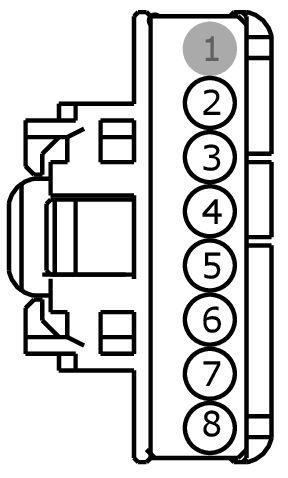

Connector End View C226A - STEERING COLUMN CONTROL MODULE (SCCM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C226A | STEERING COLUMN CONTROL MODULE (SCCM) | BK | 14401 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | SBP13 (GY-RD) | 22 | FUSE - 13 OR CIRCUIT BREAKER | 3F2T-14474-SA | ||||
| 3 | VX107 (YE-GY) | 22 | ECU - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | 3F2T-14474-SA | ||||
| 4 | CRW15 (BN-WH) | 22 | ECU - FRONT WIPER HIGH | 3F2T-14474-SA | ||||
| 5 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | 3F2T-14474-SA | ||||
| 6 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | 3F2T-14474-SA | ||||
| 7 | VLN04 (VT-GY) | 22 | ECU - IP/SWITCH ILLUMINATION | 3F2T-14474-SA | ||||
| 8 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | 3F2T-14474-SA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1219
Service Part Number:
3U2Z-14S411-DAAC
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Switch - Ambient Lighting Dimmer
- Switch - Door Lock (LH)
- Switch - Message Center
- Switch - Moon Roof/Sun Roof
- Switch - Seat Memory
