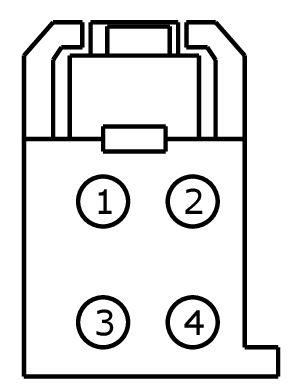

Connector End View C218D - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218D	CLOCKSPRING	BK	STRWHL	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RHS72 (*)	*	ECU - HEATER STEERING WHEEL # HEATER ELEMENT -	N/A
2	VHS81 (*)	*	THERMISTOR - HEATED STEERING WHEEL +	N/A
3	CHS72 (*)	*	ECU - HEATER STEERING WHEEL # HEATER ELEMENT +	N/A
4	RHS81 (*)	*	THERMISTOR - HEATED STEERING WHEEL -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1311

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-BAA

Gauge:

20

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Seat Height (Front)
• Motor - Seat Recline
