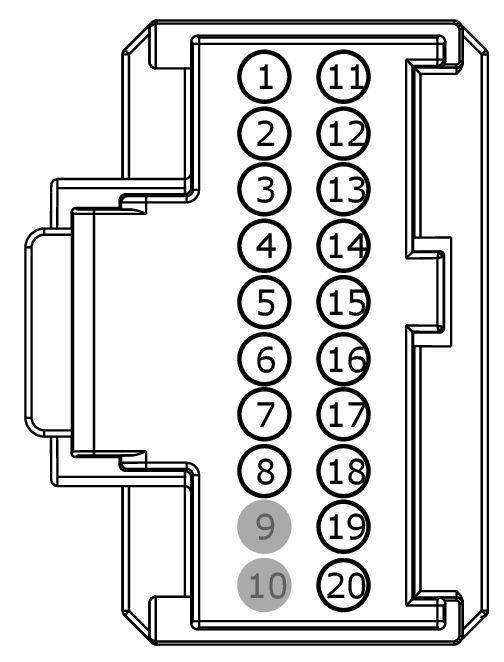

Connector End View C341E - DRIVER FRONT SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341E	DRIVER FRONT SEAT MODULE (DSM)	BK	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP09 (VT-OG)	20	SWITCH - ADJUST. PEDALS # FORWARD	9U5T-14474-DB
2	LPP08 (BU)	20	ECU - SENSOR ADJUSTABLE STEERING COLUMN TILT (RAKE) +	9U5T-14474-DB
2	CPP10 (BN-BU)	20	SWITCH - ADJUST. PEDALS # REARWARD	N/A
3	CPR47 (GY-BN)	20	ECU - POWER RUNNING BOARDS # SENSOR +	9U5T-14474-DB
4	RPS78 (VT-GN)	20	ECU - FRONT PASSENGER SEAT SENSORS RECLINE -	9U5T-14474-DB
5	LPS78 (BN-YE)	20	ECU - FRONT PASSENGER SEAT SENSORS RECLINE +	9U5T-14474-DB
6	VPS86 (VT-GN)	20	SENSOR - FRONT PASSENGER SEAT RECLINE	9U5T-14474-DB
7	CPR53 (GN-BN)	20	SWITCH - POWER RUNNING BOARD OPEN/CLOSE LEFT	9U5T-14474-DB
8	CPR54 (BU-BN)	20	SWITCH - POWER RUNNING BOARD # OPEN / CLOSE RIGHT	9U5T-14474-DB
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VPS11 (GN-BN)	20	SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL	9U5T-14474-DB
12	VPS09 (BN-BU)	20	SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD	9U5T-14474-DB
13	VPS10 (BU-GN)	20	SENSOR - DRIVER SEAT HEIGHT FRONT / TILT	9U5T-14474-DB
14	VPS12 (GY-OG)	20	SENSOR - DRIVER SEAT RECLINE	9U5T-14474-DB
15	VPP16 (BU-BN)	20	SENSOR - ADJUSTABLE PEDAL	9U5T-14474-DB
16	VPP08 (WH)	20	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)	9U5T-14474-DB
17	VPP17 (VT-BN)	20	SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD)	9U5T-14474-DB
18	VPR43 (GY-BU)	20	SENSOR - POWER RUNNING BOARDS # LEFT POSITION	9U5T-14474-DB
19	VPR46 (GY-OG)	20	SENSOR - POWER RUNNING BOARDS # RIGHT POSITION	9U5T-14474-DB
20	RPS12 (YE-VT)	20	ECU - DRIVER SEAT SENSORS RECLINE -	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:
