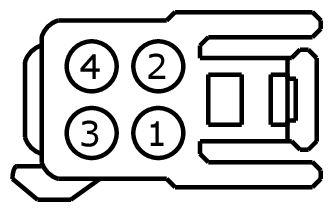

Connector End View C2159 - ADJUSTABLE PEDAL MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2159	ADJUSTABLE PEDAL MOTOR	LT GY	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPP02 (BN)	20	ECU - MOTOR ADJUSTABLE PEDAL REARWARD	AU5T-14474-DA
2	CPP01 (WH-OG)	20	ECU - MOTOR ADJUSTABLE PEDAL FORWARD	AU5T-14474-DA
3	RPP06 (GN)	20	ECU - SENSOR ADJUSTABLE PEDAL -	AU5T-14474-DA
4	VPP16 (BU-BN)	20	SENSOR - ADJUSTABLE PEDAL	AU5T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-977

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-LUB

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Element - Heated Seat
• Lamp - Ambient Lighting
• Lamp - Courtesy - Footwell
• Mirror - Sideview
• Motor - Adjustable Pedal
• Motor - Steering Column Adjust
• Solenoid - Brake Shift Park Interlock
• Speaker - Subwoofer
• Switch - Gear Shift Select/Neutral Safety
• Transceiver - Passive Anti-Theft (PATS)
