Brake Pedal and Bracket: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Adjustable brake pedal and bracket shown, fixed brake pedal and bracket similar.
Vehicles equipped with adjustable pedals
-
NOTE: The brake pedal and the accelerator pedal must be in the same position when installing a new cable or a new pedal. The pedals must be all the way forward or all the way rearward or damage to components may occur.
Move the pedals to the full forward (away from the driver) position.
All vehicles
-
- Position aside the weather strip
- Release the clips and remove the LH instrument panel end cap.Use the General Equipment: Interior Trim Remover

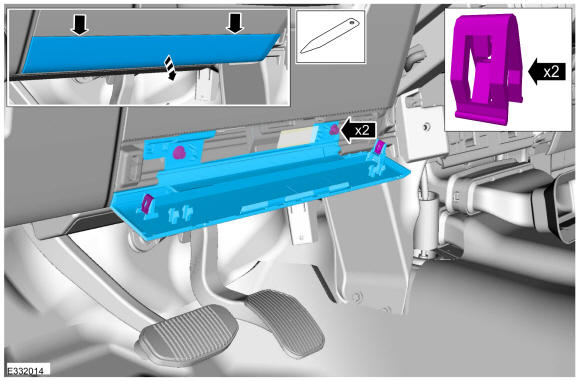

- Release the clips to open the access panel, remove the bolts and the access panel.Use the General Equipment: Interior Trim Remover

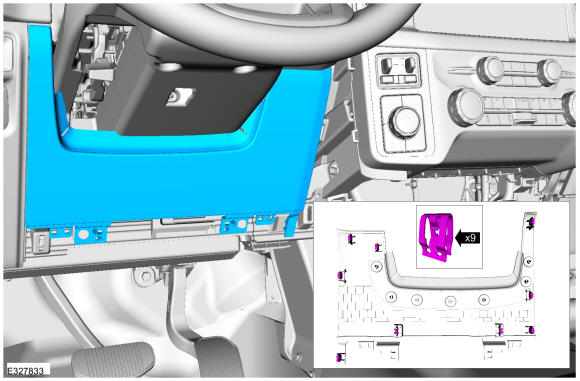

- Release the clips and remove the lower steering column trim panel.
-
- Release the clips and remove the LH instrument panel fin.
- Remove the bezel assembly instrument panel cover upper mounting screw.
Torque: 27 lb.in (3 Nm)
- Pull outward the bezel assembly instrument panel cover by detaching the 7 clips and position the cover downward.

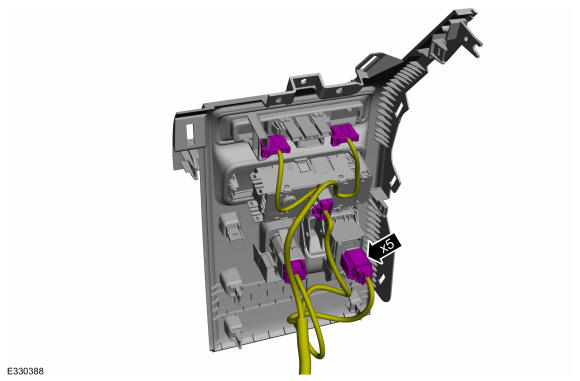

- Disconnect the electrical connectors.
Vehicles equipped with adjustable pedals

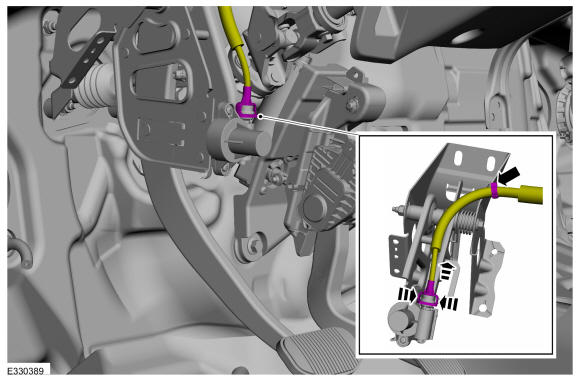

- Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.
All vehicles

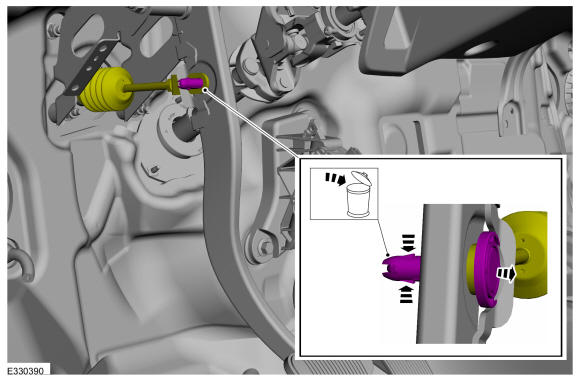

- Remove the brake pedal clevis pin, and disconnect the brake booster push rod from the brake pedal arm. Discard the brake pedal clevis pin.

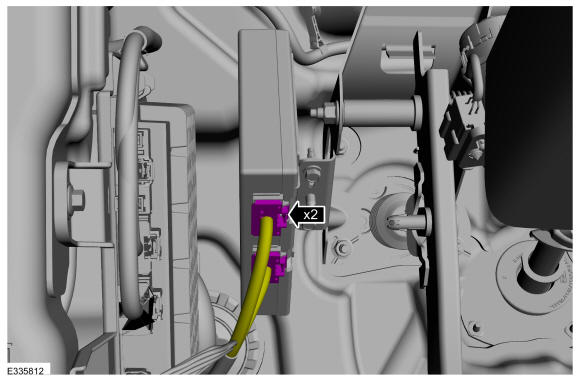

- If equipped.Disconnect the trailer tow lighting module electrical connectors.

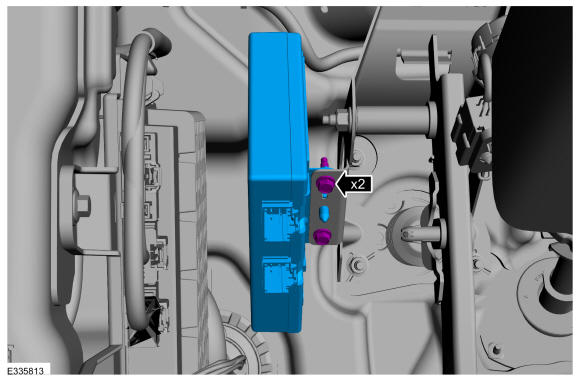

- If equipped.Remove the bolts and trailer tow lighting module.
Torque: 106 lb.in (12 Nm)
-
-
NOTE: Tighten the 4 brake booster-to-pedal bracket nuts in a cross-pattern.

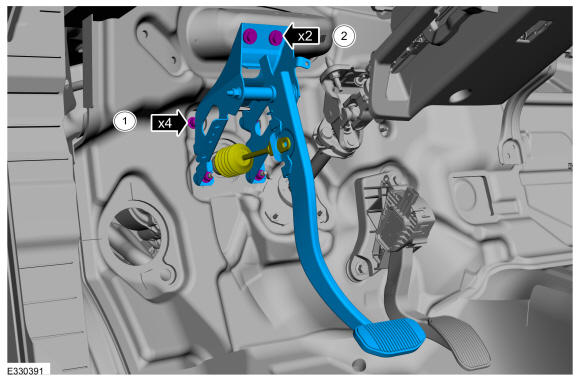

Remove the 4 brake booster-to-pedal bracket nuts.
Torque: 18 lb.ft (25 Nm)
- Remove the 2 brake pedal bracket bolts and while pushing the brake booster towards the engine compartment, remove the brake pedal and bracket.
Torque: 18 lb.ft (25 Nm)
-
