Adjustable Pedal Indexing

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

2450A

NOTE: The adjustable pedal system must be indexed whenever the brake pedal assembly or accelerator pedal assembly is installed or damage to the components may result.

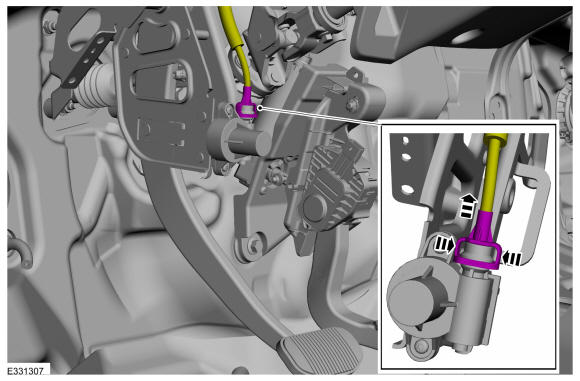

  1. Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.
    GFD728809Courtesy of FORD MOTOR COMPANY

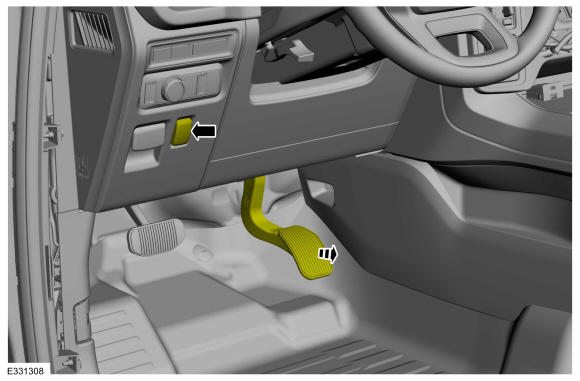

  2. Operate the accelerator pedal to the full rearward position.
    GFD728810Courtesy of FORD MOTOR COMPANY

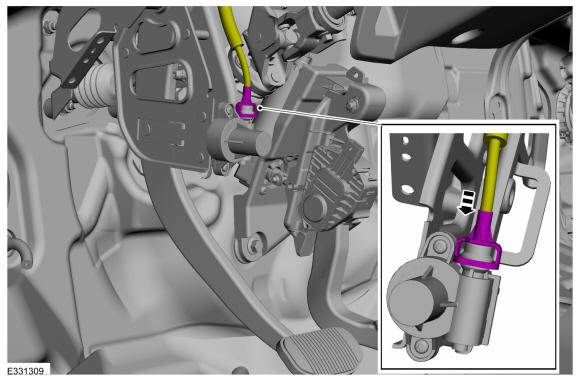

  3. Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.
    GFD728811Courtesy of FORD MOTOR COMPANY

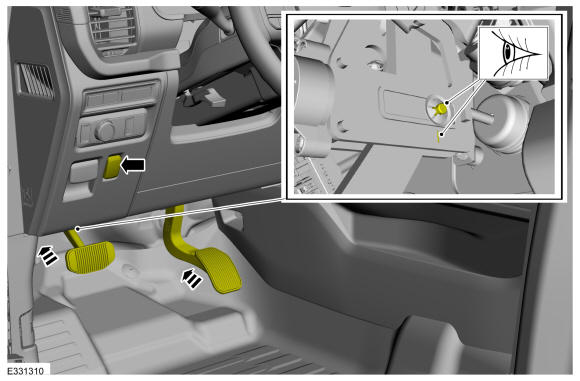

  4. Operate the adjustable pedals until the pin is aligned with the witness mark on the brake pedal bracket.
    GFD728812Courtesy of FORD MOTOR COMPANY
  5. Disconnect the adjustable pedal motor drive cable to the adjustable brake pedal drive.
    GFD728809Courtesy of FORD MOTOR COMPANY

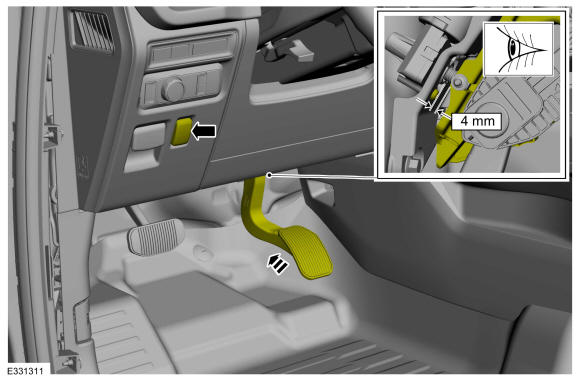

  6. Operate the adjustable accelerator pedal forward until there is a 4mm (0.157 in) gap between the screw head and the moving structure of the accelerator pedal.
    GFD728813Courtesy of FORD MOTOR COMPANY
  7. Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.

    • Check that the brake and accelerator pedals can be fully adjusted forward and rearward.

GFD728811Courtesy of FORD MOTOR COMPANY
