Accessory Drive - Component Location

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

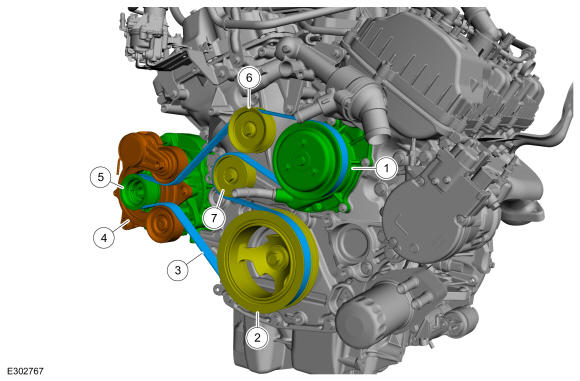

Fig 1: Accessory Drive Belt Routing Diagram

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Coolant pump pulley
2	Crankshaft pulley
3	Accessory drive belt
4	Accessory drive belt tensioner
5	Generator pulley
6	Accessory drive belt idler
7	Accessory drive belt idler
