Engine Cooling - Component Location
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

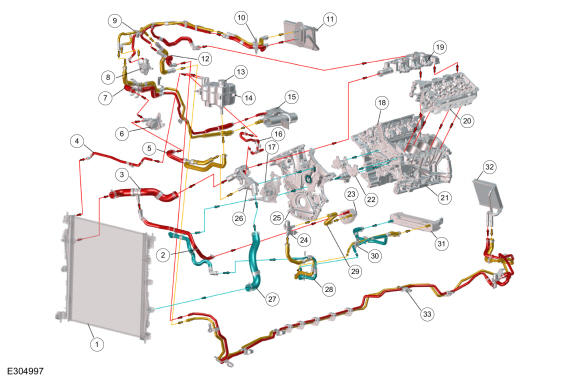

Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38° C (100° F). Red arrows indicate a temperature over 82.2° C (180° F), Orange arrows indicate a temperature of approximately 82.2° C (180° F), Blue arrows indicate a temperature below 82.2° C (180° F).
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Transmission oil cooler inlet hose |
| 3 | Upper radiator hose |
| 4 | Radiator-to-degas bottle hose |
| 5 | Degas bottle hose |
| 6 | Auxiliary pump |
| 7 | Auxiliary pump inlet hose |
| 8 | EGR valve |
| 9 | Heater inlet hose |
| 10 | Heater outlet hose |
| 11 | Heater core |
| 12 | Heater hose assembly |
| 13 | Pressure relief cap |
| 14 | Degas bottle |
| 15 | Heat exchanger exhaust |
| 16 | Degas bottle hose |
| 17 | Coolant pump |
| 18 | RH cylinder head |
| 19 | Intake manifold |
| 20 | LH cylinder head |
| 21 | Cylinder block |
| 22 | Channel cover plate |
| 23 | Engine oil cooler |
| 24 | Transmission coolant control valve |
| 25 | Engine front cover |
| 26 | Thermostat housing |
| 27 | Lower radiator hose |
| 28 | Transmission coolant control valve inlet hose |
| 29 | Engine oil cooler inlet hose |
| 30 | Transmission oil cooler outlet hose |
| 31 | Transmission oil cooler |
| 32 | Heater core |
| 33 | Heater hose assembly |
