Section 884 (OEM Wiring Diagrams)
>>
Electronic Engine Controls - 3.3L TIVCT
Electronic Engine Controls - 3.3L TIVCT
WARNING:
This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

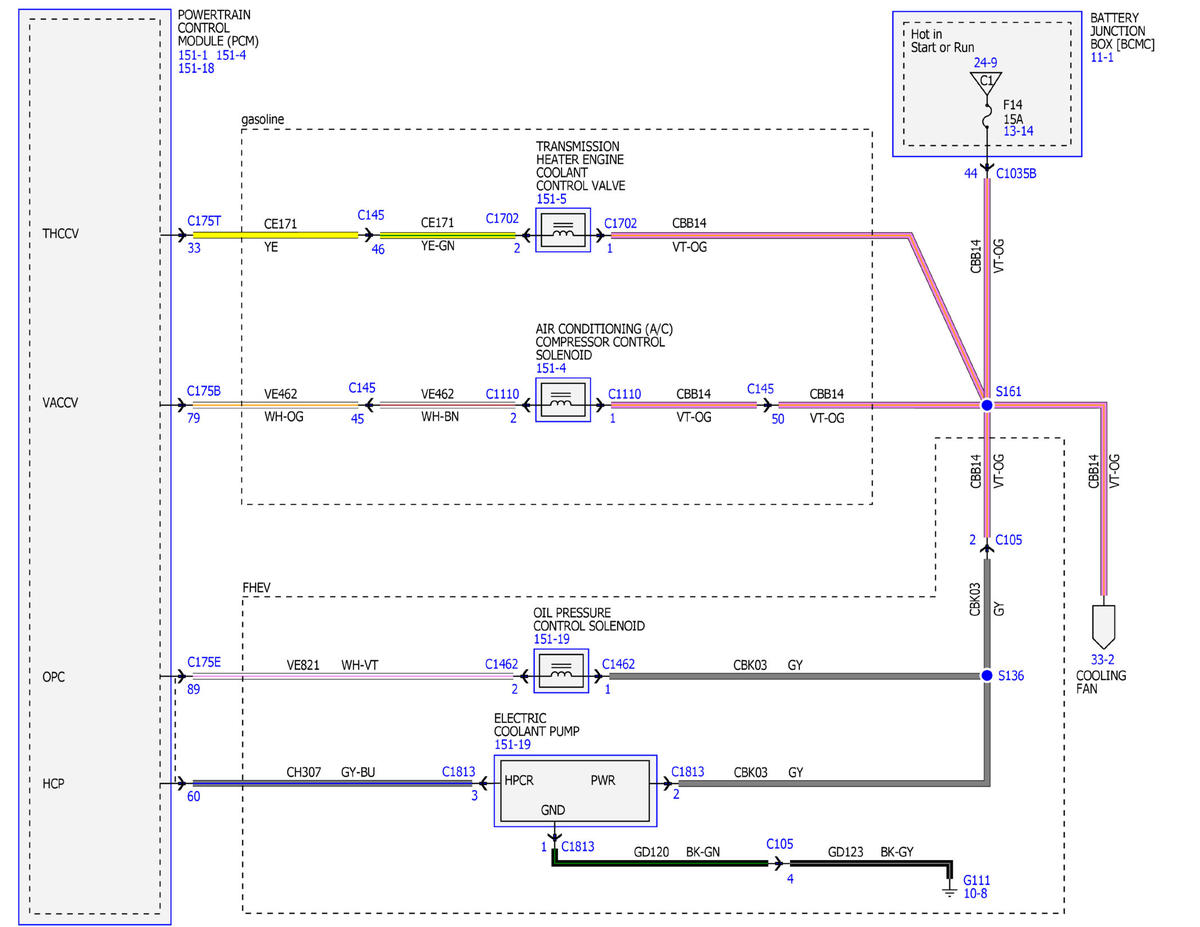

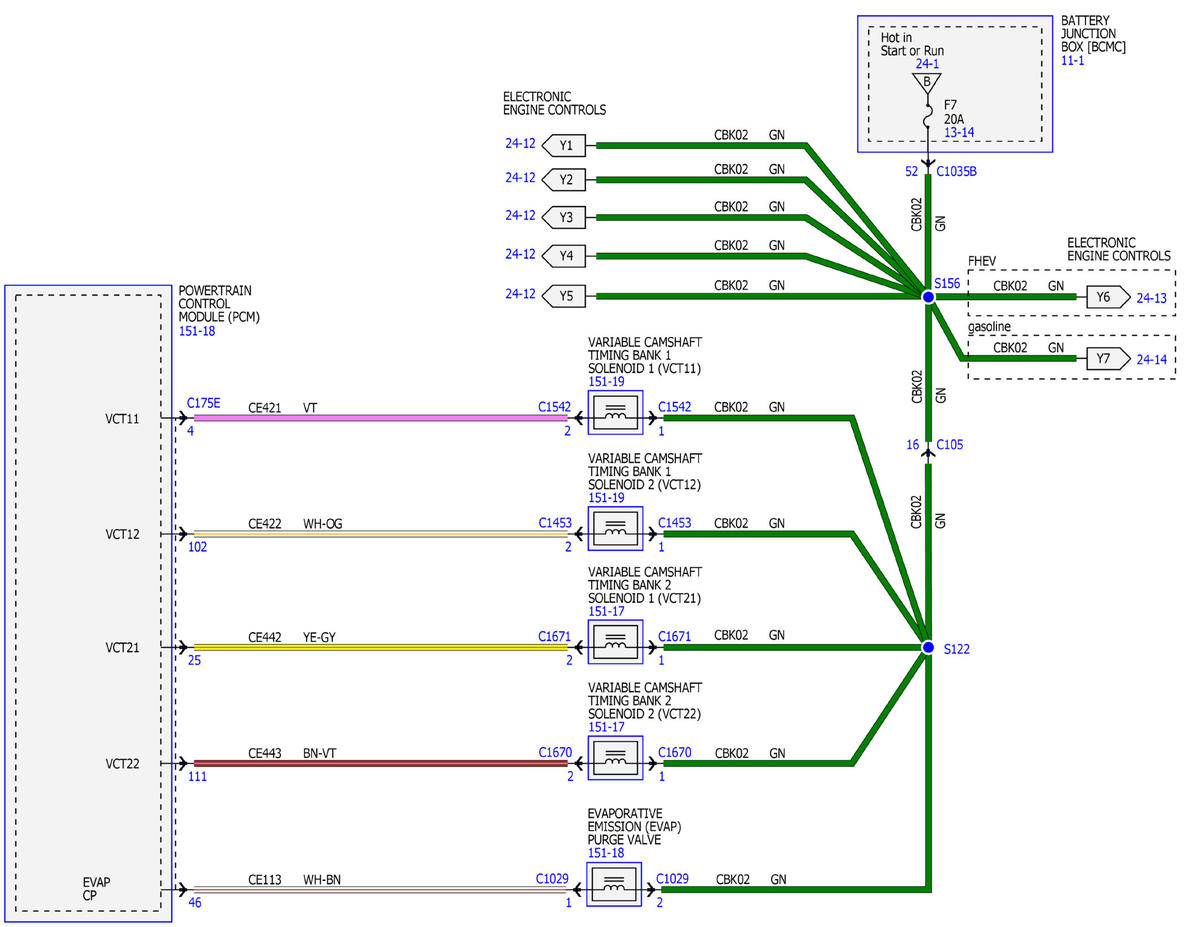

Fig 1: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (1 Of 21)
Courtesy of FORD MOTOR COMPANY

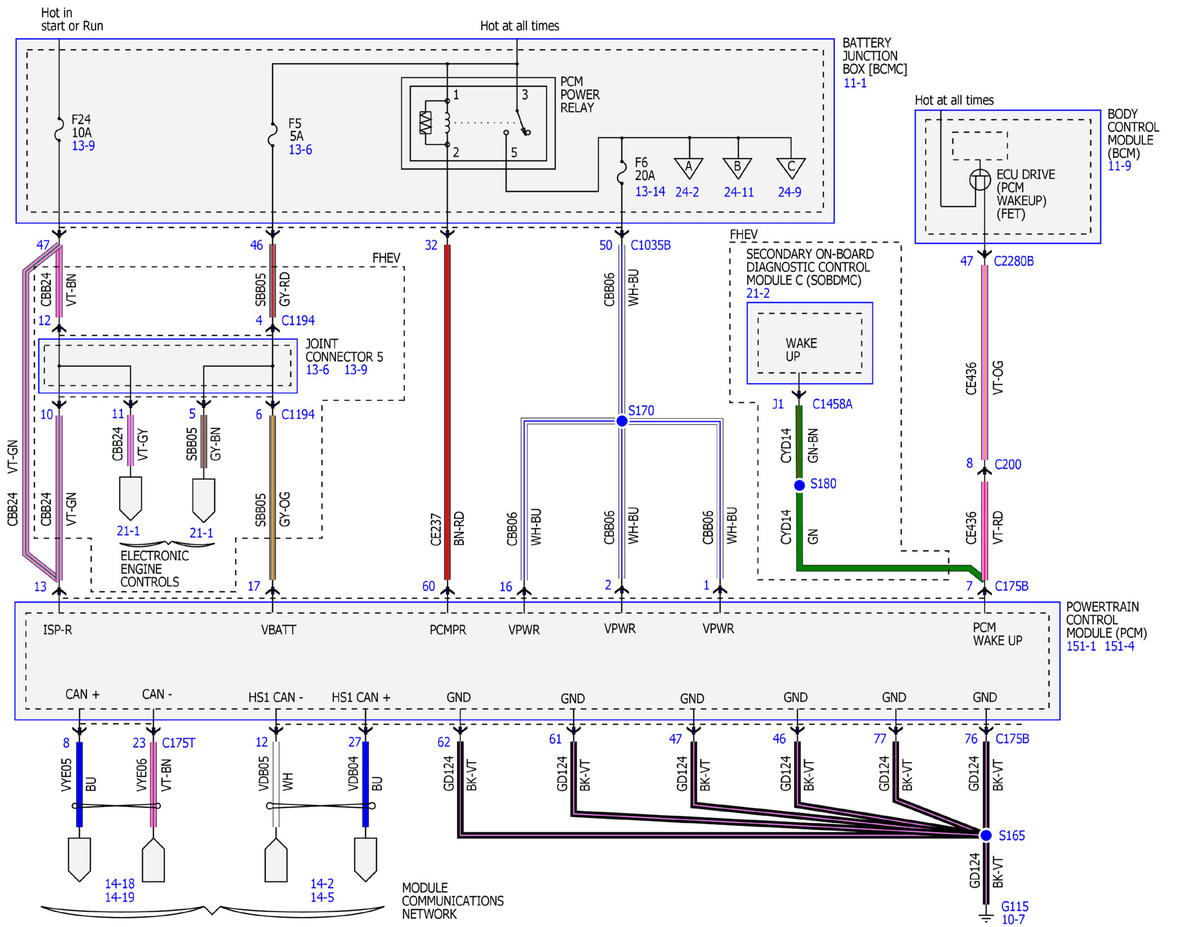

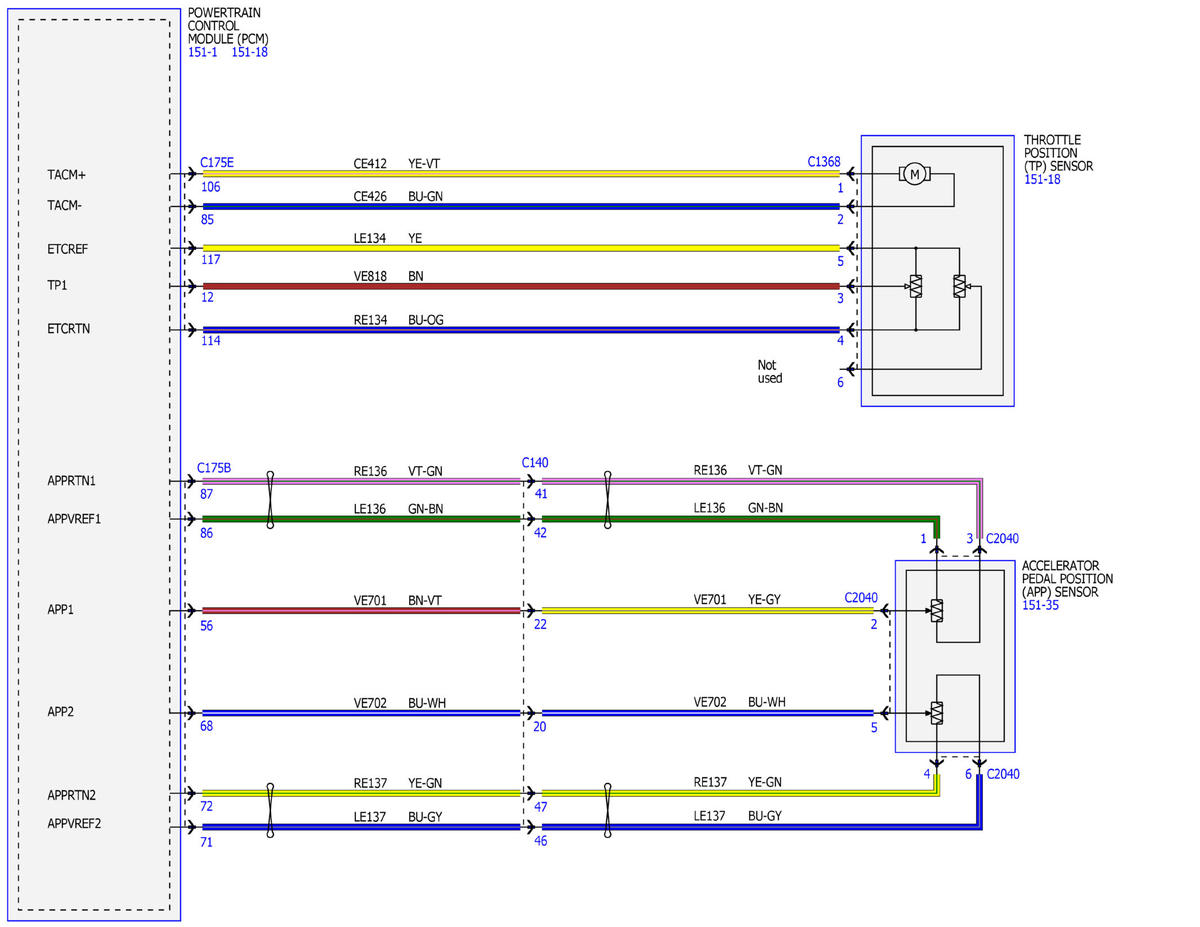

Fig 2: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (2 Of 21)
Courtesy of FORD MOTOR COMPANY

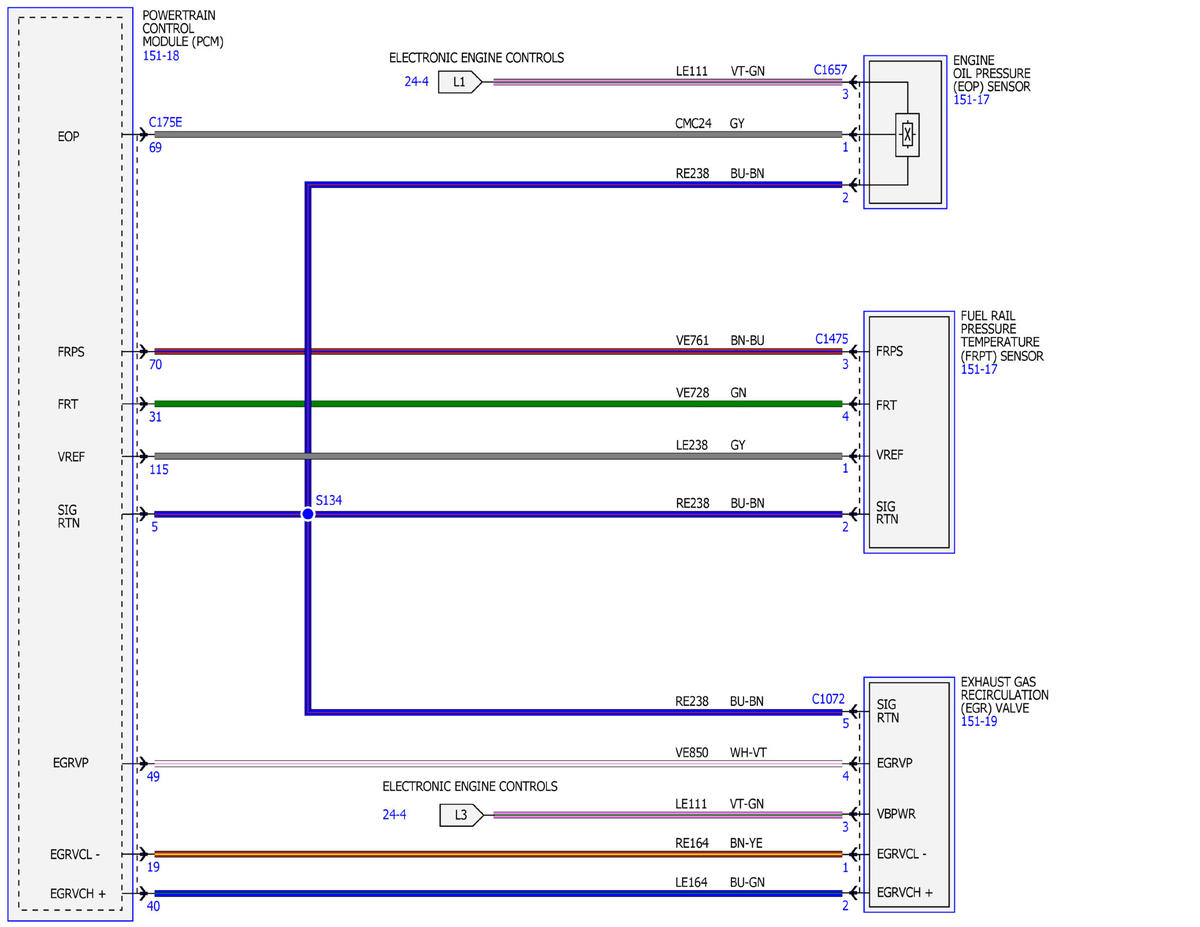

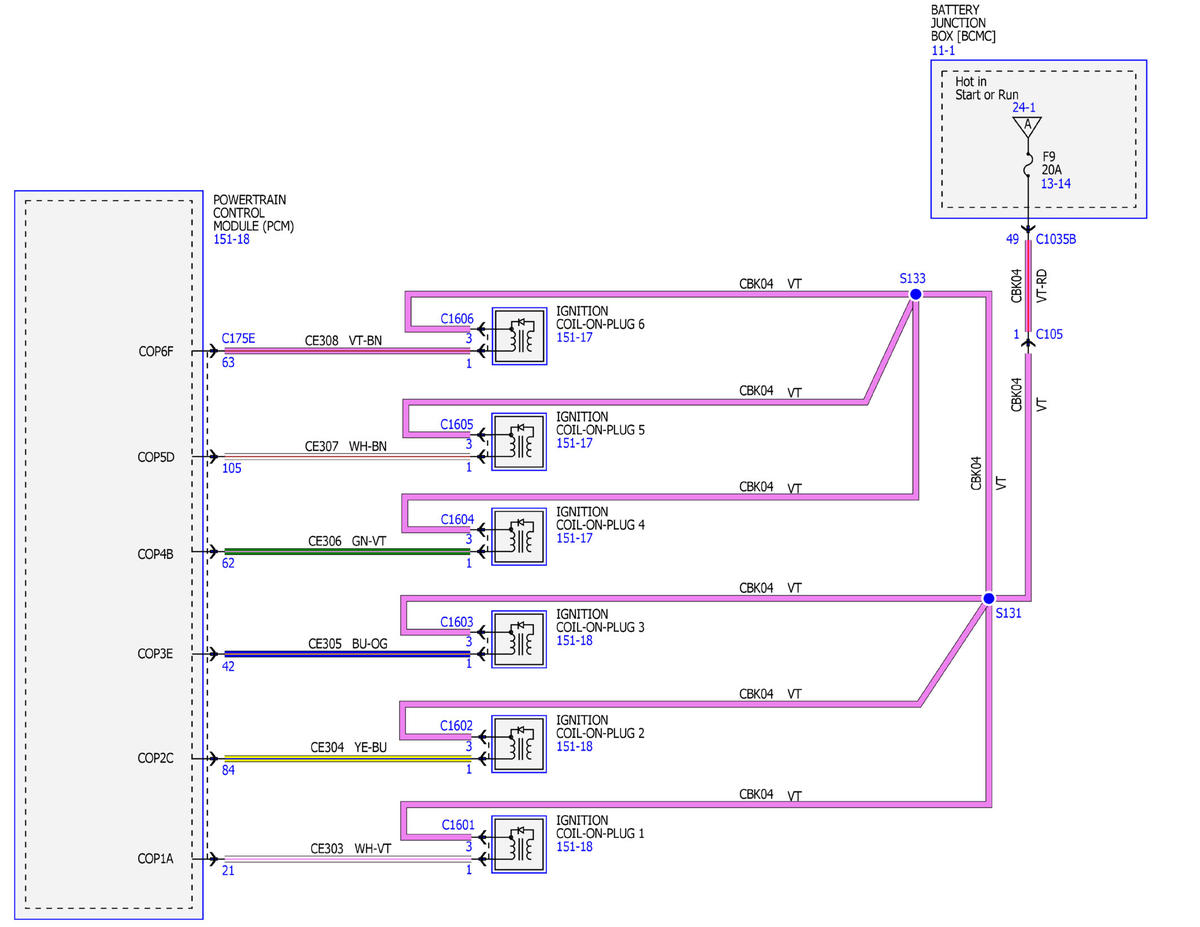

Fig 3: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (3 Of 21)
Courtesy of FORD MOTOR COMPANY

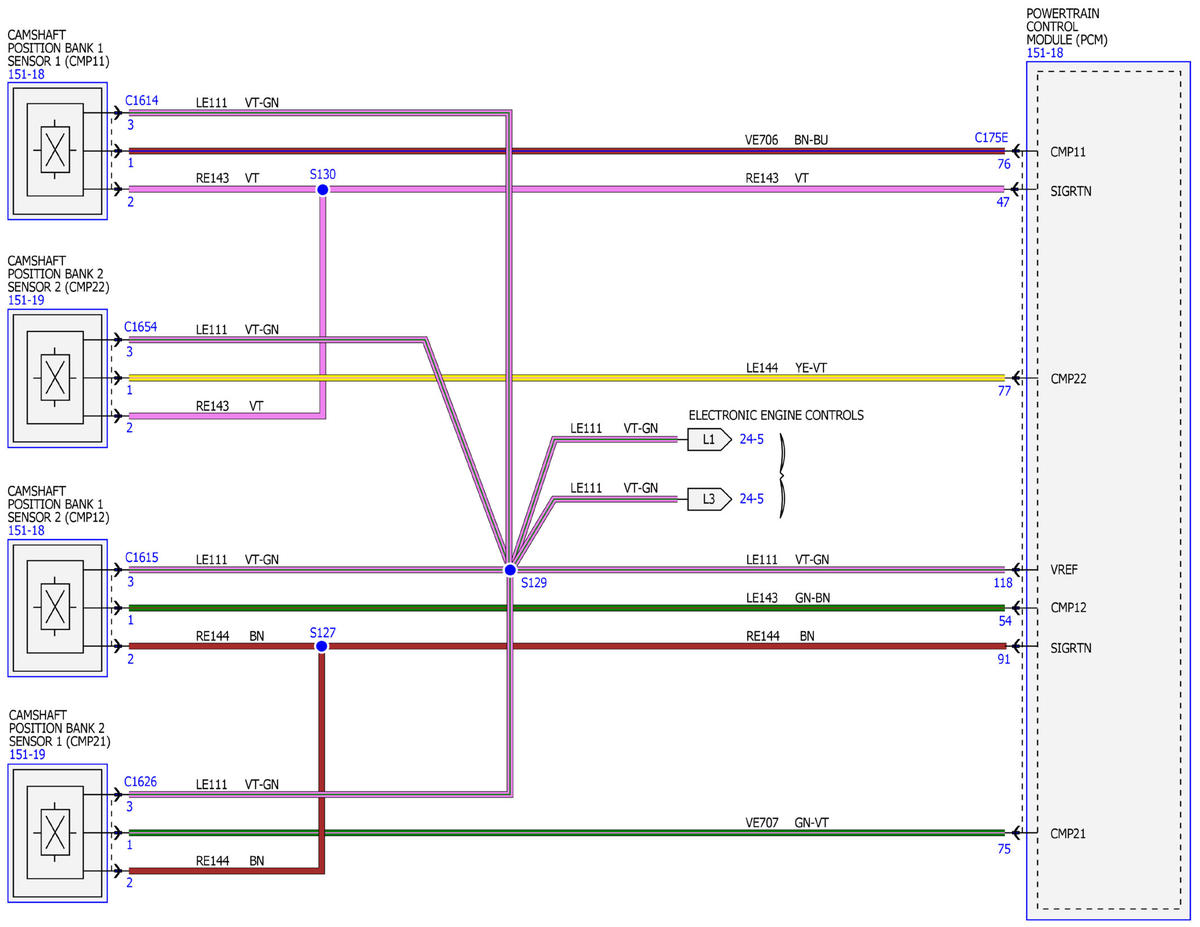

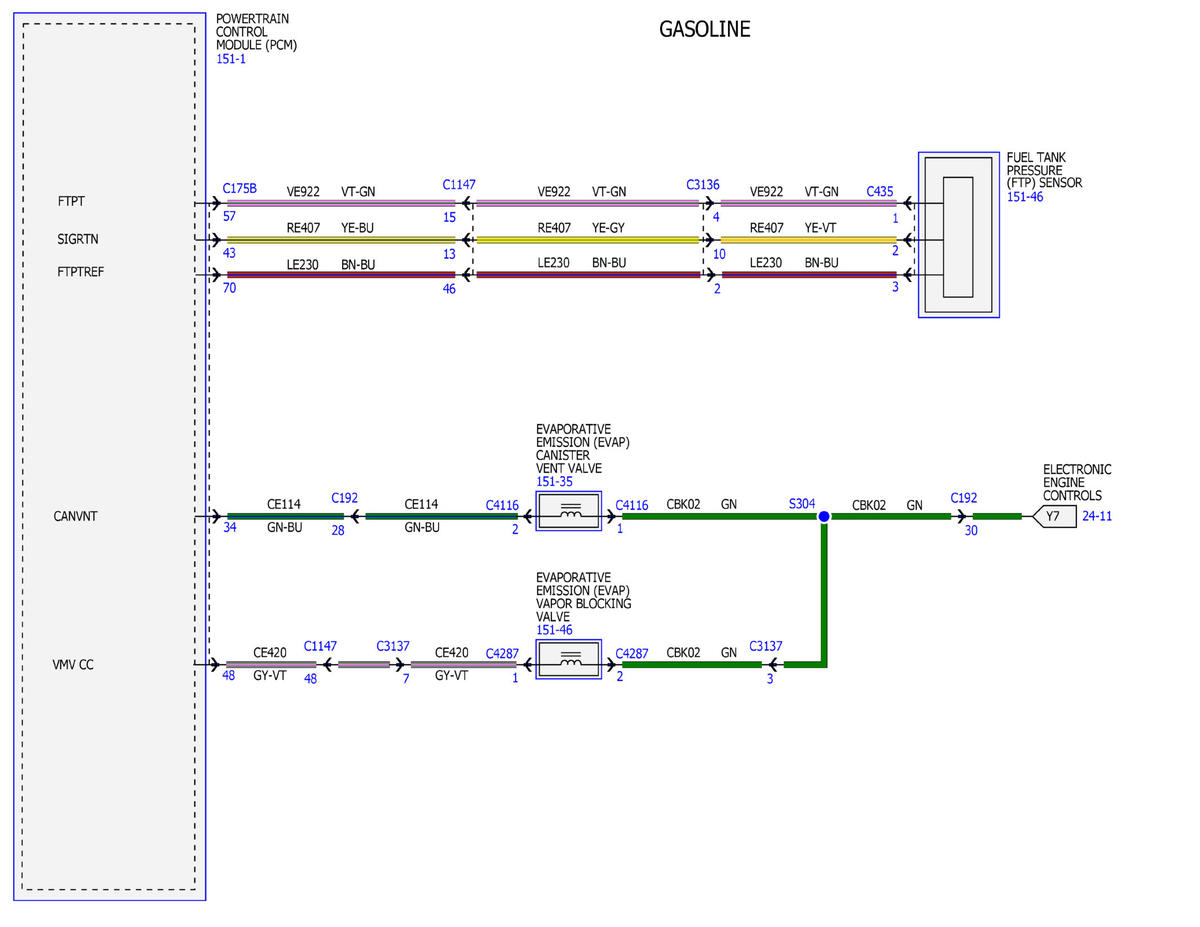

Fig 4: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (4 Of 21)
Courtesy of FORD MOTOR COMPANY

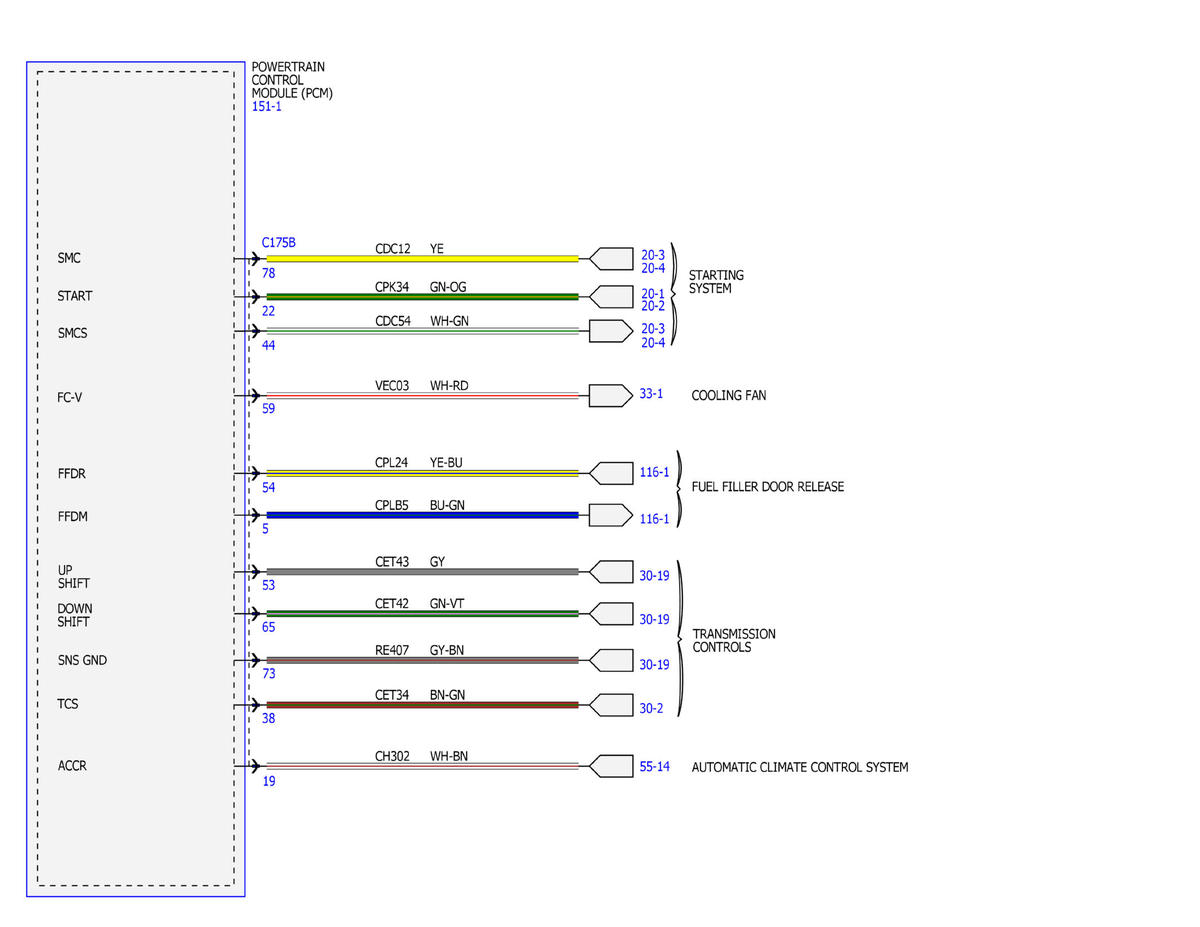

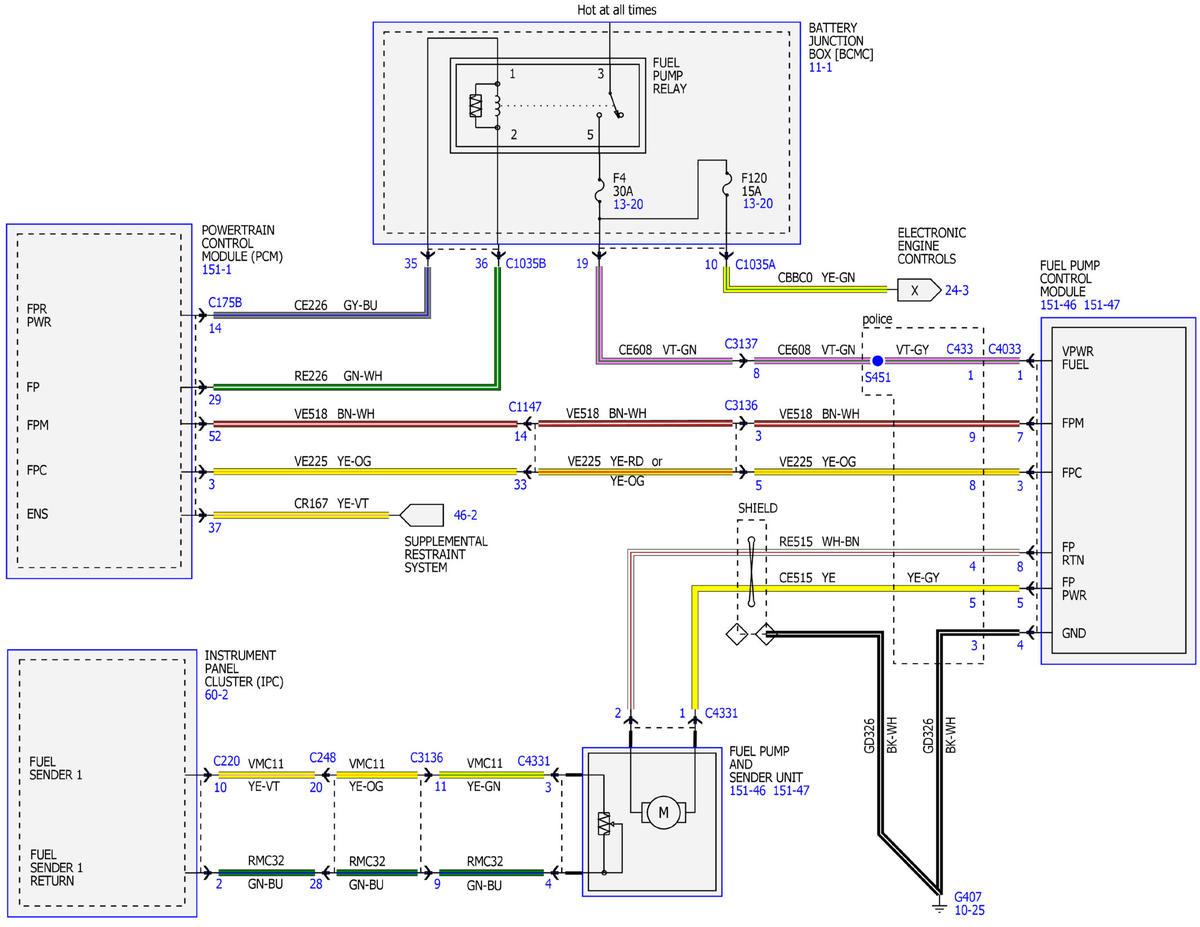

Fig 5: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (5 Of 21)
Courtesy of FORD MOTOR COMPANY

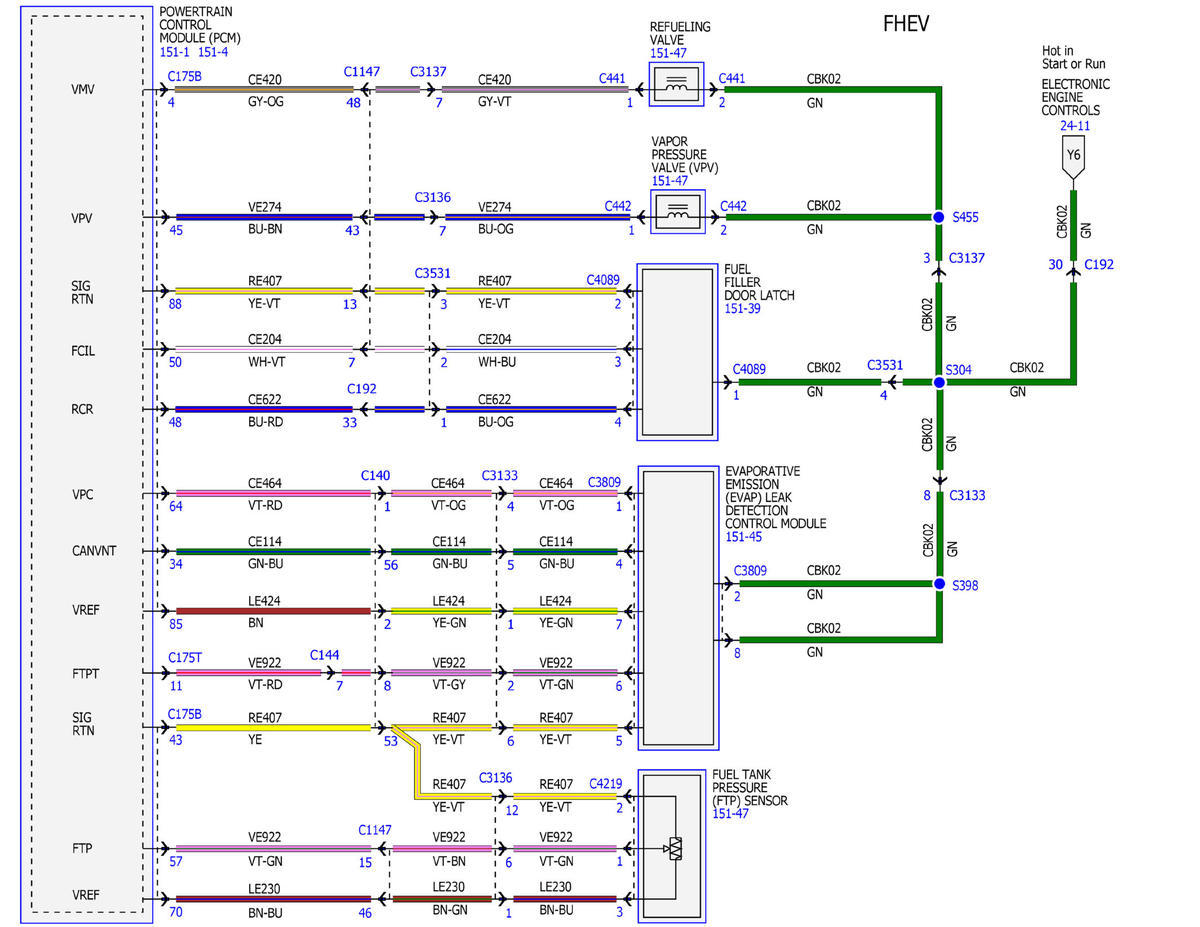

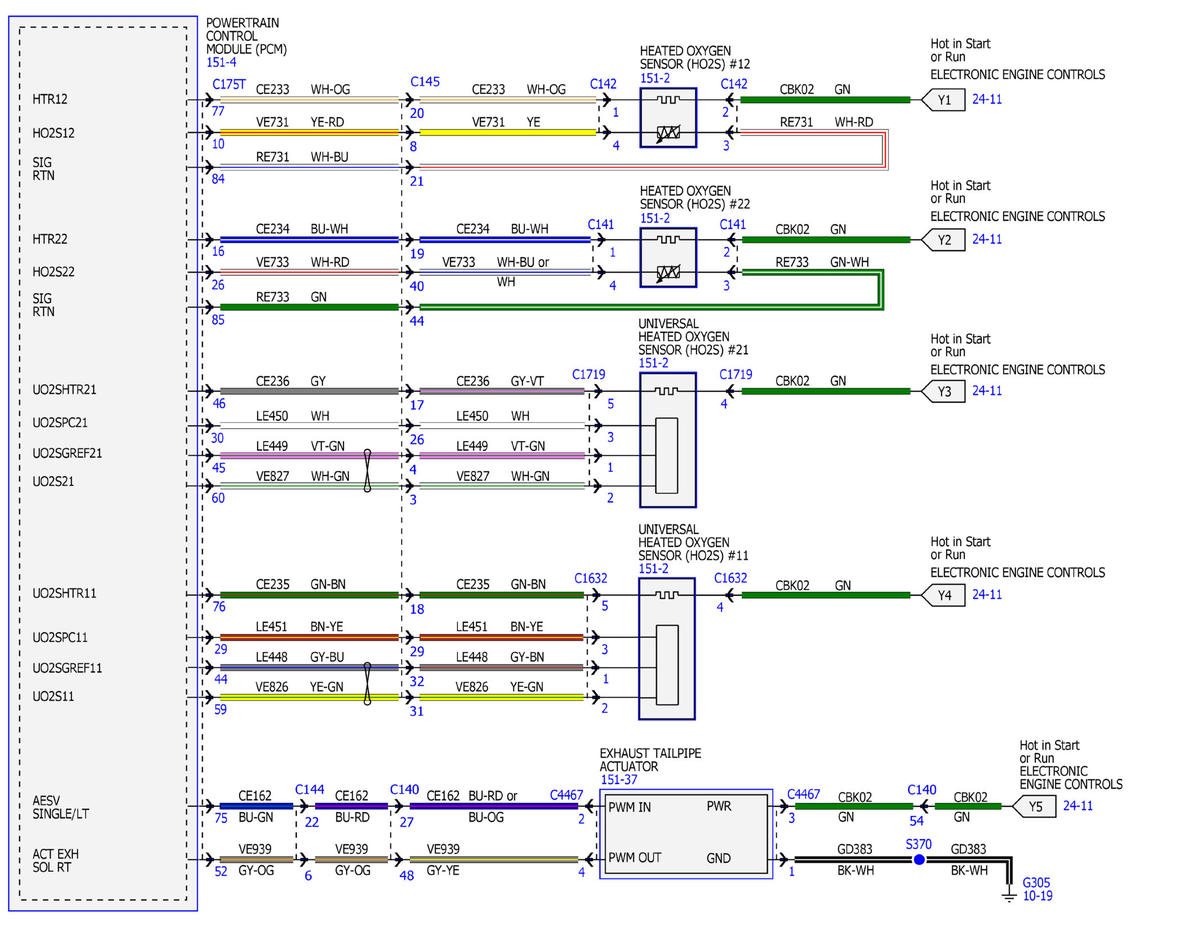

Fig 6: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (6 Of 21)
Courtesy of FORD MOTOR COMPANY

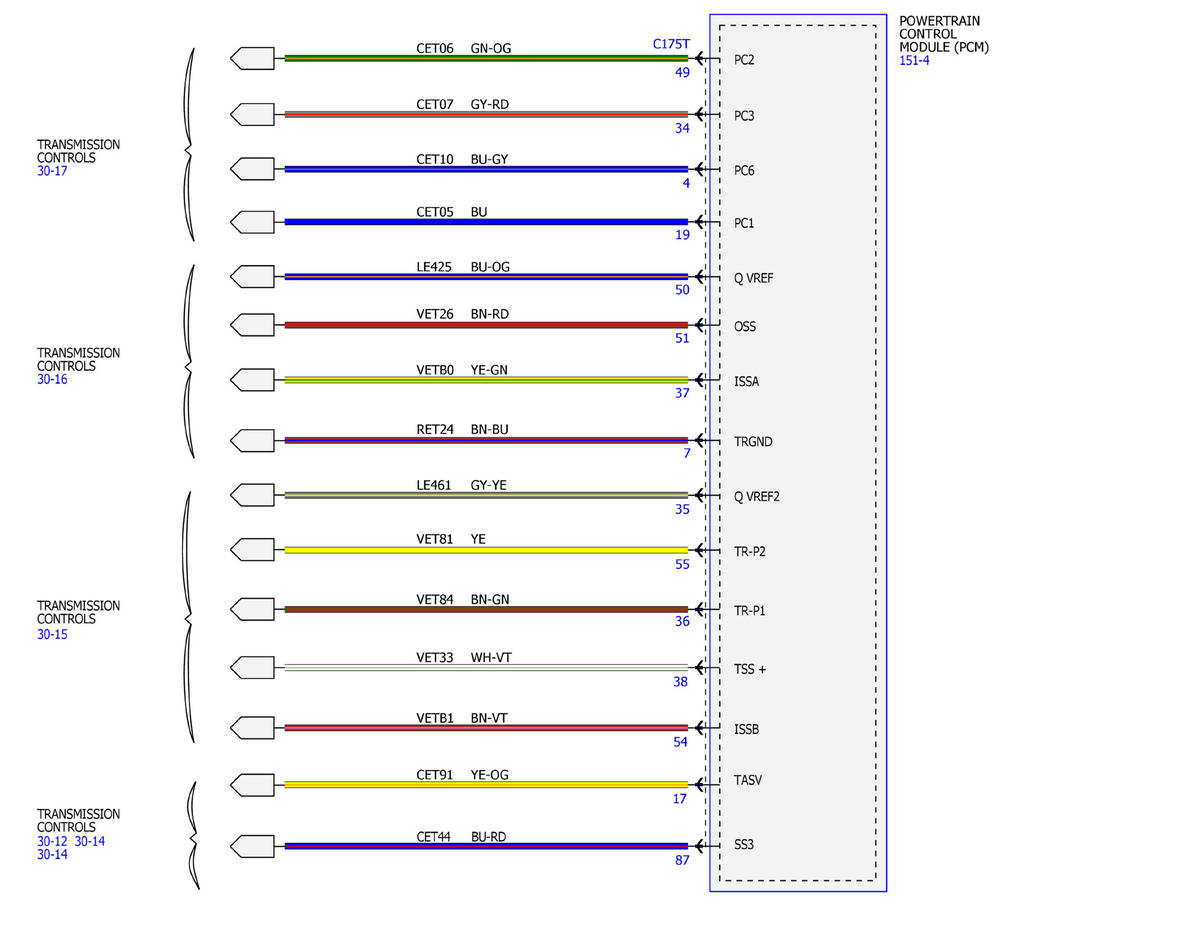

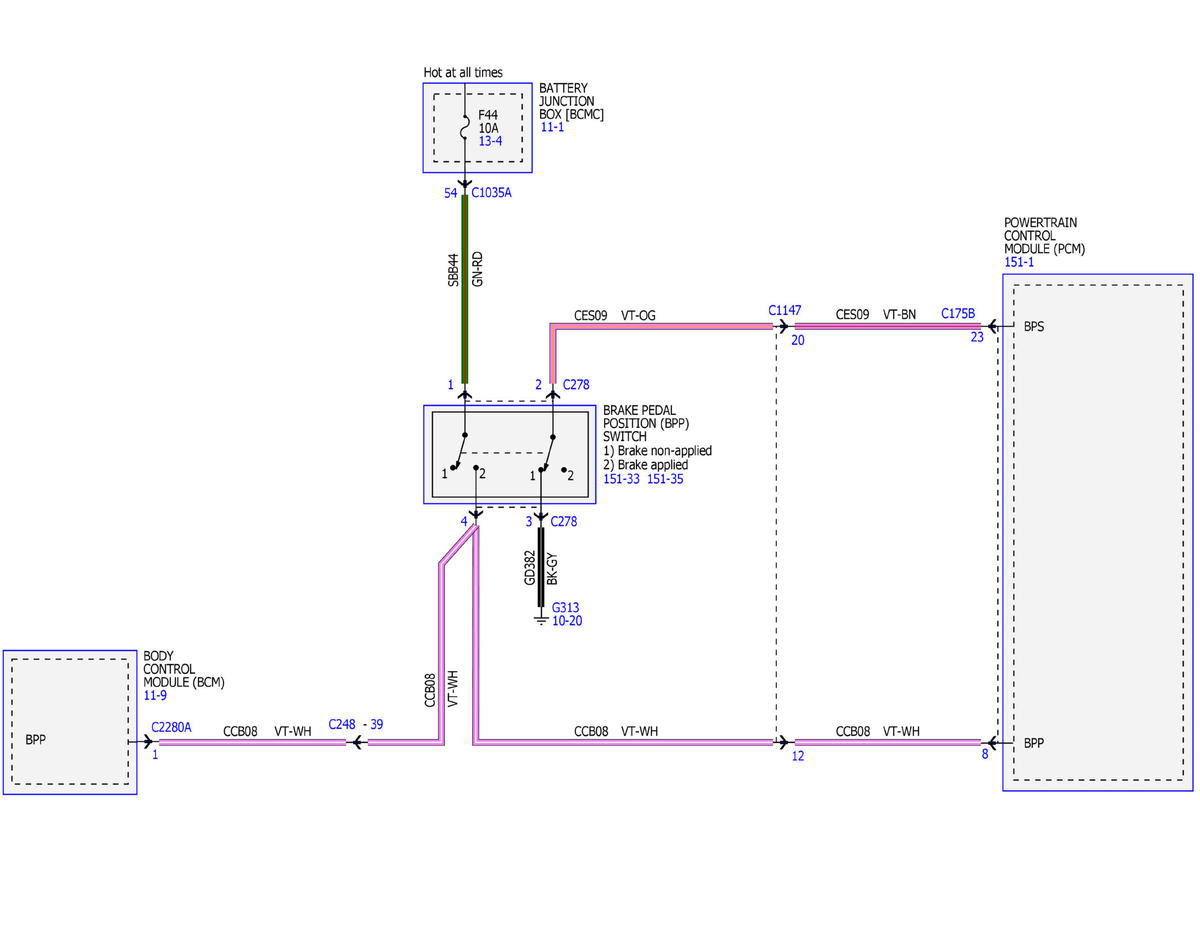

Fig 7: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (7 Of 21)
Courtesy of FORD MOTOR COMPANY

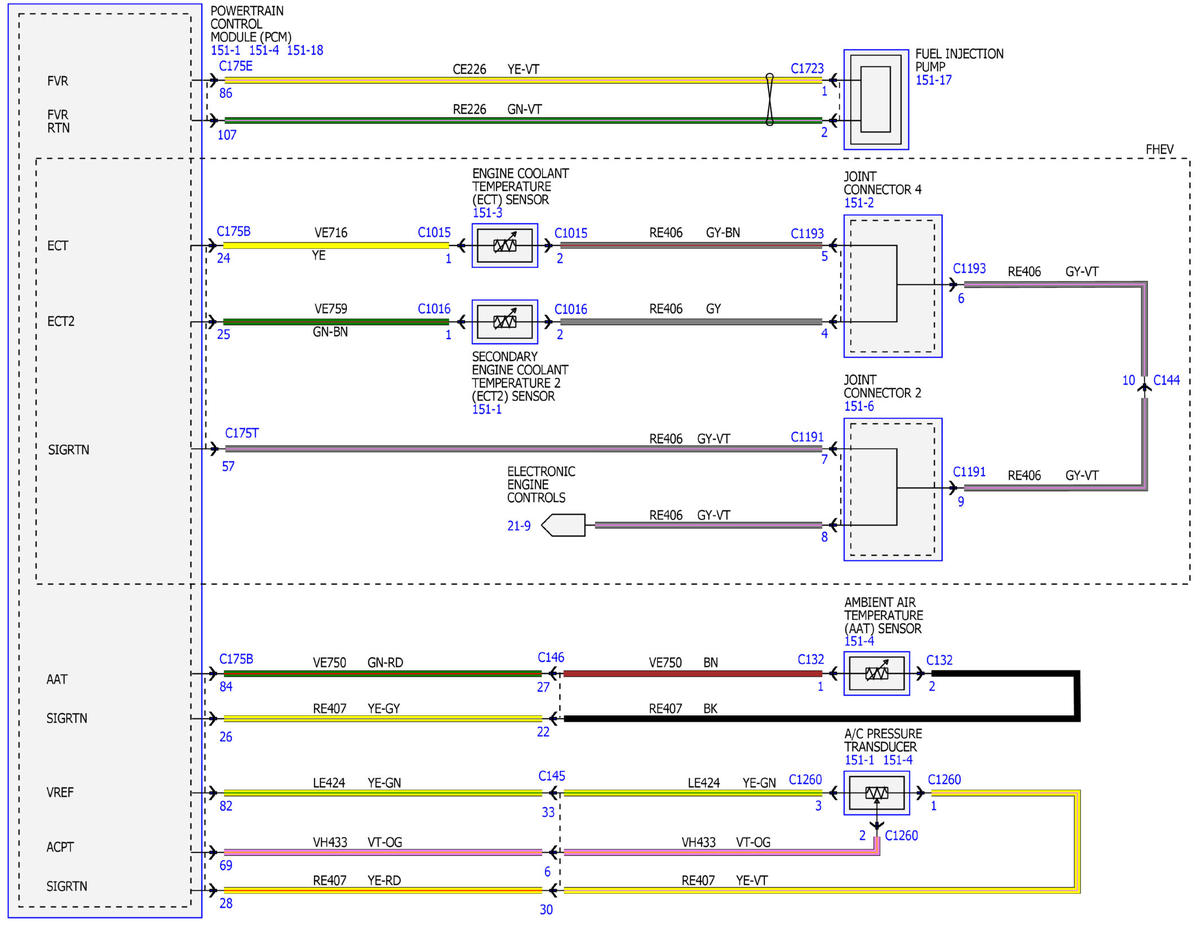

Fig 8: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (8 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (9 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (10 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (11 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (12 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (13 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (14 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (15 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 16: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (16 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 17: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (17 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 18: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (18 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 19: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (19 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 20: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (20 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 21: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (21 Of 21)
Courtesy of FORD MOTOR COMPANY
