Cooling Fan

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cooling Fan Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR COMPANY

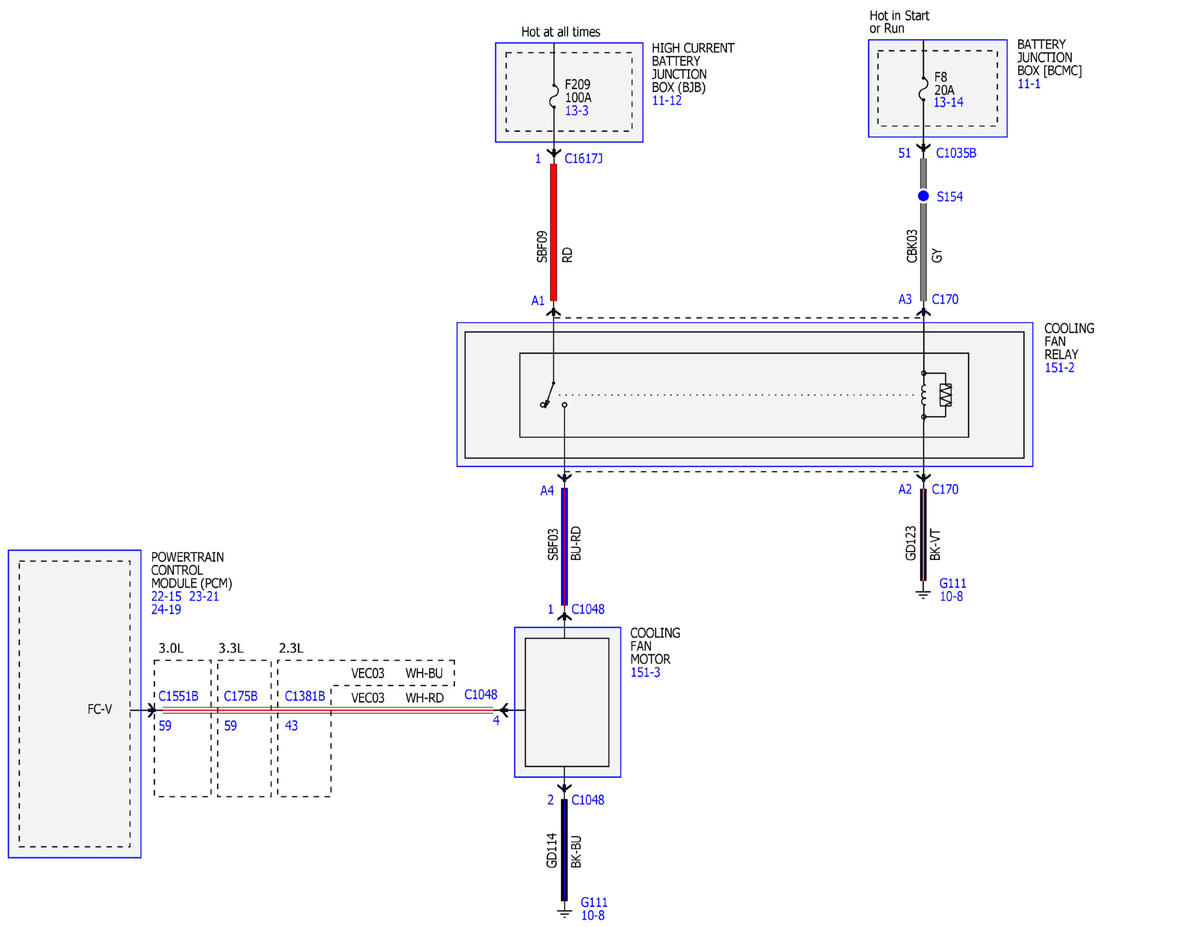

Fig 2: Cooling Fan Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR COMPANY

Fig 3: Cooling Fan Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR COMPANY
