Fuel Tank Draining
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM |
Draining
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- NOTE: Only use the specified general equipment.NOTE: Be prepared to collect escaping fluid

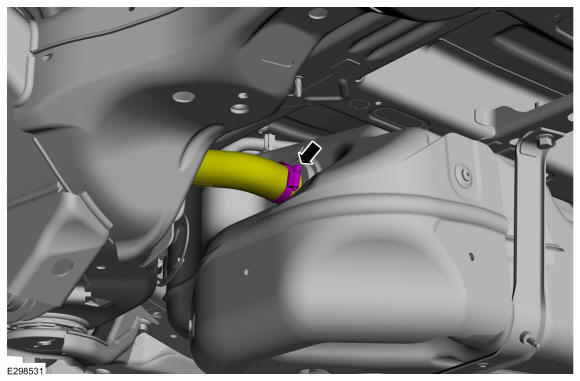

Loosen the clamp and disconnect the hose. Position the hose aside.
Torque: 28 lb.in (3.2 Nm)
-
NOTE: Use suitable paper to absorb any escaping fluid.NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

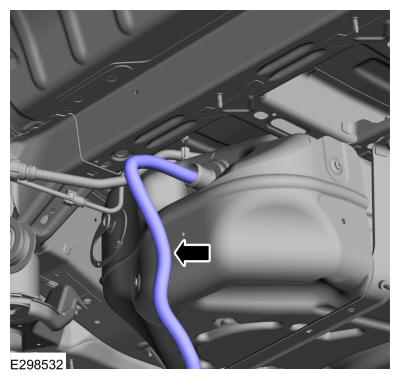

Insert the hose from the fuel storage tanker and siphon the fuel through the hose. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
