Turbocharger Coolant Supply Tube: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant tubes, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the tubes to ensure that there are no leaks or repeat repairs.

Remove the turbocharger coolant return tube. Refer to Turbocharger Coolant Return Tube .
Remove the turbocharger coolant supply tube.

Courtesy of FORD MOTOR COMPANY

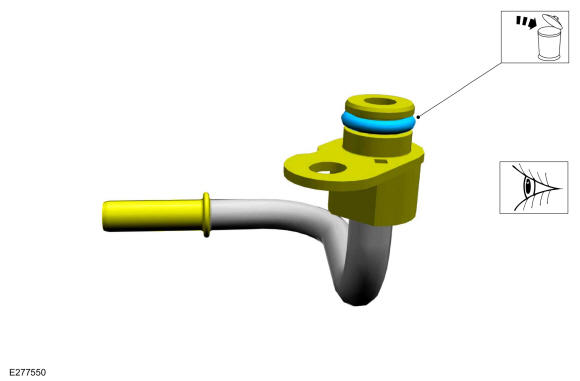

1. Remove and discard the turbocharger coolant tube O-ring seal.
2. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Use brake cleaner and a nylon brush to clean. Clean the turbocharger coolant tube sealing surfaces. Inspect the sealing surfaces for debris or damage, make sure the retaining bracket is not bent, check for squareness of the O-ring area. Install new components if needed.

  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
