Turbocharger RH: Installation

All vehicles

  1. Install a new turbocharger end coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to Specifications .
    GFD658705Courtesy of FORD MOTOR COMPANY

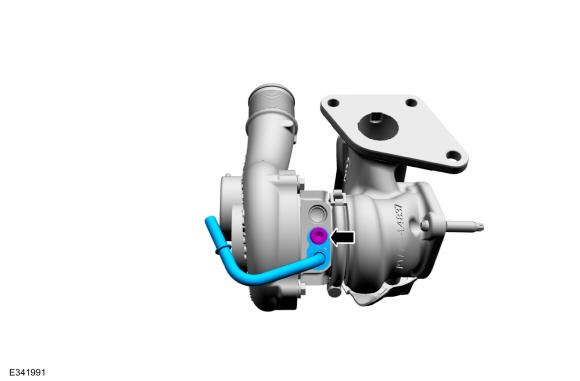

    • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

    • Install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

    GFD658703Courtesy of FORD MOTOR COMPANY
  2. Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new turbocharger oil supply tube O-ring seals with clean engine oil. Refer to Specifications .
    GFD658666Courtesy of FORD MOTOR COMPANY

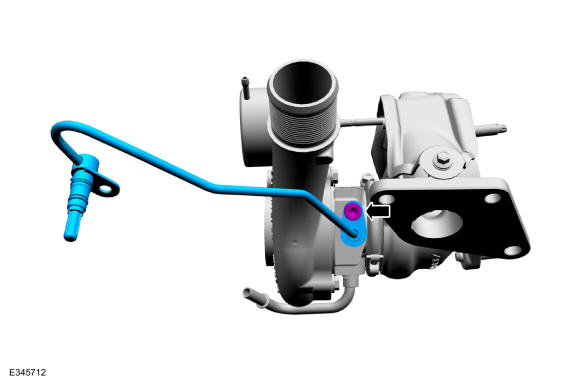

  3. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.

    • Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the turbocharger oil supply tube bolt.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

    GFD658702Courtesy of FORD MOTOR COMPANY

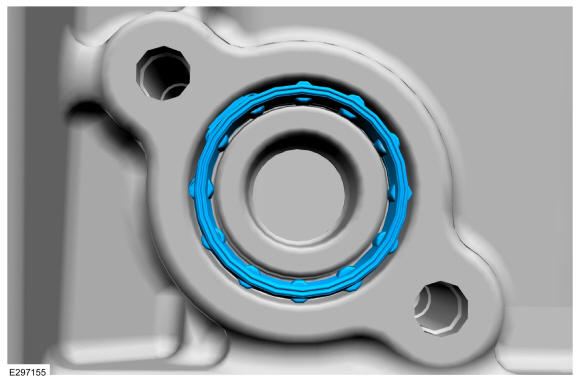

  4. Install the new turbocharger oil return tube-to-engine block gasket.
    GFD658706Courtesy of FORD MOTOR COMPANY
  5. Install a new turbocharger oil return tube O-ring seal, then lubricate with clean engine oil. Refer to Specifications .
    GFD658707Courtesy of FORD MOTOR COMPANY

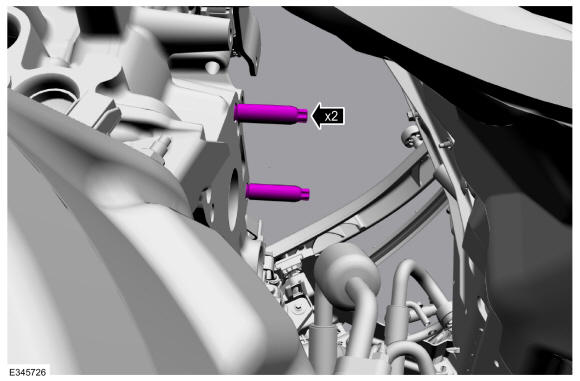

  6. If removed, install and tighten the turbocharger studs

    Torque: 106 lb.in (12 Nm)

    GFD658699Courtesy of FORD MOTOR COMPANY

    LHD AWD

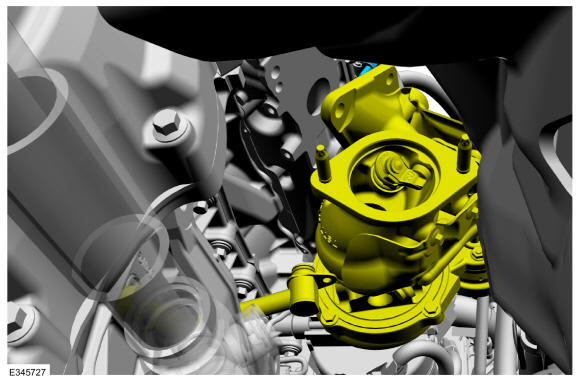

  7. NOTE: Do not use a metal brush; damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

    • From under vehicle position the turbocharger towards the front of the vehicle.

    • Position the turbocharger oil return tube behind the axle bracket.

    GFD658708Courtesy of FORD MOTOR COMPANY

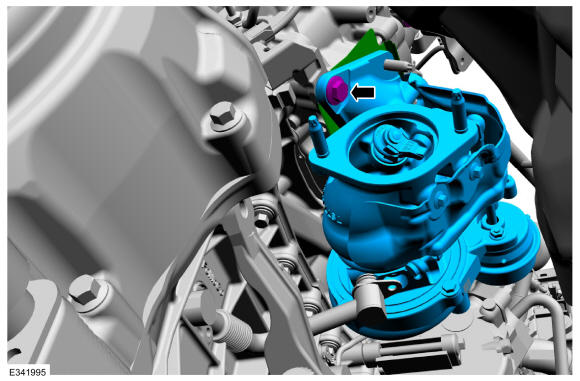

  8. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush; damage to sealing area will result in leaks.

    Install the turbocharger, the new gasket, the bolt and the stud. Install the turbocharger coolant and oil supply tubes to the engine while installing the turbocharger.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD658709Courtesy of FORD MOTOR COMPANY

    LHD RWD

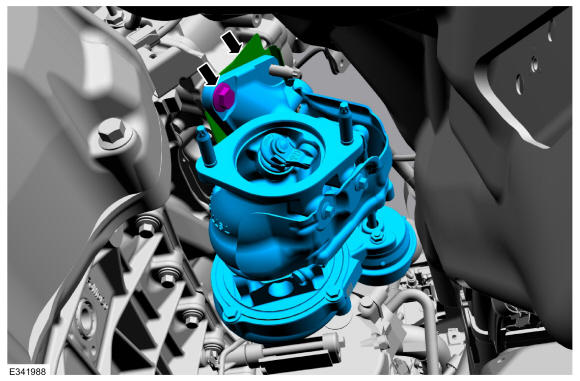

  9. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush; damage to sealing area will result in leaks.

    Install the turbocharger, the new gasket, the bolt. Install the oil supply tube to the engine while installing the turbocharger.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD658710Courtesy of FORD MOTOR COMPANY

    All vehicles

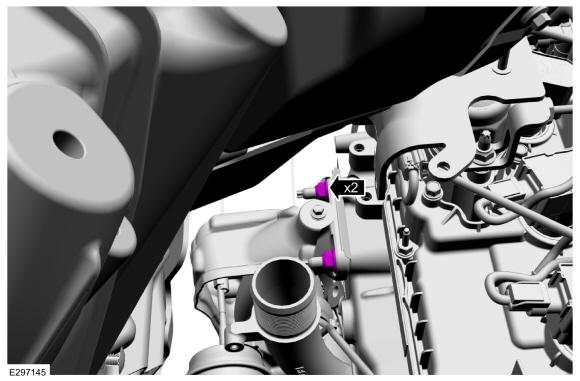

  10. Loosely install the turbocharger nuts.
    GFD658693Courtesy of FORD MOTOR COMPANY

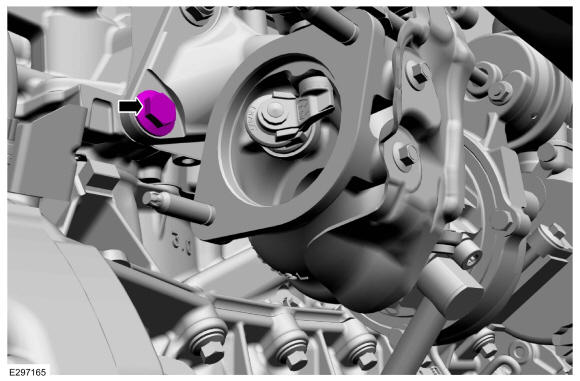

  11. Tighten the turbocharger bolt.

    Torque: 44 lb.ft (60 Nm)

    GFD658711Courtesy of FORD MOTOR COMPANY
    1. Tighten the turbocharger nut.

      Torque: 44 lb.ft (60 Nm)

    2. Tighten the turbocharger nut.

      Torque: 27 lb.ft (37 Nm)

    GFD658712Courtesy of FORD MOTOR COMPANY
  12. Re-tighten the turbocharger bolt.

    Torque: 44 lb.ft (60 Nm)

    GFD658711Courtesy of FORD MOTOR COMPANY
    1. Re-tighten the turbocharger nuts.

      Torque: 44 lb.ft (60 Nm)

    2. Re-tighten the turbocharger nut

      Torque: 27 lb.ft (37 Nm)

    Fig 1: Turbocharger Nuts Tightening Sequence
    GFD658712Courtesy of FORD MOTOR COMPANY

    LHD AWD

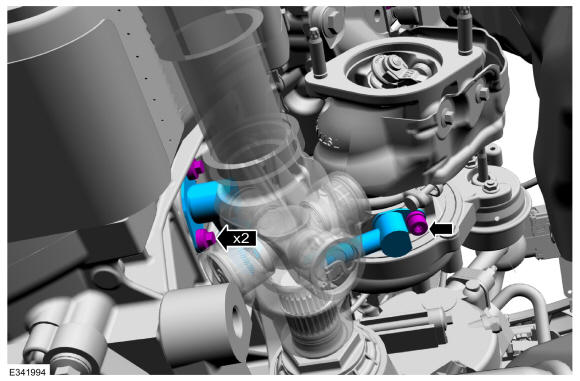

  13. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

    1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

    GFD658713Courtesy of FORD MOTOR COMPANY

    LHD RWD

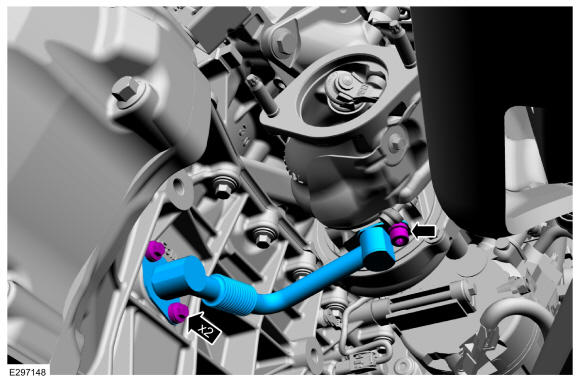

  14. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

    1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

    GFD658695Courtesy of FORD MOTOR COMPANY

    All vehicles

  15. Install a new outer turbocharger coolant supply tube O-ring seal. Lubricate the O-ring seal and the rubber gasket with clean engine coolant. Refer to Specifications .
    GFD658714Courtesy of FORD MOTOR COMPANY

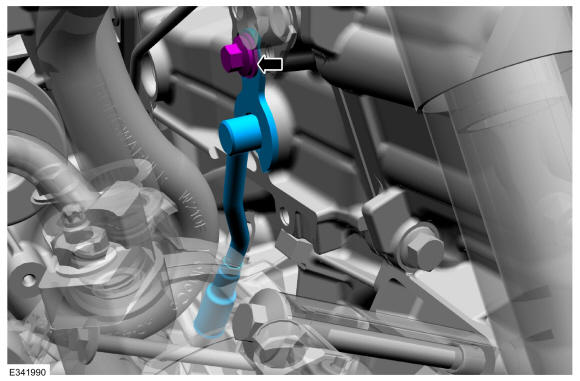

  16. Install the turbocharger coolant supply tube, then install and tighten the turbocharger coolant supply tube bolt.

    Torque: 89 lb.in (10 Nm)

    GFD658691Courtesy of FORD MOTOR COMPANY

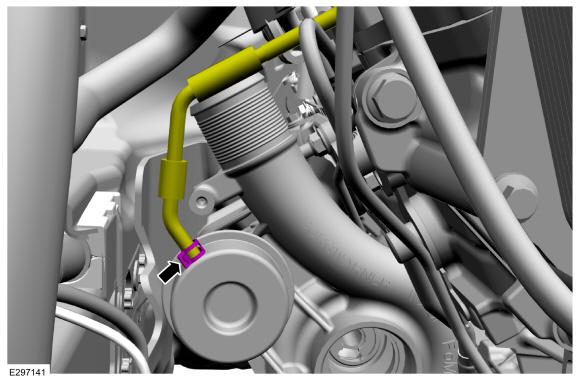

  17. Connect the turbocharger wastegate control hose and clamp.
    GFD658690Courtesy of FORD MOTOR COMPANY
  18. Install a new turbocharger coolant return tube O-ring seal and lubricate the new O-ring seal with clean engine coolant. Refer to Specifications .
    GFD658673Courtesy of FORD MOTOR COMPANY

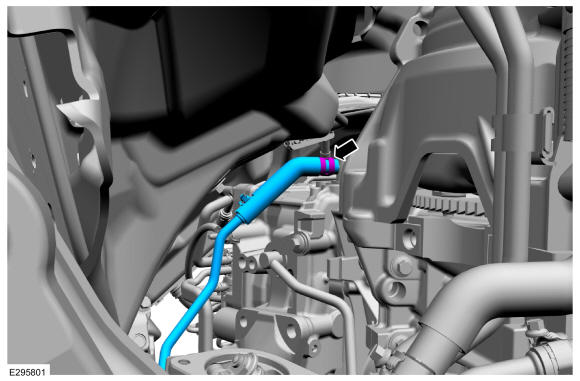

  19. Install and connect the turbocharger coolant return tube and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD658715Courtesy of FORD MOTOR COMPANY

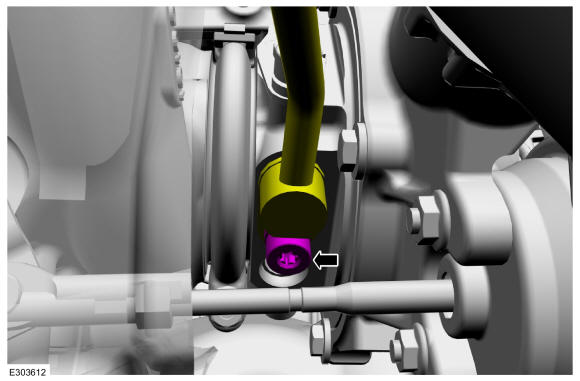

  20. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    1. Connect the turbocharger coolant return tube to the turbocharger, then install and tighten the bolt.

      Torque: 89 lb.in (10 Nm)

    GFD658688Courtesy of FORD MOTOR COMPANY

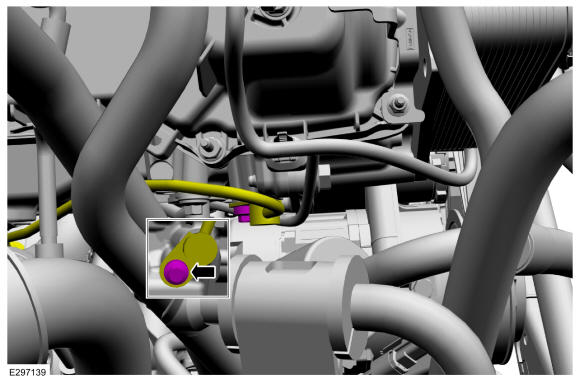

  21. NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.

    Install the turbocharger oil supply tube to the engine, then install and tighten the turbocharger oil supply tube bolt.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

    GFD658687Courtesy of FORD MOTOR COMPANY

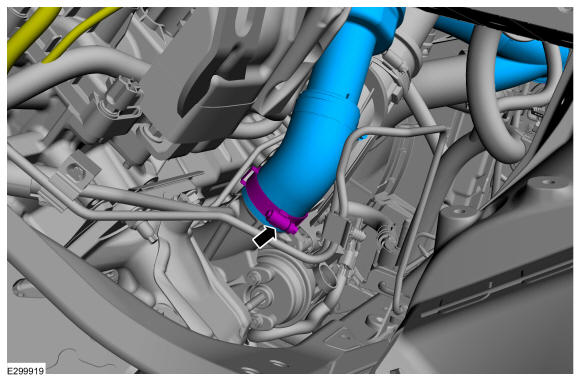

  22. Install the RH CAC intake pipe, then tighten the clamp.

    Torque: 44 lb.in (5.0 Nm)

    GFD658686Courtesy of FORD MOTOR COMPANY

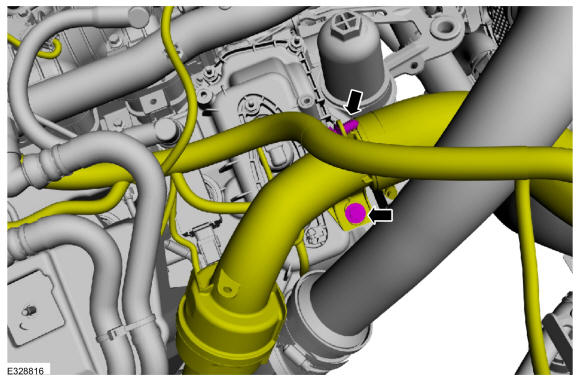

  23. Install and tighten the bolt, then attach the wiring harness retainer.

    Torque: 106 lb.in (12 Nm)

    GFD658685Courtesy of FORD MOTOR COMPANY

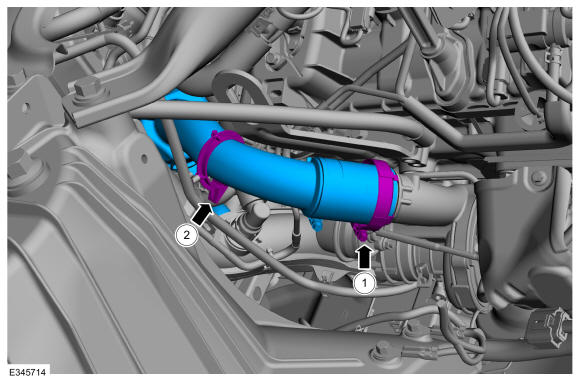

    1. Install the left charge air cooler intake pipe to the turbocharger, then tighten the clamp.

      Torque: 44 lb.in (5.0 Nm)

    2. Attach the hose retainer.
    GFD658716Courtesy of FORD MOTOR COMPANY

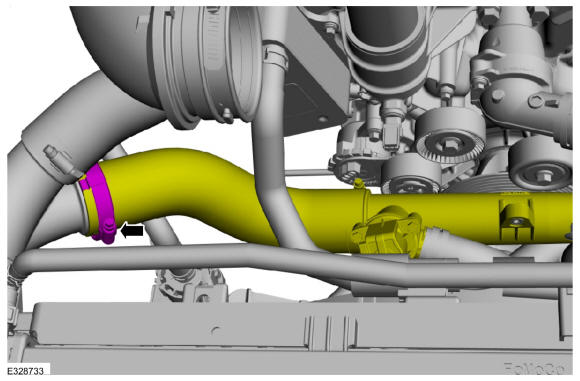

  24. Install the LH CAC intake pipe, then tighten the clamp.

    Torque: 44 lb.in (5.0 Nm)

    GFD658683Courtesy of FORD MOTOR COMPANY

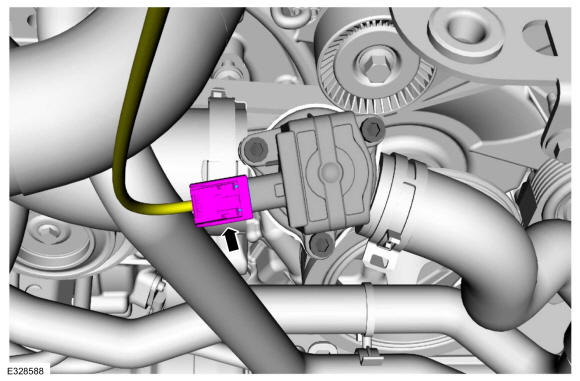

  25. Connect the turbocharger bypass valve electrical connector.
    GFD658682Courtesy of FORD MOTOR COMPANY

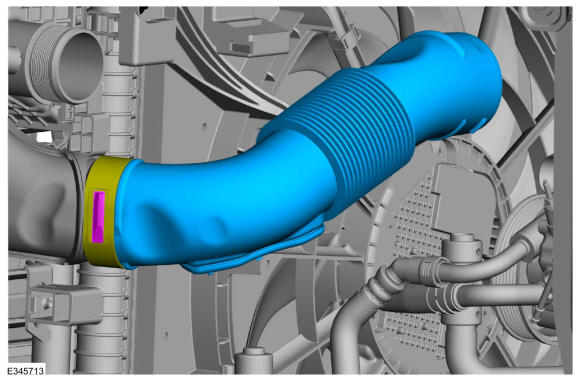

  26. Install the air cleaner inlet pipe.
    GFD658717Courtesy of FORD MOTOR COMPANY
  27. Install the air cleaner outlet pipe RH. Refer to Air Cleaner Outlet Pipe RH .
  28. Position an adjustable jack stand under the transmission crossmember.
    GFD658647Courtesy of FORD MOTOR COMPANY
  29. Remove and discard the transmission crossmember bolts.
    GFD658674Courtesy of FORD MOTOR COMPANY
  30. Lower the jack stand 32 mm (1.25 in).
    GFD658675Courtesy of FORD MOTOR COMPANY
  31. Support the front and rear of the subframe with adjustable jack stands.
    GFD658644Courtesy of FORD MOTOR COMPANY
    • Remove the rear subframe bolts.

    • Discard the bolts.

    GFD658676Courtesy of FORD MOTOR COMPANY
    • Remove the middle subframe bolts.

    • Discard the bolts.

    GFD658677Courtesy of FORD MOTOR COMPANY
    • Remove the front subframe bolts.

    • Discard the bolts.

    GFD658678Courtesy of FORD MOTOR COMPANY
  32. With the aid of an assistant, lower the front jack stand 127 mm (5.0 in) and the rear jack stand 152.4 mm (6.0 in) evenly or until engine mount stud clears the subframe.
    GFD658679Courtesy of FORD MOTOR COMPANY

    LHD RWD

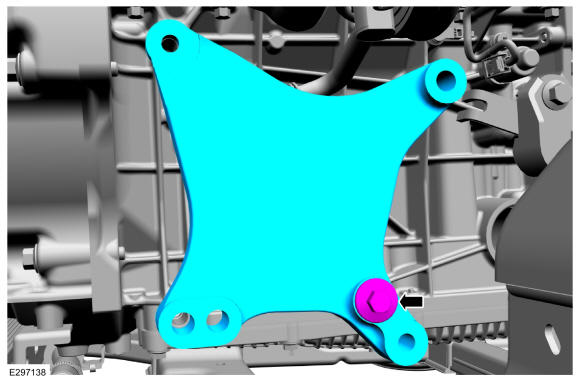

  33. Install the right engine mount spacer, then install and tighten the bolts.

    Torque: Stage 1: Tighten to: 66 lb.ft (90 Nm) Stage 2: Tighten an additional: 90°

    GFD658680Courtesy of FORD MOTOR COMPANY

    All vehicles

  34. Install the right engine mount. Refer to Engine Mount RH .
  35. Fill the cooling system. Refer to Engine Cooling System Draining, Vacuum Filling and Bleeding .
  36. Check and top off the engine oil level as needed. Refer to SPECIFICATIONS .
