Shift Interlock
Shift Interlock

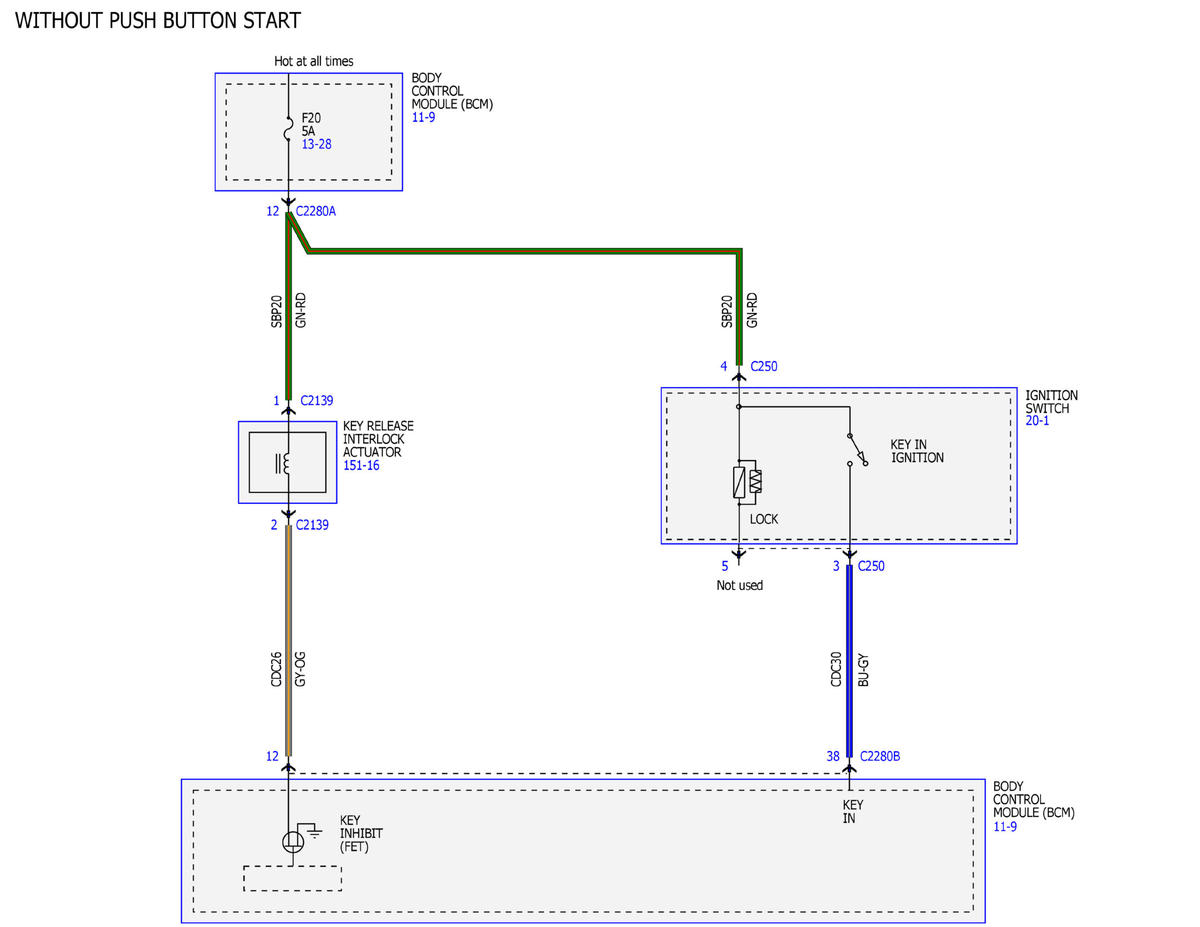

Fig 1: Shift Interlock
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
