Brake Fluid Reservoir: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the EBB. Refer to: Electric Brake Booster (EBB)

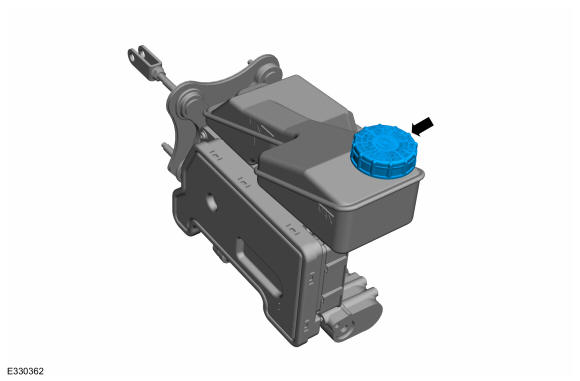

- Remove the brake fluid reservoir cap.

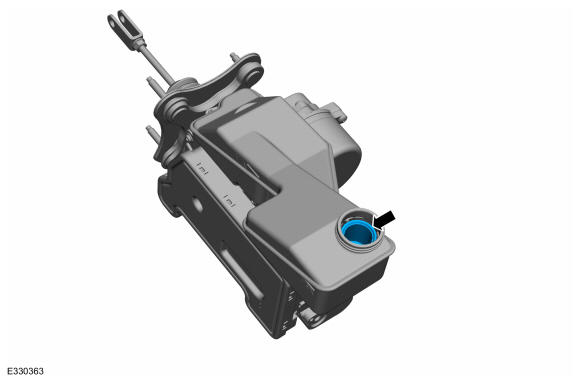

- Remove the brake fluid reservoir filter and remove the brake fluid.

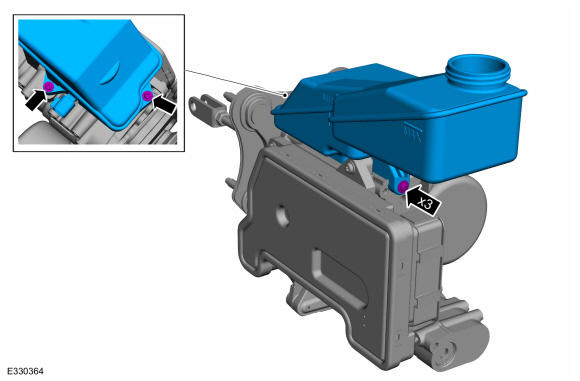

- Remove the screws and the brake fluid reservoir.
Torque: 23 lb.in (2.6 Nm)
-
NOTE: Brake fluid reservoir mounting screws and the sealing washers are supplied with the brake fluid reservoir kit.

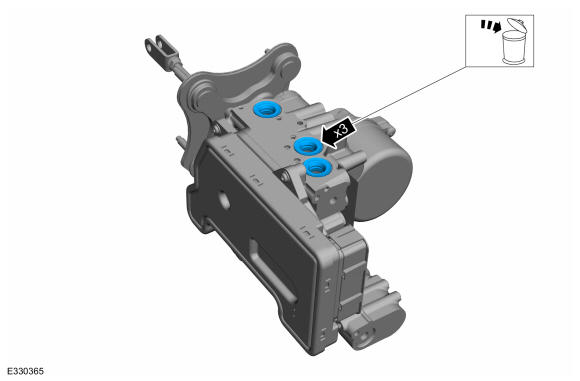

Ensure that old brake fluid reservoir sealing washers are removed before installing a new reservoir with new washers.
