System Diagram - Indicators and RTT Indicators

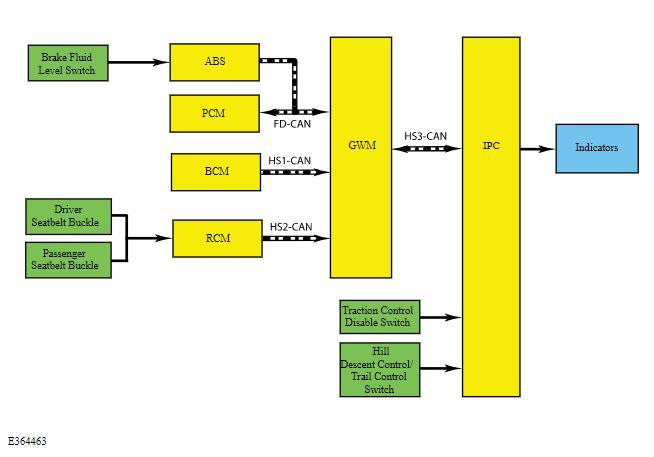

Indicators

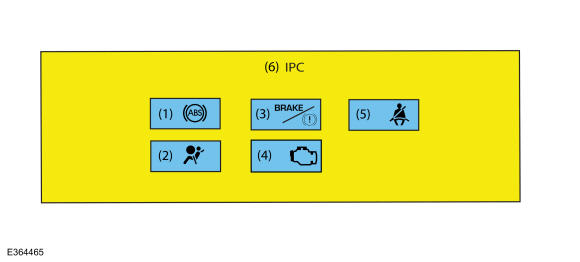

Fixed Telltales
| Item | Description |
|---|---|
| 1 | ABS module |
| 2 | Airbag warning |
| 3 | Brake warning |
| 4 | MIL |
| 5 | Seatbelt warning |
| 6 | IPC |

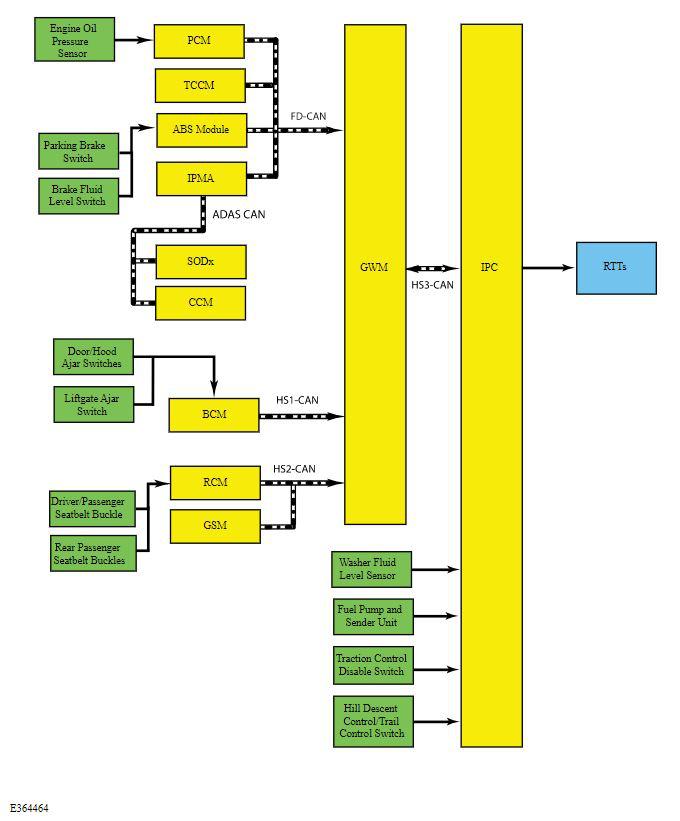

RTT Indicators

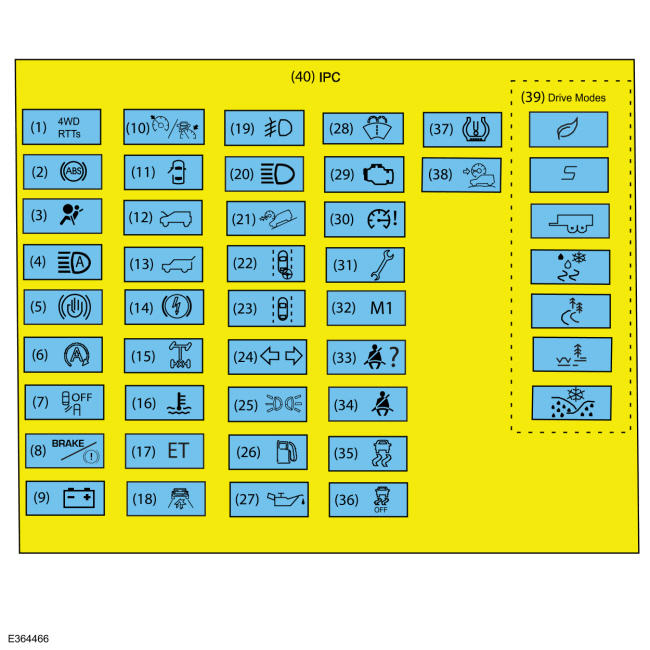

Reconfigurable Telltales (RTTs)
| Item | Description |
|---|---|
| 1 | 4WD Reconfigurable Telltales (RTTs) (2H, 4H, 4L, 4A) |
| 2 | ABS |
| 3 | Airbag |
| 4 | Auto high beam |
| 5 | Auto hold |
| 6 | Auto stop-start |
| 7 | BLIS off |
| 8 | Brake warning |
| 9 | Charging system |
| 10 | Cruise control/adaptive cruise control |
| 11 | Door ajar |
| 12 | Hood ajar |
| 13 | Liftgate ajar |
| 14 | Electric park brake |
| 15 | ELD |
| 16 | Engine over-temperature |
| 17 | Engineering test mode |
| 18 | Forward collision system warning |
| 19 | Front fog lamps |
| 20 | High beams |
| 21 | Hill descent control ready |
| 22 | Lane centering aid |
| 23 | Lane keeping system |
| 24 | LH/ RH turn indicator |
| 25 | Lights on |
| 26 | Low fuel |
| 27 | Low engine oil pressure |
| 28 | Low washer fluid |
| 29 | MIL (check engine) |
| 30 | Overspeed warning (Gulf Cooperative Countries [GCC]) |
| 31 | Powertrain malfunction (wrench) |
| 32 | Progressive range select |
| 33 | Rear seatbelt monitor |
| 34 | Seatbelt/Belt-Minder |
| 35 | Stability-traction control (sliding car icon) |
| 36 | Stability-traction control disabled (sliding car OFF icon) |
| 37 | TPMS |
| 38 | Trail control |
| 39 | Drive modes (Eco, Sport, Tow Haul, Slippery, Trail, Mud/Ruts, Deep Snow/Sand) |
| 40 | IPC |
