Power Transfer Unit - Vehicles Without: Power Transfer Unit Oil-to-Coolant Cooler
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Punch |
|---|
| Copper Hammer |
- Remove the front subframe. Refer to: Front Subframe .
- Remove the catalytic converter. Refer to: Catalytic Converter .
- Remove and discard the driveshaft to PTU bolts and retaining straps.
- Separate the driveshaft from the PTU flange.
-
NOTE: Make sure that the component aligns with the installation mark.
Index-mark the driveshaft and PTU flange.
-
NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.
Using general equipment, separate the driveshaft from the PTU flange.Use the General Equipment: PunchUse the General Equipment: Copper Hammer
- Position aside and support the driveshaft.
-
- Drain the PTU.
- Remove the intermediate shaft. Refer to: Intermediate Shaft .
- If equipped, disconnect the PTU temperature sensor electrical connector. Disconnect the motor connectors and the retainers.
- If equipped, disconnect retainer and position aside the wiring harness.
- Disconnect and position aside the PTU vent hose.
- Remove the vent hose retainer.
- Remove the PTU support bracket bolts and the PTU support bracket.
- Remove the PTU bolts.
-
NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.
Remove the PTU bolts and the PTU.

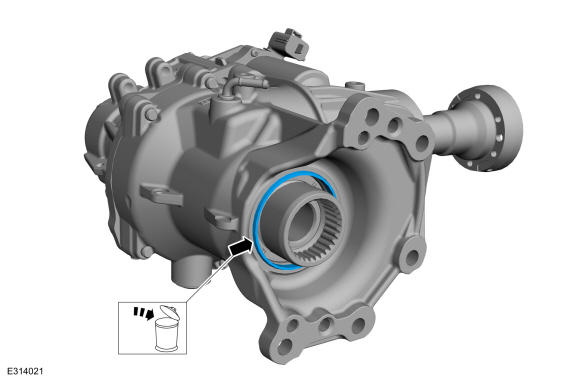

- Remove and discard the PTU to transmission compression seal.
-
NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.
Remove the PTU heat shield bolts and PTU heat shield.
Torque: 89 lb.in (10 Nm)
-
NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.
If equipped, remove the PTU temperature sensor harness bracket.
