Power Transfer Unit

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

1. Remove the front subframe. Refer to: Front Subframe .
2. Drain the PTU.
3. Remove the intermediate shaft. Refer to: Intermediate Shaft .
4. NOTE: Clean the catalytic converter-to-muffler sealing surfaces.

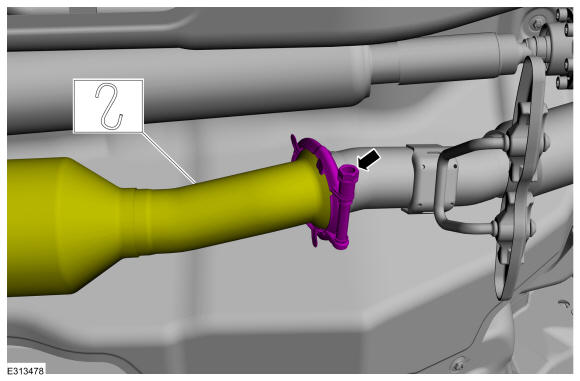

   1. Loosen the catalytic converter-to-muffler and tailpipe nut and separate.
   2. Position and support the muffler and tailpipe aside.

   Courtesy of FORD MOTOR COMPANY

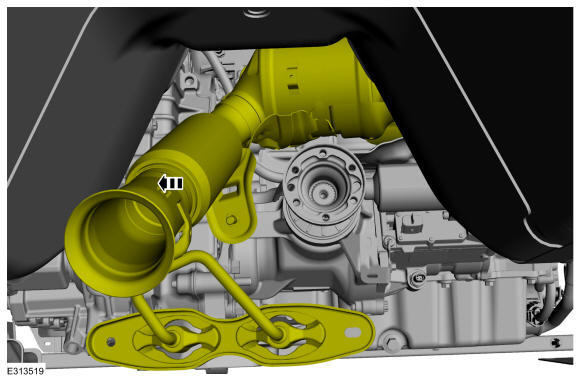

5. Remove the catalytic converter mounting bracket nuts and the catalytic converter mounting bracket.

   Courtesy of FORD MOTOR COMPANY

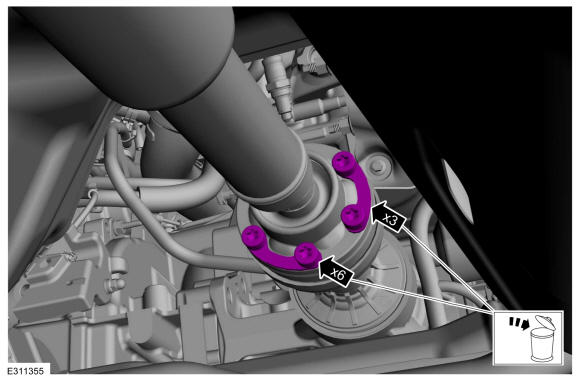

6. Remove and discard the driveshaft to PTU bolts and retaining straps.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Separate the driveshaft from the PTU flange.

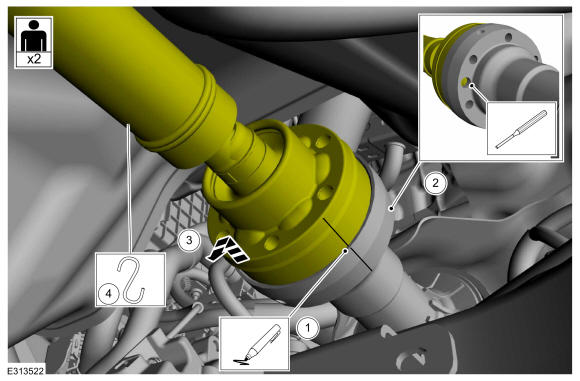

   1. NOTE: Make sure that the component aligns with the installation mark.

      Index-mark the driveshaft and PTU flange.

   2. NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

      Using general equipment, separate the driveshaft from the PTU flange.Use the General Equipment: PunchUse the General Equipment: Copper Hammer

   3. Position and support the driveshaft aside.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
   1. 1.Remove the engine appearance cover nut.
   2. 2.Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
   3. 3.After all of the grommets have been released from the studs, remove the appearance cover from the engine.

   Courtesy of FORD MOTOR COMPANY

9. Disconnect and position aside the PTU vent hose.

   Courtesy of FORD MOTOR COMPANY

10. Remove the vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

11. If equipped, disconnect the PTU temperature sensor electrical connector. Disconnect the motor connectors and the retainers.

    Courtesy of FORD MOTOR COMPANY

12. If equipped, disconnect retainer and position aside the wiring harness.

    Courtesy of FORD MOTOR COMPANY

13. Remove the PTU support bracket bolts and the PTU support bracket.

    Courtesy of FORD MOTOR COMPANY

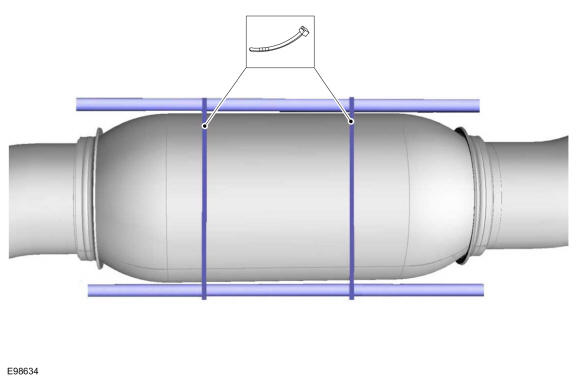

14. NOTE: Excessive bending of the exhaust flexible pipe may cause damage resulting in failure.

    Secure exhaust flexible pipe.

    Courtesy of FORD MOTOR COMPANY

15. • Disconnect the HO2S connector and harness retainer.
    • Disconnect the catalyst monitor sensor connector and harness retainers.

    Courtesy of FORD MOTOR COMPANY

16. Remove the EGR cooler inlet tube. Refer to: Exhaust Gas Recirculation (EGR) Cooler Inlet Tube .
17. Remove the bolts and the heat shield

    Courtesy of FORD MOTOR COMPANY

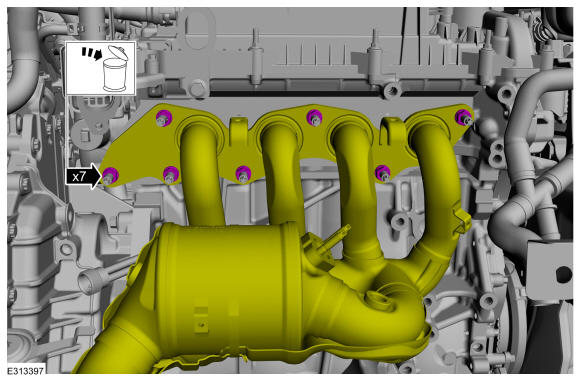

18. Remove and discard the exhaust manifold nuts.

    Courtesy of FORD MOTOR COMPANY

19. Position aside the catalytic converter.

    Courtesy of FORD MOTOR COMPANY

20. Remove the PTU bolts.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.

    Remove the PTU bolts and the PTU.

    Courtesy of FORD MOTOR COMPANY

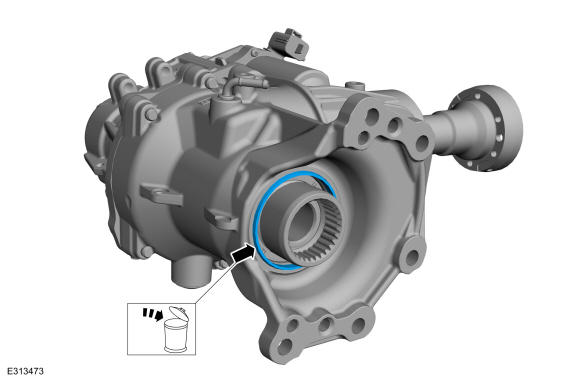

22. Remove and discard the PTU to transmission seal.

    Courtesy of FORD MOTOR COMPANY

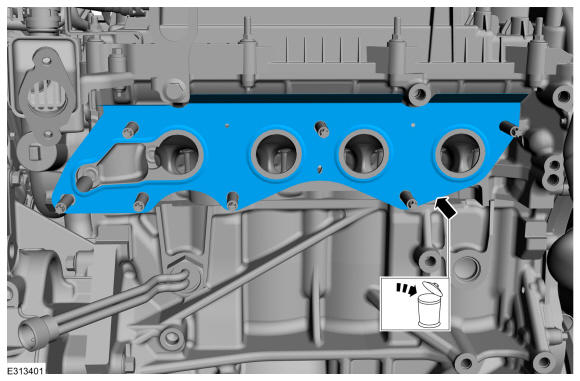

23. Remove and discard the gasket.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

    Remove the PTU heat shield bolts and PTU heat shield.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

25. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

    If equipped, remove the PTU temperature sensor harness bracket.

Courtesy of FORD MOTOR COMPANY
