WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

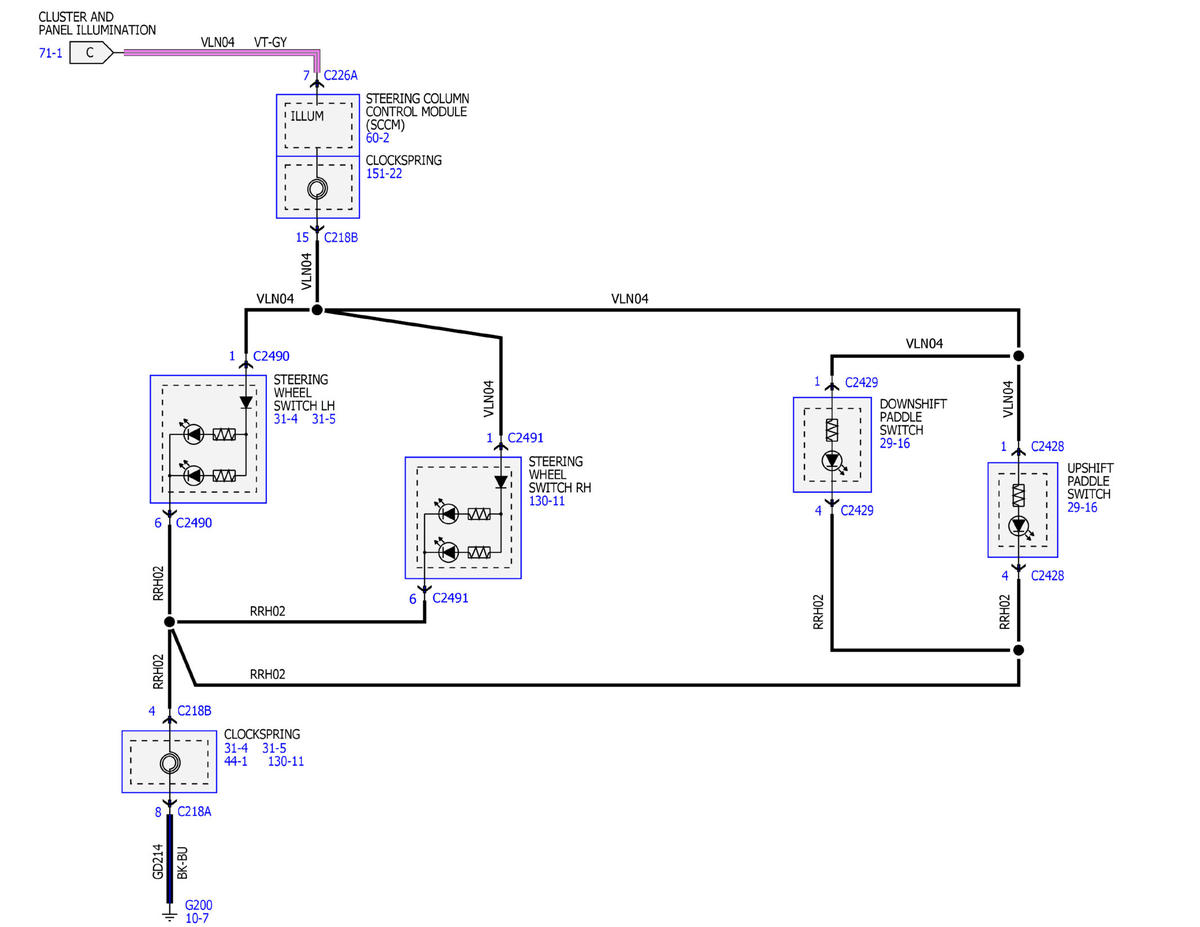

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

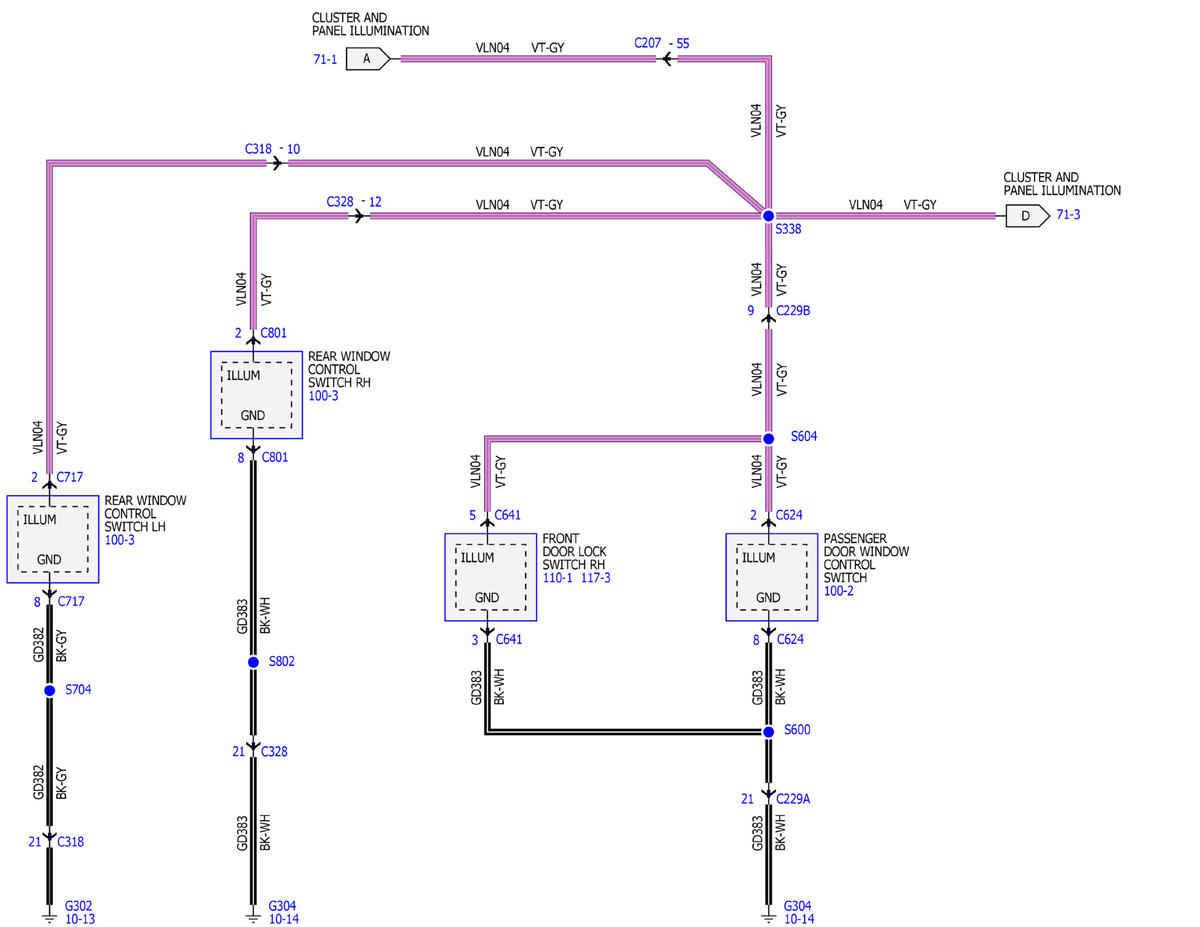

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

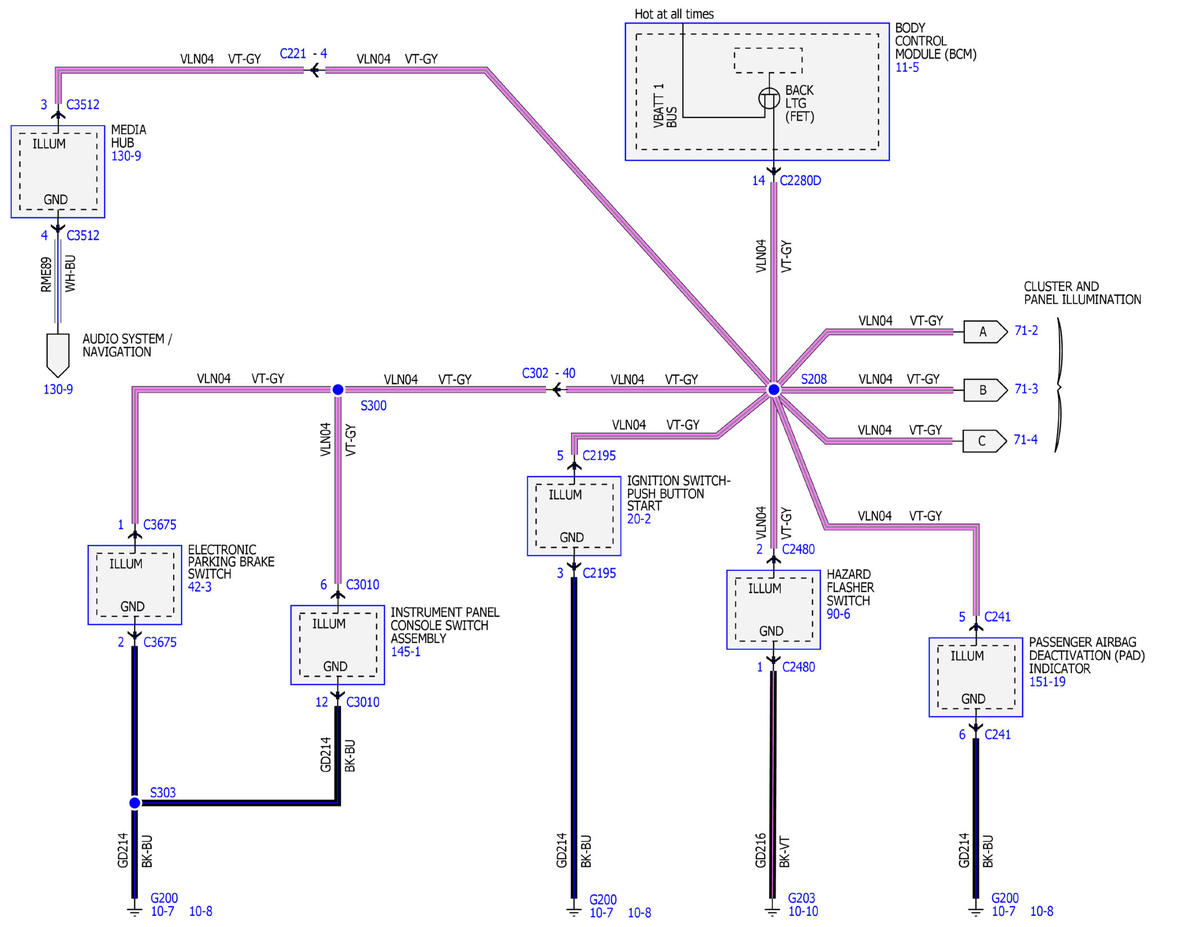

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY

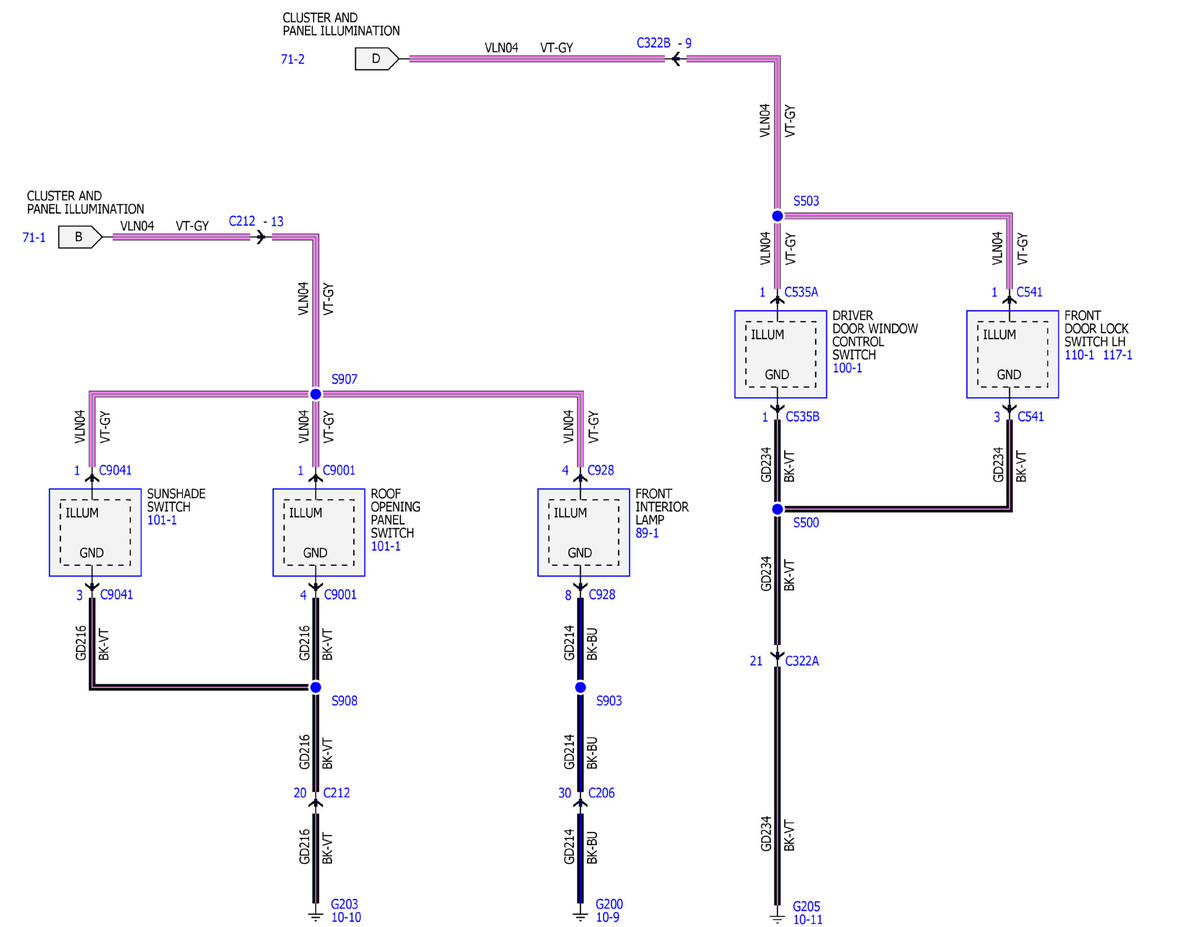

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 Of 4)
