Muffler and Tailpipe - Plug-In Hybrid Electric Vehicle (PHEV): Installation

Clean all exhaust connections before reassembly.

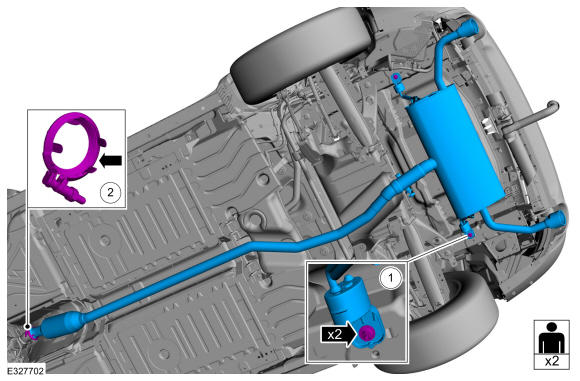

1. Position the muffler and tailpipe assembly in the vehicle and install the isolator bracket studs.
  Torque: 18 lb.ft (25 Nm)
2. NOTE: Ensure that the service clamp is centred correctly over the joint, failing this could result in joint leaking.

  NOTE: Make sure that a new clamp is installed.

  Install the new clamp.

  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
