Muffler and Tailpipe - Full Hybrid Electric Vehicle (FHEV): Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to:JACKING AND LIFTING - OVERVIEW

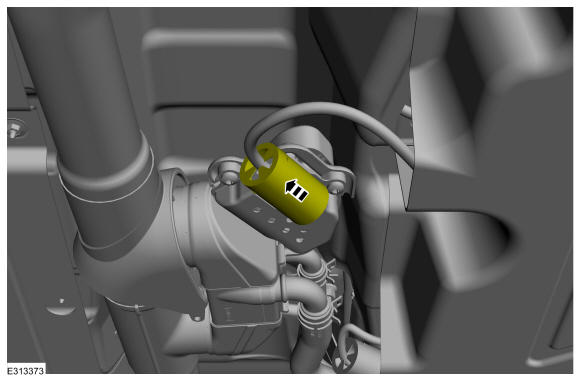

If equipped.Position aside the electrical connector shield.

Courtesy of FORD MOTOR COMPANY

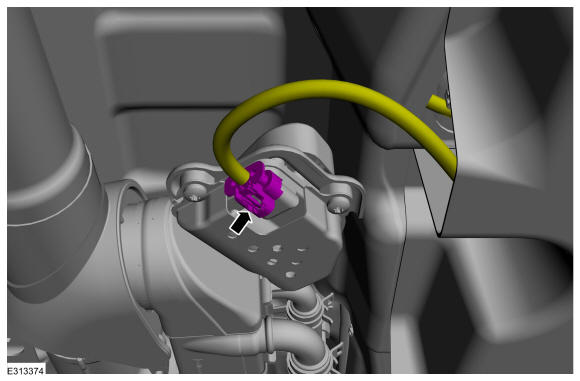

If equipped.Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
If equipped.

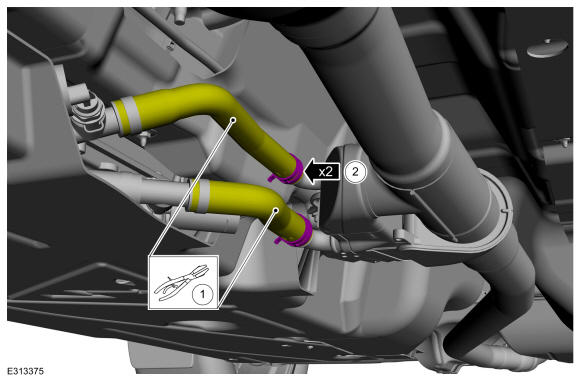

1. Use hose clamp pliers to arrest the coolant leak from the hose.Use the General Equipment: Hose Clamp(s)
2. Release the clamps and remove the hoses from the heat exhanger.
Courtesy of FORD MOTOR COMPANY

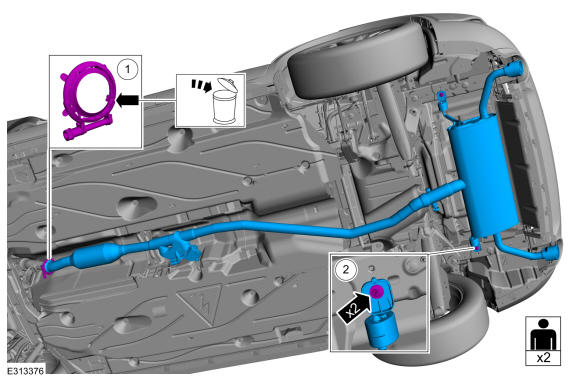

1. Remove and discard the clamp.
2. Remove the isolator bracket studs and the muffler and tailpipe assembly.
Courtesy of FORD MOTOR COMPANY

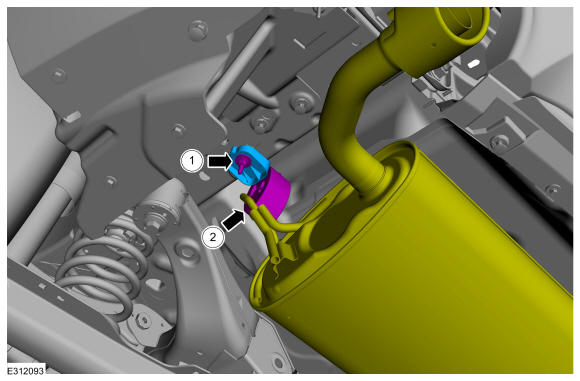

Isolator hanger bracket

NOTE: The below following step is only necessary if you are replacing the isolator hanger bracket.
1. NOTE: Left-hand side shown, right-hand side is similar.

  Remove the isolator bracket studs.

  Torque: 18 lb.ft (25 Nm)
2. Detach the isolator and remove the bracket.

Courtesy of FORD MOTOR COMPANY
