Exhaust Heat Exchanger: Removal
NOTE:
The production muffler and tailpipe assembly is one-piece construction. The service muffler and tailpipe is 3-piece construction and have different service information cut positions. It is necessary to cut the production exhaust system to enable the service information to be fitted. Before cutting any part of the exhaust system, check that the position of the cut is correct in comparison to the service information to be installed.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Muffler and Tailpipe - Full Hybrid Electric Vehicle (FHEV) .

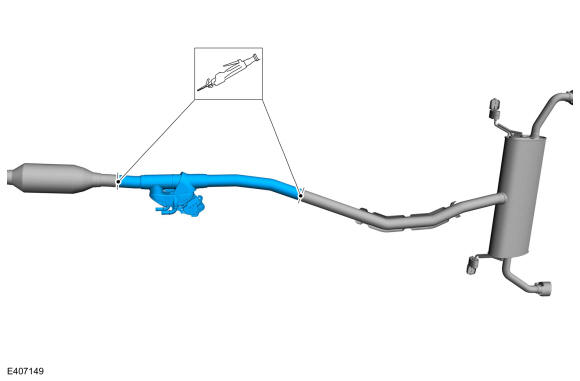

- Partial replacement.Carefully cut the exhaust heat exchanger where shown and remove the exhaust heat exchanger.Use the General Equipment: Air Body Saw
