Removal And Installation: Turbocharger: Installation

All vehicles

  1. NOTE: This step is only needed if the component was removed.
    NOTE: Make sure that new components are installed.
    NOTE: Component(s) must be lubricated with clean engine coolant.

    Install the turbocharger coolant return tube seals. Refer to: Specifications .

    GFD750891Courtesy of FORD MOTOR COMPANY
  2. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: This step is only needed if the component was removed.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed. Refer to: Specifications .

    • Install the turbocharger coolant return tube.

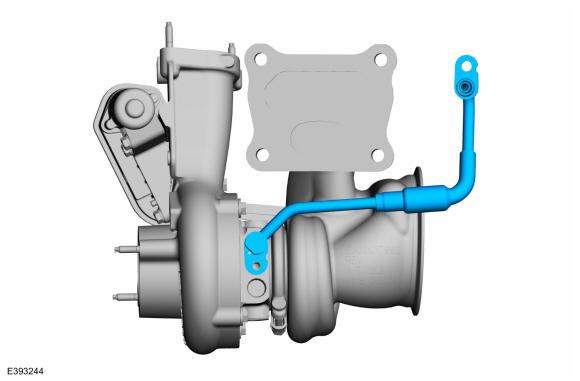

    GFD750889Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only needed if the component was removed.
    NOTE: Make sure that new components are installed.
    NOTE: Component(s) must be lubricated with clean engine coolant.

    Install turbocharger coolant supply tube seals. Refer to: Specifications .

    GFD750892Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: This step is only needed if the component was removed.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed. Refer to: Specifications .

    • Install the turbocharger coolant supply tube and tighten the bolt.

      Torque: 97 lb.in (11 Nm)

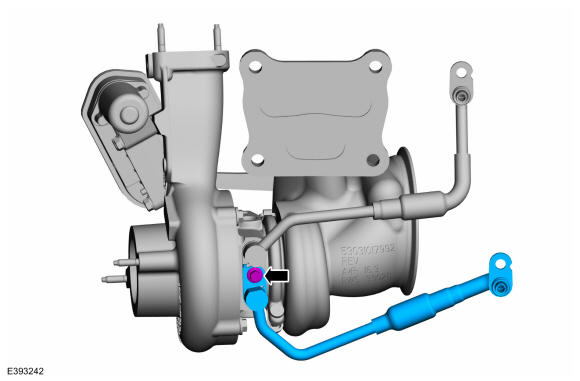

    GFD750887Courtesy of FORD MOTOR COMPANY
  5. NOTE: Make sure that new components are installed.
    NOTE: Component(s) must be lubricated with clean engine oil.

    Lubricate the turbocharger oil supply tube seals. Refer to: Specifications .

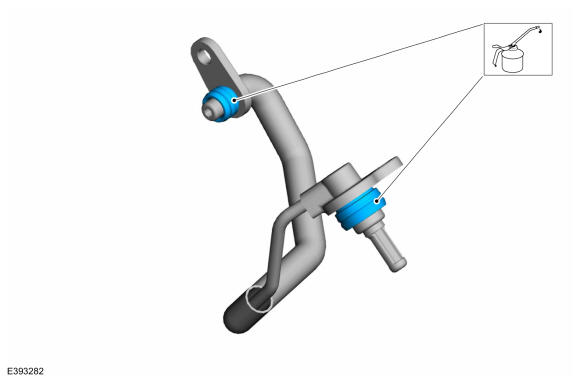

    GFD750893Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: Make sure that new components are installed.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed. Refer to: Specifications .

    • Install the turbocharger oil supply tube and tighten the bolt.

      Torque: 97 lb.in (11 Nm)

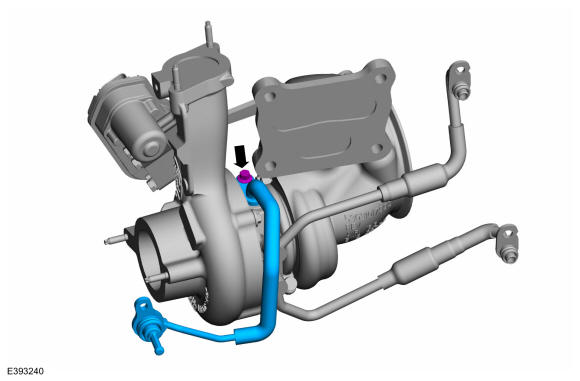

    GFD750894Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that new components are installed.
    NOTE: The component must be installed by hand before final tightening.

    If removed, install and tighten the turbocharger mounting studs.

    Torque: 159 lb.in (18 Nm)

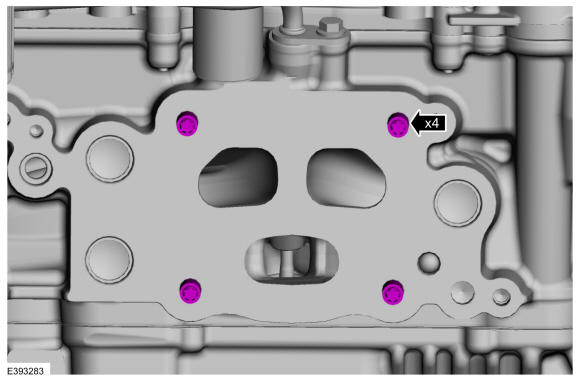

    GFD750895Courtesy of FORD MOTOR COMPANY
  8. NOTE: Make sure that new components are installed.

    Install the turbocharger gasket.

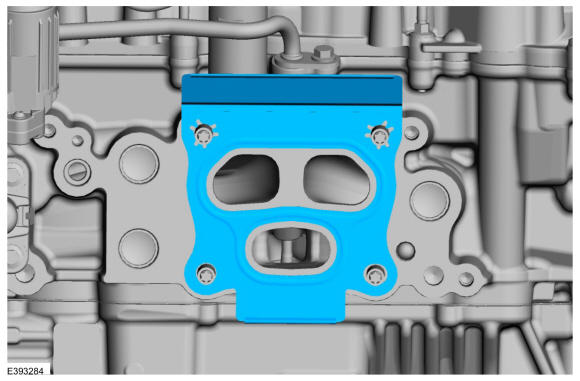

    GFD750896Courtesy of FORD MOTOR COMPANY
  9. NOTE: Only tighten the nuts finger tight at this stage.

    Install the turbocharger and the mounting nuts.

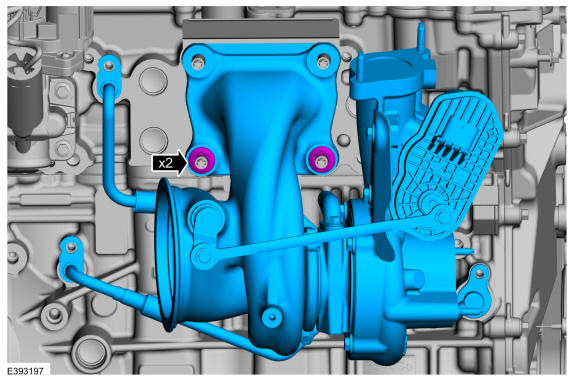

    GFD750883Courtesy of FORD MOTOR COMPANY
  10. Install the turbocharger heat shield and tighten the nuts and bolt in the given sequence.

    Torque:Nuts: 39 lb.ft (53 Nm)Bolt: 97 lb.in (11 Nm)

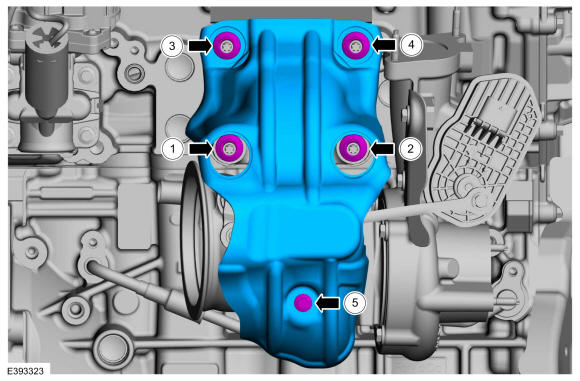

    GFD750897Courtesy of FORD MOTOR COMPANY
  11. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: The component must be fully seated prior to fastener tightening.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed. Refer to: Specifications .

    • Install the turbocharger coolant supply tube and tighten the bolt.

      Torque: 97 lb.in (11 Nm)

    GFD750898Courtesy of FORD MOTOR COMPANY
  12. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: The component must be fully seated prior to fastener tightening.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed. Refer to: Specifications .

    • Install the turbocharger coolant return tube and tighten the bolt.

      Torque: 97 lb.in (11 Nm)

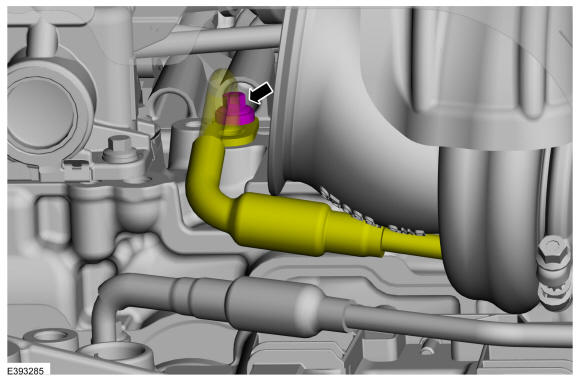

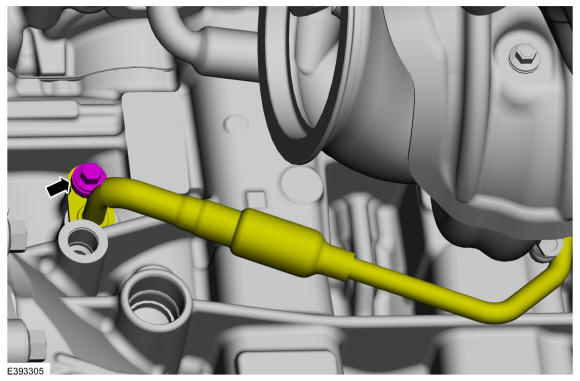

    GFD750899Courtesy of FORD MOTOR COMPANY
  13. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: The component must be fully seated prior to fastener tightening.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed. Refer to: Specifications .

    • Install the turbocharger oil supply tube and tighten the bolt.

      Torque: 97 lb.in (11 Nm)

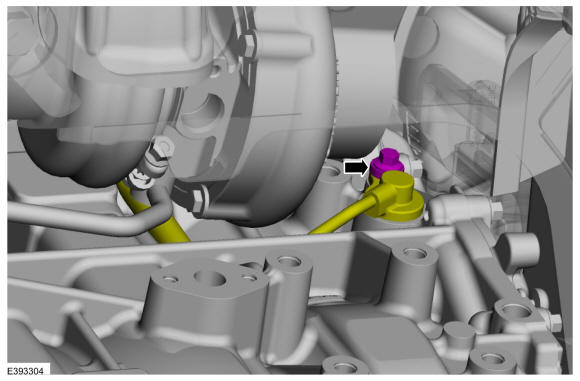

    GFD750900Courtesy of FORD MOTOR COMPANY
  14. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: Make sure that new components are installed.
    NOTE: Component(s) must be lubricated with clean engine oil.
    NOTE: The component must be fully seated prior to fastener tightening.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed. Refer to: Specifications . Refer to: Specifications .

    • Install the turbocharger oil return tube.

      Torque: 97 lb.in (11 Nm)

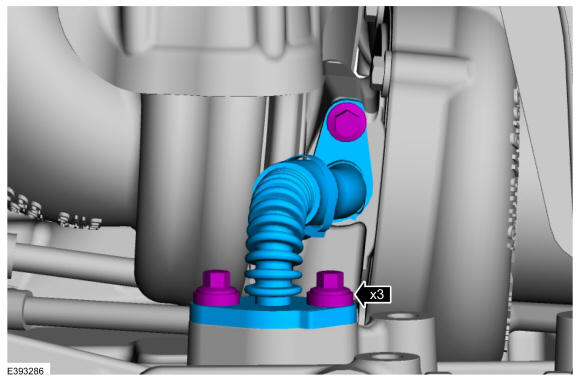

    GFD750901Courtesy of FORD MOTOR COMPANY
  15. Connect the turbocharger electrical connector and attach the retainer.

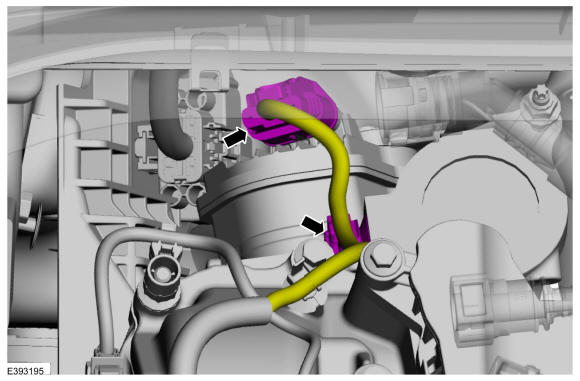

    GFD750881Courtesy of FORD MOTOR COMPANY

    AWD (all-wheel drive) vehicles

  16. Install the catalytic converter and tighten the clamp.

    Torque: 159 lb.in (18 Nm)

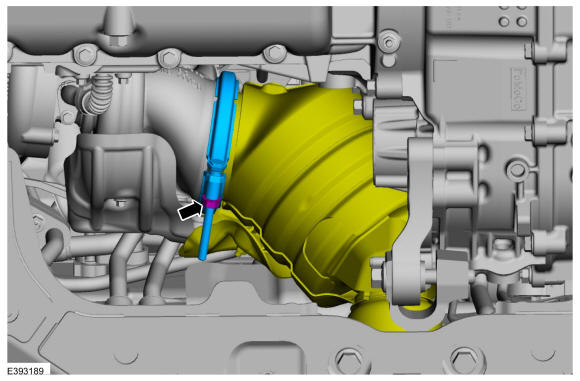

    GFD750876Courtesy of FORD MOTOR COMPANY
  17. Install the catalytic converter support bracket and tighten the nuts.

    Torque:1: 30 lb.ft (40 Nm)2: 35 lb.ft (48 Nm)

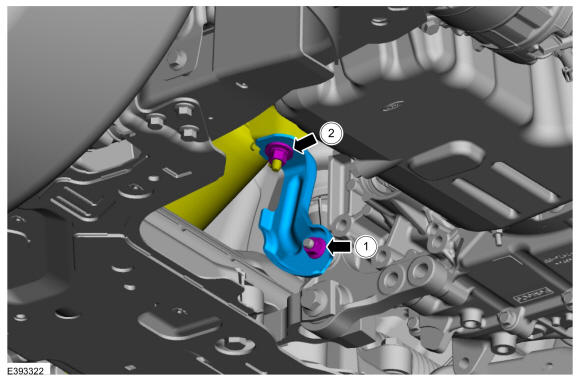

    GFD750902Courtesy of FORD MOTOR COMPANY
  18. Install the power transfer unit. Refer to: Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler . Refer to: Power Transfer Unit - Vehicles Without: Power Transfer Unit Oil-to-Coolant Cooler .

    FWD (front wheel drive) vehicles

  19. Install the catalytic converter. Refer to: Catalytic Converter .
  20. Install the right front wheel and tire. Refer to: Wheel and Tire .

    All vehicles

  21. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  22. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  23. Check the engine oil level and fill as needed. Refer to: Specifications .
  24. Fill the cooling system. Refer to: Specifications .
