1.5L EcoBoost

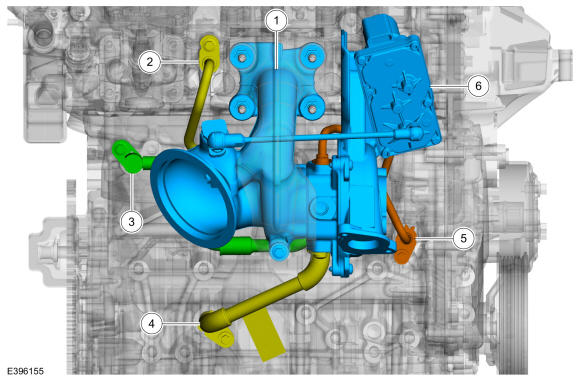

GFD750833Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger
2 Turbocharger coolant return tube
3 Turbocharger coolant supply tube
4 Turbocharger oil return tube
5 Turbocharger oil supply tube
6 Wastegate control actuator
