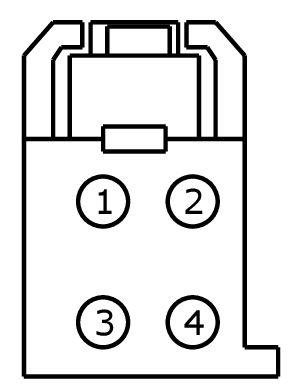

Connector End View C218D - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218D	CLOCKSPRING	BK	PIA	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RHS72 (GN)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT -	N/A
2	VHS81 (GN-WH)	*	THERMISTOR - HEATED STEERING WHEEL +	N/A
3	CHS72 (YE-BU)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT +	N/A
4	RHS81 (VT-WH)	*	THERMISTOR - HEATED STEERING WHEEL -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1311

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-BAA

Gauge:

20

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Seat Height (Front)
• Motor - Seat Recline
